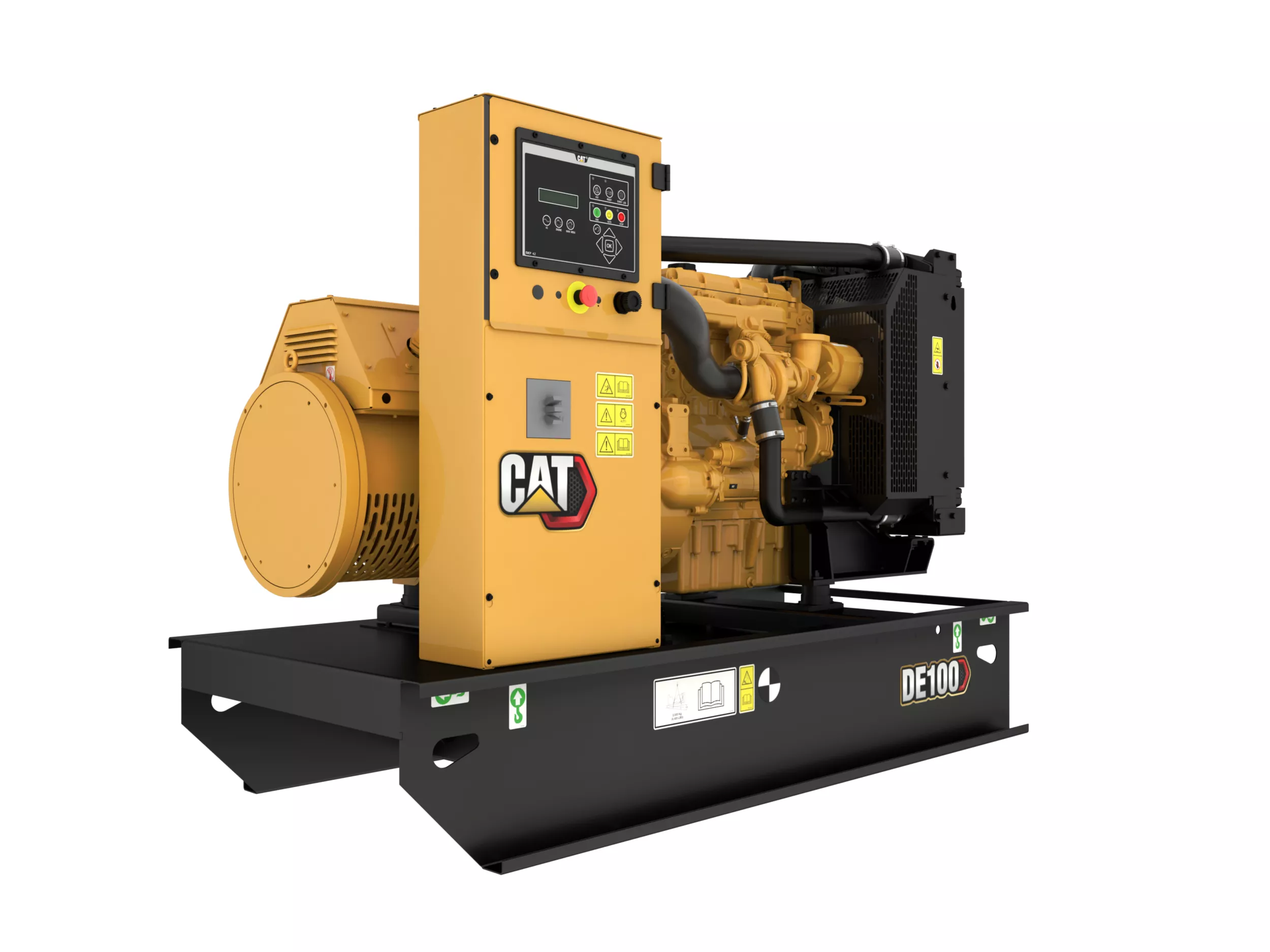

DE100AE0 (60 Hz) | 80.0 ekW Diesel Generator

Diesel Generator Sets C4.4 | DE100AE0

Name: DE100AE0 (60 Hz) Generator Set
Brand: Cat

Request A Price Find Dealer

Search Available Stock

Configure Your Generator

Key Specs

Maximum Rating: 80 ekW; 80 ekW

Minimum Rating: 72 ekW; 72 ekW

Emissions/Fuel Strategy: Non-Certified Emissions; Non-Certified Emissions

C4.4 | DE100AE0
Change model

Overview

DE100AE0 | 80 ekW Diesel Generator Set

Caterpillar generator sets provides reliable energy solutions for every business, every need. Cat generators can be installed as the prime power source or standby service.

Features At A Glance

Displaying 1-6 of 8

Cat Generator Set Package

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-3 steady state and transient response requirements

Cat Diesel Engine

Reliable, rugged, durable design
Field-proven in thousands of applications worldwide
Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

GTA Frame Alternator

Superior motor starting capability minimizes need for oversizing alternator
Designed to match performance and output characteristics of Cat diesel engines
Robust Class H insulation

EMCP Control Panel

User-friendly interface and navigation
Scalable system to meet a wide range of installation requirement
Expansion modules and site-specific programming for specific customer requirements

Cooling System

Designed to operate in standard ambient temperatures up to 55°C (131°F)
Contact your Cat Dealer for specific ambient and altitude capabilities

Certifications

Fully prototype tested with certified torsional vibration analysis available

Cat generator set packages have been fully prototype tested
Accepts 100% block load in one step and meets NFPA 110 loading requirements
Conform to ISO 8528-3 steady state and transient response requirements

Reliable, rugged, durable design
Field-proven in thousands of applications worldwide
Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight

Superior motor starting capability minimizes need for oversizing alternator
Designed to match performance and output characteristics of Cat diesel engines
Robust Class H insulation

User-friendly interface and navigation
Scalable system to meet a wide range of installation requirement
Expansion modules and site-specific programming for specific customer requirements

Designed to operate in standard ambient temperatures up to 55°C (131°F)
Contact your Cat Dealer for specific ambient and altitude capabilities

Fully prototype tested with certified torsional vibration analysis available

Components used in the generator set are selected based on seamless design integration to provide the optimum performance
The generator set is fully assembled at a Caterpillar facility following our quality guidelines
Each generator set package is tested before leaving the Caterpillar facility
Cat product support, including dealer service, parts and warranty covers the entire Cat power system

Cat dealers have over 1,800 dealer branch stores operating in 200 countries
Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements

Specifications Standard Equipment

Product Specifications for C4.4 | DE100AE0

Generator Set Specifications

Maximum Rating	80 ekW 80 ekW
Minimum Rating	72 ekW 72 ekW
Emissions/Fuel Strategy	Non-Certified Emissions Non-Certified Emissions
Voltage	220 to 380 Volts 220 to 380 Volts
Frequency	60 Hz 60 Hz
Speed	1800 rpm 1800 rpm
Duty Cycle	Standby, Prime Standby, Prime

Engine Specifications

Engine Model	Cat® C4.4 Cat® C4.4
Bore	4.1 in 105 mm
Stroke	5 in 127 mm
Displacement	268.5 in³ 4.4 l
Compression Ratio	17.25:1 17.25:1
Aspiration	Turbocharged Turbocharged
Fuel System	Direct Injection Direct Injection
Governor Type	Mechanical Mechanical

Generator Set Dimensions

Length - Maximum	73.6 in 1870 mm
Width - Maximum	33.1 in 840 mm
Height - Maximum	52.5 in 1333 mm
Dry Weight - Genset (maximum)	2247 lb 1019 kg

C4.4 | DE100AE0 Standard Equipment

Engine

C4.4, Inline 4 cylinder, 4 stroke diesel

Control panel

EMCP 4.1 Control panel

Governing system

Mechanical governor

Alternator

GTA Frame standard alternator

Fuel Storage

Single wall 8 hour fuel tank

Enclosure

Modular easy access acoustic enclosure

Air, Cooling & Exhaust

Enclosure silencer

General

Engine and alternator pre-paint, Caterpillar yellow
