Switchgear and Paralleling Controls Cat Switchgear

Request A Price Find Dealer

Key Specs

Configuration
IP4X
IP4X
Operating Temperature
35 °C / 40 °C @ 1 hr, option for 0…50 °C (32…122 °F)
35 °C / 40 °C @ 1 hr, option for 0…50 °C (32…122 °F)
Standard Widths
600 mm for ABB Emax2 E2 1600 - 2500A. 750 mm for ABB Emax2 E4 3200 - 4000A. 1200 mm for ABB Emax2 E6 4000 - 6300A.
600 mm for ABB Emax2 E2 1600 - 2500A. 750 mm for ABB Emax2 E4 3200 - 4000A. 1200 mm for ABB Emax2 E6 4000 - 6300A.

Overview

Cat Paralleling Switchgear is the perfect complement for the control and distribution of your emergency power. Modular and Customizable, our gen switchgear can be designed with protection and control architecture.

Benefits

Up To 25% Footprint Savings

Utilizing Unique Systems Level architecture designs

Voltage Ratings up to 37.5 kW

Indoor, outdoor & arc resistant gen switchgear designs

Control and Information at your fingertips

Systemwide data integration, graphical representation and available connection to site BMS systems for access to all emergency power system status and alarms.

Features At A Glance

Cat

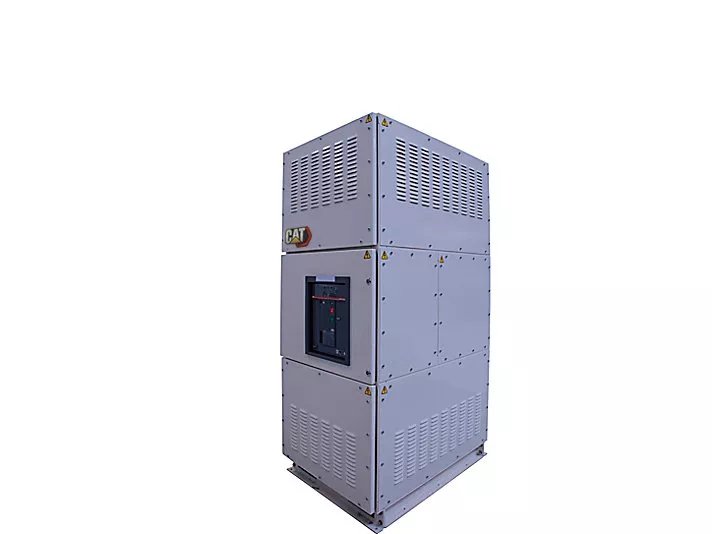

Cat Switchgear

  • Independently certified to meet IEC 61439-2:2011 BS & international standard.
  • Standard ACB breaker range 1600A - 4000A CE & EAC marked.
  • Standard breaker fault rating 65 kA Icc, option for 100kA Icc ABB Emax 2 E4.
  • Certified assembly high fault rating, tested up to 100 kA / 1s ICW
  • Certified standard temperature rise tested.
  • Design verification to Annex D of IEC 61439-2:2011
  • Smaller footprint matched to the generator packaged design.
  • Innovative cableway management.
  • Modularity:
  • Built around 150mm modules in 3 axis.
  • Framework utilises a 25mm grid allowing a fully configurable system.
  • Easy to extend and upgrade.
  • Copper HDHC:
  • Standard 10mm copper with 10mm spacing improves heat rejection.
  •     Stainless steel mounted busbar supports, reduce eddy currents.
  • Fully tinned option.
  • Breaker options:
  • Accommodates fixed or withdrawable breakers.
  • 3 or 4 pole option.
  • Manual or motorized option.
  • ACB door selection option.
  • Enclosure options: o    Options up to Form 4b separation.
  • Configurable for top or bottom entry.
  • Swivel lifting eye (4 point lift) for single sections.
  • IP54 protection option.
  • 50 °C option.
  • Option to include generator controllers or PLC.
  • EPD white powder coated, option for custom colours.
  • In house automated routine testing.
  • Rating plate.
  • Cat warranty.

Product Specifications for Cat Switchgear

Download Print
Configuration IP4X IP4X
Operating Temperature 35 °C / 40 °C @ 1 hr, option for 0…50 °C (32…122 °F) 35 °C / 40 °C @ 1 hr, option for 0…50 °C (32…122 °F)
Standard Widths 600 mm for ABB Emax2 E2 1600 - 2500A. 750 mm for ABB Emax2 E4 3200 - 4000A. 1200 mm for ABB Emax2 E6 4000 - 6300A. 600 mm for ABB Emax2 E2 1600 - 2500A. 750 mm for ABB Emax2 E4 3200 - 4000A. 1200 mm for ABB Emax2 E6 4000 - 6300A.
Standard Heights Heights include 100mm plinth with fork lift pockets, 1900 mm up to 3200A, 2200 mm for 400,2200 mm for PLC and control cabinets. Option for single point lifting on 4 corners with M10 swivel eyes. Standard sizes for shipping Heights include 100mm plinth with fork lift pockets, 1900 mm up to 3200A, 2200 mm for 400,2200 mm for PLC and control cabinets. Option for single point lifting on 4 corners with M10 swivel eyes. Standard sizes for shipping
Standard Depths 300, 450 & 750mm for controls and PLC cabinets. 900mm for fixed breakers. 1050mm for withdrawable breakers 300, 450 & 750mm for controls and PLC cabinets. 900mm for fixed breakers. 1050mm for withdrawable breakers
Technical Summary Modular system enables any configuration Distribution Boards, Motor Control Centers & PLC Control cabinets. Accommodates fixed or withdrawable breakers. Modular system enables any configuration Distribution Boards, Motor Control Centers & PLC Control cabinets. Accommodates fixed or withdrawable breakers.
Application LV 380…480 VAC, 50 Hz, 3-Phase. LV 380…480 VAC, 50 Hz, 3-Phase.
Modes of Operation Switchgear integration options for multi generator and utility synchronising, load sharing, Peak Lopping/Shaving, AMF, Changeover, Load bank connection, Protection relay etc. Switchgear integration options for multi generator and utility synchronising, load sharing, Peak Lopping/Shaving, AMF, Changeover, Load bank connection, Protection relay etc.

Product Brochures and More Are Ready to Download!

See how Cat Switchgear compares against frequently compared products.

Electric Power
Selected
Cat Switchgear
Cat Switchgear
Configuration
IP4X
IP4X
Operating Temperature
35 °C / 40 °C @ 1 hr, option for 0…50 °C (32…122 °F)
35 °C / 40 °C @ 1 hr, option for 0…50 °C (32…122 °F)
Standard Widths
600 mm for ABB Emax2 E2 1600 - 2500A. 750 mm for ABB Emax2 E4 3200 - 4000A. 1200 mm for ABB Emax2 E6 4000 - 6300A.
600 mm for ABB Emax2 E2 1600 - 2500A. 750 mm for ABB Emax2 E4 3200 - 4000A. 1200 mm for ABB Emax2 E6 4000 - 6300A.
Electric Power
Cat Customizable Switchgear and Controls
Cat Customizable Switchgear and Controls
Configuration
Application-specific switchgear with control logic designed to meet any customer's sequence of operations. Examples are 3+ Utilities, CHP applications, complex load shed schemes, etc
Application-specific switchgear with control logic designed to meet any customer's sequence of operations. Examples are 3+ Utilities, CHP applications, complex load shed schemes, etc
Modes of Operation
All modes of paralleling generator sets to each other and to other sources (utility, alternative fuels, wind, etc) can be supported. Caterpillar generation and control experts can design and program the most complex power schemes to meet your critical power needs
All modes of paralleling generator sets to each other and to other sources (utility, alternative fuels, wind, etc) can be supported. Caterpillar generation and control experts can design and program the most complex power schemes to meet your critical power needs
Application
LV and MV ( 208V - 38 kV) 50 / 60 Hz
LV and MV ( 208V - 38 kV) 50 / 60 Hz
View Details
Electric Power
Cat XLM Switchgear
Cat XLM Switchgear
Configuration
Configurable PLC based switchgear capable of controlling and monitoring multiple generator sets, tie, utility and load breakers for utility paralleling applications
Configurable PLC based switchgear capable of controlling and monitoring multiple generator sets, tie, utility and load breakers for utility paralleling applications
Modes of Operation
Emergency Standby, Utility Import/Export, Peak shaving, and base load operations with redundant controls and components. Closed transition to/from generator power
Emergency Standby, Utility Import/Export, Peak shaving, and base load operations with redundant controls and components. Closed transition to/from generator power
Application
LV and MV ( 208V - 38 kV
LV and MV ( 208V - 38 kV
View Details
