Overview

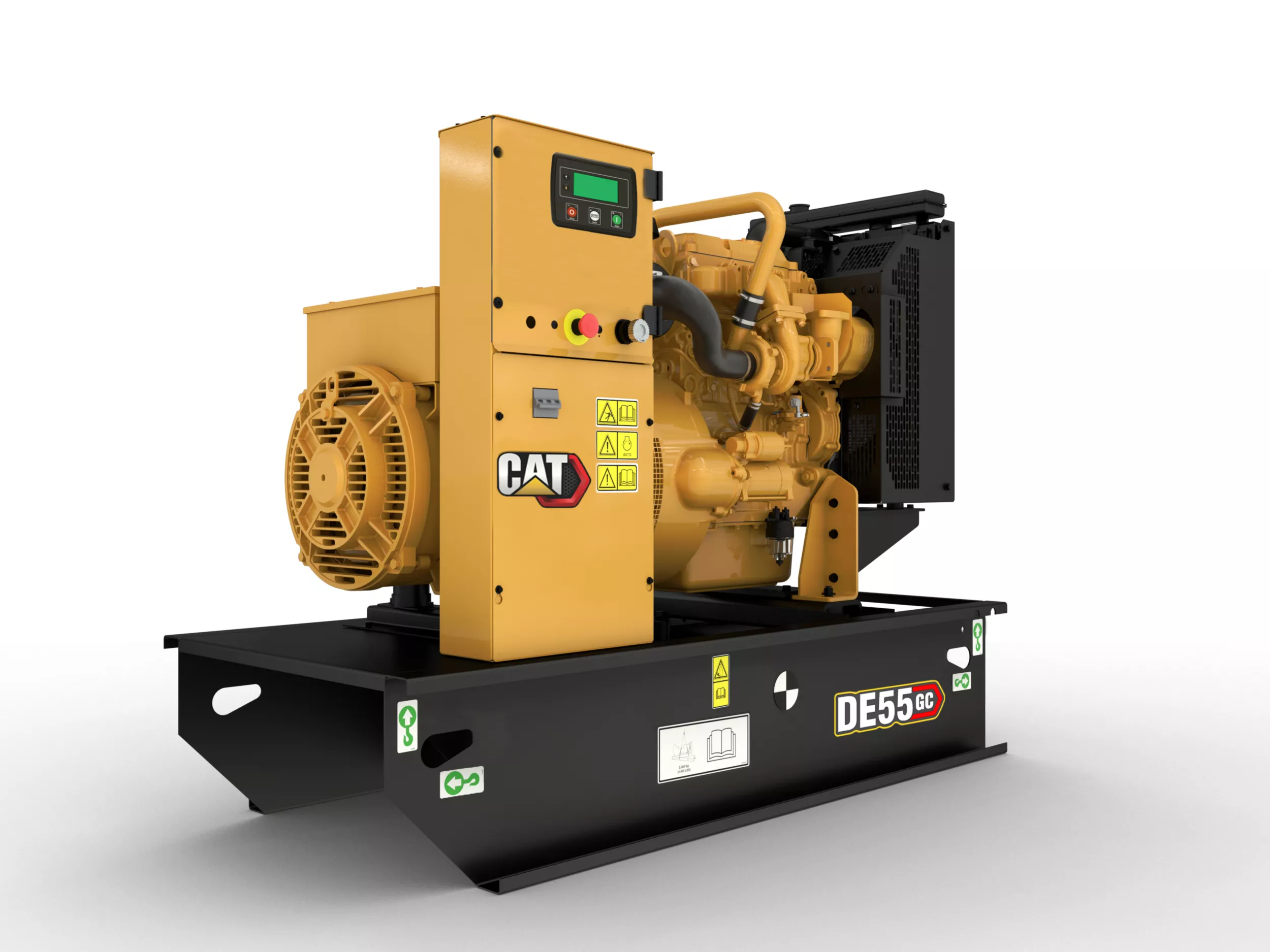

50 ekW Diesel Generator Set
Producing reliable power of 50 ekW at 60 Hz, our DE55 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.
Diesel Generator Sets C3.3 | DE55 GC
Request A Price Find DealerKey Specs
- Frequency
- 60 Hz
- 60 Hz
- Maximum Rating
- 50 ekW
- 50 ekW
- Emissions/Fuel Strategy
- Non Regulated
- Non Regulated
Benefits
Saves up to 21% Installed Space
Requires less space for installation; leaves more room for your on-going operations
Up to 250 Events Logged
GCCP auto mains control panel provides access to historical alarms and operating indicators
Spare Parts 98% Fulfillment within 24 hours
World's best product support network ensures spare parts are readily available for maintenance and service needs
Features At A Glance
Displaying 1-6 of 8
Cat Generator Set Package
- Cat generator set packages have been fully prototype tested
- Accepts 100% block load in one step and meets NFPA 110 loading requirements
- Conform to ISO 8528-5 steady state and transient response requirements
Cat Diesel Engine
- Reliable, rugged, durable design
- Field-proven in thousands of applications worldwide
- Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
A-Frame Alternator
- Superior motor starting capability minimizes need for oversizing alternator
- Designed to match performance and output characteristics of Cat diesel engines
- Robust Class H insulation
GCCP 1.1 Control Panel
- User-friendly interface and navigation
- Scalable system to meet a wide range of installation requirement
- Expansion modules and site-specific programming for specific customer requirements
Cooling System
- Designed to operate in standard ambient temperatures up to 55°C (131°F)
- Contact your Cat Dealer for specific ambient and altitude capabilities
Certifications
- CE Certification Available
- CIS Certification Available
Product Specifications for C3.3 | DE55 GC
Generator Set Specifications
| Frequency | 60 Hz 60 Hz |
| Maximum Rating | 50 ekW 50 ekW |
| Emissions/Fuel Strategy | Non Regulated Non Regulated |
| Voltage | 220 to 480 Volts 220 to 480 Volts |
| Minimum Rating | 50 ekW 50 ekW |
| Speed | 1800 rpm 1800 rpm |
| Duty Cycle | Standby Standby |
Engine Specifications
| Engine Model | Cat® C3.3, In-line 3, 4-cycle diesel Cat® C3.3, In-line 3, 4-cycle diesel |
| Bore | 4.1 in 105 mm |
| Stroke | 5 in 127 mm |
| Displacement | 201.4 in³ 3.3 l |
| Compression Ratio | 17.25:1 17.25:1 |
| Aspiration | Turbocharged Turbocharged |
| Fuel System | Inline Inline |
| Governor Type | Mechanical Mechanical |
Generator Set Dimensions
| Length - Maximum | 76.6 in 1945 mm |
| Width - Maximum | 34.3 in 870 mm |
| Height - Maximum | 48.7 in 1238 mm |
| Dry Weight - Genset (maximum) | 2114 lb 959 kg |
C3.3 | DE55 GC Standard Equipment
Engine
- C3.3, Inline 3 cylinder, 4 stroke diesel
Genset Control
- GCCP 1.1
Governor
- Mechanical governor
Alternator
- A Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
Enclosure
- Cat GC enclosure
Air, Cooling & Exhaust
- Enclosure silencer
General
- Engine and alternator pre-paint, Caterpillar yellow
C3.3 | DE55 GC Optional Equipment
Certification
- Australia, CIS, Gulf Certification
- Certificate of Conformance
Alternator Requirements
- Space heater
Auxiliary Supply Voltage
- 120V
Fuel Storage
- Dual wall 8 hour fuel tank
- Low fuel level shutdown
- Single wall tank with containment
- Low fuel level alarm
- High fuel level alarm
Genset Control
- Battery charger
- Volt free contacts for genset running
- Volt free contacts for common alarm
- Emergency stop with key
- Earth leakage
- USB to RS485 Communications device
- Earth fault
- Panel mounted audible alarm
- Battery
- Standby Pack (Smart Jacket water heater, Battery charger)
- Coolant heater
- Low coolant level shutdown
Circuit breaker
- 3 Pole Circuit breaker 63A
- 3 Pole Circuit breaker 80A
- 3 Pole Circuit breaker 100A
- 3 Pole Circuit breaker 125A
- 3 Pole Circuit breaker 160A
- 3 Pole Circuit breaker 200A
- 4 Pole Circuit breaker 63A
- 4 Pole Circuit breaker 80A
- 4 Pole Circuit breaker 100A
- 4 Pole Circuit breaker 125A
- 4 Pole Circuit breaker 160A
- 4 Pole Circuit breaker 200A
- Circuit breaker padlock
- Neutral earth link
- Overload via alarm switch on breaker
Testing & Packaging
- PGS Test report @ 1.0 power factor
- PGS Test report @ 0.8PF
Package
- Open Set
