Cat® 395 Front Shovel | Powerful, High-Production Mining Excavator Built for Truck Loading

Large Excavators 395 Front Shovel (FS) Tier 4 / Stage V

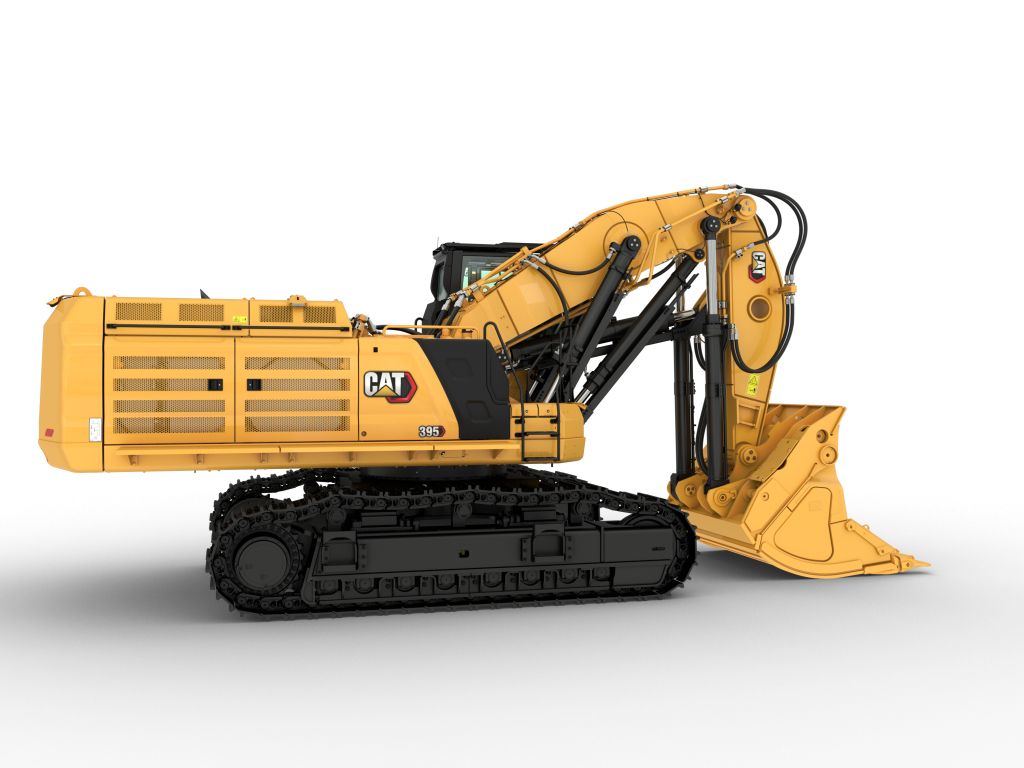

Name: Cat® 395 Front Shovel (FS) Hydaulic Excavator
Brand: Cat

New Used Rental

Request A Price Find Dealer

Key Specs

Net Power - ISO 9249: 542 hp; 404 kW

Operating Weight: 212,300 lb; 96,300 kg

Maximum Digging Depth: 9.7 ft; 2930 mm

395 Front Shovel (FS)
Change model

Overview

Move More Tons. Load More Trucks. Built to Dominate Mining and Quarry Work.

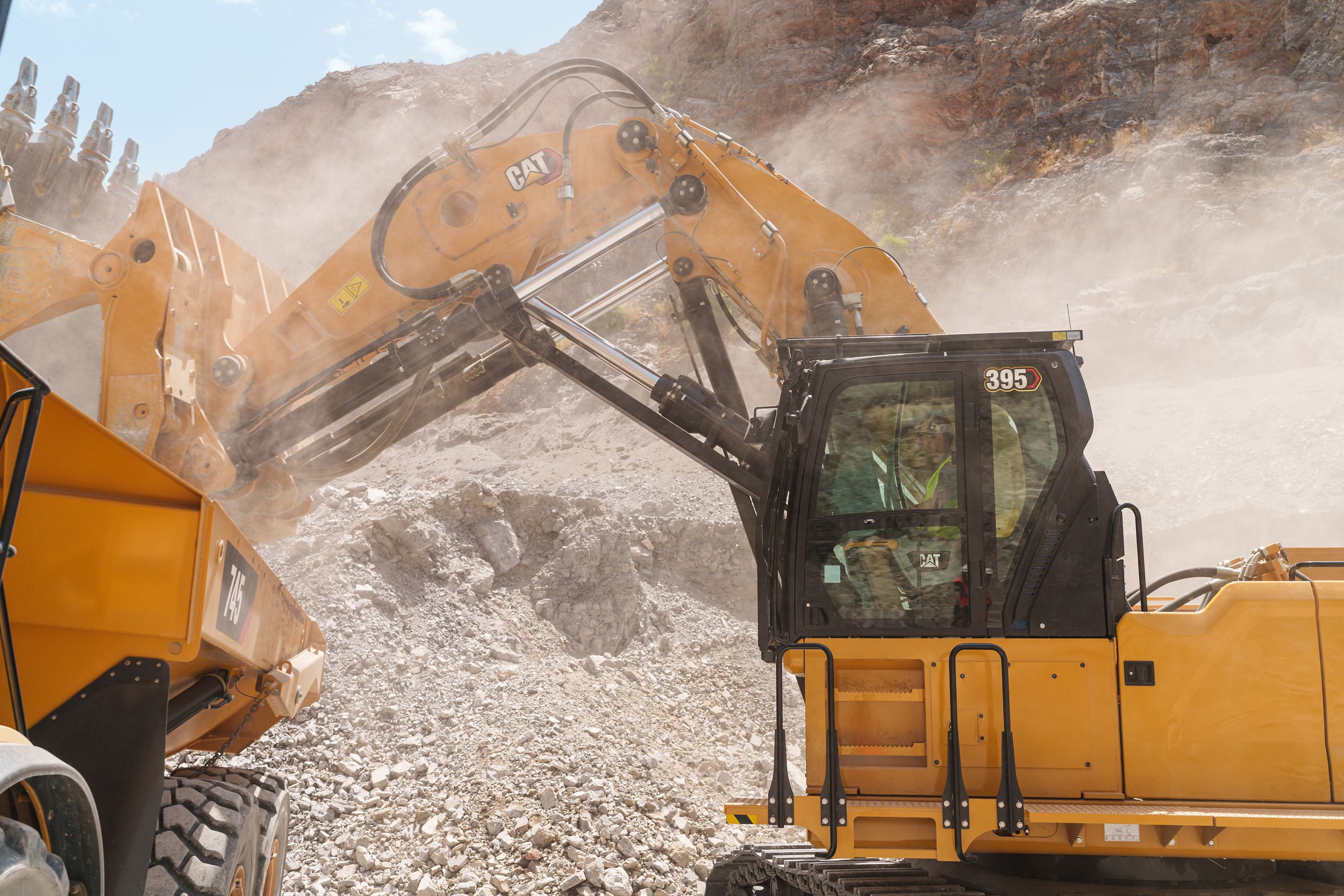

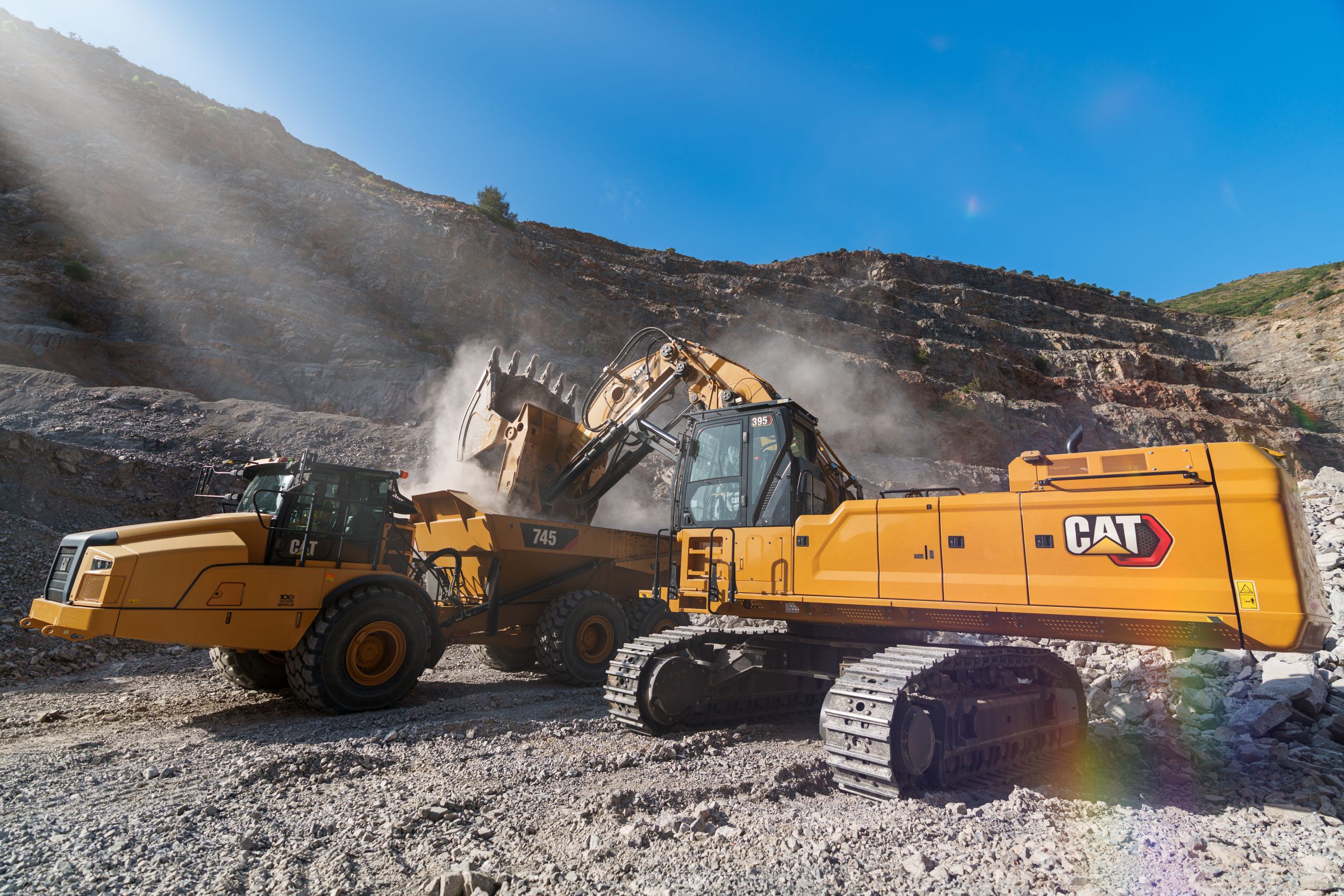

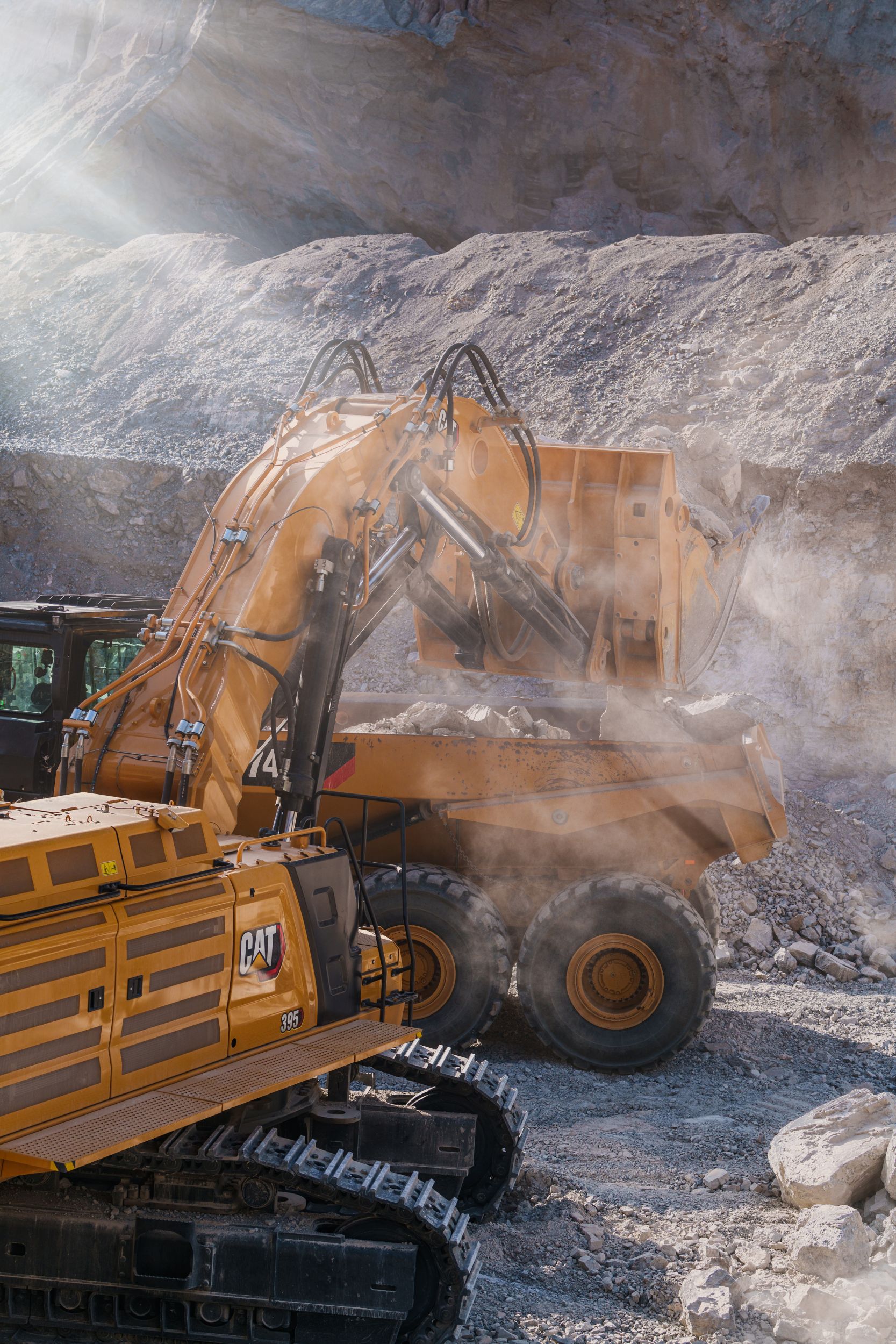

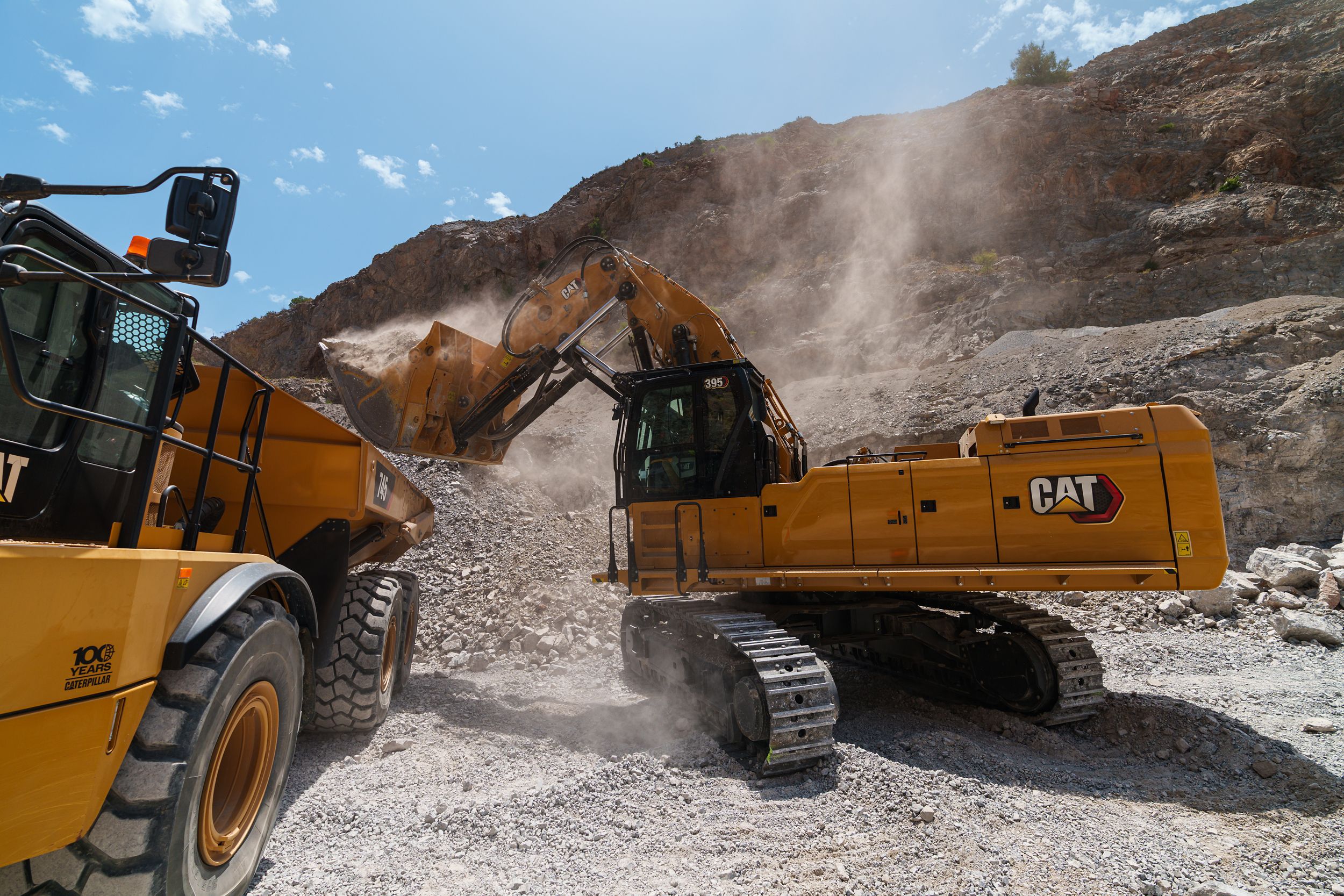

The Cat® 395 Front Shovel delivers powerful digging and fast truck-loading cycles for mining and quarry applications. Its 542 hp C18 engine and 96 300 kg operating weight move more tons per hour with less fuel. Rugged structures, fast hydraulics, and the operator-focused Next Gen cab make it the ultimate high-production, low-maintenance excavator.

Benefits

Maximum Productivity

Exceptional breakout and digging force ensure fast, full bucket loads. Compatible with 5.6 m³–6.5 m³ Severe Duty buckets and supports a 7-ton drop ball for secondary rock-breaking efficiency.

Durable and Easy to Service

Reinforced undercarriage, cylinder guards, and simplified access points cut downtime. Synchronized service intervals and shared Next Gen parts lower owning and operating costs.

Operator-Focused Comfort

A fixed-riser Next Gen cab gives clear visibility into truck beds. Intuitive controls, smooth hydraulics, and low-vibration design reduce fatigue and boost cycle consistency.

Features At A Glance

Displaying 1-6 of 10

Latest Features

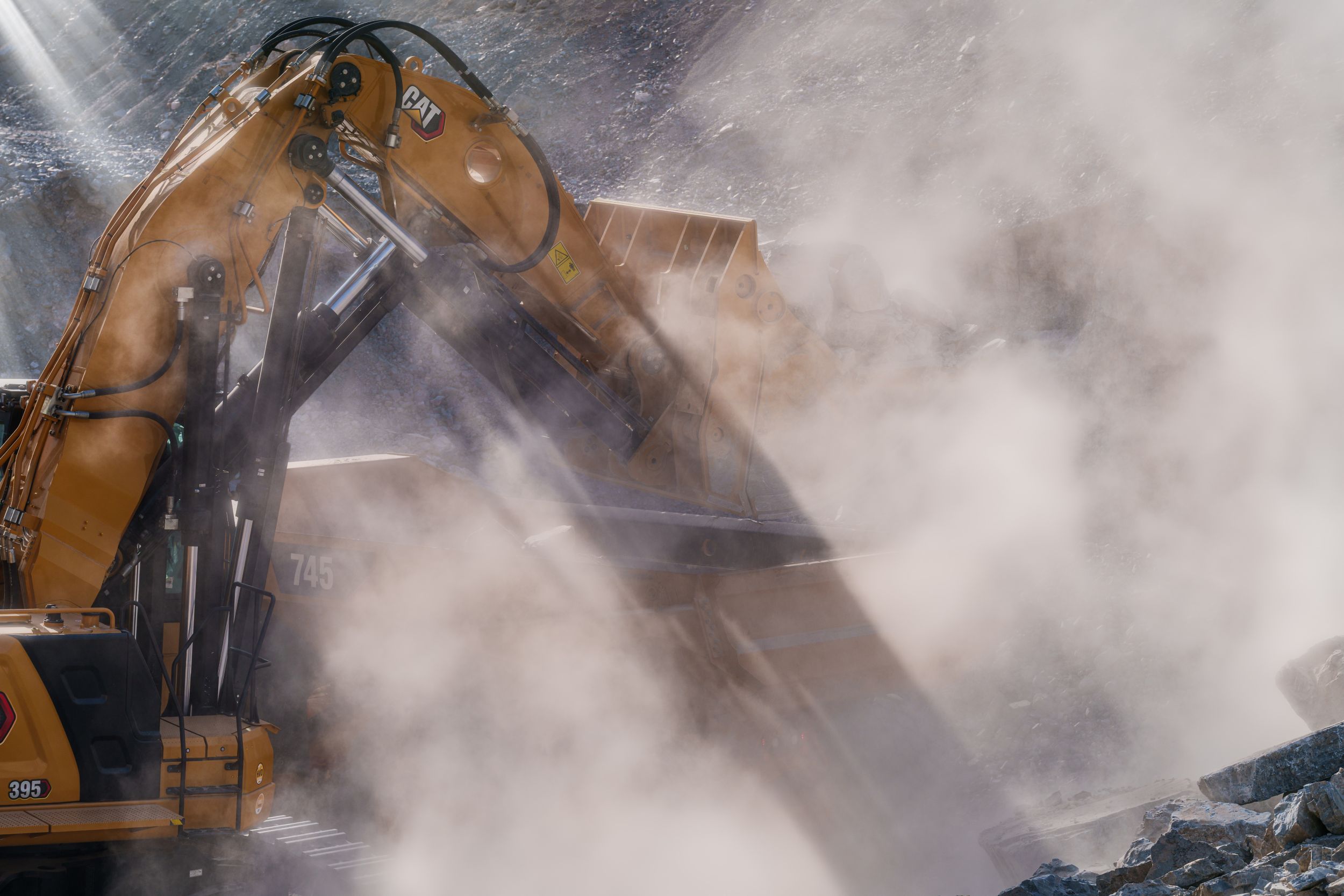

The 395 Front Shovel delivers maximum ground-level digging force up to trailer height, along with a breakout force at the bucket cutting edge, for superior material penetration and optimal bucket fill factors.
Compatible with buckets ranging from 6.5 m³ SD bucket (max density: 1.65t/m³, low impact and abrasion) to 5.6 m³ SD bucket (max density: 1.85t/m³, high impact and abrasion), this helps boost productivity and profitability.

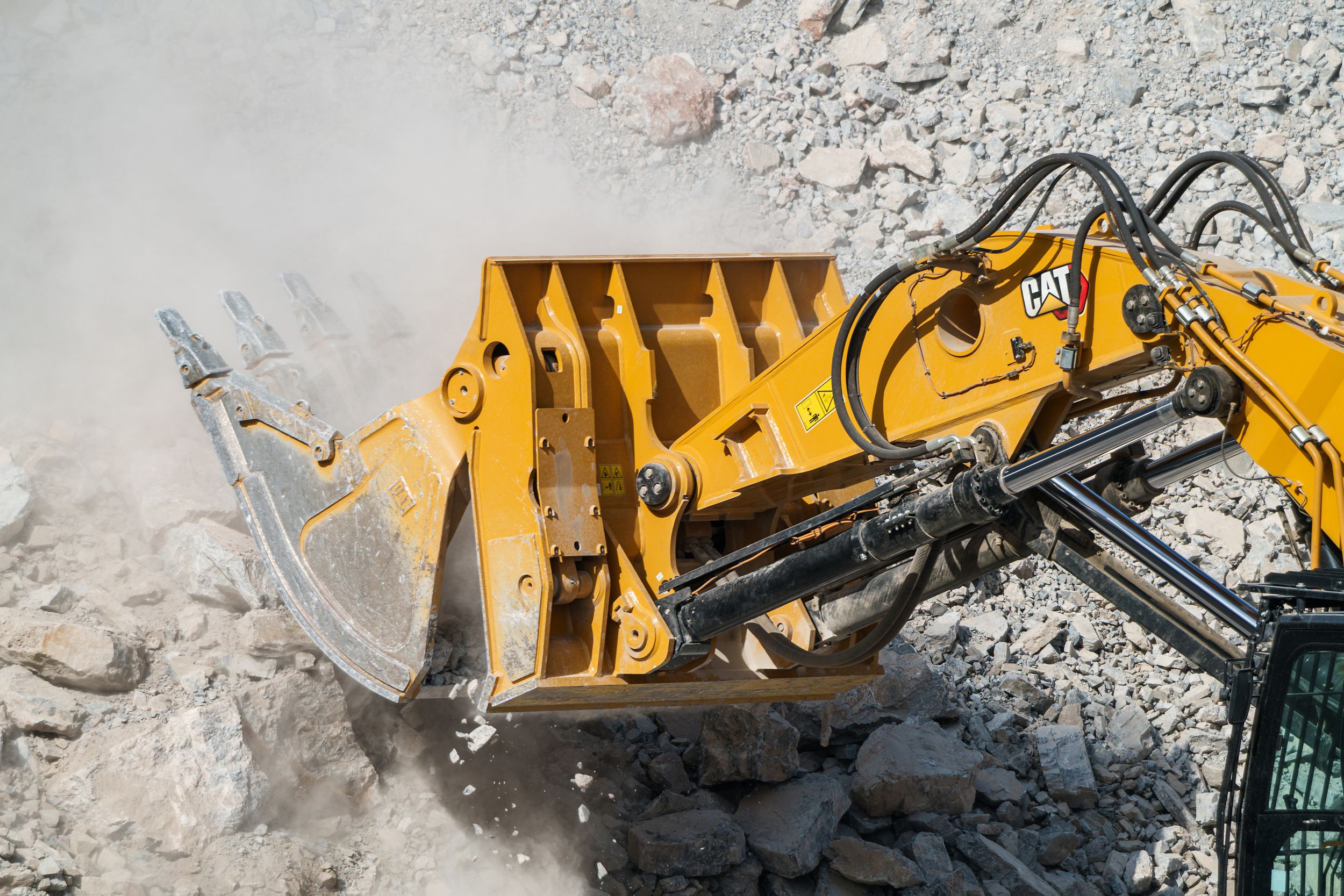

Capable, versatile bucket clamp force design holds a 1.33 m 7 t steel drop ball for secondary breaking applications
Engineered with a parallelogram-type front linkage and master cylinder, which allows the operator to maximize machine capability with ease by keeping the bucket parallel to the ground.
The operator-oriented controllability helps operators consistently deliver optimized material penetration, fast loading, sorting, and breaking cycle times, and smooth floor clean-up.
Equipped with the Next Gen cab on a fixed riser allowing the operator to see above the side of the truck body while loading, providing premium work task and jobsite visibility.
Cab is outfitted with an ergonomic seat, touchscreen display, climate control, noise insulation, and vibration reduction, helping reduce fatigue while allowing the operator to stay on task.
The reinforced, durable undercarriage and additional cylinder guards help reduce machine wear and tear while protecting your investment.
Cat long-life fuel and hydraulic oil filters with extended and synchronized service intervals help reduce maintenance costs and downtime.
Cat Next Generation Excavators share common parts, exceptional customer service, and superior product support, providing you with more uptime.

Build Number: 07H

Performance Powerhouse

Work up to 3000 m (9,840 ft) above sea level without de-rating.
The exclusive hydrostatic swing circuit features a dedicated bi-directional swing pump, swing motors, a charge pump, and a charge accumulator. The swing pump supplies oil to the swing motor; the charge pump and charge accumulator prevent cavitation (the formation of air bubbles) and overheating. The circuit enables the regeneration of swing brake energy and independent management of cylinder oil flow, resulting in higher efficiency and smoother, more predictable performance when multitasking with the excavator.
Powerful swing torque easily handles changes in momentum, uneven terrain, and consistent high-impact connections, helping operators make their work swift and precise.
Caterpillar manufactures parts to withstand harsh conditions. The company uses only high-quality materials to create parts that withstand hours of rigorous use. That’s why Cat stands out— the brand’s reputation is built on the exceptional durability of its machines.
Did you know baffle plates help increase an excavator’s strength-to-weight ratio? That is why Caterpillar incorporates plates in high-stress areas, such as the boom, stick, and frame. Reinforcing the machine without adding significantly more weight also helps provide years of reliable performance, even in the harshest environments.
The cylinder rods are reinforced with additional wear rings to help reduce oil leaks. The car body features thick baffle plates for extended service life. The thick track link has large bolt joints to help maintain bolt retention. Track rollers feature a large shaft diameter to help prevent bending and oil leaks while increasing the 395’s loading capacity, resulting in more reliable production for you.
Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering the undercarriage, helping extend its life.
The center track guiding guard helps align the excavator track when traveling and working on slopes.
The sloped track frame prevents the accumulation of mud and debris, helping reduce the risk of track damage.
Advansys™ bucket tips increase penetration and improve cycle times. Tip changes can be performed quickly with a simple lug wrench, eliminating the need for a hammer or special work tool, thereby enhancing safety and uptime.
Match the excavator to the job with three operating modes: Power, Smart, and Eco.
Smart mode automatically adjusts power for optimal fuel efficiency, providing less power for tasks like swinging and more power for digging.
Enhanced heavy lift mode increases system pressure to help you quickly pick up and place heavy material.
Auto warm-up speeds up the warming of hydraulic oil in cold temperatures, helping to prolong the life of components.
Don’t let the temperature stop you from working. This excavator has a high-ambient capability of 52 °C (125°F) and a standard cold start capability of –18 °C (- 0.4°F).
The engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards with an aftertreatment system that requires no operator input or downtime.

Exceptional Efficiency Through Technology

With the touch of fingertips and navigation of user-friendly icons, the latest operator-oriented User Interface (UI) maximizes uptime and gets crews to work without delay.
The interface enables operators to maintain accuracy and maximize every second of their shift. It also makes it manageable for a single person to check and adjust for bucket wear
VisionLink™ provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
Cat® Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.

*Data field availability can vary by equipment manufacturer.
Availability may vary by region. Please consult your local Cat Dealer for more details.

Dedicated Service and Superior Support

When you purchase Cat® equipment, you receive more than just the machine. You’re also getting the support of a best-in-class dealer network backed by a range of flexible solutions, technology, tools, and more.

When you work with your local Cat dealer, you'll be supported by one of the industry's most extensive, knowledgeable dealer networks. Comprising 160 independent dealers, the Cat Dealer Network serves 197 countries through thousands of branches worldwide.

It’s more uptime, cost-saving service and repair options, quality parts, and precision components. It’s all about support built around your success.

The Importance of Buying Genuine Cat® Parts

Designed by Caterpillar engineers to the exact specs of your Cat equipment.
Rigorously tested to ensure maximum performance.
Covered by a 12-month warranty.

Cat Inspect – Work made easy.

Record real-time inspection data.
Simplify inspections and reporting.
Easy-to-read results all in one place.

Cat Ground Engaging Tools (GET) – Longer wear. More work.

GET for every machine and application.
Tools to extend life and track GET lifecycles.
Bucket rebuild options for optimal performance.

Cat Hydraulic Components – Quality durability you can work with.

Flexible options – New, remanufactured, exchanged, rebuilt, or repaired.
Expert diagnostics, testing, and contamination control.
Buy in-store, online, or on your mobile device.

Cat Hose Service – Fast and safe to get you back to work.

Hoses and couplings for most makes and models.
OEM database ensures an exact fit.
Industry-best tooling, training, and assembly standards.

Cat Certified Rebuild – An Investment That Works. Again, and again.

Better-than-when-new performance at a fraction of the cost.
Performance, safety, and technology upgrades and enhancements.
Full warranty coverage, Customer Value Agreement, and special financing.

Cat Remote Services – Work is done in a flash.

Cut downtime for updates and service.
Install the latest machine software remotely.
Troubleshoot issues before a technician arrives.

Cat Repair Options – Choices that work.

Broad range of options matched to your needs, budget and timeline.
Expert service and repair advice from your Cat dealer.
Timely quote and repair.

Quality Replacement Parts
When you purchase a Cat machine, finding replacement parts is simple. We manufacture and stock our replacement parts so you can easily find and order new parts as necessary using our Parts.Cat.com portal. Instead of relying on a supplier, you can go directly to the source for your Cat parts.

Save time hunting down the right part when you purchase from the same brand that has served you for years. The benefits of Parts.Cat.com include:

Convenience: You can quickly order the parts you need with this user-friendly platform. Store your information, view your order history, and get order information all from the same website.
Knowledge: At Parts.Cat.com, you can find more than just the parts you need. There are informational guides and articles to help you learn more about your equipment and the parts that go with it.
Support: If you have questions about the part you need, you can always contact your local Cat dealer for assistance and helpful information.

Wide Inventory
If you have a job requiring a specific tool or capability, you can find an option from Caterpillar. With models for everything from large-scale construction jobs to landscaping to agriculture, we are here to help you get the job done.

Like New Again
Cat Reman products help expand service offerings for our customers by providing the quality and precision of new Cat parts while lowering the total cost of ownership and reducing the need for raw materials. Cat parts are remanufactured to strict quality standards, offer new performance, have a long, reliable service life, and a same-as-new Cat parts warranty. Over-the-counter availability gives customers more options at repair and overhaul time, providing maximum productivity at lower costs.

Once a product reaches the end of its serviceable life, the returned core arrives at a Reman facility where it is disassembled down to the smallest part, losing its original identity. Each element is cleaned and inspected against strict engineering specifications to determine if it can be effectively salvaged. Accepted worn-out components are then converted into production-ready material through advanced salvage techniques, which use the same rigorous engineering process that goes into new Cat machines.

A leader in remanufacturing technologies and processes, Cat Reman returns products to the same-as-new condition at the end of their serviceable lives and helps reduce owning and operating costs by providing our customers with the same-as-new quality at a fraction of the cost of a new part. Through remanufacturing, Caterpillar reduces waste, lowers greenhouse gas production, and minimizes the need for raw materials.

Rebuild for Second Life and Beyond
Cat excavators and other Cat machines are designed to be rebuilt. Through the Cat Certified Rebuild Program, you can get a like-new excavator with a like-new warranty at a fraction of the cost of a comparable new model—all to reduce waste and drive down your lifetime operating cost.

The program starts with a thorough inspection. Then, the excavator is disassembled and rebuilt from the ground up, including all Cat product updates. More than 350 tests and inspections ensure the same high level of quality as a new Cat excavator.

Consult your Cat dealer for more information.

Easy and Economical Maintenance

The 395 Front Shovel's (FS) extended and synchronized service intervals, along with reduced hydraulic oil capacity, help you save time and money.
The excavator is auto-lube ready with built-in mounting points. An available auto-lube retrofit kit provides additional hardware to mount a grease pump and line guards, all designed to help do the job of lubrication trouble-free.
Boost productivity with proactive service reminders. The Integrated Vehicle Health Management system alerts the operator with step-by-step service guidance and identifies the necessary parts, ensuring you avoid unnecessary downtime.
Track your excavator’s filter life and maintenance intervals via the in-cab monitor.

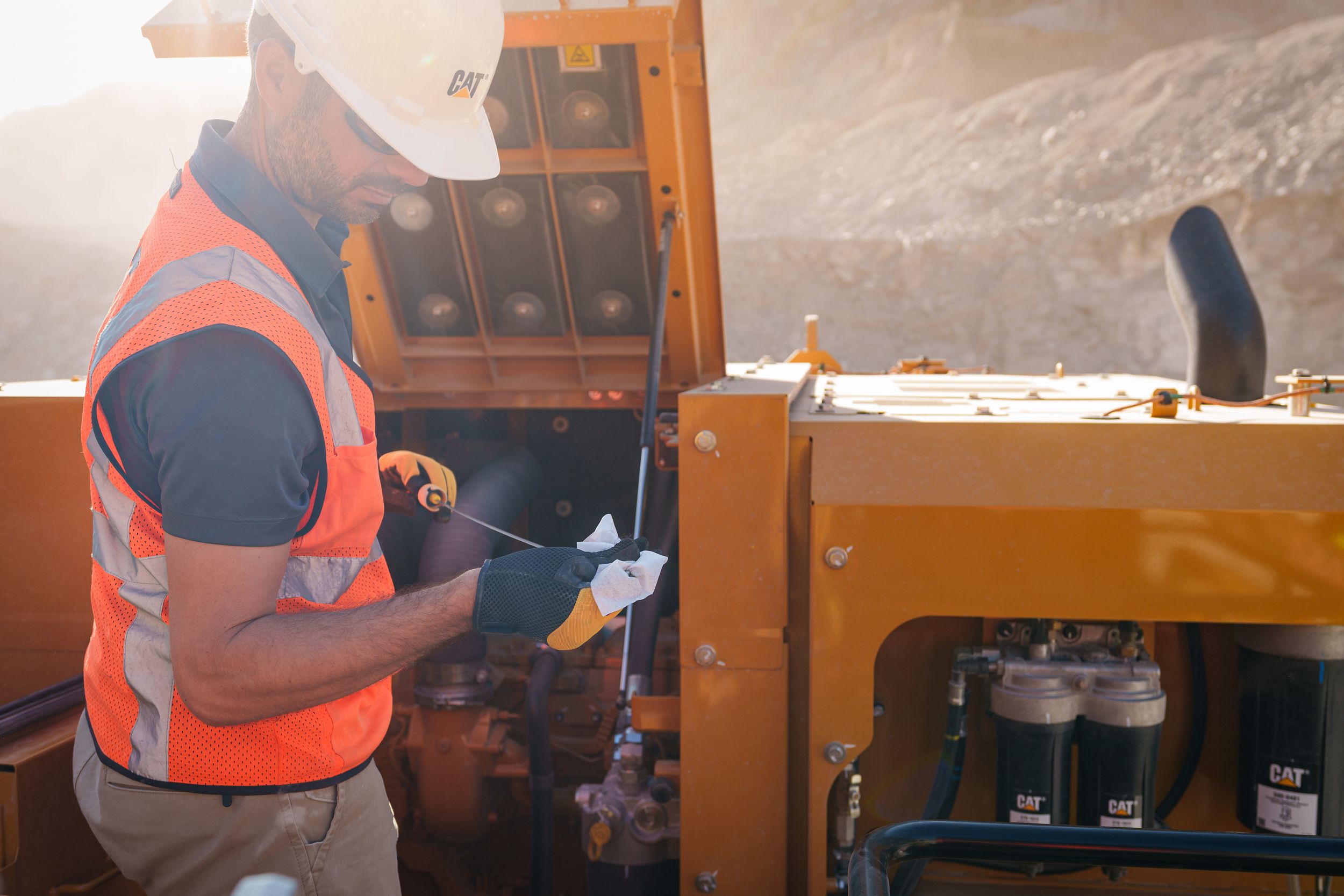

Fuel and engine oil filters are accessible from the upper platform and are synchronized for replacement at 1,000 hours.
The latest hydraulic oil filter offers high-quality filtration performance and features anti-drain valves to maintain oil cleanliness after replacement. Additionally, the 3,000-hour extended replacement interval provides enhanced efficiency and convenience.
Scheduled Oil Sampling (S·O·S^SM) ports with extended sampling intervals are located at ground level, simplifying maintenance and allowing for quick and easy extraction of samples for fluid analysis.
Using Cat genuine oil and filters, along with typical S∙O∙S monitoring, will extend the current service interval, providing you with more uptime.
The high-efficiency hydraulic fan features a programmable automatic reverse function, keeping cores free from debris and eliminating the need for operator interaction.
The advanced air intake filter, equipped with a pre-cleaner, features a high dust-holding capacity.
The latest engine air cleaners, with an integrated pre-cleaner, surpass the lifespan of radial seal air cleaners.
Even with the reliability of Cat equipment, heavy-duty machinery requires upkeep to keep everything working smoothly. The team at your dealer can assist you in maintaining your machine from the moment you purchase it.
Whenever your equipment needs replacement parts or annual maintenance, you can count on the team of trusted mechanics at your local Cat dealer to provide expert care.
When properly cared for, Cat equipment owners can expect thousands of working hours. Mindful operation backed by regular maintenance and preventive measures can help keep your Cat machinery working for years.

Ultimate Operator Comfort

Sites where excavators work are typically rugged and challenging. That’s why it’s essential that the 395 Front Shovel (FS) cab helps protect the operator as much as possible from fatigue, stress, noise, and extreme temperatures associated with the job.

The comfort and efficiency of movement help keep operators productive and alert throughout the entire shift. The standard seat is wide and adjustable for operators of virtually any size.

The tip-up left console makes getting in and out of the seat easy.

The Premium cab includes a heated and cooled air suspension seat.

The cab is sound-suppressed and sealed.

Advanced viscous mounts reduce cab vibration

Control the excavator comfortably with easy-to-reach controls located in front of you.

The touchscreen monitor provides easy access to critical information and settings. Shortcut keys make it easy, and two are for entertainment, heating, and air conditioning. There is also a shortcut key for apps and functions that you can set.

Standard automatic climate control maintains a comfortable temperature throughout your shift.

Convenience features include a Bluetooth®-integrated radio, USB charging and phone connectivity ports, 12V DC outlets, and an auxiliary (AUX) port.

Cup and bottle holders are easily accessible, and storage spaces are conveniently located throughout the cab.

Store your gear in various locations, including in-cab storage beneath and behind the seat, overhead, and in the consoles.

Not all features are available in all regions.

Please check with your local Cat® dealer for specific offering availability in your area.

Safely Home Every Day

Operator ID keeps your excavator secure. To enable the push-button starting feature, use your PIN code on the monitor or the optional Bluetooth key fob.

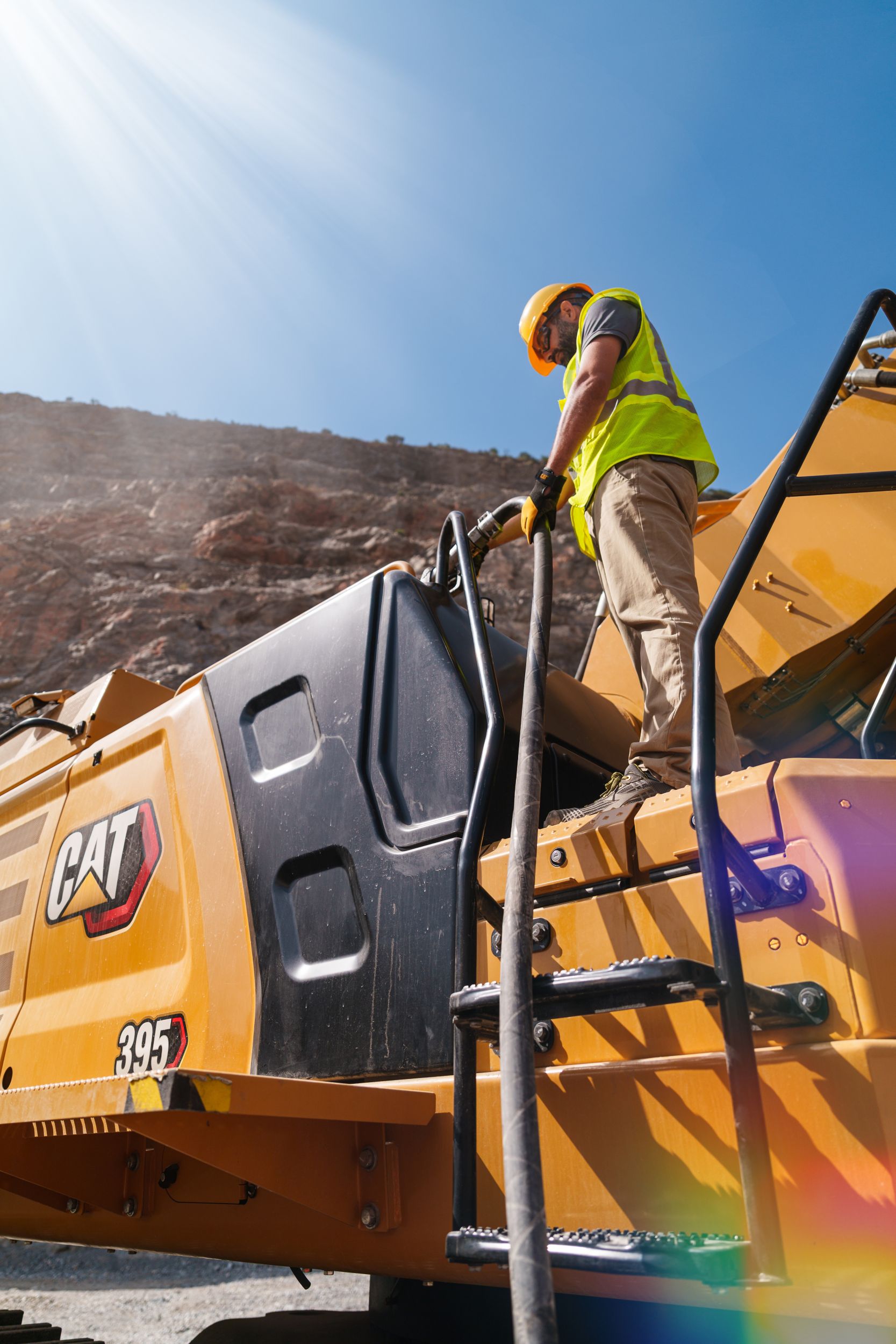

Serrated steps, anti-skid plating, and handrails help you avoid slips and trips – a major contributor to workplace injuries.

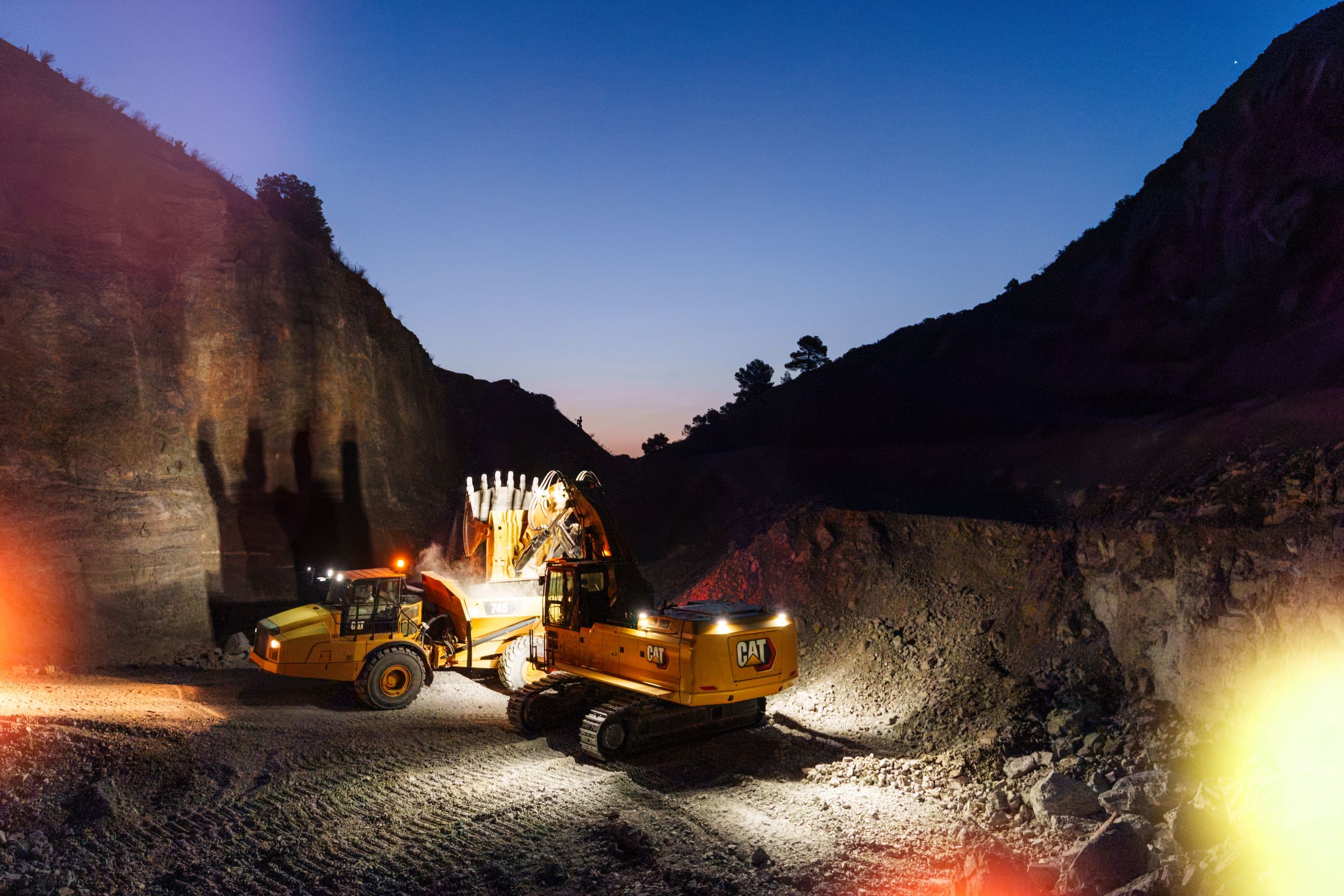

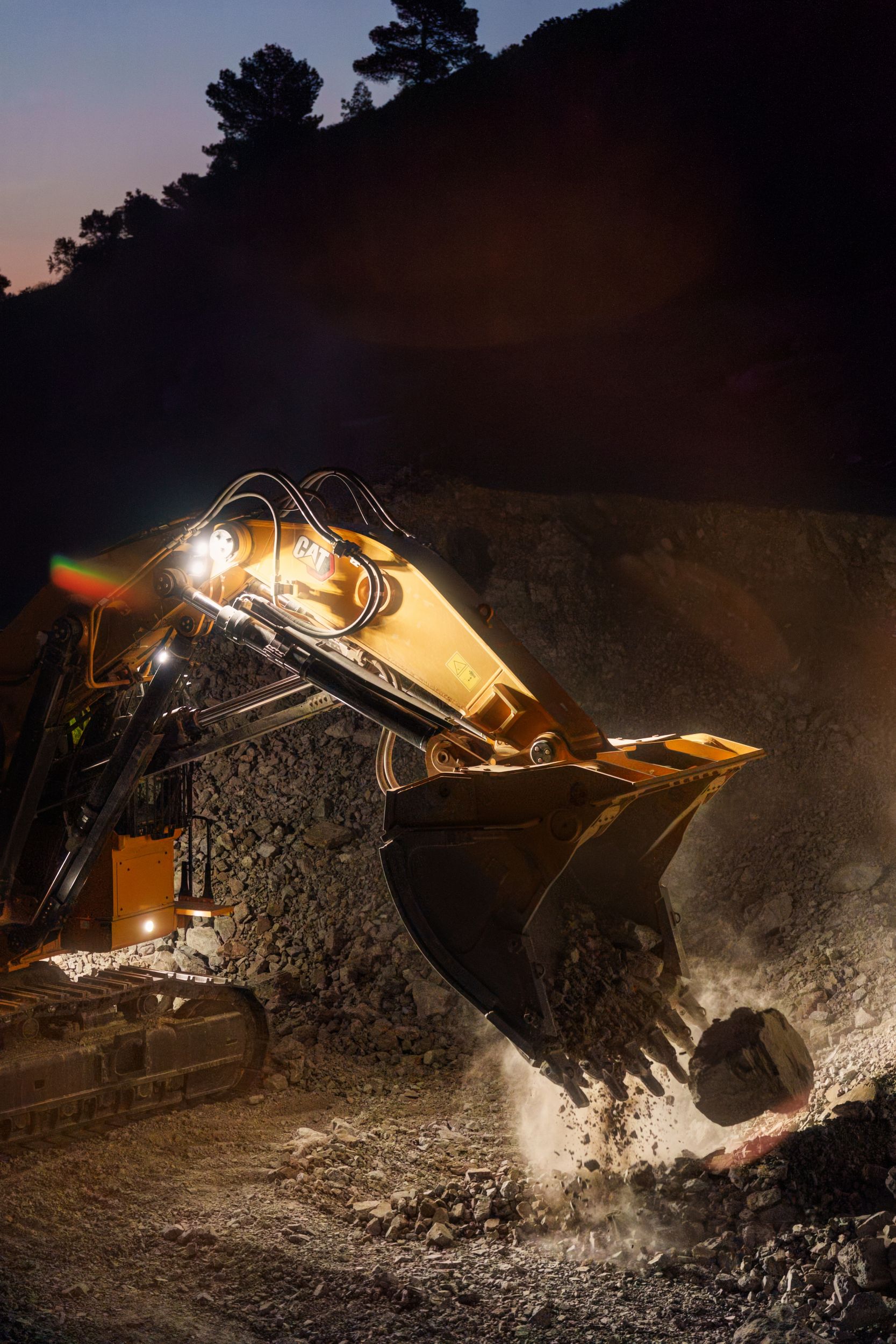

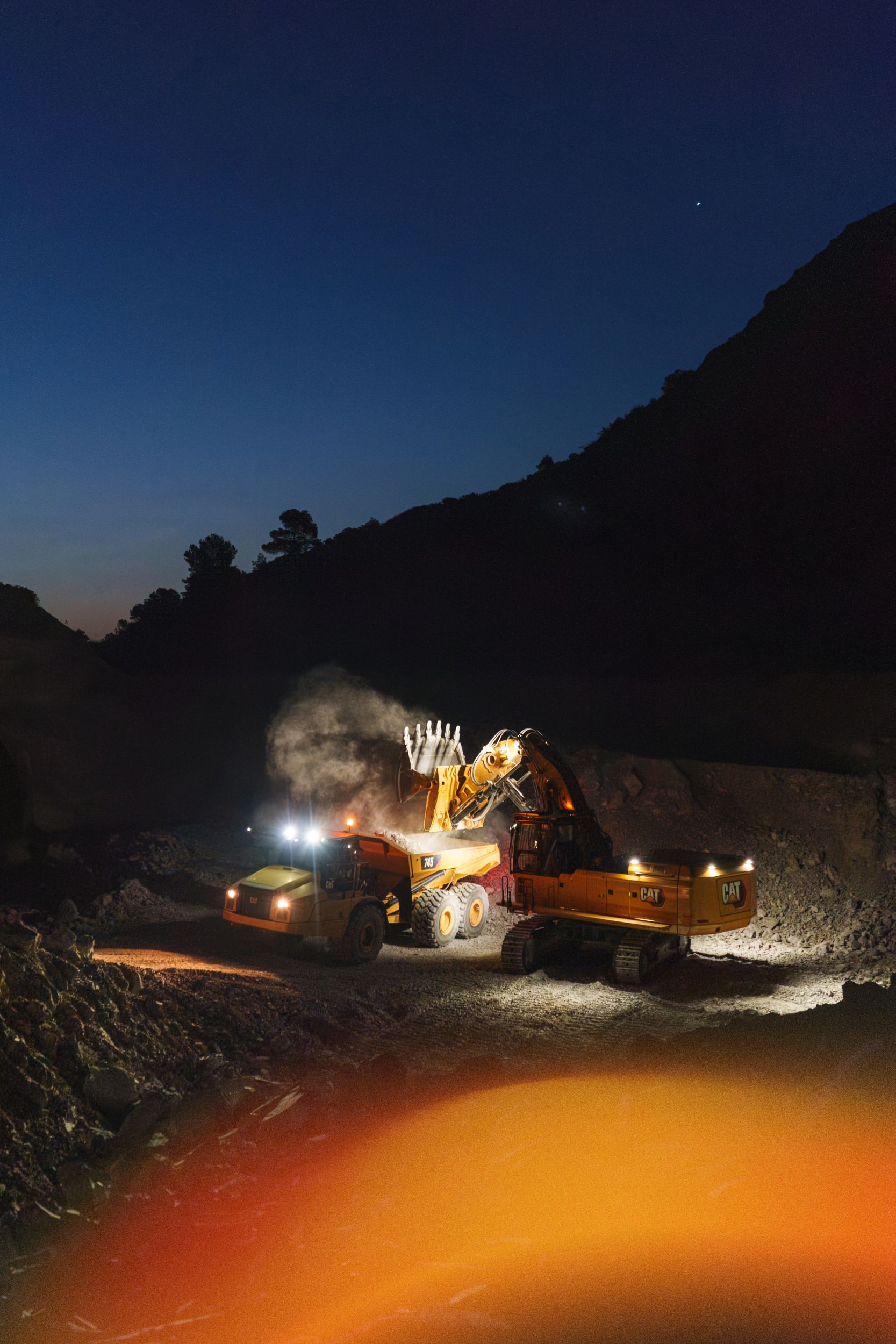

See all around the machine with the premium 360 lighting package. The 1800-lumen lights on the chassis, cab, boom, sides, and rear illuminate the jobsite for operators and ground personnel.

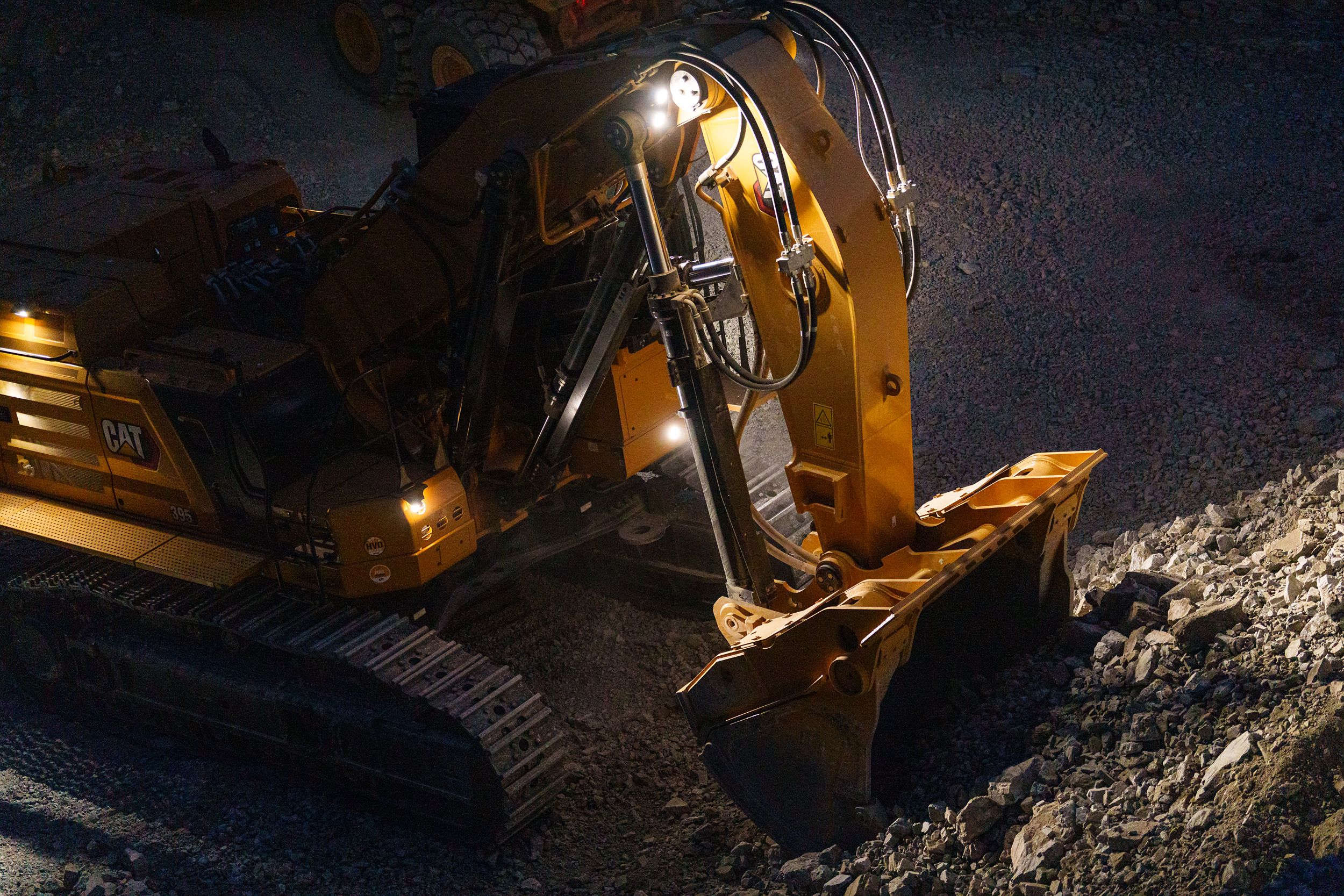

Add an optional inspection lighting to illuminate the engine, pump, battery, and cooling compartments, making service work more accessible.

Consider adding Cat® Command to your fleet. The remote-control system keeps you away from potential hazards. The non-line-of-sight kit features a Wi-Fi radio, cameras, and a microphone, allowing it to work anywhere.

Small cab pillars, large windows, and a flat engine hood design provide excellent visibility into the trench in all swing directions and behind you.

Add a swing alarm to alert people when rotating from the trench to the stockpile.

Rear and right-hand-side view cameras are standard. Upgrade to 360° visibility, and you’ll easily visualize objects and personnel around the excavator in a single view.

A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.

The right-hand service platform design facilitates easy, safe, and quick access to the upper service platform. The service platform steps feature serrated edges and an anti-skid punch plate to prevent slipping. The handrails comply with ISO 2867:2011 requirements.

Intuitive and Empowering to Operate

The 395 Front Shovel (FS) uses a keyless push-button engine start. This adds security for the machine by using Operator ID codes to limit and track machine access. Codes can be entered manually via an optional Bluetooth key fob.
Most machine settings can be controlled through the high-resolution touchscreen monitor. It offers several languages and is easily accessible from the seat – no twisting or turning is required.
Operating can be made easier with the touch of a joystick button. The joystick function can be customized through the monitor. The joystick pattern and response can be adjusted to match the operator's preference. * All preferences are saved with the Operator ID and restored at login.
Make moving the excavator much easier with Cat® Stick Steer. Push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.
You can also add an auxiliary relay to power on or turn off a CB radio, beacon light, or other attachment so you don’t have to take your hands off the joysticks.
Not sure how a function works or how to maintain the excavator? Always have the operator’s manual readily available on the touchscreen monitor.
Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.
Caterpillar’s Equipment Training Solutions (ETS) team develops and executes training programs for Cat equipment operators and jobsite supervisors, and certifies operators in the Cat® dealer network. The comprehensive training solutions help operators maximize production and improve safety through a variety of training solutions including eLearning, instructor-led, simulators, and custom training programs. To learn more about Cat Operator Training, visit www.catoperatortraining.com.

Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area.

Sustainability

The Cat® C18 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, minimizing costly downtime, and monitoring jobsite safety – which can help improve fuel efficiency and reduce greenhouse gas emissions.
Auto Engine Speed Control helps reduce unnecessary fuel consumption and greenhouse gas emissions by allowing the engine to automatically enter idle mode when the machine is not in use.
Extended maintenance intervals help reduce downtime and decrease the amount of fluid and filters replaced over the machine's life.
Cat VisionLink™ displays the CO2 emissions for monitored assets, calculated by fuel type, for the Runtime Fuel Burned each day within a selected date range.

*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Solutions for Your Success

Financial Solutions to Fit Your Business
You can count on Cat Financial to provide your business with the best finance and extended protection solutions. For 100 years, Caterpillar has been building the world's infrastructure and partnering with independent dealers to drive positive and sustainable change worldwide.

For over 30 years, we have helped our customers succeed through excellence in financial services. We offer finance, lease, and extended protection services for nearly every market Caterpillar and its dealers serve — including heavy and general construction, forestry, mining, marine, industrial, quarry and aggregates, and power generation.

Whether you are looking to finance equipment, acquire working capital, improve cash flow, or protect your investment, we understand your business and can provide the solutions you require.

Putting the Value in Customer Value Agreements
Cat® Customer Value Agreements (CVAs) are easy ownership plans fit to your business needs in order to help extend equipment life and maximize your investment. Whatever your industry, whatever your Cat product — keeping it in excellent condition means more production and lower costs. That’s a CVA.

What Comes in a CVA? Each CVA offers different elements depending on the industry and Cat product. View the above pages to learn specific CVA details. But for any CVA, you can expect these four areas of ownership value.
Hassle-free Ownership - CVAs bring together dealer advice, easy parts acquisition, plus options for flexible payment terms.
Hassle-free Maintenance - Getting the right Genuine Cat Parts delivered to the right place at the right time makes it easier for maintenance to get done. Service options are flexible to meet your needs.
Security of Expert Dealer Support - Cat CVAs are customized plans that offer troubleshooting, diagnostics and repairs with Genuine Cat Parts. If you need trained technician assistance, there are options for that too!
Peace of Mind from EQUIPMENT Health Management - You get easy access to monitoring tools with a Cat CVA. Digital tools give you the ability to access important operating parameters for your business anywhere you have an internet connection.

Steady Market Value
Heavy machinery loses its market value over time as it accumulates wear and usage, meaning you can expect a marked decrease in value if you ever try to sell it.

However, the market value of used Cat products is relatively stable, so even if you purchase used equipment, the value tends to remain steady.

When given proper maintenance and care, a new or used Cat machine can help you maximize your productivity and profitability.

If you prefer buying used equipment, shopping the Caterpillar brand is a great option to ensure you get the most out of your investment.

Ask your Cat dealer today about the many services that help you do your work your way.

The 395 Front Shovel delivers maximum ground-level digging force up to trailer height, along with a breakout force at the bucket cutting edge, for superior material penetration and optimal bucket fill factors.
Compatible with buckets ranging from 6.5 m³ SD bucket (max density: 1.65t/m³, low impact and abrasion) to 5.6 m³ SD bucket (max density: 1.85t/m³, high impact and abrasion), this helps boost productivity and profitability.
Capable, versatile bucket clamp force design holds a 1.33 m 7 t steel drop ball for secondary breaking applications
Engineered with a parallelogram-type front linkage and master cylinder, which allows the operator to maximize machine capability with ease by keeping the bucket parallel to the ground.
The operator-oriented controllability helps operators consistently deliver optimized material penetration, fast loading, sorting, and breaking cycle times, and smooth floor clean-up.
Equipped with the Next Gen cab on a fixed riser allowing the operator to see above the side of the truck body while loading, providing premium work task and jobsite visibility.
Cab is outfitted with an ergonomic seat, touchscreen display, climate control, noise insulation, and vibration reduction, helping reduce fatigue while allowing the operator to stay on task.
The reinforced, durable undercarriage and additional cylinder guards help reduce machine wear and tear while protecting your investment.
Cat long-life fuel and hydraulic oil filters with extended and synchronized service intervals help reduce maintenance costs and downtime.
Cat Next Generation Excavators share common parts, exceptional customer service, and superior product support, providing you with more uptime.
