Mini Excavators 301.8

Name: 301.8 Mini Hydraulic Excavator
Brand: Caterpillar

Checking Price

Request A Price Shop Now

Key Specs

Net Power: 21 hp; 15.7 kW

Operating Weight: 4473 lb; 2029 kg

Dig Depth: 101.2 in; 2570 mm

301.8
Change model

Overview

Mini Excavators Inspired by Our Customers

The Cat® 301.8 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Benefits

4 Industry First Features

Cat Exclusives in a Mini Excavator

Up to 15% Lower Total Ownership Costs

with more common parts, lower repair costs and tilt up cab

Up to 20% More Performance

with programmable operator settings and faster cyle times

Features At A Glance

Displaying 1-6 of 8

ALL DAY COMFORT

Choose either a canopy or a sealed and pressurized cab equipped with air conditioning, adjustable wrist rests, and a suspension seat option to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

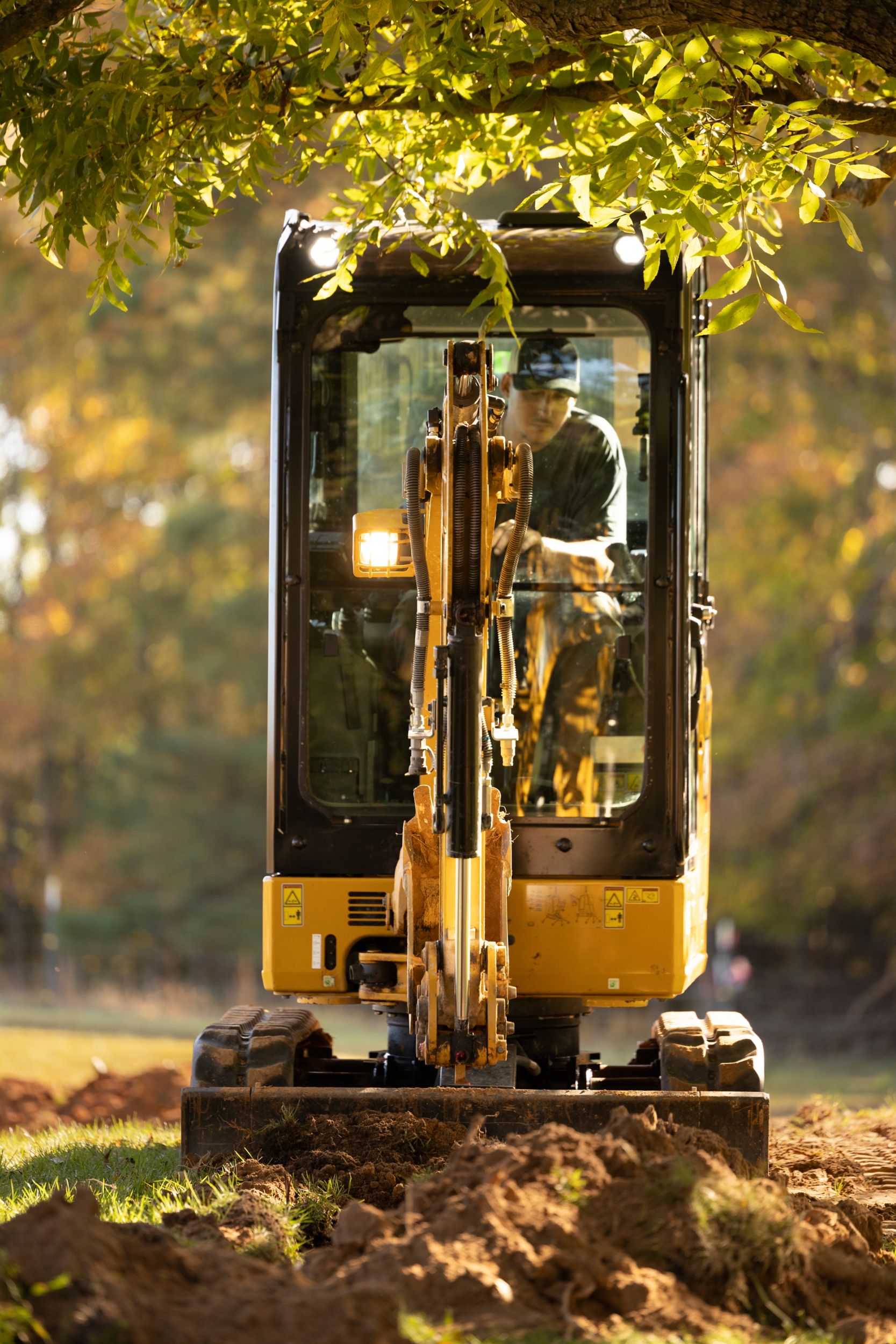

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer blade float features allow for easy clean up.

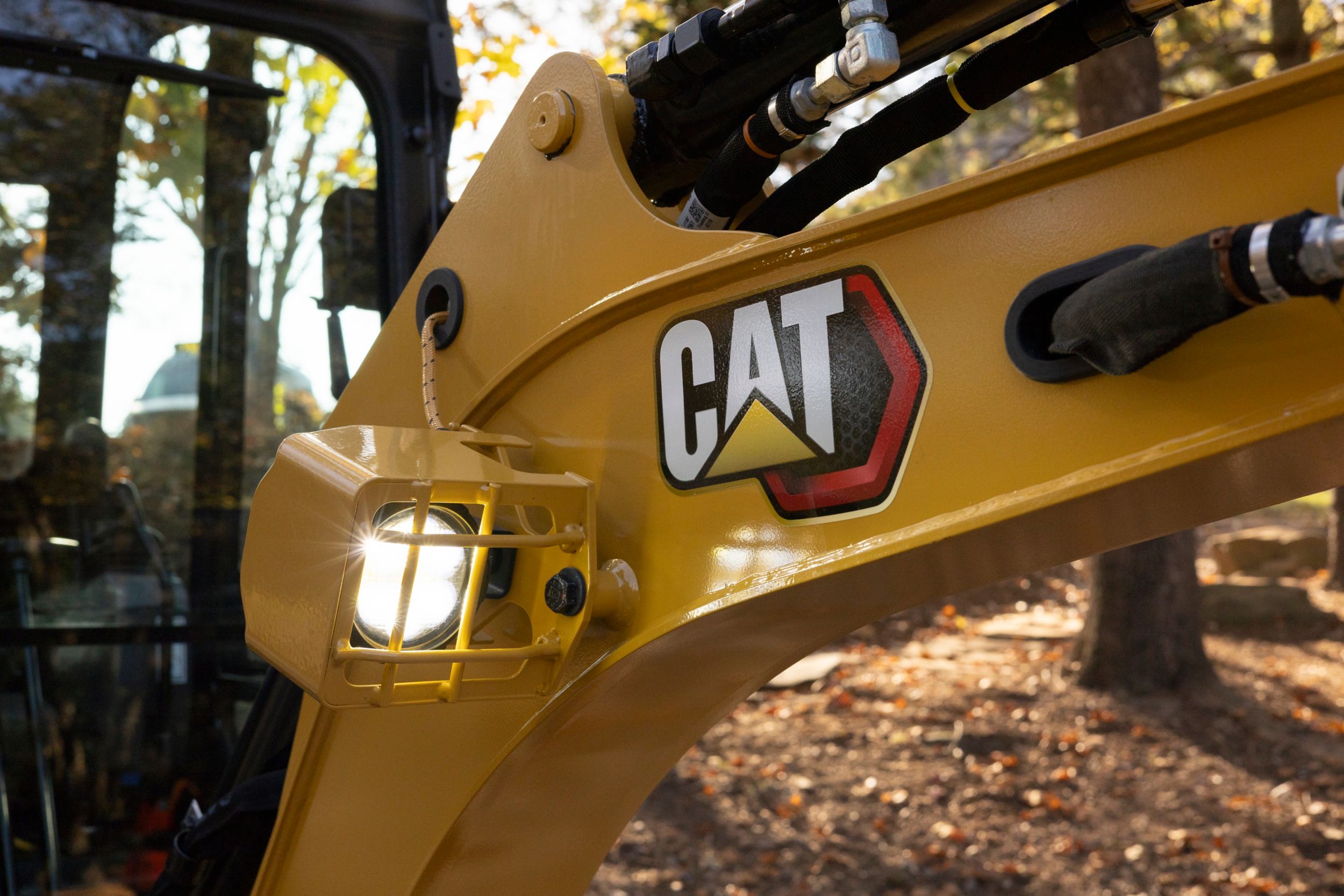

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab lets you reach additional service areas when needed.

SUSTAINABILITY

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Choose either a canopy or a sealed and pressurized cab equipped with air conditioning, adjustable wrist rests, and a suspension seat option to help keep you working comfortably all day long.

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

Strong lift and dig performance helps you get the job done faster. The retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer blade float features allow for easy clean up.

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab lets you reach additional service areas when needed.

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Specifications Standard Equipment Optional Equipment

Product Specifications for 301.8

Engine

Net Power	21 hp 15.7 kW
Engine Model	C1.1 C1.1
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	21 hp 15.7 kW
Gross Power - SAE J1995:2014	21.6 hp 16.1 kW
Bore	3 in 77 mm
Stroke	3.2 in 81 mm
Displacement	69 in³ 1.1 l
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note	Net power is tested per ISO 9249:2007 and 80/1269/EEC. Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Note (1)	Engine power is tested per ISO 14396:2002. Engine power is tested per ISO 14396:2002.
Note (2)	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load. Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.

Weights

Operating Weight	4473 lb 2029 kg
Minimum Operating Weight with Canopy*	3803 lb 1725 kg
Maximum Operating Weight with Canopy**	4211 lb 1905 kg
Minimum Operating Weight with Cab*	4075 lb 1848 kg
Maximum Operating Weight with Cab**	4473 lb 2029 kg
EU: CE Plate Weight with Canopy***	4145 lb 1880 kg
EU: CE Plate Weight with Cab***	4409 lb 2000 kg
Note (1)	Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank. Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
Note (2)	Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank. Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
Note (3)	*CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket. *CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

Dimensions - Long Stick

Dig Depth	101.2 in 2570 mm
Vertical Wall	76.4 in 1940 mm
Maximum Reach - Ground Level	155.9 in 3960 mm
Maximum Reach	158.7 in 4030 mm
Maximum Dig Height	142.5 in 3620 mm
Maximum Dump Clearance	103.9 in 2640 mm
Boom In Reach	55.9 in 1420 mm
Tail Swing	39.2 in 995 mm
Maximum Blade Height	10.6 in 270 mm
Maximum Blade Depth	10.4 in 265 mm
Boom Height - Shipping Position	40.2 in 1020 mm
O/A Shipping Height	90.6 in 2300 mm
Swing Bearing - Height	17.4 in 442 mm
O/A Undercarriage Length	62.6 in 1590 mm
Overall Shipping Length*	146.1 in 3710 mm
Boom Swing - Right	50 ° 50 °
Boom Swing - Left	65 ° 65 °
Track Belt/Shoe Width	9.1 in 230 mm
Track Width - Retracted	39 in 990 mm
Track Width - Expanded	51.18 in 1300 mm
Minimum Ground Clearance Below Undercarriage	5.9 in 150 mm
Stick Length	45.7 in 1160 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.

Weight Increase from Minimum Configuration

Long Stick	18 lb 8 kg
Steel Tracks	110 lb 50 kg
Expandable Undercarriage	271 lb 123 kg

Travel System

Travel Speed - High	2.7 mile/h 4.4 km/h
Travel Speed - Low	1.8 mile/h 2.9 km/h
Maximum Traction Force - High Speed	2675.2 lbf 11.9 kN
Maximum Traction Force - Low Speed	4136.5 lbf 18.4 kN
Ground Pressure - Minimum Weight	3.9 psi 26.8 kPa
Ground Pressure - Maximum Weight	4.3 psi 29.6 kPa
Gradeability - Maximum	30 degrees 30 degrees

Service Refill Capacities

Cooling System	1 gal (US) 3.9 l
Engine Oil	1.2 gal (US) 4.4 l
Fuel Tank	6.9 gal (US) 26 l
Hydraulic Tank	4.8 gal (US) 18 l
Hydraulic System	6.9 gal (US) 26 l

Hydraulic System

Type	Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump
Pump Flow at 2,400 rpm	17.4 gpm 66 L/min
Operating Pressure - Equipment	3553.4 psi 245 bar
Operating Pressure - Travel	3553.4 psi 245 bar
Operating Pressure - Swing	2132.1 psi 147 bar
Auxiliary Circuit - Primary - Flow	8.7 gpm 33 L/min
Auxiliary Circuit - Primary - Pressure	3553.4 psi 245 bar
Auxiliary Circuit - Secondary - Flow	3.7 gpm 14 L/min
Auxiliary Circuit - Secondary - Pressure	3553.4 psi 245 bar
Digging Force - Stick - Standard	2540.3 lbf 11.3 kN
Digging Force - Stick - Long	2203.1 lbf 9.8 kN
Digging Force - Bucket	4406.3 lbf 19.6 kN

Swing System

Machine Swing Speed

9.8 r/min 9.8 r/min

Blade

Width*	39 in 990 mm
Height	8.9 in 225 mm
Note	Expanded – 1300 mm (51 in) Expanded – 1300 mm (51 in)

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008 ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997 ISO 12117:1997
Top Guard	ISO 10262:1998 (Level I) ISO 10262:1998 (Level I)

Dimensions - Standard Stick

Dig Depth	93.3 in 2370 mm
Vertical Wall	72.8 in 1850 mm
Maximum Reach - Ground Level	149.6 in 3800 mm
Maximum Reach	152.4 in 3870 mm
Maximum Dig Height	139.8 in 3550 mm
Maximum Dump Clearance	100.8 in 2560 mm
Boom In Reach	55.9 in 1420 mm
Tail Swing	39.2 in 995 mm
Maximum Blade Height	10.6 in 270 mm
Maximum Blade Depth	10.4 in 265 mm
Boom Height - Shipping Position	42.1 in 1070 mm
O/A Shipping Height	90.6 in 2300 mm
Swing Bearing - Height	17.4 in 442 mm
O/A Undercarriage Length	62.6 in 1590 mm
Overall Shipping Length*	146.5 in 3720 mm
Boom Swing - Right	50 ° 50 °
Boom Swing - Left	65 ° 65 °
Track Belt/Shoe Width	9.1 in 230 mm
Track Width - Retracted	39 in 990 mm
Track Width - Expanded	51.18 in 1300 mm
Minimum Ground Clearance Below Undercarriage	5.9 in 150 mm
Stick Length	37.8 in 960 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.75 kg (1.65 lb), 0.90 kg (1.98 lb) or 1 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.75 kg (1.65 lb), 0.90 kg (1.98 lb) or 1 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe).

Sound

Operator Sound Pressure (ISO 6396:2008)	72 dB(A) 72 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	99 dB(A) 99 dB(A)
Note	European Union Directive “2000/14/EC” European Union Directive “2000/14/EC”

Sustainability

Recyclability

95% 95%

301.8 Standard Equipment

ENGINE

Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)

Automatic Engine Idle

Automatic Engine Shutdown

Automatic Two Speed Travel

Fuel Water Separator

Power on Demand (not available in all regions)

Variable Displacement Piston Pump

Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump

Accumulator

Automatic Swing Brake

Auxiliary Line Quick Disconnects

One and Two Way Auxiliary Flow

Continuous Auxiliary Flow

Auxiliary Hydraulic Lines

OPERATOR ENVIRONMENT

Tilt-up Canopy or Tilt-Up Cab

Machine 2-Point Lifting

Stick Steer Mode

Travel Cruise Control

Control Pattern Changer (optional in some regions)

Adjustable Wrist Rests

Washable Floor Mat

Travel Pedals and Hand Levers

Machine Security

Standard Key with Pass Code

Fabric Suspension Seat (Cab only)

Hydraulic Lockout – All Controls

Retractable High Visibility Seat Belt (75 mm/3 in)

Coat Hook

Cup Holder

Storage Pocket

Skylight

Mounting Bosses for Front

Signaling/Warning Horn

Interior Light (Cab only)

Boom Light, Halogen

Utility Space for Mobile Phone

Next Generation Color LCD Monitor (IP66)
– Fuel Level and Coolant Temperature Gauges
– Maintenance and Machine Monitoring
– Performance and Machine Adjustments
– Numeric Security Code
– Multiple Languages
– Hour Meter with Wake Up Switch

UNDERCARRIAGE

Rubber Belt (250 mm/10 in wide)

Dozer Blade

Dozer Blade Float

Hydraulic Track Adjusters

Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (1850 mm/73 in)

Standard Stick (960 mm/37.8 in)

Front Shovel Capable

Front Shovel Capable – Pin-On

Thumb Ready (not available in all regions)

Certified Lifting Eye (optional in some regions)

ELECTRICAL

12 Volt Battery

Software (machine and monitor)

Maintenance Free Battery

Lock Out/Tag Out Battery Disconnect

Signaling/Warning Horn

12 Volt Power Socket

GUARDING

ROPS – ISO 12117-2:2008

TOPS – ISO 12117:1997

Top Guard ISO 10262:1998

301.8 Optional Equipment

OPERATOR ENVIRONMENT

Cab with Air Conditioning

Cab with Heater

Control Pattern Changer (optional in some regions)

No Travel Pedals and Hand Levers

Push to Start with Key Fob/Pass Code

Vinyl Suspension Seat (Canopy only)

Seat Belt Reminder System

LED Front Lights

LED Front and Rear Lights

LED Boom Light

Mirrors Left and Right

Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)

UNDERCARRIAGE

Expandable Undercarriage

Steel Track (250 mm/10 in wide)

BOOM, STICK AND LINKAGES

Long Stick (1160 mm/45.7 in)

Front Shovel Capable – Dual Lock Manual Coupler

Attachments including Couplers, Thumbs, Buckets, Augers and Hammers

2nd Auxiliary Hydraulic Lines

Boom Lowering Check Valve

Stick Lowering Check Valve

Hydraulic Quick Coupler Lines (not available in all regions)

ELECTRICAL

Product Link PL243 (regulations apply)

Product Link PLE643 (regulations apply)

Travel Alarm (standard in some regions)

GUARDING

Polycarbonate Half Height Front Guard (Canopy only)

Polycarbonate Front Guard (ISO 10262:1998 Level 1 and EN356 PSA)

OTHER

Bio Oil Capable

Eco Drain

Water Jacket Heater

Product Specifications for 301.8

Download Print

Engine

Net Power	21 hp 15.7 kW
Engine Model	C1.1 C1.1
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	21 hp 15.7 kW
Gross Power - SAE J1995:2014	21.6 hp 16.1 kW
Bore	3 in 77 mm
Stroke	3.2 in 81 mm
Displacement	69 in³ 1.1 l
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note	Net power is tested per ISO 9249:2007 and 80/1269/EEC. Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Note (1)	Engine power is tested per ISO 14396:2002. Engine power is tested per ISO 14396:2002.
Note (2)	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load. Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.

Weights

Operating Weight	4473 lb 2029 kg
Minimum Operating Weight with Canopy*	3803 lb 1725 kg
Maximum Operating Weight with Canopy**	4211 lb 1905 kg
Minimum Operating Weight with Cab*	4075 lb 1848 kg
Maximum Operating Weight with Cab**	4473 lb 2029 kg
EU: CE Plate Weight with Canopy***	4145 lb 1880 kg
EU: CE Plate Weight with Cab***	4409 lb 2000 kg
Note (1)	Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank. Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
Note (2)	Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank. Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
Note (3)	*CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket. *CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

Dimensions - Long Stick

Dig Depth	101.2 in 2570 mm
Vertical Wall	76.4 in 1940 mm
Maximum Reach - Ground Level	155.9 in 3960 mm
Maximum Reach	158.7 in 4030 mm
Maximum Dig Height	142.5 in 3620 mm
Maximum Dump Clearance	103.9 in 2640 mm
Boom In Reach	55.9 in 1420 mm
Tail Swing	39.2 in 995 mm
Maximum Blade Height	10.6 in 270 mm
Maximum Blade Depth	10.4 in 265 mm
Boom Height - Shipping Position	40.2 in 1020 mm
O/A Shipping Height	90.6 in 2300 mm
Swing Bearing - Height	17.4 in 442 mm
O/A Undercarriage Length	62.6 in 1590 mm
Overall Shipping Length*	146.1 in 3710 mm
Boom Swing - Right	50 ° 50 °
Boom Swing - Left	65 ° 65 °
Track Belt/Shoe Width	9.1 in 230 mm
Track Width - Retracted	39 in 990 mm
Track Width - Expanded	51.18 in 1300 mm
Minimum Ground Clearance Below Undercarriage	5.9 in 150 mm
Stick Length	45.7 in 1160 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.

Weight Increase from Minimum Configuration

Long Stick	18 lb 8 kg
Steel Tracks	110 lb 50 kg
Expandable Undercarriage	271 lb 123 kg

Travel System

Travel Speed - High	2.7 mile/h 4.4 km/h
Travel Speed - Low	1.8 mile/h 2.9 km/h
Maximum Traction Force - High Speed	2675.2 lbf 11.9 kN
Maximum Traction Force - Low Speed	4136.5 lbf 18.4 kN
Ground Pressure - Minimum Weight	3.9 psi 26.8 kPa
Ground Pressure - Maximum Weight	4.3 psi 29.6 kPa
Gradeability - Maximum	30 degrees 30 degrees

Service Refill Capacities

Cooling System	1 gal (US) 3.9 l
Engine Oil	1.2 gal (US) 4.4 l
Fuel Tank	6.9 gal (US) 26 l
Hydraulic Tank	4.8 gal (US) 18 l
Hydraulic System	6.9 gal (US) 26 l

Hydraulic System

Type	Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump
Pump Flow at 2,400 rpm	17.4 gpm 66 L/min
Operating Pressure - Equipment	3553.4 psi 245 bar
Operating Pressure - Travel	3553.4 psi 245 bar
Operating Pressure - Swing	2132.1 psi 147 bar
Auxiliary Circuit - Primary - Flow	8.7 gpm 33 L/min
Auxiliary Circuit - Primary - Pressure	3553.4 psi 245 bar
Auxiliary Circuit - Secondary - Flow	3.7 gpm 14 L/min
Auxiliary Circuit - Secondary - Pressure	3553.4 psi 245 bar
Digging Force - Stick - Standard	2540.3 lbf 11.3 kN
Digging Force - Stick - Long	2203.1 lbf 9.8 kN
Digging Force - Bucket	4406.3 lbf 19.6 kN

Swing System

Machine Swing Speed

9.8 r/min 9.8 r/min

Blade

Width*	39 in 990 mm
Height	8.9 in 225 mm
Note	Expanded – 1300 mm (51 in) Expanded – 1300 mm (51 in)

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008 ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997 ISO 12117:1997
Top Guard	ISO 10262:1998 (Level I) ISO 10262:1998 (Level I)

Dimensions - Standard Stick

Dig Depth	93.3 in 2370 mm
Vertical Wall	72.8 in 1850 mm
Maximum Reach - Ground Level	149.6 in 3800 mm
Maximum Reach	152.4 in 3870 mm
Maximum Dig Height	139.8 in 3550 mm
Maximum Dump Clearance	100.8 in 2560 mm
Boom In Reach	55.9 in 1420 mm
Tail Swing	39.2 in 995 mm
Maximum Blade Height	10.6 in 270 mm
Maximum Blade Depth	10.4 in 265 mm
Boom Height - Shipping Position	42.1 in 1070 mm
O/A Shipping Height	90.6 in 2300 mm
Swing Bearing - Height	17.4 in 442 mm
O/A Undercarriage Length	62.6 in 1590 mm
Overall Shipping Length*	146.5 in 3720 mm
Boom Swing - Right	50 ° 50 °
Boom Swing - Left	65 ° 65 °
Track Belt/Shoe Width	9.1 in 230 mm
Track Width - Retracted	39 in 990 mm
Track Width - Expanded	51.18 in 1300 mm
Minimum Ground Clearance Below Undercarriage	5.9 in 150 mm
Stick Length	37.8 in 960 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.

Air Conditioning System

Air Conditioning

Sound

Operator Sound Pressure (ISO 6396:2008)	72 dB(A) 72 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	99 dB(A) 99 dB(A)
Note	European Union Directive “2000/14/EC” European Union Directive “2000/14/EC”

Sustainability

Recyclability

95% 95%

301.8 Standard Equipment

ENGINE

Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)

Automatic Engine Idle

Automatic Engine Shutdown

Automatic Two Speed Travel

Fuel Water Separator

Power on Demand (not available in all regions)

Variable Displacement Piston Pump

Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump

Accumulator

Automatic Swing Brake

Auxiliary Line Quick Disconnects

One and Two Way Auxiliary Flow

Continuous Auxiliary Flow

Auxiliary Hydraulic Lines

OPERATOR ENVIRONMENT

Tilt-up Canopy or Tilt-Up Cab

Machine 2-Point Lifting

Stick Steer Mode

Travel Cruise Control

Control Pattern Changer (optional in some regions)

Adjustable Wrist Rests

Washable Floor Mat

Travel Pedals and Hand Levers

Machine Security

Standard Key with Pass Code

Fabric Suspension Seat (Cab only)

Hydraulic Lockout – All Controls

Retractable High Visibility Seat Belt (75 mm/3 in)

Coat Hook

Cup Holder

Storage Pocket

Skylight

Mounting Bosses for Front

Signaling/Warning Horn

Interior Light (Cab only)

Boom Light, Halogen

Utility Space for Mobile Phone

Next Generation Color LCD Monitor (IP66)
– Fuel Level and Coolant Temperature Gauges
– Maintenance and Machine Monitoring
– Performance and Machine Adjustments
– Numeric Security Code
– Multiple Languages
– Hour Meter with Wake Up Switch

UNDERCARRIAGE

Rubber Belt (250 mm/10 in wide)

Dozer Blade

Dozer Blade Float

Hydraulic Track Adjusters

Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (1850 mm/73 in)

Standard Stick (960 mm/37.8 in)

Front Shovel Capable

Front Shovel Capable – Pin-On

Thumb Ready (not available in all regions)

Certified Lifting Eye (optional in some regions)

ELECTRICAL

12 Volt Battery

Software (machine and monitor)

Maintenance Free Battery

Lock Out/Tag Out Battery Disconnect

Signaling/Warning Horn

12 Volt Power Socket

GUARDING

ROPS – ISO 12117-2:2008

TOPS – ISO 12117:1997

Top Guard ISO 10262:1998

301.8 Optional Equipment

OPERATOR ENVIRONMENT

Cab with Air Conditioning

Cab with Heater

Control Pattern Changer (optional in some regions)

No Travel Pedals and Hand Levers

Push to Start with Key Fob/Pass Code

Vinyl Suspension Seat (Canopy only)

Seat Belt Reminder System

LED Front Lights

LED Front and Rear Lights

LED Boom Light

Mirrors Left and Right

Radio – Bluetooth®, Auxiliary, Microphone, USB (charging only) (Cab only)

UNDERCARRIAGE

Expandable Undercarriage

Steel Track (250 mm/10 in wide)

BOOM, STICK AND LINKAGES

Long Stick (1160 mm/45.7 in)

Front Shovel Capable – Dual Lock Manual Coupler

Attachments including Couplers, Thumbs, Buckets, Augers and Hammers

2nd Auxiliary Hydraulic Lines

Boom Lowering Check Valve

Stick Lowering Check Valve

Hydraulic Quick Coupler Lines (not available in all regions)

ELECTRICAL

Product Link PL243 (regulations apply)

Product Link PLE643 (regulations apply)

Travel Alarm (standard in some regions)

GUARDING

Polycarbonate Half Height Front Guard (Canopy only)

Polycarbonate Front Guard (ISO 10262:1998 Level 1 and EN356 PSA)

OTHER

Bio Oil Capable

Eco Drain

Water Jacket Heater

See how 301.8 compares against frequently compared products.

Excavators

Selected

301.8

Net Power: 21 hp; 15.7 kW
Operating Weight: 4473 lb; 2029 kg
Dig Depth: 101.2 in; 2570 mm

Checking Price

Shop Now

Excavators

301.7 CR

Net Power: 21 hp; 15.7 kW
Operating Weight: 4222 lb; 1915 kg
Dig Depth: 100 in; 2540 mm

Checking Price

View Details Shop Now

Excavators

302 CR

Net Power: 21 hp; 15.7 kW
Operating Weight: 4987 lb; 2262 kg
Dig Depth: 101.2 in; 2570 mm

Checking Price

View Details Shop Now

Use the comparison tool to compare detailed specs of Cat and competitor models.

Compare All Models

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

Shop Now

Sustainability in Action

We’re committed to helping you achieve your environmental and business goals.

Learn More

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

301.8 Mini Hydraulic Excavator

Front View

Top View

Left View

Rear View

Bottom View

Right View

Introducing the Next Generation Cat 1-2 Ton Mini Excavators

Overview of the Next Generation Cat 1-2 Ton Mini Excavators

Standard Monitor on the Next Generation Cat® Mini Excavators

Introducing the Next Generation Cat 1-2 Ton Mini Excavators

Overview of the Next Generation Cat 1-2 Ton Mini Excavators

Standard Monitor on the Next Generation Cat® Mini Excavators

Take the interactive virtual product tour to explore the great features and benefits of the 301.8

Start 301.8 Tour

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Mini Excavators 301.8

Overview

Mini Excavators Inspired by Our Customers

Benefits

4 Industry First Features

Up to 15% Lower Total Ownership Costs

Up to 20% More Performance

Features At A Glance

ALL DAY COMFORT

EASY TO OPERATE

STICK STEER TRAVEL MODE

BIG PERFORMANCE IN A COMPACT DESIGN

SAFETY ON THE JOB SITE

SIMPLE SERVICE FOR LESS DOWNTIME

LOWER OPERATING COSTS

SUSTAINABILITY

Product Specifications for 301.8

Engine

Weights

Dimensions - Long Stick

Weight Increase from Minimum Configuration

Travel System

Service Refill Capacities

Hydraulic System

Swing System

Blade

Certification - Cab and Canopy

Dimensions - Standard Stick

Air Conditioning System

Sound

Sustainability

301.8 Standard Equipment

ENGINE

HYDRAULICS

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

GUARDING

301.8 Optional Equipment

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

GUARDING

OTHER

Product Specifications for 301.8

Engine

Weights

Dimensions - Long Stick

Weight Increase from Minimum Configuration

Travel System

Service Refill Capacities

Hydraulic System

Swing System

Blade

Certification - Cab and Canopy

Dimensions - Standard Stick

Air Conditioning System

Sound

Sustainability

301.8 Standard Equipment

ENGINE

HYDRAULICS

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

GUARDING

301.8 Optional Equipment

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

GUARDING

OTHER

See how 301.8 compares against frequently compared products.

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Product Brochures and More Are Ready to Download!
