The Cat® 395 hydraulic trackhoe excavator delivers class-leading production with phenomenal power.

Large Excavators 395 Tier 4 / Stage V

Name: Cat® 395 Hydaulic Excavator
Brand: Cat

New Used Rental

Request A Price Find Dealer

Key Specs

Net Power - ISO 9249: 542 hp; 404 kW

Operating Weight: 207400 lb; 94000 kg

Maximum Digging Depth: 31.9 ft; 9670 mm

395
Change model

Overview

Powers Through Demanding Work.

The Cat® 395 Excavator is a powerhouse that gets the job done every time. Built with the 540 horsepower Cat C18 engine, this machine is a groundbreaking rockstar with fast cycle times and a powerful digging force that eases bucket penetration and digs down deep with maximum digging depths from 7.2 m (23.7 ft) up to 11.7m (38.5 ft). Equipped with the latest Cat technology, the 395 helps you make informed and smart decisions to help improve jobsite efficiency, increase productivity, and return safely home every day. If you want to generate big-time results for your business, put the 395 next generation excavator to work. It is the top choice in its size class.

Benefits

Turn Payloads into Profit

With a heavy structural weight, powerful swing torque, and dynamic stick force, this 95-tonne machine easily handles a SD 5.2 m³ (6.8 yd³) bucket, earning you big paydays.

Heavy-Duty Durability

Reinforced booms and sticks take on hard and heavy work while the standard, heavy-duty reinforced undercarriage expertly absorbs the stress between jobsite terrain and machine.

Save Time and Money

Cat® Next Generation Excavators share common parts, extended and synchronized service intervals, exceptional customer service, and superior product support.

Features At A Glance

Displaying 1-6 of 11

Latest Features

Machine Setup Simplification

At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.
The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.

Cat Grade 3D Ready

The Cat Grade 3D Ready option includes all the hardware required for the Grade with 3D system, installed and tested from the factory. This option provides an easier upgrade path for customers who want to add Grade with 3D after their initial purchase. To activate, contact your Cat Dealer to purchase the required 3D software licenses. Licenses can be installed remotely or manually loaded onto the machine.

Cat Payload and Advanced Payload*

Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Advanced Payload is a system upgrade that offers expanded features and capabilities, including custom tags, daily totals, and electronic ticketing. Combine Payload with VisionLink™** to analyze jobsites and individual assets for remote management of production targets and key metrics.

*Payload technologies are not legal for trade.
**VisionLink subscription required.

Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 07H

Performance Powerhouse

Work up to 3000 m (9,840 ft) above sea level without de-rating.
The exclusive hydrostatic swing circuit has a dedicated bi-directional swing pump, swing motors, charge pump, and charge accumulator. The swing pump supplies oil to the swing motor; the charge pump and charge accumulator prevent cavitation (air bubbles) and overheating. The circuit enables regenerating swing brake energy and independent management of cylinder oil flow, resulting in higher efficiency and smoother, more predictable performance when you multitask with the excavator.
Powerful swing torque easily handles changes in momentum, uneven terrain, and consistent high-impact connections, helping operators make their work swift and precise.
Did you know baffle plates help increase an excavator’s strength-to-weight ratio? That is why Caterpillar incorporates the plates in high-stress areas like the boom, stick, and frame. Reinforcing the machine without adding significantly more weight also helps provide years of reliable performance, even in the harshest environments.
The cylinder rods are reinforced with additional wear rings to help reduce oil leaks. The car body has thick baffle plates for a long service life. The thick track link has large bolt joints to help maintain bolt retention. Track rollers have a large shaft diameter to help prevent bending and oil leaks while increasing the 395’s loading capacity, which means more reliable production for you.
Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
The center track guiding guard helps align the excavator track when traveling and working on slopes.
The sloped track frame prevents mud and debris accumulation, helping reduce the risk of track damage.
Auxiliary hydraulic options allow you to use a wide range of Cat® attachments.
Advansys™ bucket tips increase penetration and improve cycle times. Tip changes can be done quickly with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
Match the excavator to the job with three operating modes: Power, Smart, and Eco.
Smart mode automatically adjusts power for the highest fuel efficiency – less power for tasks such as swinging and more power for digging.
Enhanced heavy lift mode increases system pressure to help you easily pick and place heavy material.
Auto warm-up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
Don’t let the temperature stop you from working. This excavator has a high-ambient capability of 52° C (125° F) and a standard cold start capability of –18° C (-0.4° F).
The engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 emission standards with an aftertreatment system that requires no operator input or downtime.

Exceptional Efficiency Through Technology

The latest operator oriented User Interface (UI) has been designed to maximize uptime by allowing operators to easily reorder work tool lists and quickly create new work tool combinations. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.
Cat® Lift Assist helps avoid machine tipping. With visual and auditory alerts, operators will know if their load is within the excavator’s safe working range limits.
Cat® 2D E-Fence restricts the front linkage from moving beyond operator-defined preset boundaries for the ceiling, floor, wall, swing, and cab. It helps operators avoid jobsite hazards such as traffic, keeps personnel safe, and helps you save on costly repairs, equipment downtime, and potential jobsite fines.
Cat® Detect - People Detection for excavators is an intelligent vision camera system that can alert an operator when someone enters a machine’s hazard zone.*
Cat® Grade with Assist helps operators stay on grade simply and effortlessly with semi-autonomous digging. It automates boom, stick, and bucket movements to deliver more accurate cuts with less effort.
Cat® Grade with 2D for excavators is an indicate system that helps operators reach grade faster.* Select your target depth and slope and watch the Grade with 2D system use on-board processors and sensors to provide real-time guidance on the distance to grade.
Cat® Grade with 3D for excavators helps operators grade more quickly, accurately, and efficiently, improving productivity.* It incorporates GNSS technology and RTK positioning guidance to streamline the grading process for complex designs commonly encountered on large infrastructure and commercial projects. This system allows operators to work confidently, eliminating guesswork while cutting and filling to precise specifications.
The Cat® Grade 3D Ready option includes all the hardware required for the Grade with 3D system, installed and tested from the factory. Activation requires the purchase of additional 3D software licenses, contact your Cat Dealer for details.
Upgrade to our dual antenna GNSS for maximum grading efficiency. The system lets you create and edit designs on the touchscreen monitor while you’re on the job, or you can have the plan design sent to the excavator to make your work easier. Plus, you get added benefits of avoidance zones, cut and fill mapping, lane guidance, and augmented reality along with advanced positioning capability.
All Cat Grade systems are compatible with radios and base stations from Trimble, Topcon, and Leica. Already invested in a grade infrastructure? You can install grade systems from Trimble, Topcon, and Leica onto the machine.
Cat® Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Advanced Payload is a system upgrade that offers expanded features and capabilities, including custom tags, daily totals, and electronic ticketing.
Combine Payload with VisionLink™ to analyze jobsites and individual assets for remote management of production targets and key metrics.
Cat® Operator Coaching allows operators of all experience levels to take their efficiency and productivity to the next level. With tips and data at their fingertips, operators can track and improve their productivity through everyday work on the job site. Gain data-based insights towards operators and operations when you pair Operator Coaching with VisionLink™.** There are two coaching tip categories –
1. Operational Efficiency Tips: Help operators stay at the top of their game by identifying areas to increase skill and efficiency, such as digging technique and idle times.
2. Machine Health Tips: Some actions are inefficient and cause unnecessary wear and tear on the machine and its components. Following Machine Health Tips can help extend the life of the machine, improve digging technique, and reduce fuel waste.

*The system may not detect personnel in certain circumstances, such as fast swing speeds, people lying down or crouching, or when cameras are impaired by low light conditions (dusk, dawn, overcast), inclement weather (snow, rain, fog), or other similar conditions. For limitations of use, refer to the operation and maintenance manual.
** VisionLink™ subscription required.

NOTE: Cat® Payload for excavators is not legal for trade.

Availability may vary by region, consult your Cat Dealer for more details.

Take the Guesswork Out of Managing Your Equipment

VisionLink™ provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Equipment management features provide up-to-date asset tracking of your entire fleet. You can track asset location, operating hours, fuel level, health issues, and overall utilization. Monitor equipment health with fault codes, fluid analysis, and inspection due dates. It's all about making informed, data-based decisions to help reduce operating costs. Productivity management features enable you to analyze overall job site performance. You'll be able to track tonnage moved, production targets, and payload, as well as Grade 3D and compaction data. These vital metrics help you to reduce costs and improve jobsite operational efficiency.
Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink™ so you can keep a close eye on your fleet.
Cat® Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
Cat® Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
The Cat® PL161 attachment locator allows you to track attachments across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The work tool recognition** feature automatically adjusts machine settings based on the selected tool.

* Data field availability can vary by equipment manufacturer.
** Recognition feature available on select excavator models. Consult your Cat dealer for details.

Easy and Economical Maintenance

The 395’s extended and synchronized service intervals and reduced hydraulic oil capacity help you save time and money.
The excavator is auto-lube ready with built-in mounting points; an available auto-lube retrofit kit provides additional hardware to mount a grease pump and line guards – all to help do the job of lubing safer, cleaner, and trouble-free.
Boost productivity with proactive service reminders. The Integrated Vehicle Health Management system alerts the operator with step-by-step service guidance and parts needed so you don't experience unnecessary downtime.
Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
Fuel and engine oil filters are accessible from the upper platform and synchronized to be changed at 1,000 hours.
The latest hydraulic oil filter provides high-quality filtration performance and features anti-drain valves to keep oil clean when the filter is replaced, and the 3,000-hour extended replacement interval offers efficiency and convenience.
Scheduled Oil Sampling (S·O·S^SM) ports with extended sampling intervals are on ground level, simplifying maintenance and allowing for quick, easy extraction of samples for fluid analysis.
Using Cat® genuine oil and filters and doing typical S∙O∙S monitoring will extend the current service interval, giving you more uptime.
The high-efficiency hydraulic fan has a programmable automatic reverse function to keep cores free from debris, eliminating the need for any operator interaction.
The advanced air intake filter with pre-cleaner has a high dust-holding capacity.
The latest engine air cleaners with an integrated pre-cleaner surpass radial seal air cleaners' lifespan.

Ultimate Operator Comfort

Sites where excavators work are typically rugged and challenging. That’s why it’s important that the 395 cab help protect the operator as much as possible from fatigue, stresses, sounds, and temperatures of the job.
Comfort and efficiency of movement help keep operators productive and alert all shift long. The standard seat is wide and adjustable for operators of virtually any size.
The tip-up left console makes getting in and out of the seat easy.
Two cab options – Deluxe, and Premium – let you choose the level of comfort you need.
The Deluxe cab package includes a heated air suspension seat; the Premium seat is heated and cooled.
The cab is sound-suppressed and sealed.
Advanced viscous mounts reduce cab vibration
Control the excavator comfortably with easy-to-reach controls located in front of you.
The touchscreen monitor makes it easy to access critical information and settings. Shortcut keys make it easy, and two are for entertainment, heating, and air conditioning. There is also a shortcut key for apps and functions that you can set.
Standard automatic climate control keeps you at the right temperature throughout your shift.
Convenience features include Bluetooth® integrated radio, USB charging and phone connectivity ports, 12V DC outlets, and an AUX port.
Cup and bottle holders are easy to reach, and storage spaces are located conveniently throughout the cab.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles.

Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area.

Safely Home Every Day

Optional Cat® Command remote control enables equipment operators to work safely outside the machine when working in hazardous environments. Command offers the choice of handheld Consoles* (line-of-sight) or long-distance virtual Stations (non-line-of-sight). Deep integration with machine systems enables efficiency and productivity by maintaining the use of in-cab technology** features (Grade, Payload, Assist, etc.).
Operator ID keeps your excavator secure. To enable the push-button starting feature, use your PIN code on the monitor or the optional Bluetooth key fob.
Serrated steps, anti-skid plating, and handrails help you avoid slips and trips – a major contributor to workplace injuries.
Standard Lift Assist quickly calculates the actual load you are lifting and compares it to the rated load the excavator is capable of handling. Visual and auditory alerts tell you if you are within safe working range or need to take immediate action to avoid tipping.
See all around the machine with the premium 360 lighting package. The 1800-lumen lights on the chassis, cab, boom, sides, and rear illuminate the jobsite for operators and ground personnel.
Add optional inspection lighting to illuminate the engine, pump, battery, and cooling compartments, making service work more accessible.
Whether you are using a bucket, hammer, grapple, or clamshell, standard 2D E-fence automatically stops excavator motion using boundaries you set in the monitor for the entire working envelope – above, below, sides, and front. E-fence protects equipment from damage and helps reduce fines related to zoning or underground utility damage. Automatic boundaries even help prevent operator fatigue by reducing overswinging and overdigging. A travel direction indicator helps operators know which way to activate the travel levers.
Small cab pillars, large windows, and a flat engine hood design help you enjoy great visibility into the trench, in each swing direction, and behind you.
Add a swing alarm to alert people when rotating from the trench to the stockpile.
Rear and right-hand-sideview cameras are standard. Upgrade to 360° visibility, and you’ll easily visualize objects and personnel around the excavator in a single view.
A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
The right-hand service platform design help provide easy, safe, and quick access to the upper service platform; the service platform steps use serrated steps and an anti-skid punch plate to prevent slipping. The handrails comply with ISO 2867:2011 requirements.

*Operator assist features for the Command Console are not available in Australia and New Zealand.
** Not all technology features are available on the Command Console and vary by model. Consult your Cat dealer for details.

Intuitive and Empowering to Operate

The 395 uses a keyless push-button engine start. This adds security for the machine by using Operator ID codes to limit and track machine access. Codes can be entered manually via an optional Bluetooth key fob.
Most machine settings can be controlled through the high-resolution touchscreen monitor. It offers several languages and is easy to reach from the seat – no twisting or turning.
A second 254 mm (10 in) monitor is available for the Cat® Grade and Cat® Grade with 3D.
Operating can be made easier with the touch of a joystick button. The joystick function can be customized through the monitor. The joystick pattern and response can be set to match operator preference. All preferences are saved with the Operator ID and restored at login.
Make moving the excavator much easier with Cat® Stick Steer. Push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.
You can also add an auxiliary relay to power on or turn off a CB radio, beacon light, or other attachment so you don’t have to take your hands off the joysticks.
Program up to four depth and slope offsets so you can easily get to grade without a grade checker – saving time and enhancing safety on the jobsite.
Operator coaching is an in-cab system that recognizes specific opportunities for operators to be more productive and prevent unnecessary machine wear and tear.
Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips on the touchscreen monitor.
Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.

Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area.

Attachments

Tackle your jobs with a complete Cat® solution. Cat attachments are not just accessories – they are essential tools that define what your machine can do. When you pair a Cat excavator with Cat attachments, you unlock a fully integrated system built for performance, durability, and efficiency. Whether you are clearing land, breaking concrete, or compacting soil, the right attachment transforms your excavator into a powerful, multi-purpose tool ready for any challenge. Depending on your project or application, you could benefit from excavator attachments such as

Buckets: Handle everything from digging and grading to cleanup and debris removal with your excavator. Caterpillar® offers general duty, heavy duty, extreme duty, and severe duty buckets, as well as specialized designs for ditch cleaning, rock, and finishing work. Reinforced edges and wear-resistant materials ensure long-lasting performance in tough conditions.
Couplers (HEX): Cat® couplers for excavators enable fast, secure attachment changes, without the need to leave the cab. From Pin Grabbers to hydraulic quick connect options, couplers help reduce downtime, boost jobsite efficiency and promote versatility by allowing multiple machines to share a common attachment inventory.
Hammers: Break concrete, rock, and steel with up to 1,000 blows per minute. Built for high-production demolition, quarrying, and construction, they offer powerful impact energy and consistent performance. Their durability and low-maintenance design make them essential for demanding breaking applications.
Multi-Processors: A versatile tool for demolition, equipped with interchangeable jaws to handle concrete, steel, and rebar. Multi-Processors combine cutting, crushing and pulverizing capabilities in one attachment. Their modular design maximizes efficiency across a range of job site demands.
Scrap and Demolition Shears: Rotating shears provide precision cutting for metal structures, pipes, rebar, and scrap, making them ideal for demolition and recycling. Their powerful jaws and fast cycle times ensure clean cuts and high productivity. Built for durability, they excel in heavy-duty steel processing.
Pulverizers: Built to crush concrete and separate rebar during demolition and recycling. With high crushing force and fast cycle times, pulverizers efficiently reduce material for easier handling. Primary models feature 360° bidirectional rotation and tackle structure teardown, while secondary models have a fixed jaw design and process debris after demolition.
Orange Peel Grapples: Built for scrap and bulk material handling, Orange Peel Grapples excel with irregular, heavy loads like metal, rock, and waste. Their hydraulic tines provide superior grip and penetration. High-capacity and continuous rotation are perfect for scrap yards and transfer stations. Caterpillar® offers these grapples with a choice of different shell designs and tine options suited to various applications.
Clamshell Grapples: Perfect for bulk material handling, dredging, and excavation of loose or semi-compacted materials like sand, gravel, and debris. Their dual-opening jaws allow for precise loading and unloading. High-capacity and controlled operation make them ideal for ports, recycling, and heavy civil projects.

Cat® attachments are engineered to maximize your excavator’s productivity, helping you get more work done with greater efficiency and confidence. Choosing the right attachment is not just about compatibility, it is about unlocking your machine’s full potential while avoiding equipment damage or safety risks. Connect with your Cat Dealer to find the optimal attachments for your specific machine and application needs.

Not all attachments are available in all regions. Contact your Cat Dealer for details.

Sustainability

The Cat® C18 engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety – which can help to improve fuel efficiency and reduce greenhouse gas emissions.
Cat® Grade technologies combine advanced guidance with optional automated machine control, helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy.
Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Cat® Payload for excavators provides on-the-go material weighing, which helps reduce fuel burn by improving loading efficiency, job site productivity, and eliminating trips to the scale.
Cat® 2D E-fence keeps the front linkage within a predefined work area to aid in avoiding hazards such as traffic - not only helping keep personnel safe but also helping you avoid repairs, downtime, and costly job site fines.
Extended maintenance intervals help reduce downtime and decrease the amount of fluid and filters replaced over the machine's life.
Cat® VisionLink™ displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash helps minimize downtime and maintenance time while keeping your asset running at maximum efficiency. Alerts for machine updates are sent virtually from your Cat® dealer, and updates can be deployed without a dealer technician needing to be onsite.

*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer)

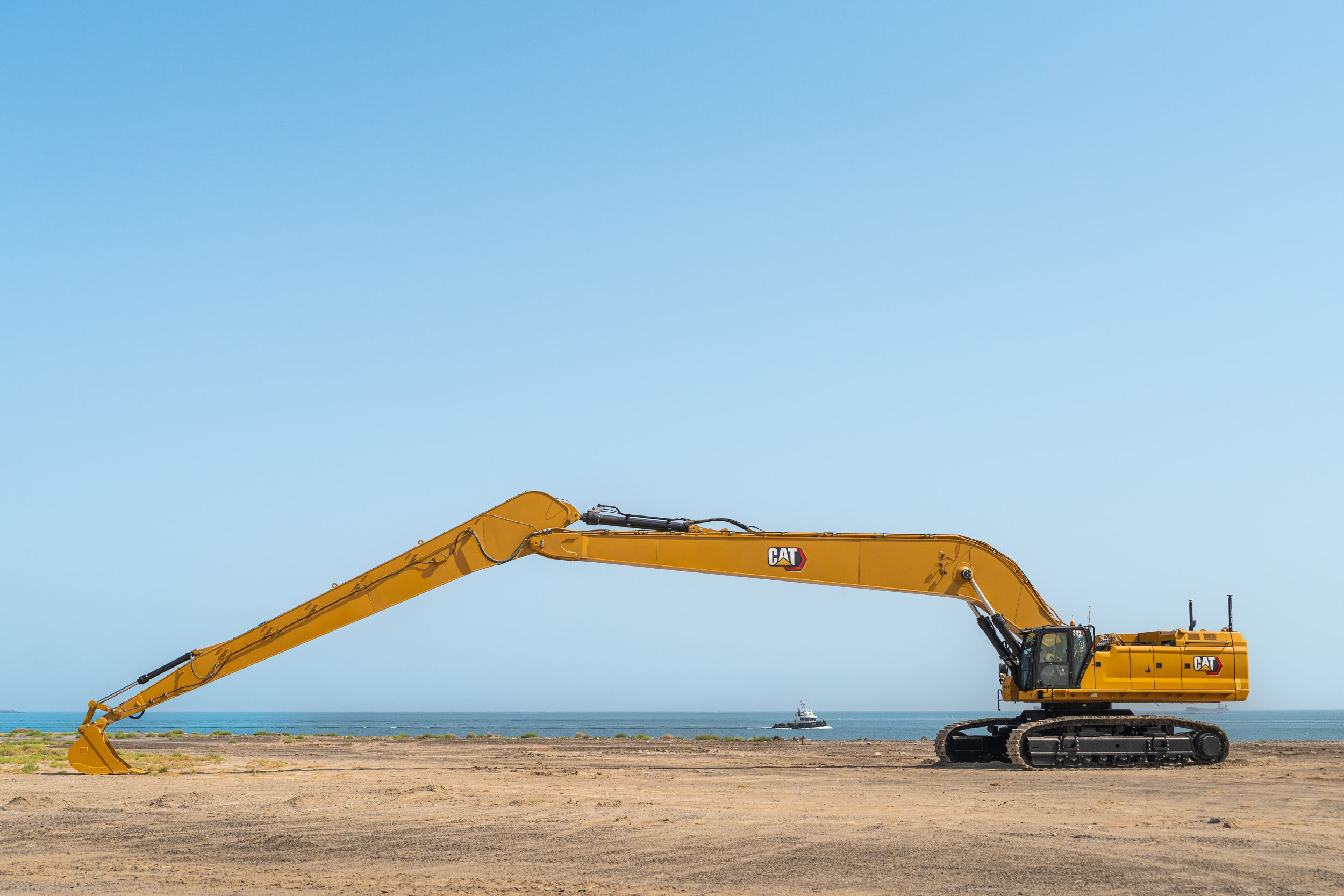

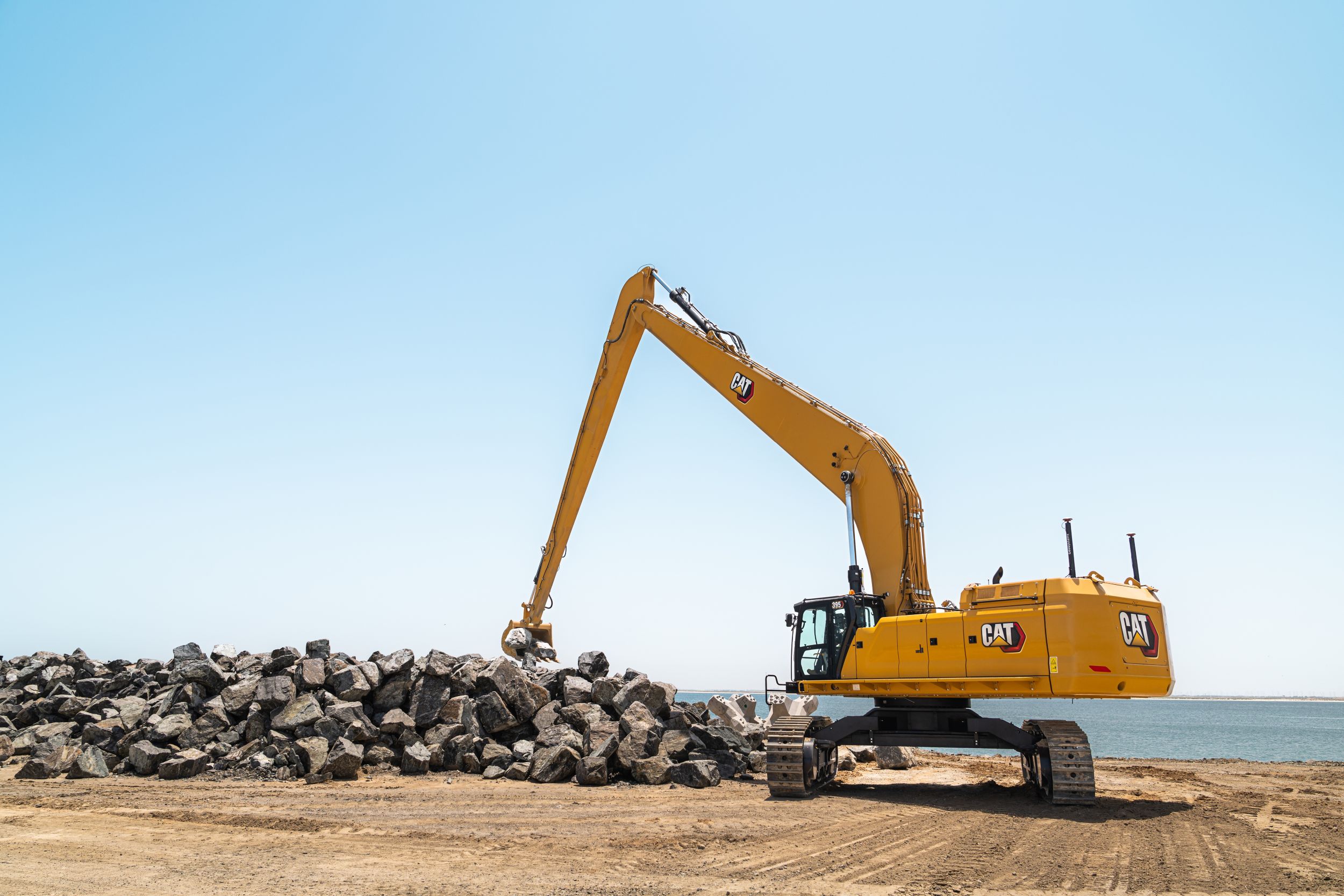

395 Long Reach Excavator

The Cat® 395 Long Reach (LRE) hydraulic excavator is engineered for applications that demand extended reach, precise material placement, and dependable performance. Designed for dredging, canal maintenance, river work, slope finishing, and large-scale infrastructure projects, the 395 Long Reach helps contractors take on challenging jobs with confidence.

The 395 LRE combines premium performance and simple-to-use technology including Cat Grade Control and Cat Payload.
Choose between two purpose‑built extended‑reach front configurations – 21.5 m reach with 12.5 m (41'0") boom + 9.5 m (31'2") stick or 28 m reach with 15.5 m (50'10") boom + 11.8 m (38'9") stick – both designed to maximize reach, depth and stable performance in demanding dredging applications.
The 395 LRE has a maximum reach capability of 28 meters (91’10") and a dig depth of 21 700 mm (71’2”).
The long and extended undercarriage and choice of either a 15.4 mt (34,060 lb) counterweight or a 21.6 mt (47,600 lb) provide a stable platform for long-reach digging.

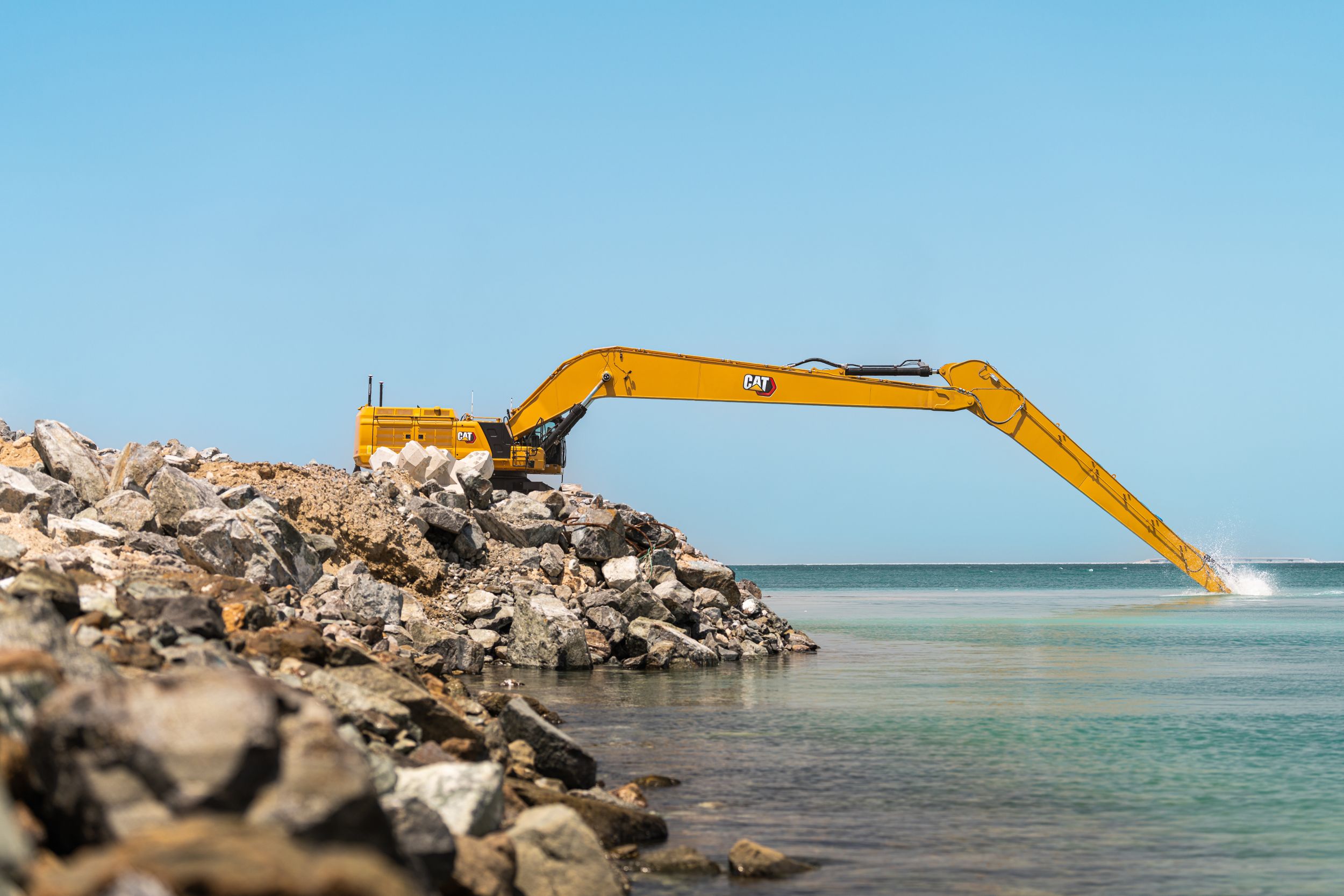

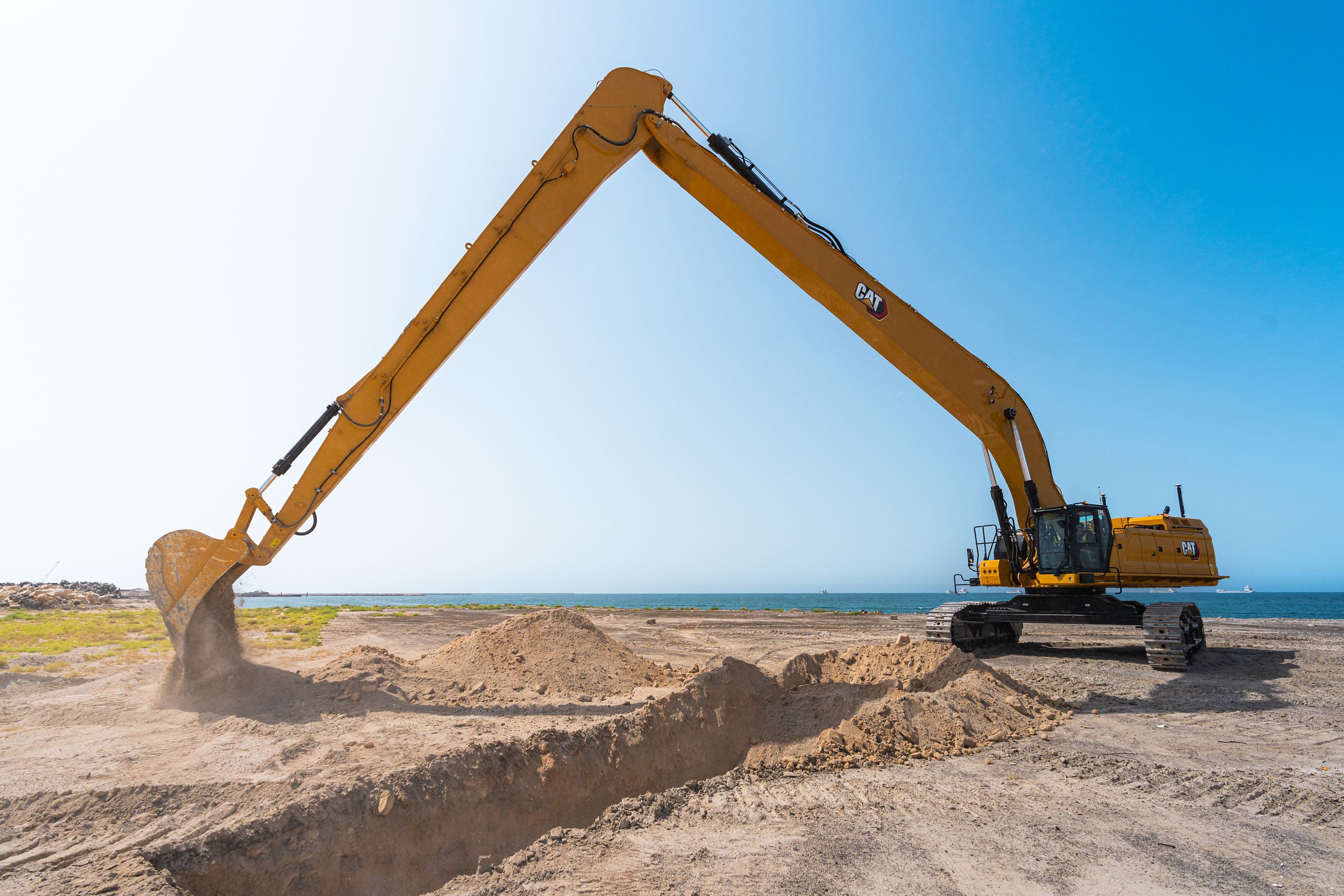

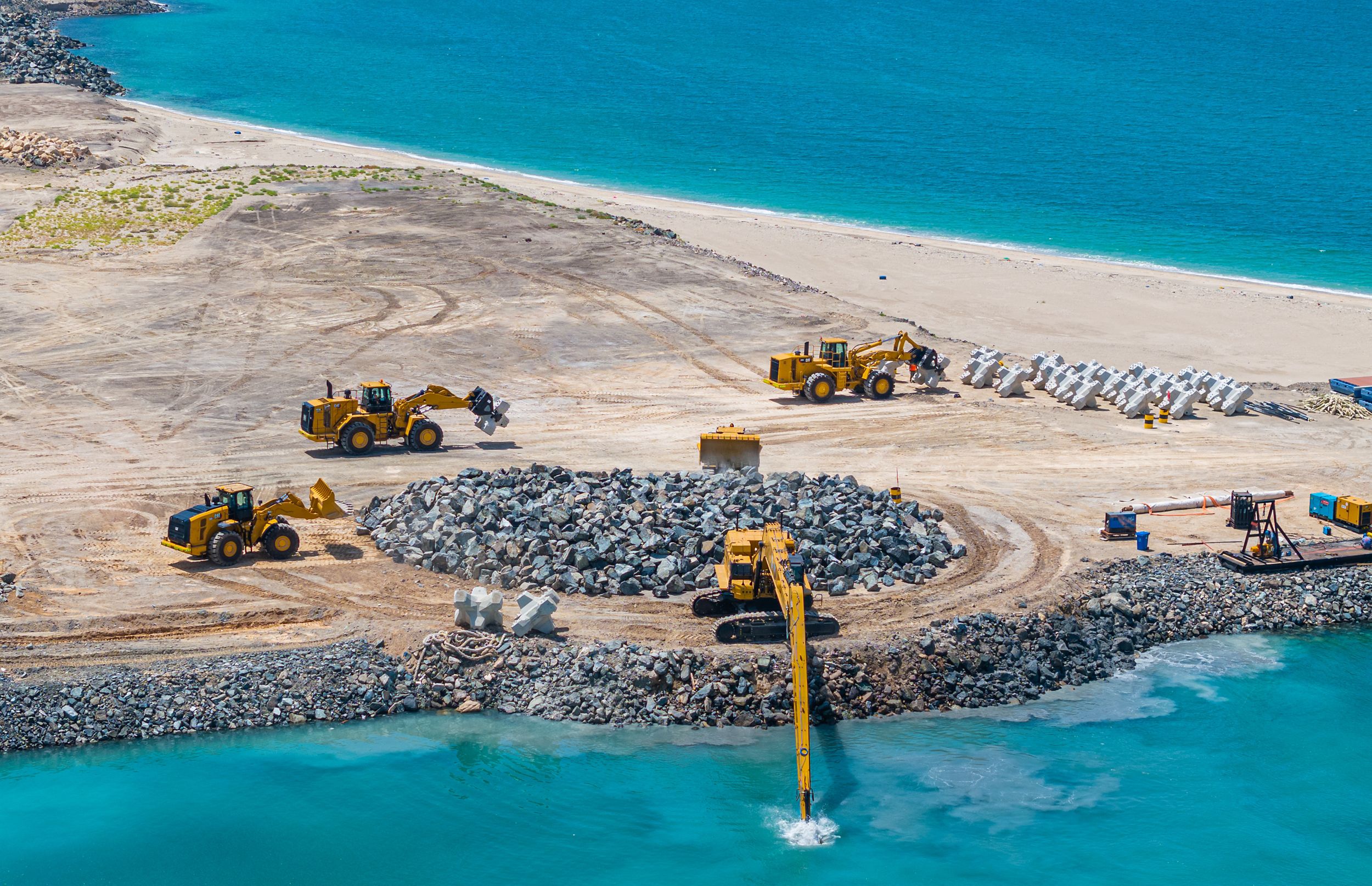

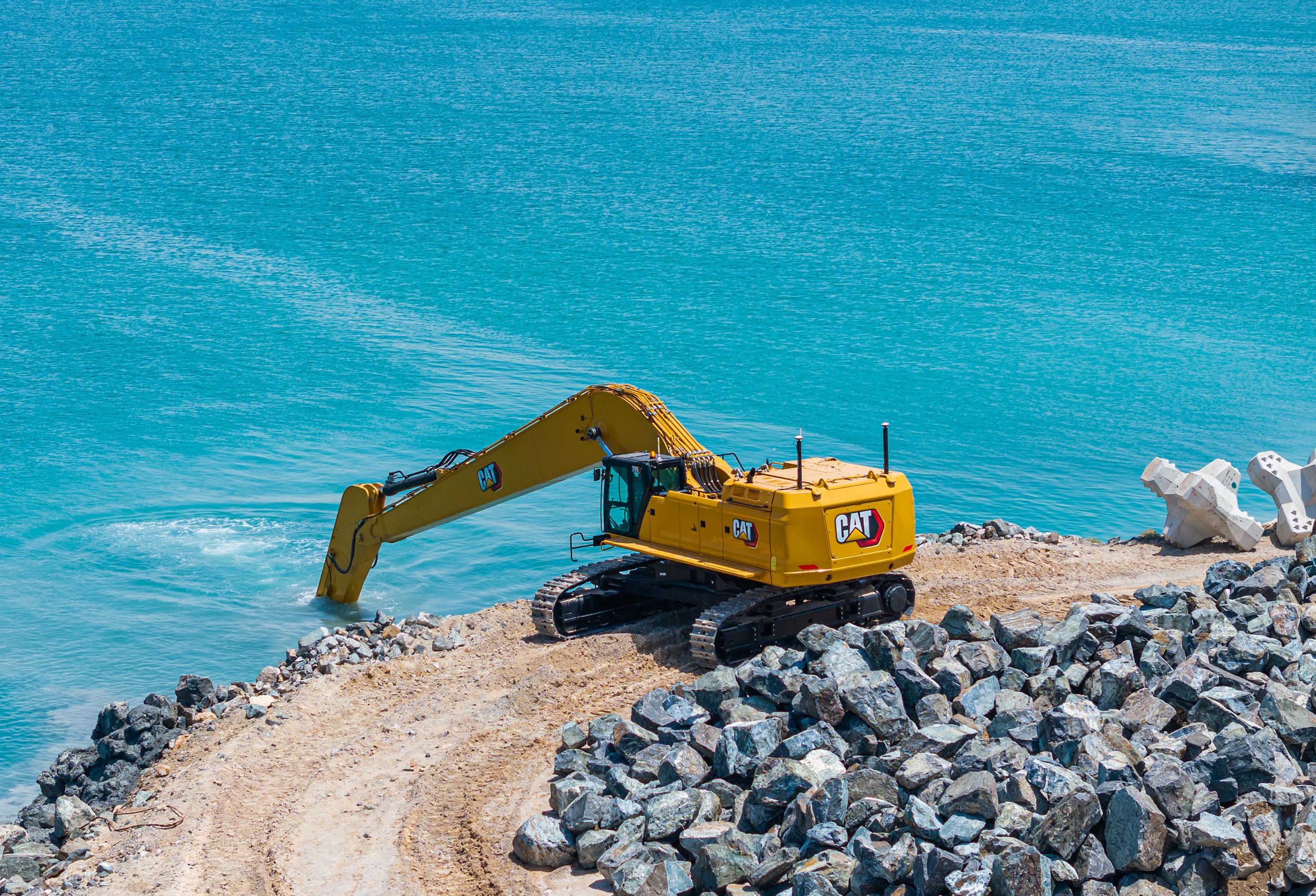

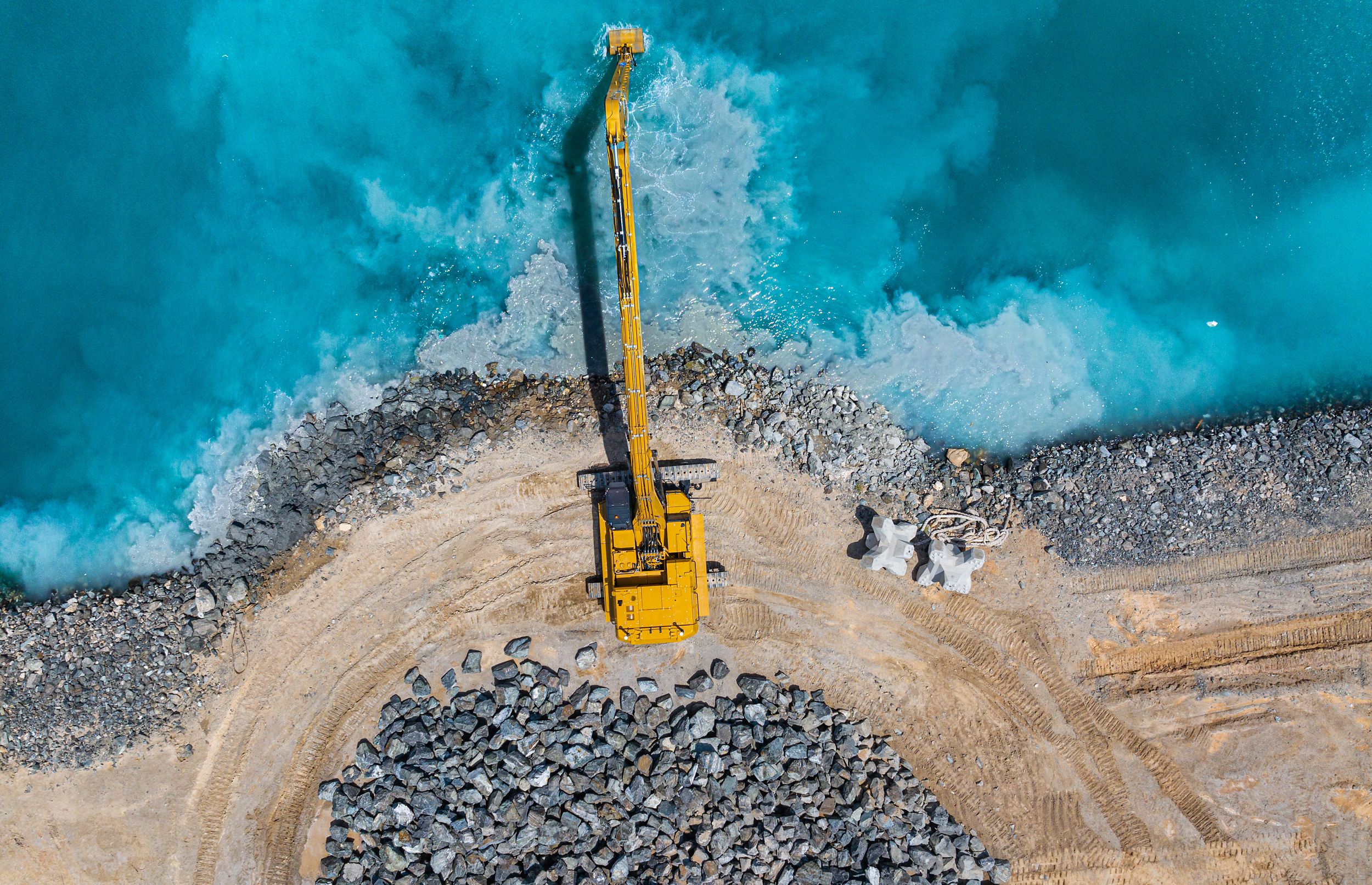

This machine excels in ultimate long-distance dredging, ditch cleaning, settling pond clean-out, waterway and canal maintenance.

Machine Setup Simplification

At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.
The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.

Cat Grade 3D Ready

The Cat Grade 3D Ready option includes all the hardware required for the Grade with 3D system, installed and tested from the factory. This option provides an easier upgrade path for customers who want to add Grade with 3D after their initial purchase. To activate, contact your Cat Dealer to purchase the required 3D software licenses. Licenses can be installed remotely or manually loaded onto the machine.

Cat Payload and Advanced Payload*

Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Advanced Payload is a system upgrade that offers expanded features and capabilities, including custom tags, daily totals, and electronic ticketing. Combine Payload with VisionLink™** to analyze jobsites and individual assets for remote management of production targets and key metrics.

Work up to 3000 m (9,840 ft) above sea level without de-rating.
The exclusive hydrostatic swing circuit has a dedicated bi-directional swing pump, swing motors, charge pump, and charge accumulator. The swing pump supplies oil to the swing motor; the charge pump and charge accumulator prevent cavitation (air bubbles) and overheating. The circuit enables regenerating swing brake energy and independent management of cylinder oil flow, resulting in higher efficiency and smoother, more predictable performance when you multitask with the excavator.
Powerful swing torque easily handles changes in momentum, uneven terrain, and consistent high-impact connections, helping operators make their work swift and precise.
Did you know baffle plates help increase an excavator’s strength-to-weight ratio? That is why Caterpillar incorporates the plates in high-stress areas like the boom, stick, and frame. Reinforcing the machine without adding significantly more weight also helps provide years of reliable performance, even in the harshest environments.
The cylinder rods are reinforced with additional wear rings to help reduce oil leaks. The car body has thick baffle plates for a long service life. The thick track link has large bolt joints to help maintain bolt retention. Track rollers have a large shaft diameter to help prevent bending and oil leaks while increasing the 395’s loading capacity, which means more reliable production for you.
Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
The center track guiding guard helps align the excavator track when traveling and working on slopes.
The sloped track frame prevents mud and debris accumulation, helping reduce the risk of track damage.
Auxiliary hydraulic options allow you to use a wide range of Cat® attachments.
Advansys™ bucket tips increase penetration and improve cycle times. Tip changes can be done quickly with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.
Match the excavator to the job with three operating modes: Power, Smart, and Eco.
Smart mode automatically adjusts power for the highest fuel efficiency – less power for tasks such as swinging and more power for digging.
Enhanced heavy lift mode increases system pressure to help you easily pick and place heavy material.
Auto warm-up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
Don’t let the temperature stop you from working. This excavator has a high-ambient capability of 52° C (125° F) and a standard cold start capability of –18° C (-0.4° F).
The engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 emission standards with an aftertreatment system that requires no operator input or downtime.

The latest operator oriented User Interface (UI) has been designed to maximize uptime by allowing operators to easily reorder work tool lists and quickly create new work tool combinations. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.
Cat® Lift Assist helps avoid machine tipping. With visual and auditory alerts, operators will know if their load is within the excavator’s safe working range limits.
Cat® 2D E-Fence restricts the front linkage from moving beyond operator-defined preset boundaries for the ceiling, floor, wall, swing, and cab. It helps operators avoid jobsite hazards such as traffic, keeps personnel safe, and helps you save on costly repairs, equipment downtime, and potential jobsite fines.
Cat® Detect - People Detection for excavators is an intelligent vision camera system that can alert an operator when someone enters a machine’s hazard zone.*
Cat® Grade with Assist helps operators stay on grade simply and effortlessly with semi-autonomous digging. It automates boom, stick, and bucket movements to deliver more accurate cuts with less effort.
Cat® Grade with 2D for excavators is an indicate system that helps operators reach grade faster.* Select your target depth and slope and watch the Grade with 2D system use on-board processors and sensors to provide real-time guidance on the distance to grade.
Cat® Grade with 3D for excavators helps operators grade more quickly, accurately, and efficiently, improving productivity.* It incorporates GNSS technology and RTK positioning guidance to streamline the grading process for complex designs commonly encountered on large infrastructure and commercial projects. This system allows operators to work confidently, eliminating guesswork while cutting and filling to precise specifications.
The Cat® Grade 3D Ready option includes all the hardware required for the Grade with 3D system, installed and tested from the factory. Activation requires the purchase of additional 3D software licenses, contact your Cat Dealer for details.
Upgrade to our dual antenna GNSS for maximum grading efficiency. The system lets you create and edit designs on the touchscreen monitor while you’re on the job, or you can have the plan design sent to the excavator to make your work easier. Plus, you get added benefits of avoidance zones, cut and fill mapping, lane guidance, and augmented reality along with advanced positioning capability.
All Cat Grade systems are compatible with radios and base stations from Trimble, Topcon, and Leica. Already invested in a grade infrastructure? You can install grade systems from Trimble, Topcon, and Leica onto the machine.
Cat® Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Advanced Payload is a system upgrade that offers expanded features and capabilities, including custom tags, daily totals, and electronic ticketing.
Combine Payload with VisionLink™ to analyze jobsites and individual assets for remote management of production targets and key metrics.
Cat® Operator Coaching allows operators of all experience levels to take their efficiency and productivity to the next level. With tips and data at their fingertips, operators can track and improve their productivity through everyday work on the job site. Gain data-based insights towards operators and operations when you pair Operator Coaching with VisionLink™.** There are two coaching tip categories –
1. Operational Efficiency Tips: Help operators stay at the top of their game by identifying areas to increase skill and efficiency, such as digging technique and idle times.
2. Machine Health Tips: Some actions are inefficient and cause unnecessary wear and tear on the machine and its components. Following Machine Health Tips can help extend the life of the machine, improve digging technique, and reduce fuel waste.

VisionLink™ provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Equipment management features provide up-to-date asset tracking of your entire fleet. You can track asset location, operating hours, fuel level, health issues, and overall utilization. Monitor equipment health with fault codes, fluid analysis, and inspection due dates. It's all about making informed, data-based decisions to help reduce operating costs. Productivity management features enable you to analyze overall job site performance. You'll be able to track tonnage moved, production targets, and payload, as well as Grade 3D and compaction data. These vital metrics help you to reduce costs and improve jobsite operational efficiency.
Cat® Inspect is a mobile application that allows you to easily perform digital preventative maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink™ so you can keep a close eye on your fleet.
Cat® Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
Cat® Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
The Cat® PL161 attachment locator allows you to track attachments across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The work tool recognition** feature automatically adjusts machine settings based on the selected tool.

* Data field availability can vary by equipment manufacturer.
** Recognition feature available on select excavator models. Consult your Cat dealer for details.

The 395’s extended and synchronized service intervals and reduced hydraulic oil capacity help you save time and money.
The excavator is auto-lube ready with built-in mounting points; an available auto-lube retrofit kit provides additional hardware to mount a grease pump and line guards – all to help do the job of lubing safer, cleaner, and trouble-free.
Boost productivity with proactive service reminders. The Integrated Vehicle Health Management system alerts the operator with step-by-step service guidance and parts needed so you don't experience unnecessary downtime.
Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
Fuel and engine oil filters are accessible from the upper platform and synchronized to be changed at 1,000 hours.
The latest hydraulic oil filter provides high-quality filtration performance and features anti-drain valves to keep oil clean when the filter is replaced, and the 3,000-hour extended replacement interval offers efficiency and convenience.
Scheduled Oil Sampling (S·O·S^SM) ports with extended sampling intervals are on ground level, simplifying maintenance and allowing for quick, easy extraction of samples for fluid analysis.
Using Cat® genuine oil and filters and doing typical S∙O∙S monitoring will extend the current service interval, giving you more uptime.
The high-efficiency hydraulic fan has a programmable automatic reverse function to keep cores free from debris, eliminating the need for any operator interaction.
The advanced air intake filter with pre-cleaner has a high dust-holding capacity.
The latest engine air cleaners with an integrated pre-cleaner surpass radial seal air cleaners' lifespan.

Sites where excavators work are typically rugged and challenging. That’s why it’s important that the 395 cab help protect the operator as much as possible from fatigue, stresses, sounds, and temperatures of the job.
Comfort and efficiency of movement help keep operators productive and alert all shift long. The standard seat is wide and adjustable for operators of virtually any size.
The tip-up left console makes getting in and out of the seat easy.
Two cab options – Deluxe, and Premium – let you choose the level of comfort you need.
The Deluxe cab package includes a heated air suspension seat; the Premium seat is heated and cooled.
The cab is sound-suppressed and sealed.
Advanced viscous mounts reduce cab vibration
Control the excavator comfortably with easy-to-reach controls located in front of you.
The touchscreen monitor makes it easy to access critical information and settings. Shortcut keys make it easy, and two are for entertainment, heating, and air conditioning. There is also a shortcut key for apps and functions that you can set.
Standard automatic climate control keeps you at the right temperature throughout your shift.
Convenience features include Bluetooth® integrated radio, USB charging and phone connectivity ports, 12V DC outlets, and an AUX port.
Cup and bottle holders are easy to reach, and storage spaces are located conveniently throughout the cab.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles.

Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area.

Optional Cat® Command remote control enables equipment operators to work safely outside the machine when working in hazardous environments. Command offers the choice of handheld Consoles* (line-of-sight) or long-distance virtual Stations (non-line-of-sight). Deep integration with machine systems enables efficiency and productivity by maintaining the use of in-cab technology** features (Grade, Payload, Assist, etc.).
Operator ID keeps your excavator secure. To enable the push-button starting feature, use your PIN code on the monitor or the optional Bluetooth key fob.
Serrated steps, anti-skid plating, and handrails help you avoid slips and trips – a major contributor to workplace injuries.
Standard Lift Assist quickly calculates the actual load you are lifting and compares it to the rated load the excavator is capable of handling. Visual and auditory alerts tell you if you are within safe working range or need to take immediate action to avoid tipping.
See all around the machine with the premium 360 lighting package. The 1800-lumen lights on the chassis, cab, boom, sides, and rear illuminate the jobsite for operators and ground personnel.
Add optional inspection lighting to illuminate the engine, pump, battery, and cooling compartments, making service work more accessible.
Whether you are using a bucket, hammer, grapple, or clamshell, standard 2D E-fence automatically stops excavator motion using boundaries you set in the monitor for the entire working envelope – above, below, sides, and front. E-fence protects equipment from damage and helps reduce fines related to zoning or underground utility damage. Automatic boundaries even help prevent operator fatigue by reducing overswinging and overdigging. A travel direction indicator helps operators know which way to activate the travel levers.
Small cab pillars, large windows, and a flat engine hood design help you enjoy great visibility into the trench, in each swing direction, and behind you.
Add a swing alarm to alert people when rotating from the trench to the stockpile.
Rear and right-hand-sideview cameras are standard. Upgrade to 360° visibility, and you’ll easily visualize objects and personnel around the excavator in a single view.
A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
The right-hand service platform design help provide easy, safe, and quick access to the upper service platform; the service platform steps use serrated steps and an anti-skid punch plate to prevent slipping. The handrails comply with ISO 2867:2011 requirements.

The 395 uses a keyless push-button engine start. This adds security for the machine by using Operator ID codes to limit and track machine access. Codes can be entered manually via an optional Bluetooth key fob.
Most machine settings can be controlled through the high-resolution touchscreen monitor. It offers several languages and is easy to reach from the seat – no twisting or turning.
A second 254 mm (10 in) monitor is available for the Cat® Grade and Cat® Grade with 3D.
Operating can be made easier with the touch of a joystick button. The joystick function can be customized through the monitor. The joystick pattern and response can be set to match operator preference. All preferences are saved with the Operator ID and restored at login.
Make moving the excavator much easier with Cat® Stick Steer. Push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.
You can also add an auxiliary relay to power on or turn off a CB radio, beacon light, or other attachment so you don’t have to take your hands off the joysticks.
Program up to four depth and slope offsets so you can easily get to grade without a grade checker – saving time and enhancing safety on the jobsite.
Operator coaching is an in-cab system that recognizes specific opportunities for operators to be more productive and prevent unnecessary machine wear and tear.
Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips on the touchscreen monitor.
Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.

Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area.

Buckets: Handle everything from digging and grading to cleanup and debris removal with your excavator. Caterpillar® offers general duty, heavy duty, extreme duty, and severe duty buckets, as well as specialized designs for ditch cleaning, rock, and finishing work. Reinforced edges and wear-resistant materials ensure long-lasting performance in tough conditions.
Couplers (HEX): Cat® couplers for excavators enable fast, secure attachment changes, without the need to leave the cab. From Pin Grabbers to hydraulic quick connect options, couplers help reduce downtime, boost jobsite efficiency and promote versatility by allowing multiple machines to share a common attachment inventory.
Hammers: Break concrete, rock, and steel with up to 1,000 blows per minute. Built for high-production demolition, quarrying, and construction, they offer powerful impact energy and consistent performance. Their durability and low-maintenance design make them essential for demanding breaking applications.
Multi-Processors: A versatile tool for demolition, equipped with interchangeable jaws to handle concrete, steel, and rebar. Multi-Processors combine cutting, crushing and pulverizing capabilities in one attachment. Their modular design maximizes efficiency across a range of job site demands.
Scrap and Demolition Shears: Rotating shears provide precision cutting for metal structures, pipes, rebar, and scrap, making them ideal for demolition and recycling. Their powerful jaws and fast cycle times ensure clean cuts and high productivity. Built for durability, they excel in heavy-duty steel processing.
Pulverizers: Built to crush concrete and separate rebar during demolition and recycling. With high crushing force and fast cycle times, pulverizers efficiently reduce material for easier handling. Primary models feature 360° bidirectional rotation and tackle structure teardown, while secondary models have a fixed jaw design and process debris after demolition.
Orange Peel Grapples: Built for scrap and bulk material handling, Orange Peel Grapples excel with irregular, heavy loads like metal, rock, and waste. Their hydraulic tines provide superior grip and penetration. High-capacity and continuous rotation are perfect for scrap yards and transfer stations. Caterpillar® offers these grapples with a choice of different shell designs and tine options suited to various applications.
Clamshell Grapples: Perfect for bulk material handling, dredging, and excavation of loose or semi-compacted materials like sand, gravel, and debris. Their dual-opening jaws allow for precise loading and unloading. High-capacity and controlled operation make them ideal for ports, recycling, and heavy civil projects.

The Cat® C18 engine meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety – which can help to improve fuel efficiency and reduce greenhouse gas emissions.
Cat® Grade technologies combine advanced guidance with optional automated machine control, helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy.
Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Cat® Payload for excavators provides on-the-go material weighing, which helps reduce fuel burn by improving loading efficiency, job site productivity, and eliminating trips to the scale.
Cat® 2D E-fence keeps the front linkage within a predefined work area to aid in avoiding hazards such as traffic - not only helping keep personnel safe but also helping you avoid repairs, downtime, and costly job site fines.
Extended maintenance intervals help reduce downtime and decrease the amount of fluid and filters replaced over the machine's life.
Cat® VisionLink™ displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Remote Flash helps minimize downtime and maintenance time while keeping your asset running at maximum efficiency. Alerts for machine updates are sent virtually from your Cat® dealer, and updates can be deployed without a dealer technician needing to be onsite.

The 395 LRE combines premium performance and simple-to-use technology including Cat Grade Control and Cat Payload.
Choose between two purpose‑built extended‑reach front configurations – 21.5 m reach with 12.5 m (41'0") boom + 9.5 m (31'2") stick or 28 m reach with 15.5 m (50'10") boom + 11.8 m (38'9") stick – both designed to maximize reach, depth and stable performance in demanding dredging applications.
The 395 LRE has a maximum reach capability of 28 meters (91’10") and a dig depth of 21 700 mm (71’2”).
The long and extended undercarriage and choice of either a 15.4 mt (34,060 lb) counterweight or a 21.6 mt (47,600 lb) provide a stable platform for long-reach digging.
This machine excels in ultimate long-distance dredging, ditch cleaning, settling pond clean-out, waterway and canal maintenance.

Specifications Standard Equipment Optional Equipment

Product Specifications for 395

Engine

Net Power - ISO 9249	542 hp 404 kW
Net Power - ISO 9249 (DIN)	550 hp (metric) 550 hp (metric)
Engine Model	Cat C18 Cat C18
Engine Power - ISO 14396	543 hp 405 kW
Engine Power - ISO 14396 (DIN)	551 hp (metric) 551 hp (metric)
Bore	6 in 145 mm
Stroke	7 in 183 mm
Displacement	1105 in³ 18.1 l
Biodiesel Capability	B20¹ B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Weights

Operating Weight	207400 lb 94000 kg
Note (1)	Long Variable Gauge undercarriage, GP boom, R4.4HB2 (14'5") stick, SD 5.2 m³ (6.8 yd³) bucket, 900 mm (35") double grouser shoes and counterweight with removal device. Long Variable Gauge undercarriage, GP boom, R4.4HB2 (14'5") stick, SD 5.2 m³ (6.8 yd³) bucket, 900 mm (35") double grouser shoes and counterweight with removal device.

Working Ranges and Forces

Maximum Digging Depth	31.9 ft 9670 mm
Boom	GP 8.4m (25'7") GP 8.4m (25'7")
Stick	Reach 4.4 m (14'5") Reach 4.4 m (14'5")
Bucket	SD 5.2m³ (6.8 yd³) SD 5.2m³ (6.8 yd³)
Maximum Reach at Ground Level	48.3 ft 14710 mm
Maximum Cutting Height	44.5 ft 13540 mm
Maximum Loading Height	30.4 ft 9250 mm
Minimum Loading Height	9.11 ft 3030 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	31.4 ft 9560 mm
Maximum Vertical Wall Digging Depth	22.3 ft 6770 mm
Bucket Digging Force - ISO	86100 lbf·ft 383 kN
Stick Digging Force - ISO	68540 lbf·ft 305 kN

Hydraulic System

Main System - Maximum Flow - Implement	281 gpm 1064 L/min
Maximum Pressure - Equipment	5366 psi 37000 kPa
Maximum Pressure - Travel	5076 psi 35000 kPa
Maximum Pressure - Swing	4496 psi 31000 kPa

Swing Mechanism

Maximum Swing Torque	267333 lbf·ft 362 kN·m
Note (1)	For CE-marked machine default value may be set lower For CE-marked machine default value may be set lower

Service Refill Capacities

Fuel Tank Capacity	322 gal (US) 1220 l
Cooling System	19 gal (US) 71 l
Engine Oil	18 gal (US) 67 l
Swing Drive	6 gal (US) 24 l
Final Drive - Each	5 gal (US) 20 l
Hydraulic System - Including Tank	196 gal (US) 740 l
Hydraulic Tank	98 gal (US) 372 l
DEF Tank	21 gal (US) 80 l

Dimensions

Boom	GP 8.4m (25'7") GP 8.4m (25'7")
Stick	Reach 4.4 m (14'5") Reach 4.4 m (14'5")
Bucket	SD 5.2m³ (6.8 yd³) SD 5.2m³ (6.8 yd³)
Shipping Height - Top of Cab	12 ft 3670 mm
Handrail Height	12.4 ft 3750 mm
Shipping Length	49.6 ft 15090 mm
Tail Swing Radius	15.11 ft 4840 mm
Counterweight Clearance	5.5 ft 1640 mm
Ground Clearance	2.9 ft 830 mm
Track Length	20.1 ft 6350 mm
Track Length to Center of Rollers	16.1 ft 5120 mm
Track Gauge	11.6 ft 3510 mm
Transport Width	12.9 ft 3880 mm
Note	Track gauge undercarriage extended with 900 mm (35") shoes; transport width undercarriage retracted with 900 mm (35") shoes and no steps Track gauge undercarriage extended with 900 mm (35") shoes; transport width undercarriage retracted with 900 mm (35") shoes and no steps

Sustainability

Recyclability

98% 98%

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1859), the system contains 1.3 kg (2.9 lb) of refrigerant, which has a CO2 equivalent of 1.859 metric tonnes (2.049 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. If equipped with R134a (Global Warming Potential = 1859), the system contains 1.3 kg (2.9 lb) of refrigerant, which has a CO2 equivalent of 1.859 metric tonnes (2.049 tons). If equipped with R1234yf (Global Warming Potential = 0.501), the system contains 1.1 kg (2.4 lb) of refrigerant which has a CO2 equivalent of 0.001 metric tonnes (0.001 tons).

395 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

High-resolution 254 mm (10") LCD touch screen monitor

Heated seat with air-adjustable suspension (Deluxe only)

Heated and cooled seat with auto adjustable suspension (Premium only)

Sound suppressed cab with viscous mounts

Automatic bi-level air conditioner

Jog dial and shortcut keys for monitor control

Keyless push-to-start engine control

Height-adjustable console, infinite with no tool

Tilt-up left-side console

51 mm (2") orange seat belt

Bluetooth integrated radio (including USB, aux port and microphone)

2 x 12V DC outlets

Cup and storage compartments

Openable two-piece front window (Premium optional)

Upper radial wiper with washer (Deluxe only)

Parallel wiper with washer (Premium only)

Openable polycarbonate skylight hatch (Premium optional)

LED dome light

Floor welcome light

Roller front sunscreen

Roller rear sunscreen (Deluxe optional)

Rear window emergency exit

Washable floor mat

Beacon Ready

CAT TECHNOLOGY

VisionLink™

Remote Flash

Remote Troubleshoot

Work tool recognition and tracking (PL161)

Cat Grade with 2D

Cat Assist

Cat Payload

ELECTRICAL SYSTEM

Maintenance-free 1,400 CCA batteries (x2)

Centralized electrical disconnect switch

Chassis light

ENGINE

Three selectable modes: Power, Smart, and Eco

Auto engine speed control

Up to 4500m (14,760 ft) altitude capability

52°C (126°F) high-ambient cooling capacity

-18°C (-0.4°F) cold start capability

Hydraulic reverse fan

Double element air filter with integrated pre-cleaner

3 vertical side-by-side cooling system

Remote disable

95 Amp alternator

HYDRAULIC SYSTEM

Boom and stick regeneration circuit

Electronic main control valve

Dedicated closed loop swing circuit

Anti-reaction valve

Auto hydraulic oil warmup

Auto swing parking brake

High performance hydraulic return filter

Two speed travel

Bio hydraulic oil capability

SAFETY AND SECURITY

Caterpillar One Key security system

2D E-Fence

Lockable fuel drain compartment

Lockable external tool / storage box

Lockable door, fuel, and hydraulic tank locks

Lockable disconnect switch

Service platform with anti-skid plate & recessed bolts

Full handrail mount on platform

Mirror package

Signaling/warning horn

Travel alarm

Ground-level secondary engine shutoff switch

Rearview and right-hand-sideview cameras

Walkway

SERVICE AND MAINTENANCE

Integrated vehicle health management system

Auto lube ready

Reversing cooling fan

Grouped location of engine oil & fuel filters

Scheduled Oil Sampling (S·O·S) ports

QuickEvac maintenance ready

UNDERCARRIAGE AND STRUCTURES

Long variable gauge undercarriage

Grease lubricated track

Swivel guard

HD bottom guard

HD travel motor guard

Standard counterweight

Towing eye on base frame

395 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat® dealer for details.

BOOMS AND STICKS

7.25 m (23'9") Mass boom

8.4 m (27'7") GP boom

10 m (32'10") Reach boom

2.92 m (9'7") GP stick

2.92 m (9'7") Mass stick

3.4 m (11'2") Mass stick

3.4 m (11'2") GP stick

3.7 m (12'2") GP stick

4.4 m (14'5") HD Reach stick

5.5 m (18'1") HD Reach stick

Bucket linkage, HB2 type without lifting eye, Autolube ready

Bucket linkage, HB2 type without lifting eye, Autolube ready

Bucket linkage, JC type with lifting eye, Autolube ready

Bucket linkage, JC type without lifting eye, Autolube ready

CAB

Operator Protective Guards (OPG)

Additional high-resolution LCD touch screen monitor for Cat® Grade Advanced 2D and 3D

Cat® Stick Steer

Auxiliary relay

CAT TECHNOLOGY

Operator Coaching

Cat Grade with 2D with Attachment Ready Option (ARO)

Cat Grade with 3D (single or dual GNSS)

Cat Grade 3D Ready

Cat Grade Connectivity

Cat Advanced Payload

Cat Tiltrotator (TRS) integration

ELECTRICAL SYSTEM

LED boom and cab lights

1,800 lumen LED premium surround lights

ENGINE

Cold start block heaters

-32°C (-25°F) cold start capability

HYDRAULIC SYSTEM

SmartBoom™

Advanced tool control

Medium-pressure auxiliary circuit

Quick coupler circuit

Hydraulic efficiency monitoring

SAFETY AND SECURITY

Swing alarm

360° visibility

Boom lowering check valve

Stick lowering check valve

Tilt-up walkway

Inspection lighting

Cat Command (remote control)

SERVICE AND MAINTENANCE

Fast-fill fuel system

QuickEvac maintenance ready

Electric refueling pump with auto shutoff

UNDERCARRIAGE AND STRUCTURES

650mm (26") HD double grouser track shoes

750mm (30") HD double grouser track shoes

900mm (35") HD double grouser track shoes

Three-piece segmented track guiding guards

Two-piece segmented track guiding guards

Counterweight with removal device

OTHER OPTIONAL CONFIGURATION

Long Reach (LRE)

Product Specifications for 395

Download Print

Engine

Net Power - ISO 9249	542 hp 404 kW
Net Power - ISO 9249 (DIN)	550 hp (metric) 550 hp (metric)
Engine Model	Cat C18 Cat C18
Engine Power - ISO 14396	543 hp 405 kW
Engine Power - ISO 14396 (DIN)	551 hp (metric) 551 hp (metric)
Bore	6 in 145 mm
Stroke	7 in 183 mm
Displacement	1105 in³ 18.1 l
Biodiesel Capability	B20¹ B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards. Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, and Japan 2014 emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 1,900 rpm. Advertised power is tested per the specified standard in effect at time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use. * Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. *** Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).

Weights

Operating Weight	207400 lb 94000 kg
Note (1)	Long Variable Gauge undercarriage, GP boom, R4.4HB2 (14'5") stick, SD 5.2 m³ (6.8 yd³) bucket, 900 mm (35") double grouser shoes and counterweight with removal device. Long Variable Gauge undercarriage, GP boom, R4.4HB2 (14'5") stick, SD 5.2 m³ (6.8 yd³) bucket, 900 mm (35") double grouser shoes and counterweight with removal device.

Working Ranges and Forces

Maximum Digging Depth	31.9 ft 9670 mm
Boom	GP 8.4m (25'7") GP 8.4m (25'7")
Stick	Reach 4.4 m (14'5") Reach 4.4 m (14'5")
Bucket	SD 5.2m³ (6.8 yd³) SD 5.2m³ (6.8 yd³)
Maximum Reach at Ground Level	48.3 ft 14710 mm
Maximum Cutting Height	44.5 ft 13540 mm
Maximum Loading Height	30.4 ft 9250 mm
Minimum Loading Height	9.11 ft 3030 mm
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	31.4 ft 9560 mm
Maximum Vertical Wall Digging Depth	22.3 ft 6770 mm
Bucket Digging Force - ISO	86100 lbf·ft 383 kN
Stick Digging Force - ISO	68540 lbf·ft 305 kN

Hydraulic System

Main System - Maximum Flow - Implement	281 gpm 1064 L/min
Maximum Pressure - Equipment	5366 psi 37000 kPa
Maximum Pressure - Travel	5076 psi 35000 kPa
Maximum Pressure - Swing	4496 psi 31000 kPa

Swing Mechanism

Maximum Swing Torque	267333 lbf·ft 362 kN·m
Note (1)	For CE-marked machine default value may be set lower For CE-marked machine default value may be set lower

Service Refill Capacities

Fuel Tank Capacity	322 gal (US) 1220 l
Cooling System	19 gal (US) 71 l
Engine Oil	18 gal (US) 67 l
Swing Drive	6 gal (US) 24 l
Final Drive - Each	5 gal (US) 20 l
Hydraulic System - Including Tank	196 gal (US) 740 l
Hydraulic Tank	98 gal (US) 372 l
DEF Tank	21 gal (US) 80 l

Dimensions

Boom	GP 8.4m (25'7") GP 8.4m (25'7")
Stick	Reach 4.4 m (14'5") Reach 4.4 m (14'5")
Bucket	SD 5.2m³ (6.8 yd³) SD 5.2m³ (6.8 yd³)
Shipping Height - Top of Cab	12 ft 3670 mm
Handrail Height	12.4 ft 3750 mm
Shipping Length	49.6 ft 15090 mm
Tail Swing Radius	15.11 ft 4840 mm
Counterweight Clearance	5.5 ft 1640 mm
Ground Clearance	2.9 ft 830 mm
Track Length	20.1 ft 6350 mm
Track Length to Center of Rollers	16.1 ft 5120 mm
Track Gauge	11.6 ft 3510 mm
Transport Width	12.9 ft 3880 mm
Note	Track gauge undercarriage extended with 900 mm (35") shoes; transport width undercarriage retracted with 900 mm (35") shoes and no steps Track gauge undercarriage extended with 900 mm (35") shoes; transport width undercarriage retracted with 900 mm (35") shoes and no steps

Sustainability

Recyclability

98% 98%

Air Conditioning System

Air Conditioning

395 Standard Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat dealer for details.

CAB

High-resolution 254 mm (10") LCD touch screen monitor

Heated seat with air-adjustable suspension (Deluxe only)

Heated and cooled seat with auto adjustable suspension (Premium only)

Sound suppressed cab with viscous mounts

Automatic bi-level air conditioner

Jog dial and shortcut keys for monitor control

Keyless push-to-start engine control

Height-adjustable console, infinite with no tool

Tilt-up left-side console

51 mm (2") orange seat belt

Bluetooth integrated radio (including USB, aux port and microphone)

2 x 12V DC outlets

Cup and storage compartments

Openable two-piece front window (Premium optional)

Upper radial wiper with washer (Deluxe only)

Parallel wiper with washer (Premium only)

Openable polycarbonate skylight hatch (Premium optional)

LED dome light

Floor welcome light

Roller front sunscreen

Roller rear sunscreen (Deluxe optional)

Rear window emergency exit

Washable floor mat

Beacon Ready

CAT TECHNOLOGY

VisionLink™

Remote Flash

Remote Troubleshoot

Work tool recognition and tracking (PL161)

Cat Grade with 2D

Cat Assist

Cat Payload

ELECTRICAL SYSTEM

Maintenance-free 1,400 CCA batteries (x2)

Centralized electrical disconnect switch

Chassis light

ENGINE

Three selectable modes: Power, Smart, and Eco

Auto engine speed control

Up to 4500m (14,760 ft) altitude capability

52°C (126°F) high-ambient cooling capacity

-18°C (-0.4°F) cold start capability

Hydraulic reverse fan

Double element air filter with integrated pre-cleaner

3 vertical side-by-side cooling system

Remote disable

95 Amp alternator

HYDRAULIC SYSTEM

Boom and stick regeneration circuit

Electronic main control valve

Dedicated closed loop swing circuit

Anti-reaction valve

Auto hydraulic oil warmup

Auto swing parking brake

High performance hydraulic return filter

Two speed travel

Bio hydraulic oil capability

SAFETY AND SECURITY

Caterpillar One Key security system

2D E-Fence

Lockable fuel drain compartment

Lockable external tool / storage box

Lockable door, fuel, and hydraulic tank locks

Lockable disconnect switch

Service platform with anti-skid plate & recessed bolts

Full handrail mount on platform

Mirror package

Signaling/warning horn

Travel alarm

Ground-level secondary engine shutoff switch

Rearview and right-hand-sideview cameras

Walkway

SERVICE AND MAINTENANCE

Integrated vehicle health management system

Auto lube ready

Reversing cooling fan

Grouped location of engine oil & fuel filters

Scheduled Oil Sampling (S·O·S) ports

QuickEvac maintenance ready

UNDERCARRIAGE AND STRUCTURES

Long variable gauge undercarriage

Grease lubricated track

Swivel guard

HD bottom guard

HD travel motor guard

Standard counterweight

Towing eye on base frame

395 Optional Equipment

NOTE

Standard and optional equipment may vary. Consult your Cat® dealer for details.

BOOMS AND STICKS

7.25 m (23'9") Mass boom

8.4 m (27'7") GP boom

10 m (32'10") Reach boom

2.92 m (9'7") GP stick

2.92 m (9'7") Mass stick

3.4 m (11'2") Mass stick

3.4 m (11'2") GP stick

3.7 m (12'2") GP stick

4.4 m (14'5") HD Reach stick

5.5 m (18'1") HD Reach stick

Bucket linkage, HB2 type without lifting eye, Autolube ready

Bucket linkage, HB2 type without lifting eye, Autolube ready

Bucket linkage, JC type with lifting eye, Autolube ready

Bucket linkage, JC type without lifting eye, Autolube ready

CAB

Operator Protective Guards (OPG)

Additional high-resolution LCD touch screen monitor for Cat® Grade Advanced 2D and 3D

Cat® Stick Steer

Auxiliary relay

CAT TECHNOLOGY

Operator Coaching

Cat Grade with 2D with Attachment Ready Option (ARO)

Cat Grade with 3D (single or dual GNSS)

Cat Grade 3D Ready

Cat Grade Connectivity

Cat Advanced Payload

Cat Tiltrotator (TRS) integration

ELECTRICAL SYSTEM

LED boom and cab lights

1,800 lumen LED premium surround lights

ENGINE

Cold start block heaters

-32°C (-25°F) cold start capability

HYDRAULIC SYSTEM

SmartBoom™

Advanced tool control

Medium-pressure auxiliary circuit

Quick coupler circuit

Hydraulic efficiency monitoring

SAFETY AND SECURITY

Swing alarm

360° visibility

Boom lowering check valve

Stick lowering check valve

Tilt-up walkway

Inspection lighting

Cat Command (remote control)

SERVICE AND MAINTENANCE

Fast-fill fuel system

QuickEvac maintenance ready

Electric refueling pump with auto shutoff

UNDERCARRIAGE AND STRUCTURES

650mm (26") HD double grouser track shoes

750mm (30") HD double grouser track shoes

900mm (35") HD double grouser track shoes

Three-piece segmented track guiding guards

Two-piece segmented track guiding guards

Counterweight with removal device

OTHER OPTIONAL CONFIGURATION

Long Reach (LRE)

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

Cat Lift Assist for Excavators

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat Lift Assist is an excavator safety feature that quickly calculates the actual load you are lifting and compares it to the rated load the excavator is capable of handling. Visual and auditory alerts tell you if you are within safe working range or need to take action to avoid tipping.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat Lift Assist is an excavator safety feature that quickly calculates the actual load you are lifting and compares it to the rated load the excavator is capable of handling. Visual and auditory alerts tell you if you are within safe working range or need to take action to avoid tipping.

Explore Technology

Cat Command Remote Control for Construction

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat Command is an advanced remote control system that takes operators off the machine and away from potential dangers when working with hazardous materials or in unsafe conditions. The system's deep integration with machine systems ensures smooth and precise control for optimal efficiency and productivity.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat Command is an advanced remote control system that takes operators off the machine and away from potential dangers when working with hazardous materials or in unsafe conditions. The system's deep integration with machine systems ensures smooth and precise control for optimal efficiency and productivity.

Explore Technology

Cat 2D E-fence for Excavators

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Cat® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards like traffic. 2D E-fence uses data from position sensors to automatically stop motion when the front linkage reaches the defined boundaries.

Explore Technology
People Detection

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

While machines are designed to maximize operator visibility, it can be challenging to constantly monitor what is going on around them. Cat® Detect - People Detection is an intelligent vision camera system that can alert an operator when someone enters within a machine’s hazard zone.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards like traffic. 2D E-fence uses data from position sensors to automatically stop motion when the front linkage reaches the defined boundaries.

Explore Technology

While machines are designed to maximize operator visibility, it can be challenging to constantly monitor what is going on around them. Cat® Detect - People Detection is an intelligent vision camera system that can alert an operator when someone enters within a machine’s hazard zone.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Cat® Inspect allows you to access your equipment data on your mobile device. This easy-to-use app lets you capture inspection data and integrates with your other Cat data systems, so you can keep a close eye on your fleet. More than one million inspections are completed each year, providing convenience and accountability to equipment owners.

Explore Technology

The Cat PL161 Attachment Tracker is the most advanced OEM integrated solution for attachment tracking. The PL161 mounts easily to your attachments or anything else you want to track.

Explore Technology

Remote Flash sends an alert from your Cat dealer, prompting you to update the software on your machine. To minimize downtime, updates can be deployed while on the jobsite without having to wait for a dealer technician to arrive. Remote flash decreases maintenance time and keeps your asset running with maximum efficiency.

Explore Technology

Remote Troubleshoot allows your Cat dealer to run testing while the machine is operating. Once the problem is identified, a technician can fix it with the correct parts and tools the first time, saving time and money. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency.

Explore Technology

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Cat Grade for Excavators (2D & 3D)

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Digging a foundation. Trenching for a water line. Working on a slope. These jobs demand the precision and speed you get from Cat® Grade technologies. Combining advanced guidance with optional automated machine control, Grade helps operators hit grading targets right on the money in fewer passes.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Digging a foundation. Trenching for a water line. Working on a slope. These jobs demand the precision and speed you get from Cat® Grade technologies. Combining advanced guidance with optional automated machine control, Grade helps operators hit grading targets right on the money in fewer passes.

Explore Technology

Cat Payload for Excavators

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Next generation excavators take on all kinds of tasks - loading, stockpiling, material handling, and more. Cat® Payload technology provides on-the-go weighing to help operators hit exact targets every time and avoid overloading, underloading, or misloading materials.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Next generation excavators take on all kinds of tasks - loading, stockpiling, material handling, and more. Cat® Payload technology provides on-the-go weighing to help operators hit exact targets every time and avoid overloading, underloading, or misloading materials.

Explore Technology

Operator Coaching for Excavators

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

Operator Coaching allows operators of all experience levels to take their efficiency and productivity to the next level. With tips and data at their fingertips, operators can track and improve their productivity through everyday work on the job site.

Explore Technology

1 - 8 of 9 Items items

Previous Next

Operator Coaching allows operators of all experience levels to take their efficiency and productivity to the next level. With tips and data at their fingertips, operators can track and improve their productivity through everyday work on the job site.

Explore Technology

See how 395 compares against frequently compared products.

Excavators

Selected

395 Tier 4 / Stage V

Net Power - ISO 9249: 542 hp; 404 kW
Operating Weight: 207400 lb; 94000 kg
Maximum Digging Depth: 31.9 ft; 9670 mm

Excavators

374 Tier 4 / Stage V

Net Power - ISO 9249: 484 hp; 361 kW
Operating Weight: 162900 lb; 73 890 kg
Maximum Digging Depth: 28.1 ft; 8570 mm

View Details

Excavators

395 Front Shovel (FS) Tier 4 / Stage V

Net Power - ISO 9249: 542 hp; 404 kW
Operating Weight: 212,300 lb; 96,300 kg
Maximum Digging Depth: 9.7 ft; 2930 mm

View Details

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

Cat® 395 Hydraulic Excavator

The Cat® 395 LRE Hydraulic Excavator excels in ultimate long-distance dredging, ditch cleaning, settling pond clean-out, waterway and canal maintenance, and vegetation control.

The Cat® 395 LRE Hydraulic Excavator's long undercarriage and 21.6 mt (47,600 lb) counterweight of the 395 LRE provide a stable platform for long-reach digging.

The Cat® 395 LRE Hydraulic Excavator has a steep slope reach capability of 28 meters (91’10") and a dig depth of 21 700 mm (71’2”).

The Cat® 395 Long Reach Excavator (LRE) combines premium performance and simple-to-use technology.

Cat® 395 LRE Hydraulic Excavator - Whether cleaning ditches, canals, and waterways, or doing heavierduty work like dredging and longdistance excavation, count on Cat® next-generation super long reach and long reach excavation excavators to expand how you work.

Cat® 395 LRE Hydraulic Excavator - When your work is a little farther away, reach for Cat super long reach and long reach excavators. They are specialized machines designed to perform despite the unique challenges of working at distance.

Cat® 395 LRE Hydraulic Excavator - Long reach excavation excavators excel at heavier-duty work that requires more digging force and lift capacity.

Cat® 395 LRE Hydraulic Excavator - Reinforcements in the front linkage and frame allow digging power at a distance without sacrificing durability. A heavier counterweight than equivalent standard reach excavators provides greater stability. Get added versatility with optional tool control for select hydro-mechanical tools

Cat® 395 LRE Hydraulic Excavator - Take advantage of Cat next-generation excavator features including improved operator comfort, reduced maintenance costs, and better fuel economy. Long reach excavation excavators are compatible with next-generation excavator technologies.

Cat® 395 LRE Hydraulic Excavator - Standard waterproof technology provides precision excavation on long-reach excavation excavators. An optional submarine solution allows you to work in deep areas.

Cat® 395 Hydraulic Excavator - Boost productivity with standard Cat Grade and Assist technologies. Cat Grade and Assist technologies keep you on grade when visibility is impaired.

Cat® 395 Hydraulic Excavator - Cat Command is a remote control system featuring onboard electronics, vision systems, and offboard controls that help users achieve consistent quality in their work. Jobs become safer, more comfortable, and more precise – without sacrificing control, feel, or accuracy.

Cat® 395 Hydraulic Excavator - Specifications may vary due to regional configuration differences. Consult the Technical Specifications document available on www.cat.com or from your Cat dealer for detailed specifications for machines in your region.

Cat® 395 Hydraulic Excavator - When working at distance, visibility is everything. The cab windows and lower front profile of the machine give outstanding visibility to the work area without the strain of constantly leaning forward. Standard rear- and side-view cameras keep you aware of your surroundings at all times. An optional 360° visibility feature is also available.

Cat® 395 Hydraulic Excavator - Take advantage of Cat next-generation excavator features, including improved operator comfort, reduced maintenance costs, and better fuel economy. Super long reach excavators are compatible with next-generation excavator technologies.
