Long Reach Excavation 340 Long Reach 340 LRE Hydraulic Excavator

Request A Price Find Dealer

Key Specs

Net Power - ISO 9249: 346 hp; 258.3 kW

Operating Weight: 96500 lb; 43800 kg

Maximum Digging Depth: 42.8 ft; 13050 mm

340 Long Reach
Change model

Overview

Go the Distance

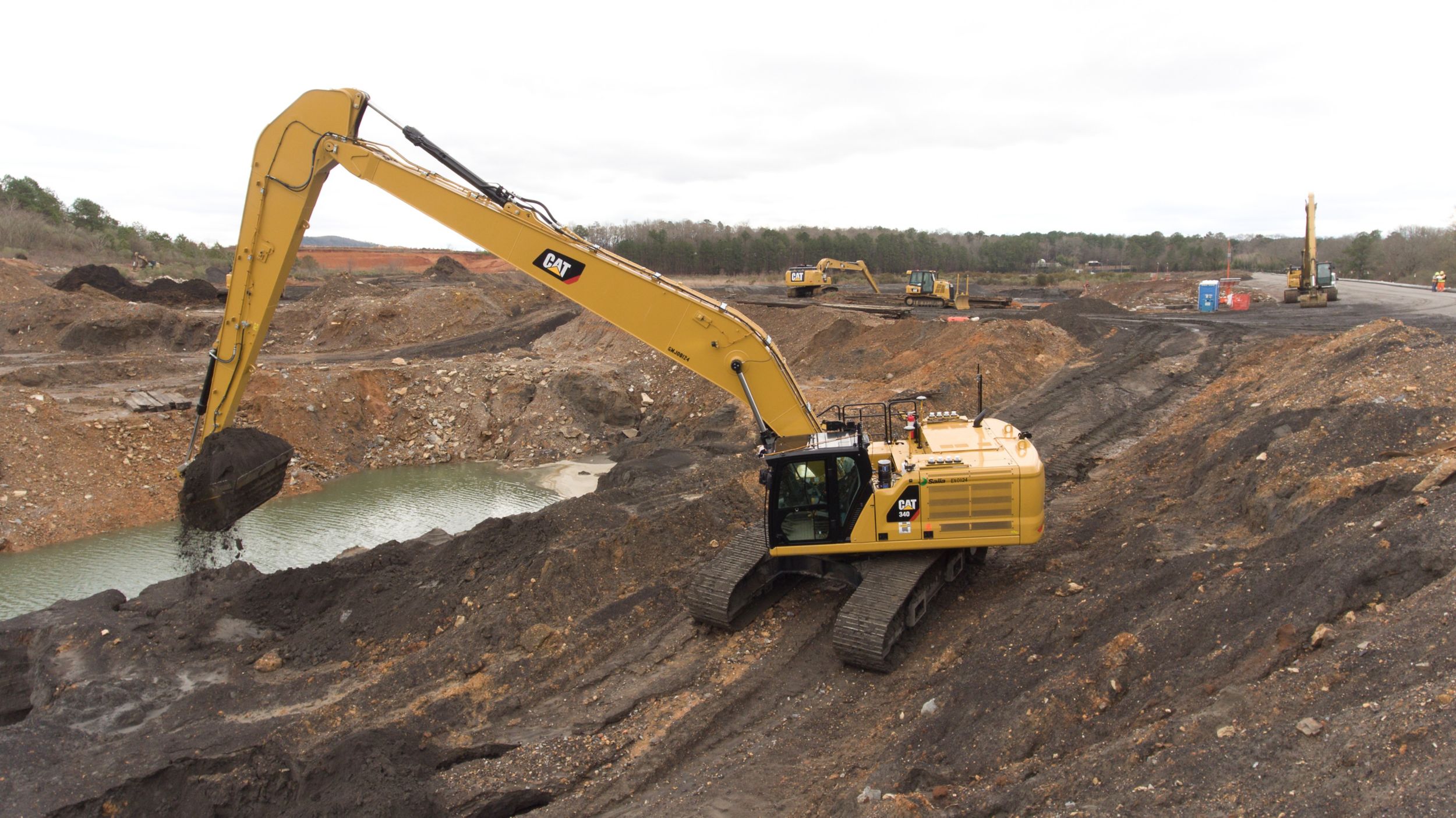

The CatÂ® 340 LRE helps you hit your targets all day long. With standard CatÂ® Payload and 2D Grade, you can reach up to distances nearly 60 feet (18.28 meters) away. Add in an ergonomic cab, long maintenance intervals that lower your maintenance costs, and a power system that improves fuel efficiency, and you won't find a better excavator for cleaning ditches, canals, and waterways or doing heavier-duty work like dredging and long-distance excavation.

Benefits

Nearly 35% More Reach

Cat Long Reach Excavation Excavators reach nearly 35% farther than those with the standard reach configuration, with approximately 66% of the digging force.

Designed to Dig

Reinforcements in the front linkage and frame allow digging power at a distance without sacrificing durability. A heavier counterweight than equivalent standard reach excavators provides greater stability. Get added versatility with optional tool control for select hydro-mechanical tools

Stable Foundation

The heavy-duty, high, wide undercarriage provides a stable, rugged platform for long-reach digging and loading applications with high ground clearance.

Next Gen Features

Take advantage of Cat Next Generation Excavator features including improved operator comfort, reduced maintenance costs, and better fuel economy. Long reach excavation excavators are compatible with Next Generation Excavator technologies.

Features At A Glance

Displaying 1-6 of 10

Latest Features

Machine Setup Simplification

At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.
The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.

Cat Grade 3D Ready

The Cat Grade 3D Ready option includes all the hardware required for the Grade with 3D system, installed and tested from the factory. This option provides an easier upgrade path for customers who want to add Grade with 3D after their initial purchase. To activate, contact your Cat Dealer to purchase the required 3D software licenses. Licenses can be installed remotely or manually loaded onto the machine.

Cat Payload and Advanced Payload*

Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Advanced Payload is a system upgrade that offers expanded features and capabilities, including custom tags, daily totals, and electronic ticketing. Combine Payload with VisionLink™** to analyze jobsites and individual assets for remote management of production targets and key metrics.

*Payload technologies are not legal for trade.
**VisionLink subscription required.

Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 08D.

Boost Efficiency and Productivity

Leverage standard Cat Grade with indicate-only and laser capability to help boost productivity. Dig with guidance to depth, slope, and horizontal distance to grade.
Standard Cat Payload on-board weighing system helps you achieve precise load targets and increase loading efficiency with on-the-go weighing and real-time estimates of your payload without swinging. Track your daily productivity such as truck target weights and load/cycle counts. Calibration can be performed in a matter of minutes.
Combine Payload with VisionLink™ and remotely manage your production targets.
Take payload data with you. The monitor’s USB port lets you download your results from one shift all the way up to 30 days of work so can manage your progress without needing an internet connection or VisionLink® subscription.
Upgrade to optional Cat Grade with 3D to create and edit designs with ease and see the front linkage’s full range of motion on a second high-resolution 254 mm (10 in) touchscreen monitor. Know the excavator’s exact position relative to GPS and GLONASS systems. The machine automatically compensates for excavator pitch and roll caused by sloping ground conditions.
Already invested in another brand’s 3D system? No problem. Standard Cat technology like Grade with 2D can readily integrate with that system to give you the precise results you need.
All Cat Grade systems are compatible with radios and base stations from Trimble, Topcon, and Leica. Already invested in a grade infrastructure? You can install grade systems from Trimble, Topcon, and Leica onto the machine.

Take The Guesswork Out Of Managing Your Equipment

The latest operator oriented User Interface (UI) has been designed to maximize uptime by allowing operators to easily reorder work tool lists and quickly create new work tool combinations. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.
VisionLink™ provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Equipment management features provide up-to-date asset tracking of your entire fleet. You can track asset location, operating hours, fuel level, health issues, and overall utilization. Monitor equipment health with fault codes, fluid analysis, and inspection due dates. It's all about making informed, data-based decisions to help reduce operating costs. Productivity management features enable you to analyze overall job site performance. You'll be able to track tonnage moved, production targets, and payload, as well as Grade 3D and compaction data. These vital metrics help you to reduce costs and improve jobsite operational efficiency.
Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
The Cat® PL161 attachment locator allows you to track attachments across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The work tool recognition** feature automatically adjusts machine settings based on the selected tool.

* Data field availability can vary by equipment manufacturer.
** Recognition feature available on select excavator models. Consult your Cat dealer for details.

High Performance, Low Fuel Consumption

Cat technologies can lower operator fatigue, operating costs, and fuel consumption.
Match the excavator to the job with three power modes — Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to digging conditions, providing max power when needed and reducing power when it isn’t to help save fuel.
The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise digging requirements.
Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
Don’t let the temperature stop you from working. This excavator has a high-ambient capability of 52° C (125° F) and cold start capability of –18° C (0° F).
Self-sharpening Advansys™ bucket tips increase production and lower costs with more tip life.

Simple to Operate

Start the engine with a push button; use a Bluetooth® key fob or the unique Operator ID function.
Program your power mode and joystick preferences using Operator ID; the excavator will remember them every time you go to work.
Auto hydraulic oil warmup gets you to work faster in cold temperatures and helps prolong the life of components.
Navigate quickly on the standard high-resolution 254 mm (10in) touchscreen monitor or with the aid of the jog dial control.
A second 254 mm (10 in) monitor is available for Cat Grade with 3D.
Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.
The Cat PL161 attachment locator is a Bluetooth device designed to let users know where their attachments are across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement. The PL161 integrates easily into VisionLink™ for full fleet management of machines and attachments from one smartphone or tablet dashboard to view location and tracking details.
Save more time and energy with the available work tool recognition feature. A simple shake of the attached tool confirms its identity and ensures all the attachment settings (pressure, flow, and dimensions) are correct so you can work quickly and efficiently.
Make moving the excavator much easier with Cat Stick Steer. Simply push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.
Need more lift during your shift? Auto heavy lift gives you more power exactly when you need it for as long as you need it.

Easy to Maintain

Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance along with parts needed so you don't experience any unnecessary downtime.
Expect low maintenance cost due to extended and synchronized service intervals.
Check hydraulic system oil and easily drain fuel system water and fuel tank water from ground level.
Track your excavator’s filter life and maintenance intervals via the in-cab monitor.
Change all fuel filters at a synchronized 1,000 hours. Oil and fuel filters are grouped and located on right-hand side of machine for easy maintenance.
The hydraulic oil filter provides excellent filtration; anti-drain valves keep oil clean when the filter is replaced.
The high-efficiency cooling system fan has an optional auto reverse function; set the interval you want and it will quickly blow out debris without interrupting your work.
S·O·S^SM ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.

Work in Comfort

Choose between Deluxe and Premium cabs — both with automatic climate control.
Sit in wide seats that adjust for all size operators.
Stay warm with the Deluxe seat; stay warm and cool with the Premium seat.
Enjoy wide spacing between consoles for a more comfortable environment.
Get in and out of the cab easier using the tip-up left console.
Control the excavator comfortably with easy-to-reach controls all located in front of you.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.

Work Safer

Work safely under structures or near traffic with standard 2D E-fence integrated right out of the factory, which prevents any part of the excavator from moving outside operator-defined set points to avoid hazards and jobsite accidents.
The standard ROPS cab meets ISO 12117-2:2008 requirements.
A travel direction indicator helps operators know which way to activate the travel levers.
Enjoy great visibility into the trench, in each swing direction, and behind you with the help of narrow cab pillars, large windows, and a flat engine hood design.
A ground-level shut-off switch stops all fuel to the engine when activated and shuts down the machine.
A rear and right-side camera are standard. Upgrade to 360° visibility and you’ll easily visualize objects and personnel around the excavator in a single view.
Serrated steps and anti-skid punch plate on the service platform help prevent slipping.

Attachments

Tackle your jobs with a complete Cat® solution. Cat attachments are not just accessories – they are essential tools that define what your machine can do. When you pair a Cat excavator with Cat attachments, you unlock a fully integrated system built for performance, durability, and efficiency. Whether you are clearing land, breaking concrete, or compacting soil, the right attachment transforms your excavator into a powerful, multi-purpose tool ready for any challenge. Depending on your project or application, you could benefit from excavator attachments such as:

Buckets: Handle everything from digging and grading to cleanup and debris removal with your excavator. Caterpillar® offers general duty, heavy duty, extreme duty, and severe duty buckets, as well as specialized designs for ditch cleaning, rock, and finishing work. Reinforced edges and wear-resistant materials ensure long-lasting performance in tough conditions.
Couplers (HEX): Cat® couplers for excavators enable fast, secure attachment changes, without the need to leave the cab. From Pin Grabbers to hydraulic quick connect options, couplers help reduce downtime, boost jobsite efficiency and promote versatility by allowing multiple machines to share a common attachment inventory.
Demolition and Sorting Grapples: Tackle larger debris or precisely sort materials into piles. These grapples are engineered for accuracy in demolition and material sorting, handling concrete, rebar, wood, and mixed debris. High clamping force and agile movement make them ideal for primary and secondary demolition and recycling operations.
Mulchers: Ideal for forestry and agriculture applications. Mulchers clear land and manage vegetation by shredding brush, trees, and undergrowth into fine mulch. Their high-speed rotors deliver fast, consistent results, with interchangeable teeth to suit different materials and desired final mulch size.
Orange Peel Grapples: Built for scrap and bulk material handling, Orange Peel Grapples excel with irregular, heavy loads like metal, rock, and waste. Their hydraulic tines provide superior grip and penetration. High-capacity and continuous rotation are perfect for scrap yards and transfer stations. Caterpillar® offers these grapples with a choice of different shell designs and tine options suited to various applications.
Clamshell Grapples: Perfect for bulk material handling, dredging, and excavation of loose or semi-compacted materials like sand, gravel, and debris. Their dual-opening jaws allow for precise loading and unloading. High-capacity and controlled operation make them ideal for ports, recycling, and heavy civil projects.

Cat® attachments are engineered to maximize your excavator’s productivity, helping you get more work done with greater efficiency and confidence. Choosing the right attachment is not just about compatibility, it is about unlocking your machine’s full potential while avoiding equipment damage or safety risks. Connect with your Cat Dealer to find the optimal attachments for your specific machine and application needs.

Sustainability

The Cat® C9.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)*** or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
VisionLink™ displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Cat Grade technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy.
Auto Engine Speed Control reduces unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Cat® Payload for excavators provides on-the-go material weighing which helps reduce fuel burn by improving loading efficiency, job site productivity, and eliminating trips to the scale.
Cat® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic - not only helping keep personnel safe but also helps you avoid repairs, downtime, and costly job site fines.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety – which can help to improve fuel efficiency and reduce greenhouse gas emissions.

*While Caterpillar engines are compatible with these alternative fuels, some regions may not allow their use.
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
***Engines with no aftertreatment devices are compatible with higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
