Mini Excavators 301.7 CR

Name: 301.7 CR Mini Hydraulic Excavator
Brand: Caterpillar

Checking Price

Request A Price Shop Now

Key Specs

Net Power: 21 hp; 15.7 kW

Operating Weight: 4222 lb; 1915 kg

Dig Depth: 100 in; 2540 mm

301.7 CR
Change model

Overview

Mini Excavators Inspired by Our Customers

The Cat® 301.7 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Benefits

4 Industry First Features

Cat Exclusives in a Mini Excavator

Up to 15% Lower Total Ownership Costs

with more common parts, lower repair costs and tilt up cab

Up to 20% More Performance

with programmable operator settings and faster cyle times

Features At A Glance

Displaying 1-6 of 8

ALL DAY COMFORT

Adjustable wrist rests and a suspension seat option help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

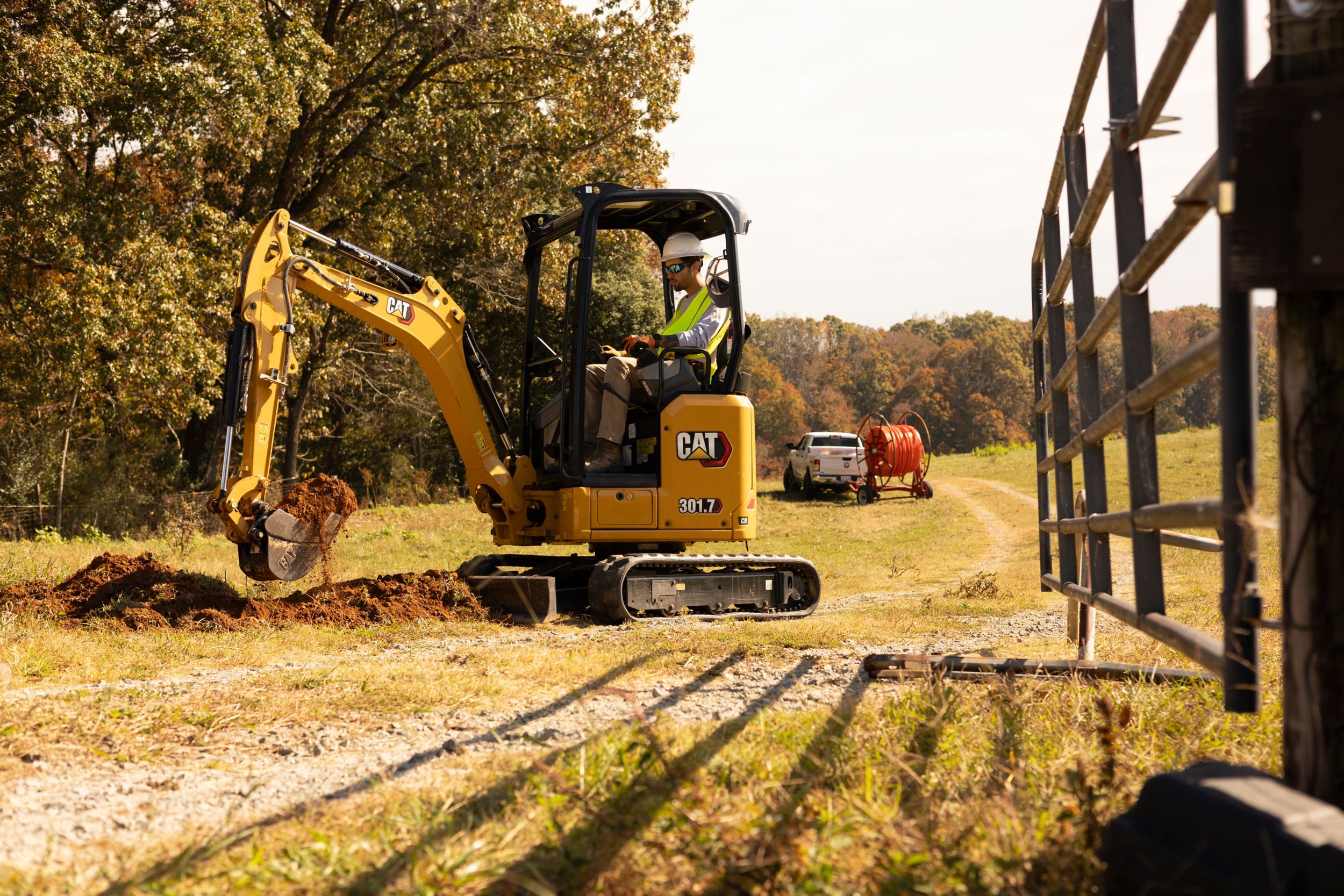

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The compact radius design and retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we've built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up canopy lets you reach additional service areas when needed.

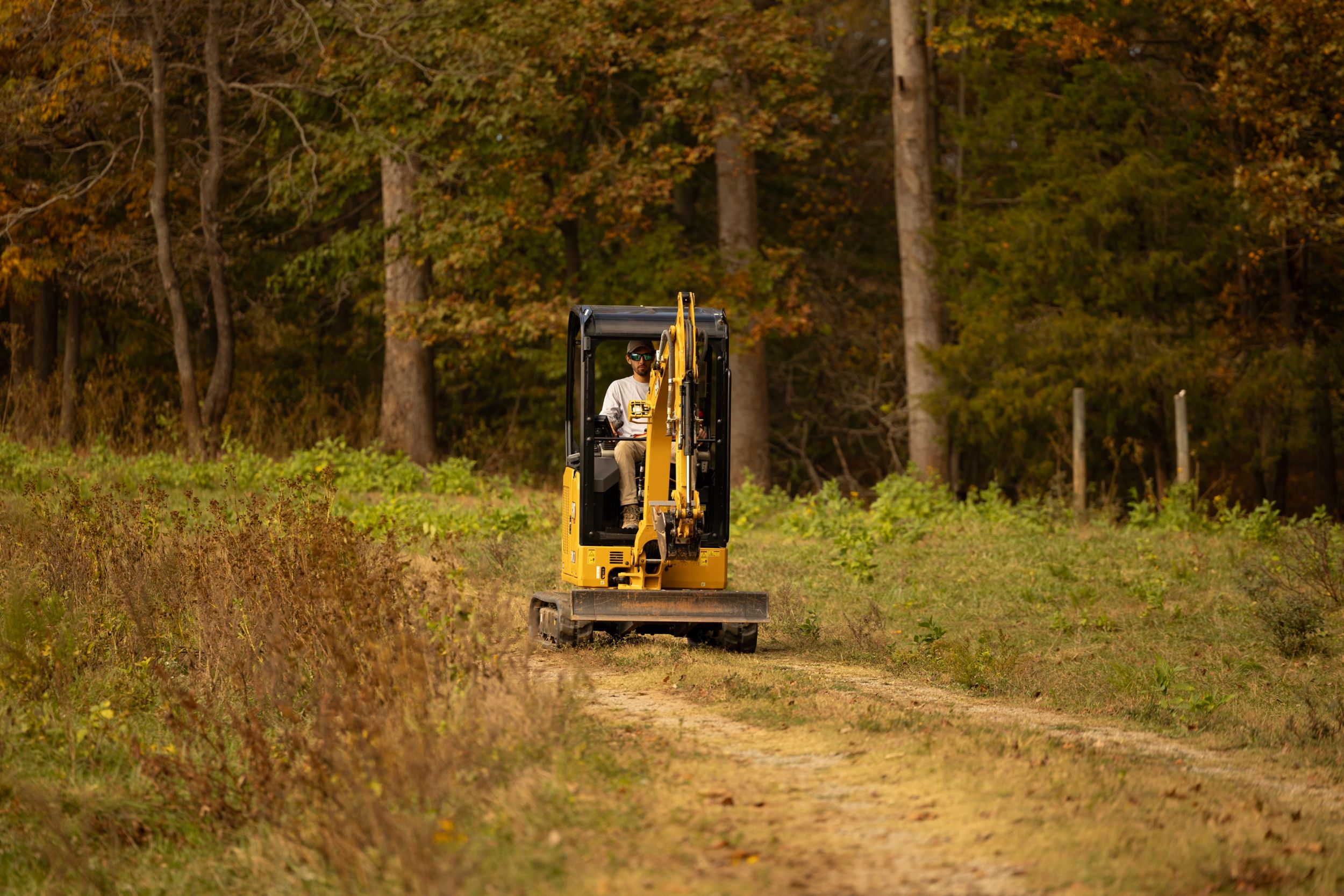

SUSTAINABILITY

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Adjustable wrist rests and a suspension seat option help keep you working comfortably all day long.

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

Strong lift and dig performance helps you get the job done faster. The compact radius design and retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we've built into the machine.

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up canopy lets you reach additional service areas when needed.

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Specifications Standard Equipment Optional Equipment

Product Specifications for 301.7 CR

Engine

Net Power	21 hp 15.7 kW
Engine Model	C1.1 C1.1
Engine Power	21.6 hp 16.1 kW
Bore	3 in 77 mm
Stroke	3.2 in 81 mm
Displacement	69 in³ 1.1 l
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load. Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.

Weights

Operating Weight	4222 lb 1915 kg
Minimum Operating Weight with Canopy*	3946 lb 1790 kg
Maximum Operating Weight with Canopy**	4222 lb 1915 kg
EU: CE Plate Weight***	4167 lb 1890 kg
Note (1)	Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank. Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank.
Note (2)	Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank. Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
Note (3)	*CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket. *CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

Dimensions - Long Stick

Dig Depth	100 in 2540 mm
Vertical Wall	74.4 in 1890 mm
Maximum Reach - Ground Level	159.8 in 4060 mm
Maximum Reach	162.6 in 4130 mm
Maximum Dig Height	137.4 in 3490 mm
Maximum Dump Clearance	98.8 in 2510 mm
Boom In Reach	63.8 in 1620 mm
Tail Swing	25.6 in 650 mm
Maximum Blade Height	10.6 in 270 mm
Maximum Blade Depth	10.4 in 265 mm
Boom Height - Shipping Position	40.9 in 1040 mm
O/A Shipping Height	90.6 in 2300 mm
Swing Bearing - Height	17.4 in 442 mm
O/A Undercarriage Length	62.6 in 1590 mm
Overall Shipping Length*	141.3 in 3590 mm
Boom Swing - Right	50 ° 50 °
Boom Swing - Left	65 ° 65 °
Track Belt/Shoe Width	9.1 in 230 mm
Track Width - Retracted	39 in 990 mm
Track Width - Expanded	51.18 in 1300 mm
Minimum Ground Clearance Below Undercarriage	5.5 in 140 mm
Stick Length	45.7 in 1160 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.

Weight Increase from Minimum Configuration

Long Stick	22 lb 10 kg
Steel Tracks	110 lb 50 kg
Expandable Undercarriage	Standard Standard
Heavy Counterweight	148 lb 67 kg

Travel System

Travel Speed - High	2.7 mile/h 4.4 km/h
Travel Speed - Low	1.8 mile/h 2.9 km/h
Maximum Traction Force - High Speed	2675.2 lbf 11.9 kN
Maximum Traction Force - Low Speed	4136.5 lbf 18.4 kN
Ground Pressure - Minimum Weight	4 psi 27.9 kPa
Ground Pressure - Maximum Weight	4.4 psi 30 kPa
Gradeability - Maximum	30 degrees 30 degrees

Service Refill Capacities

Cooling System	1 gal (US) 3.9 l
Engine Oil	1.2 gal (US) 4.4 l
Fuel Tank	5.8 gal (US) 22 l
Hydraulic Tank	4.8 gal (US) 18 l
Hydraulic System	6.9 gal (US) 26 l

Hydraulic System

Pump Flow at 2,400 rpm	17.4 gpm 66 L/min
Operating Pressure - Equipment	3553.4 psi 245 bar
Operating Pressure - Travel	3553.4 psi 245 bar
Operating Pressure - Swing	2132.1 psi 147 bar
Auxiliary Circuit - Primary - Flow	8.7 gpm 33 L/min
Auxiliary Circuit - Primary - Pressure	3553.4 psi 245 bar
Auxiliary Circuit - Secondary - Flow	3.7 gpm 14 L/min
Auxiliary Circuit - Secondary - Pressure	3553.4 psi 245 bar
Digging Force - Stick - Standard	2135.7 lbf 9.5 kN
Digging Force - Stick - Long	1865.9 lbf 8.3 kN
Digging Force - Bucket	3641.9 lbf 16.2 kN
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump

Swing System

Machine Swing Speed

9.8 r/min 9.8 r/min

Blade

Width*	39 in 990 mm
Height	8.9 in 225 mm
Note	Expanded – 1300 mm (51 in) Expanded – 1300 mm (51 in)

Certification - Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008 ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997 ISO 12117:1997
Top Guard	ISO 10262:1998 (Level I) ISO 10262:1998 (Level I)

Dimensions - Standard Stick

Dig Depth	92.5 in 2350 mm
Vertical Wall	70.9 in 1800 mm
Maximum Reach - Ground Level	153.5 in 3900 mm
Maximum Reach	156.3 in 3970 mm
Maximum Dig Height	135 in 3430 mm
Maximum Dump Clearance	96.5 in 2450 mm
Boom In Reach	64.2 in 1630 mm
Tail Swing	25.6 in 650 mm
Maximum Blade Height	10.6 in 270 mm
Maximum Blade Depth	10.4 in 265 mm
Boom Height - Shipping Position	42.9 in 1090 mm
O/A Shipping Height	90.6 in 2300 mm
Swing Bearing - Height	17.4 in 442 mm
O/A Undercarriage Length	62.6 in 1590 mm
Overall Shipping Length*	142.5 in 3620 mm
Boom Swing - Right	50 ° 50 °
Boom Swing - Left	65 ° 65 °
Track Belt/Shoe Width	9.1 in 230 mm
Track Width - Retracted	39 in 990 mm
Track Width - Expanded	51.18 in 1300 mm
Minimum Ground Clearance Below Undercarriage	5.5 in 140 mm
Stick Length	37.8 in 960 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.

Sound

Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A) 93 dB(A)
Note	European Union Directive “2000/14/EC” European Union Directive “2000/14/EC”

Sustainability

Recyclability

95% 95%

301.7 CR Standard Equipment

ENGINE

Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)

Automatic Engine Idle

Automatic Engine Shutdown

Automatic Two Speed Travel

Fuel Water Separator

Power on Demand (not available in all regions)

Variable Displacement Piston Pump

Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump

Accumulator

Automatic Swing Brake

Auxiliary Hydraulic Lines

One and Two Way Auxiliary Flow

Continuous Auxiliary Flow

Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

Tilt-up Canopy

Top Guard ISO 10262:1998 Level I

ROPS – ISO 12117-2:2008

TOPS – ISO 12117:1997

Machine 2-Point Lifting

Stick Steer Mode

Travel Cruise Control

Control Pattern Changer (optional in some regions)

Adjustable Wrist Rests

Washable Floor Mat

Travel Pedals and Hand Levers

Machine Security

Machine Security – Standard Key with Pass Code

Vinyl Non-Suspension Seat

Hydraulic Lockout – All Controls

Retractable High Visibility Seat Belt (75 mm/3 in)

Coat Hook

Cup Holder

Storage Pocket

Skylight

Mounting Bosses for Front

Signaling/Warning Horn

Boom Light, Halogen

Utility Space for Mobile Phone

Next Generation Color LCD Monitor (IP66)
– Fuel Level and Coolant Temperature Gauges
– Maintenance and Machine Monitoring
– Performance and Machine Adjustments
– Numeric Security Code
– Multiple Languages
– Hour Meter with Wake Up Switch

UNDERCARRIAGE

Expandable Undercarriage

Rubber Belt (230 mm/9 in wide)

Dozer Blade

Dozer Blade Float

Hydraulic Track Adjusters

Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (1780 mm/70 in)

Standard Stick (960 mm/37.8 in)

Front Shovel Capable

Front Shovel Capable – Pin-On

Thumb Ready (not available in all regions)

Certified Lifting Eye (optional in some regions)

ELECTRICAL

12 Volt Battery

Software (machine and monitor)

Maintenance Free Battery

Signaling/Warning Horn

12 Volt Power Socket

301.7 CR Optional Equipment

OPERATOR ENVIRONMENT

Control Pattern Changer (optional in some regions)

No Travel Pedals and Hand Levers

Machine Security – Push to Start with Key Fob/Pass Code

Vinyl Suspension Seat

LED Front Lights

LED Front and Rear Lights

LED Boom Light

Mirrors Left and Right

Seat Belt Reminder System

UNDERCARRIAGE

Steel Track (230 mm/9 in wide)

BOOM, STICK AND LINKAGES

Long Stick (1160 mm/45.7 in)

Front Shovel Capable – Dual Lock Manual Coupler

Attachments including Couplers, Thumbs, Buckets, Augers and Hammers

2nd Auxiliary Hydraulic Lines

Boom Lowering Check Valve

Stick Lowering Check Valve

Hydraulic Quick Coupler Lines (not available in all regions)

ELECTRICAL

Battery Disconnect

Product Link PL243 (regulations apply)

Product Link PLE643 (regulations apply)

Travel Alarm (standard in some regions)

GUARDING

Polycarbonate Front Guard (ISO 10262 1998 Level I and EN356 PSA)

Polycarbonate Half Height Front Guard (Canopy only)

OTHER

Bio Oil Capable

Eco Drain

Water Jacket Heater

Heavy Counterweight

Product Specifications for 301.7 CR

Download Print

Engine

Net Power	21 hp 15.7 kW
Engine Model	C1.1 C1.1
Engine Power	21.6 hp 16.1 kW
Bore	3 in 77 mm
Stroke	3.2 in 81 mm
Displacement	69 in³ 1.1 l
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)	Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load. Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.

Weights

Operating Weight	4222 lb 1915 kg
Minimum Operating Weight with Canopy*	3946 lb 1790 kg
Maximum Operating Weight with Canopy**	4222 lb 1915 kg
EU: CE Plate Weight***	4167 lb 1890 kg
Note (1)	Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank. Minimum Weight is based on rubber tracks, operator, expandable undercarriage and full fuel tank.
Note (2)	Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank. Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
Note (3)	*CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket. *CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

Dimensions - Long Stick

Dig Depth	100 in 2540 mm
Vertical Wall	74.4 in 1890 mm
Maximum Reach - Ground Level	159.8 in 4060 mm
Maximum Reach	162.6 in 4130 mm
Maximum Dig Height	137.4 in 3490 mm
Maximum Dump Clearance	98.8 in 2510 mm
Boom In Reach	63.8 in 1620 mm
Tail Swing	25.6 in 650 mm
Maximum Blade Height	10.6 in 270 mm
Maximum Blade Depth	10.4 in 265 mm
Boom Height - Shipping Position	40.9 in 1040 mm
O/A Shipping Height	90.6 in 2300 mm
Swing Bearing - Height	17.4 in 442 mm
O/A Undercarriage Length	62.6 in 1590 mm
Overall Shipping Length*	141.3 in 3590 mm
Boom Swing - Right	50 ° 50 °
Boom Swing - Left	65 ° 65 °
Track Belt/Shoe Width	9.1 in 230 mm
Track Width - Retracted	39 in 990 mm
Track Width - Expanded	51.18 in 1300 mm
Minimum Ground Clearance Below Undercarriage	5.5 in 140 mm
Stick Length	45.7 in 1160 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.

Weight Increase from Minimum Configuration

Long Stick	22 lb 10 kg
Steel Tracks	110 lb 50 kg
Expandable Undercarriage	Standard Standard
Heavy Counterweight	148 lb 67 kg

Travel System

Travel Speed - High	2.7 mile/h 4.4 km/h
Travel Speed - Low	1.8 mile/h 2.9 km/h
Maximum Traction Force - High Speed	2675.2 lbf 11.9 kN
Maximum Traction Force - Low Speed	4136.5 lbf 18.4 kN
Ground Pressure - Minimum Weight	4 psi 27.9 kPa
Ground Pressure - Maximum Weight	4.4 psi 30 kPa
Gradeability - Maximum	30 degrees 30 degrees

Service Refill Capacities

Cooling System	1 gal (US) 3.9 l
Engine Oil	1.2 gal (US) 4.4 l
Fuel Tank	5.8 gal (US) 22 l
Hydraulic Tank	4.8 gal (US) 18 l
Hydraulic System	6.9 gal (US) 26 l

Hydraulic System

Pump Flow at 2,400 rpm	17.4 gpm 66 L/min
Operating Pressure - Equipment	3553.4 psi 245 bar
Operating Pressure - Travel	3553.4 psi 245 bar
Operating Pressure - Swing	2132.1 psi 147 bar
Auxiliary Circuit - Primary - Flow	8.7 gpm 33 L/min
Auxiliary Circuit - Primary - Pressure	3553.4 psi 245 bar
Auxiliary Circuit - Secondary - Flow	3.7 gpm 14 L/min
Auxiliary Circuit - Secondary - Pressure	3553.4 psi 245 bar
Digging Force - Stick - Standard	2135.7 lbf 9.5 kN
Digging Force - Stick - Long	1865.9 lbf 8.3 kN
Digging Force - Bucket	3641.9 lbf 16.2 kN
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump

Swing System

Machine Swing Speed

9.8 r/min 9.8 r/min

Blade

Width*	39 in 990 mm
Height	8.9 in 225 mm
Note	Expanded – 1300 mm (51 in) Expanded – 1300 mm (51 in)

Certification - Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008 ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997 ISO 12117:1997
Top Guard	ISO 10262:1998 (Level I) ISO 10262:1998 (Level I)

Dimensions - Standard Stick

Dig Depth	92.5 in 2350 mm
Vertical Wall	70.9 in 1800 mm
Maximum Reach - Ground Level	153.5 in 3900 mm
Maximum Reach	156.3 in 3970 mm
Maximum Dig Height	135 in 3430 mm
Maximum Dump Clearance	96.5 in 2450 mm
Boom In Reach	64.2 in 1630 mm
Tail Swing	25.6 in 650 mm
Maximum Blade Height	10.6 in 270 mm
Maximum Blade Depth	10.4 in 265 mm
Boom Height - Shipping Position	42.9 in 1090 mm
O/A Shipping Height	90.6 in 2300 mm
Swing Bearing - Height	17.4 in 442 mm
O/A Undercarriage Length	62.6 in 1590 mm
Overall Shipping Length*	142.5 in 3620 mm
Boom Swing - Right	50 ° 50 °
Boom Swing - Left	65 ° 65 °
Track Belt/Shoe Width	9.1 in 230 mm
Track Width - Retracted	39 in 990 mm
Track Width - Expanded	51.18 in 1300 mm
Minimum Ground Clearance Below Undercarriage	5.5 in 140 mm
Stick Length	37.8 in 960 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.

Sound

Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A) 93 dB(A)
Note	European Union Directive “2000/14/EC” European Union Directive “2000/14/EC”

Sustainability

Recyclability

95% 95%

301.7 CR Standard Equipment

ENGINE

Cat C1.1 Engine (U.S. EPA Tier 4 Final/EU Stage V)

Automatic Engine Idle

Automatic Engine Shutdown

Automatic Two Speed Travel

Fuel Water Separator

Power on Demand (not available in all regions)

Variable Displacement Piston Pump

Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump

Accumulator

Automatic Swing Brake

Auxiliary Hydraulic Lines

One and Two Way Auxiliary Flow

Continuous Auxiliary Flow

Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

Tilt-up Canopy

Top Guard ISO 10262:1998 Level I

ROPS – ISO 12117-2:2008

TOPS – ISO 12117:1997

Machine 2-Point Lifting

Stick Steer Mode

Travel Cruise Control

Control Pattern Changer (optional in some regions)

Adjustable Wrist Rests

Washable Floor Mat

Travel Pedals and Hand Levers

Machine Security

Machine Security – Standard Key with Pass Code

Vinyl Non-Suspension Seat

Hydraulic Lockout – All Controls

Retractable High Visibility Seat Belt (75 mm/3 in)

Coat Hook

Cup Holder

Storage Pocket

Skylight

Mounting Bosses for Front

Signaling/Warning Horn

Boom Light, Halogen

Utility Space for Mobile Phone

Next Generation Color LCD Monitor (IP66)
– Fuel Level and Coolant Temperature Gauges
– Maintenance and Machine Monitoring
– Performance and Machine Adjustments
– Numeric Security Code
– Multiple Languages
– Hour Meter with Wake Up Switch

UNDERCARRIAGE

Expandable Undercarriage

Rubber Belt (230 mm/9 in wide)

Dozer Blade

Dozer Blade Float

Hydraulic Track Adjusters

Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (1780 mm/70 in)

Standard Stick (960 mm/37.8 in)

Front Shovel Capable

Front Shovel Capable – Pin-On

Thumb Ready (not available in all regions)

Certified Lifting Eye (optional in some regions)

ELECTRICAL

12 Volt Battery

Software (machine and monitor)

Maintenance Free Battery

Signaling/Warning Horn

12 Volt Power Socket

301.7 CR Optional Equipment

OPERATOR ENVIRONMENT

Control Pattern Changer (optional in some regions)

No Travel Pedals and Hand Levers

Machine Security – Push to Start with Key Fob/Pass Code

Vinyl Suspension Seat

LED Front Lights

LED Front and Rear Lights

LED Boom Light

Mirrors Left and Right

Seat Belt Reminder System

UNDERCARRIAGE

Steel Track (230 mm/9 in wide)

BOOM, STICK AND LINKAGES

Long Stick (1160 mm/45.7 in)

Front Shovel Capable – Dual Lock Manual Coupler

Attachments including Couplers, Thumbs, Buckets, Augers and Hammers

2nd Auxiliary Hydraulic Lines

Boom Lowering Check Valve

Stick Lowering Check Valve

Hydraulic Quick Coupler Lines (not available in all regions)

ELECTRICAL

Battery Disconnect

Product Link PL243 (regulations apply)

Product Link PLE643 (regulations apply)

Travel Alarm (standard in some regions)

GUARDING

Polycarbonate Front Guard (ISO 10262 1998 Level I and EN356 PSA)

Polycarbonate Half Height Front Guard (Canopy only)

OTHER

Bio Oil Capable

Eco Drain

Water Jacket Heater

Heavy Counterweight

See how 301.7 CR compares against frequently compared products.

Excavators

Selected

301.7 CR

Net Power: 21 hp; 15.7 kW
Operating Weight: 4222 lb; 1915 kg
Dig Depth: 100 in; 2540 mm

Checking Price

Shop Now

Excavators

301.5

Net Power: 21 hp; 15.7 kW
Operating Weight: 3913 lb; 1775 kg
Dig Depth: 100 in; 2540 mm

Checking Price

View Details Shop Now

Excavators

301.8

Net Power: 21 hp; 15.7 kW
Operating Weight: 4473 lb; 2029 kg
Dig Depth: 101.2 in; 2570 mm

Checking Price

View Details Shop Now

Use the comparison tool to compare detailed specs of Cat and competitor models.

Compare All Models

Tools And Expert Help At Every Turn

Sustainability in Action

We’re committed to helping you achieve your environmental and business goals.

Learn More

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

301.7 CR Mini Hydraulic Excavator

Front View

Top View

Left View

Rear View

Bottom View

Right View

Introducing the Next Generation Cat 1-2 Ton Mini Excavators

Overview of the Next Generation Cat 1-2 Ton Mini Excavators

Standard Monitor on the Next Generation Cat® Mini Excavators

Cat 301.7 CR Mini Excavator Customer Story � F&H Contractors (Florida, USA)

Cat 301.7 CR Mini Excavator Customer Story � VPS (Italy)

Introducing the Next Generation Cat 1-2 Ton Mini Excavators

Overview of the Next Generation Cat 1-2 Ton Mini Excavators

Standard Monitor on the Next Generation Cat® Mini Excavators

Cat 301.7 CR Mini Excavator Customer Story � F&H Contractors (Florida, USA)

Cat 301.7 CR Mini Excavator Customer Story � VPS (Italy)

Take the interactive virtual product tour to explore the great features and benefits of the 301.7 CR

Start 301.7 CR Tour

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Mini Excavators 301.7 CR

Overview

Mini Excavators Inspired by Our Customers

Benefits

4 Industry First Features

Up to 15% Lower Total Ownership Costs

Up to 20% More Performance

Features At A Glance

ALL DAY COMFORT

EASY TO OPERATE

STICK STEER TRAVEL MODE

BIG PERFORMANCE IN A COMPACT DESIGN

SAFETY ON THE JOB SITE

SIMPLE SERVICE FOR LESS DOWNTIME

LOWER OPERATING COSTS

SUSTAINABILITY

Product Specifications for 301.7 CR

Engine

Weights

Dimensions - Long Stick

Weight Increase from Minimum Configuration

Travel System

Service Refill Capacities

Hydraulic System

Swing System

Blade

Certification - Canopy

Dimensions - Standard Stick

Sound

Sustainability

301.7 CR Standard Equipment

ENGINE

HYDRAULICS

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

301.7 CR Optional Equipment

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

GUARDING

OTHER

Product Specifications for 301.7 CR

Engine

Weights

Dimensions - Long Stick

Weight Increase from Minimum Configuration

Travel System

Service Refill Capacities

Hydraulic System

Swing System

Blade

Certification - Canopy

Dimensions - Standard Stick

Sound

Sustainability

301.7 CR Standard Equipment

ENGINE

HYDRAULICS

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

301.7 CR Optional Equipment

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

GUARDING

OTHER

See how 301.7 CR compares against frequently compared products.

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

Shop Now

Product Brochures and More Are Ready to Download!
