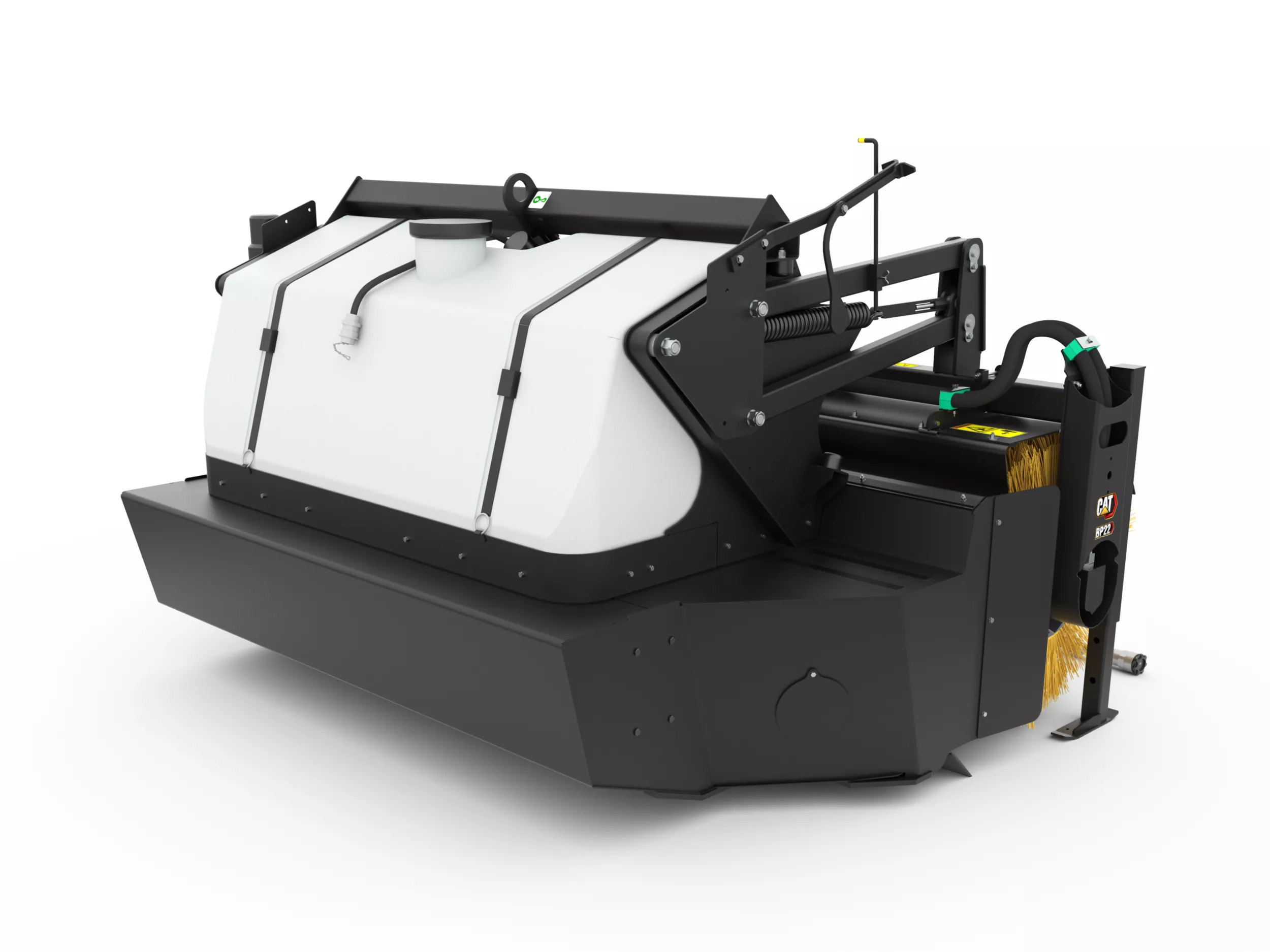

Pickup Brooms BP22

Request A Price Shop Now

Key Specs

Overall Width: 94.5 in; 2400 mm

Sweeping Width: 86.6 in; 2200 mm

Brush Diameter: 27.6 in; 700 mm

BP22
Change model

Overview

Cat® Pickup Brooms collect dirt and debris from a variety of surfaces.

Features At A Glance

Displaying 1-6 of 9

Protected Hydraulic Motors

The BP22 is powered by one hydraulic motor, the BP25 is powered by two hydraulic motors. Each motor is mounted to protect them from damage.

Parking Supports

Parking supports provide stable and secure parking of the broom when not in use.

Unique Suspension System

Pickup Brooms incorporate a unique suspension system to eliminate the need for support wheels. This allows the broom to float freely over the work surface and ensures proper bristle contact from the initial setting.

Leveling Indicator

Leveling indicator allows operator to conveniently see the level of the broom from the cab during operation.

Large Hopper

Pickup Brooms include a large hopper for greater productivity and easy removal and emptying.

Integrated Water Tank

The BP22 and BP25 both feature a 400 liter (106 gallon) capacity integrated water tank.

The BP22 is powered by one hydraulic motor, the BP25 is powered by two hydraulic motors. Each motor is mounted to protect them from damage.

Parking supports provide stable and secure parking of the broom when not in use.

Leveling indicator allows operator to conveniently see the level of the broom from the cab during operation.

Pickup Brooms include a large hopper for greater productivity and easy removal and emptying.

The BP22 and BP25 both feature a 400 liter (106 gallon) capacity integrated water tank.

Water sprinkler kit helps reduce the amount of airborne dust during sweeping operations.

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Cat® Pickup Brooms come standard with replaceable polypropylene sections. Convoluted bristle sections can be converted to all wire or 50/50 poly and wire for special applications.

Product Specifications for BP22

Overall Width	94.5 in 2400 mm
Sweeping Width	86.6 in 2200 mm
Brush Diameter	27.6 in 700 mm
Required Hydraulics	3rd Function 3rd Function
Height	51.2 in 1300 mm
Length	72 in 1830 mm
Weight	1278.7 lb 580 kg
Optimal Hydraulic Flow	20-80 L/min (5-21 gpm) 20-80 L/min (5-21 gpm)
Optimal Hydraulic Pressure	150-260 bar (2176-3771 psi) 150-260 bar (2176-3771 psi)
Motor Displacement	15 in³/rev 245 cm³/rev
Brush Speed at Maximum Flow	306 RPM 306 RPM
Hopper Capacity	0.7 yd³ 0.55 m³
Voltage	12V 12V
Drive Method	Direct Drive Direct Drive
Interface Type	Requires Hook Group Requires Hook Group

Product Specifications for BP22

Download Print

Overall Width	94.5 in 2400 mm
Sweeping Width	86.6 in 2200 mm
Brush Diameter	27.6 in 700 mm
Required Hydraulics	3rd Function 3rd Function
Height	51.2 in 1300 mm
Length	72 in 1830 mm
Weight	1278.7 lb 580 kg
Optimal Hydraulic Flow	20-80 L/min (5-21 gpm) 20-80 L/min (5-21 gpm)
Optimal Hydraulic Pressure	150-260 bar (2176-3771 psi) 150-260 bar (2176-3771 psi)
Motor Displacement	15 in³/rev 245 cm³/rev
Brush Speed at Maximum Flow	306 RPM 306 RPM
Hopper Capacity	0.7 yd³ 0.55 m³
Voltage	12V 12V
Drive Method	Direct Drive Direct Drive
Interface Type	Requires Hook Group Requires Hook Group
