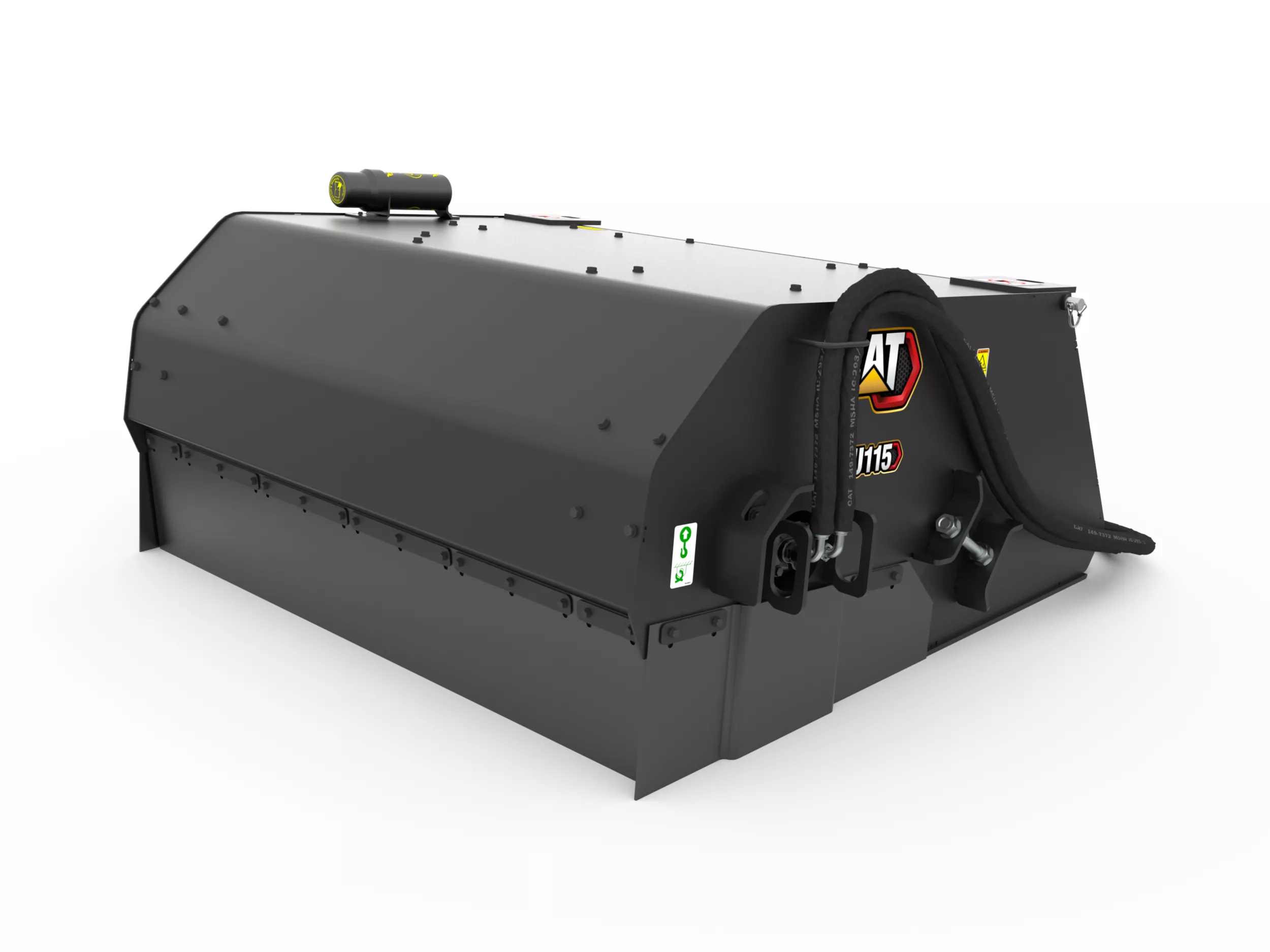

Utility Brooms BU115, Polypropylene/Wire

Request A Price Shop Now

Key Specs

Overall Width: 71.3 in; 1810 mm

Sweeping Width: 59.1 in; 1500 mm

Brush Diameter: 26.2 in; 665 mm

BU115, Polypropylene/Wire
Change model

Overview

Cat® Utility Brooms sweep and collect light debris on smooth surfaces in forward or reverse travel.

Features At A Glance

Ideal for cleaning and removing dirt, rock, snow and other debris from streets, parking lots, driveways, sidewalks and factory floors.

Utility Brooms have the ability to sweep and collect light debris on smooth surfaces in both forward or reverse.

Standard broom material is made of replaceable polypropylene and steel wire sections or all polypropylene.

Large hopper capacity allows greater productivity with longer sweeping cycles. Wide bucket opening with bolt-on, replaceable cutting edge permits fast, efficient dumping.

Rubber boots on front and sides of broom aid in containing debris and airborne contaminants during sweeping.

Strong gerotor hydraulic motor provides high torque to the bristle core and is designed to maximize performance of standard flow machines.

Replaceable cutting edge is also reversible, extending wear life.

Adjustment allows for better directionality and can ensure greater power and longer bristle life.

Serrated step provides safe access in and out of cab for operator's safety.

Tool Mounted Operation and Maintenance Manual (OMM) Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during sweeping operations.

Optional broom mounted water tank kit to supply the sprinkler kit.

Optional all-steel wire gutter brush mounted on the left or right side of the broom assists in removing material from gutters and pavement edges.

Product Specifications for BU115, Polypropylene/Wire

Overall Width	71.3 in 1810 mm
Sweeping Width	59.1 in 1500 mm
Brush Diameter	26.2 in 665 mm
Required Hydraulics	Standard Flow w/o Electrical Standard Flow w/o Electrical
Height	31.2 in 793 mm
Length	60.2 in 1530 mm
Weight	954.6 lb 433 kg
Optimal Hydraulic Flow	30-86 L/min (8-23 gpm) 30-86 L/min (8-23 gpm)
Optimal Hydraulic Pressure	145-241 bar (2100-3500 psi) 145-241 bar (2100-3500 psi)
Motor Displacement	24.1 in³/rev 395 cm³/rev
Brush Speed at Maximum Flow	210 RPM 210 RPM
Drive Method	Direct Drive Direct Drive

Product Specifications for BU115, Polypropylene/Wire

Download Print

Overall Width	71.3 in 1810 mm
Sweeping Width	59.1 in 1500 mm
Brush Diameter	26.2 in 665 mm
Required Hydraulics	Standard Flow w/o Electrical Standard Flow w/o Electrical
Height	31.2 in 793 mm
Length	60.2 in 1530 mm
Weight	954.6 lb 433 kg
Optimal Hydraulic Flow	30-86 L/min (8-23 gpm) 30-86 L/min (8-23 gpm)
Optimal Hydraulic Pressure	145-241 bar (2100-3500 psi) 145-241 bar (2100-3500 psi)
Motor Displacement	24.1 in³/rev 395 cm³/rev
Brush Speed at Maximum Flow	210 RPM 210 RPM
Drive Method	Direct Drive Direct Drive
