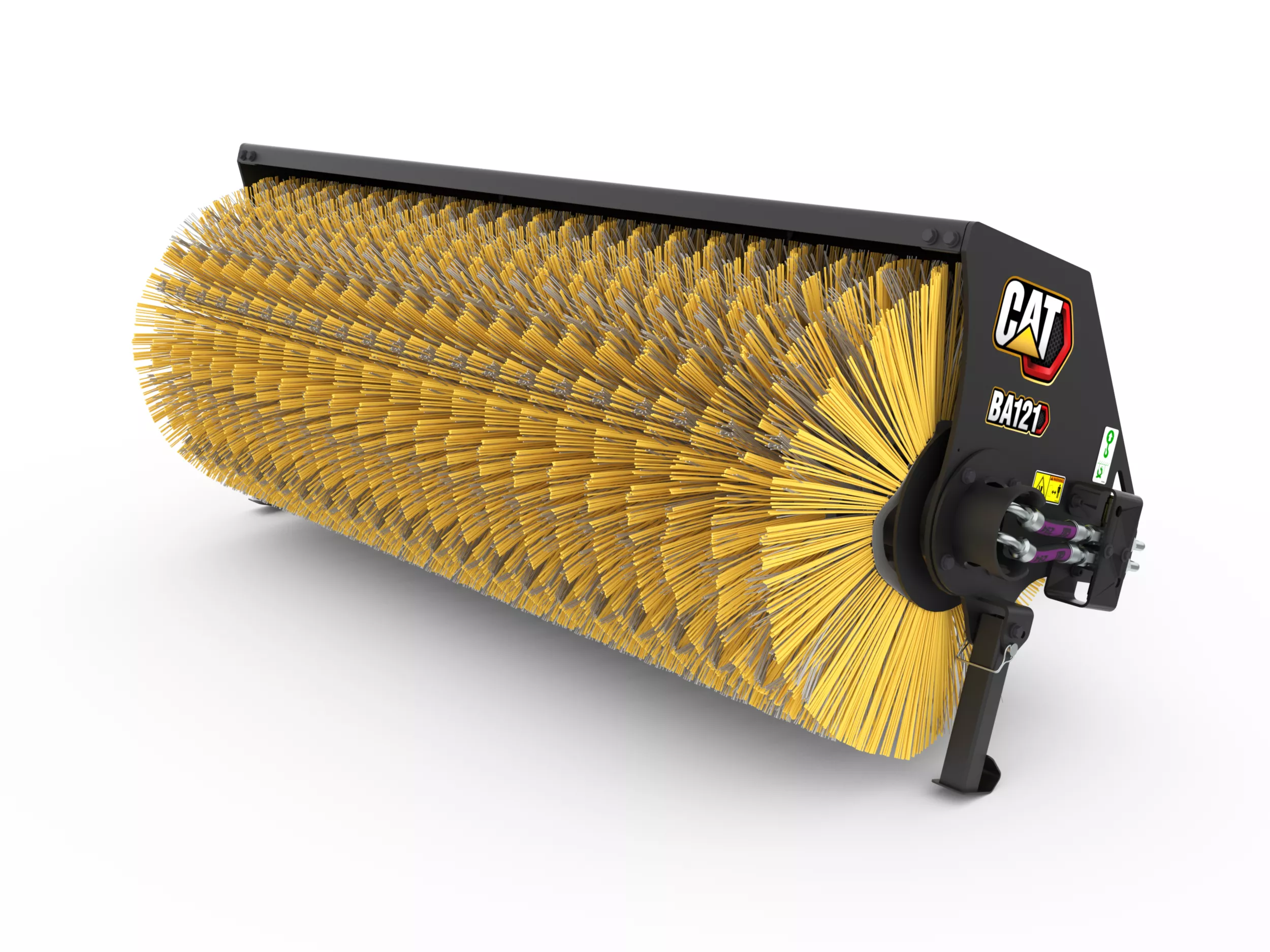

Angle Brooms BA121 Hydraulic, Polypropylene/Wire

Request A Price Shop Now

Key Specs

Overall Width: 92 in; 2336 mm

Sweeping Width: 82.7 in; 2100 mm

Brush Diameter: 32.1 in; 815 mm

BA121 Hydraulic, Polypropylene/Wire
Change model

Overview

Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Features At A Glance

Displaying 1-6 of 10

Application

Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Variable Sweeping Angle

Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.

Reliable Hydraulic Motor

Strong gerotor hydraulic motor provides high torque to the bristle core and is designed to maximize performance of standard flow machines.

Parking Supports

Parking supports provide stable and secure parking of the broom when not in use and also protects the bristles from getting flat spots.

Tool Mounted Operation and Maintenance Manual (OMM) Holder

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Springs with Lockout

Adjustable springs help to keep proper ground pressure of the bristles. The spring lockout feature allows more control of bristles during special applications.

Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.

Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.

Strong gerotor hydraulic motor provides high torque to the bristle core and is designed to maximize performance of standard flow machines.

Parking supports provide stable and secure parking of the broom when not in use and also protects the bristles from getting flat spots.

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Adjustable springs help to keep proper ground pressure of the bristles. The spring lockout feature allows more control of bristles during special applications.

Cat® Angle Brooms come standard with either a 50/50 mix of replaceable polypropylene and steel wire sections or all polypropylene. Convoluted bristle sections can be converted to all wire for special applications.

An optional deflector helps reduce dust and debris from becoming airborne and settling on the broom or the host machine.

An optional water sprinkler kit is available which helps reduce the amount of airborne dust during your sweeping operations. (requires deflector and machine mounted water tank)

Converts a manual angle broom into a hydraulic angle broom. (requires manual angle broom)

Product Specifications for BA121 Hydraulic, Polypropylene/Wire

Overall Width	92 in 2336 mm
Sweeping Width	82.7 in 2100 mm
Brush Diameter	32.1 in 815 mm
Required Hydraulics	Standard Flow w/14 pin Standard Flow w/14 pin
Height	35.2 in 893 mm
Length	61.4 in 1560 mm
Weight	919.3 lb 417 kg
Optimal Hydraulic Flow	42-87 L/min (11-23 gpm) 42-87 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-241 bar (2100-3500 psi) 145-241 bar (2100-3500 psi)
Motor Displacement	24.1 in³/rev 395 cm³/rev
Brush Speed at Maximum Flow	200 RPM 200 RPM
Sweeping Width - Angled (± 30 Degrees)	71.7 in 1820 mm
Overall Width - Angled (± 30 Degrees)	79.5 in 2020 mm
Drive Method	Direct Drive Direct Drive
Interface Type	Skid Steer Coupler Skid Steer Coupler
Optional Hood Extension	55.1 lb 25 kg
