Mini Excavators 308 CR

Request A Price Find Dealer

Key Specs

Net Power: 69.5 hp; 51.8 kW

Operating Weight: 18493 lb; 8387 kg

Dig Depth: 182.8 in; 4643 mm

308 CR
Change model

Overview

Mini Excavators Inspired by Our Customers

The Cat® 308 CR Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.

Benefits

4 Industry First Features

Cat Exclusives in a Mini Excavator

Up to 10% Lower Total Ownership Costs

with improved fuel efficiency and longer service intervals

Up to 20% More Performance

with customizable operator settings and improvements in lift, swing, travel and multifunction

Features At A Glance

Displaying 1-6 of 9

ALL DAY COMFORT

A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

BIG PERFORMANCE IN A MINI DESIGN

Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently, and blade float allows for easy clean up.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we‚Äôve built into the machine.

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

SUSTAINABILITY

The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.

Moving around the job site is even easier with Cat Stick Steer. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently, and blade float allows for easy clean up.

Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we‚Äôve built into the machine.

Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.

Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.

The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Specifications Standard Equipment Optional Equipment

Product Specifications for 308 CR

Engine

Net Power	69.5 hp 51.8 kW
Engine Model	Cat C3.3B Cat C3.3B
Stroke	4.7 in 120 mm
Bore	3.7 in 94 mm
Gross Power - SAE J1995:2014	74.3 hp 55.4 kW
Displacement	203 in³ 3.33 l
Rated Net Power - 2,200 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/1269	69.5 hp 51.8 kW

Weights

Operating Weight	18493 lb 8387 kg
Note (1)	Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket. Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.
Note (2)	Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket. Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.
Maximum Operating Weight with Cab**	18493 lb 8387 kg
Minimum Operating Weight with Cab*	16542 lb 7502 kg

Dimensions - Long Stick

Dig Depth	182.8 in 4643 mm
Boom Swing - Left	23.8 in 604 mm
Maximum Dig Height	277.1 in 7039 mm
Maximum Blade Height	14.6 in 370 mm
Track Belt/Shoe Width	17.7 in 450 mm
Cab Height	100 in 2541 mm
Tail Swing with Counterweight	62.4 in 1585 mm
O/A Undercarriage Length	113.4 in 2880 mm
Maximum Dump Clearance	199.7 in 5072 mm
Boom Swing - Right	36.8 in 935 mm
Maximum Blade Depth	16 in 407 mm
Ground Clearance	13.8 in 350 mm
Stick Length	92.8 in 2358 mm
Maximum Reach	300.7 in 7637 mm
Maximum Reach - Ground Level	293.7 in 7460 mm
Boom In Reach	126.6 in 3215 mm
Swing Bearing - Height	29.7 in 756 mm
O/A Track Width	90.6 in 2300 mm
Tail Swing without Counterweight	57.1 in 1450 mm
Vertical Wall	134 in 3404 mm
Note	Boom Height when stick is pinned in transport position with no attachments. Boom Height when stick is pinned in transport position with no attachments.
Note (2)	*With blade positioned at the rear of the machine. *With blade positioned at the rear of the machine.
Note (1)	Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position. Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
Height - Boom Transport - No Tools*	89 in 2260 mm
Height - Boom Working - With Tools**	120.1 in 3050 mm
Overall Shipping Length - without Counterweight	6872 mm (270.6 in)* 6872 mm (270.6 in)*
Overall Shipping Length - with Counterweight	6872 mm (270.6 in)* 6872 mm (270.6 in)*

Blade

Height	17 in 431 mm
Width - Standard	90.6 in 2300 mm
Width - Wide	96.5 in 2450 mm

Weight Increase from Minimum Configuration

Steel Tracks with Pads	752 lb 341 kg
Counterweight	552 lb 250 kg
Long Stick	146 lb 66 kg

Travel System

Maximum Traction Force - High Speed	6250 lb 27.8 kN
Ground Pressure - Maximum Weight	5.5 psi 37.6 kPa
Ground Pressure - Minimum Weight	4.9 psi 33.8 kPa
Travel Speed - High	3.2 mile/h 5.1 km/h
Travel Speed - Low	1.9 mile/h 3.1 km/h
Maximum Traction Force - Low Speed	15175 lb 67.5 kN
Gradeability - Maximum	30 degrees 30 degrees

Service Refill Capacities

Fuel Tank	39 gal (US) 147 l
Hydraulic System	29 gal (US) 110 l
Hydraulic Tank	14 gal (US) 53 l
Cooling System	2.6 gal (US) 10 l
Engine Oil	3 gal (US) 11.2 l

Hydraulic System

Digging Force - Bucket	13946 lb 62 kN
Operating Pressure - Travel	4134 psi 285 bar
Operating Pressure - Swing	3626 psi 250 bar
Operating Pressure - Equipment	4134 psi 285 bar
Digging Force - Stick - Long	8032 lb 35.7 kN
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down. Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Pump Flow at 2,400 rpm	44 gpm 167 L/min
Digging Force - Stick - Standard	9509 lb 42.3 kN
Maximum Auxiliary Circuit - Primary - Pressure at Pump	4134 psi 285 bar
Maximum Auxiliary Circuit - Secondary - Pressure at Pump	4134 psi 285 bar
Maximum Auxiliary Circuit - Primary - Flow at Pump	35 gpm 131 L/min
Maximum Auxiliary Circuit - Secondary - Flow at Pump	9 gpm 33 L/min

Swing System

Machine Swing Speed	10.6 r/min 10.6 r/min
Boom Swing - Right	50 degrees 50 degrees
Boom Swing - Left	60 degrees 60 degrees

Certification - Cab

Top Guard	ISO 10262:1998 (Level I) ISO 10262:1998 (Level I)
Roll Over Protective Structure (ROPS)	ISO 12117-2:2008 ISO 12117-2:2008

Sound

Operator Sound Pressure (ISO 6396:2008)	72 dB(A) 72 dB(A)
Note	European Union Directive "2000/14/EC" European Union Directive "2000/14/EC"
Average Exterior Sound Pressure (ISO 6395:2008)	99 dB(A) 99 dB(A)

Dimensions - Standard Stick

Cab Height	100 in 2541 mm
Vertical Wall	117.8 in 2991 mm
Boom In Reach	120.4 in 3059 mm
Tail Swing with Counterweight	62.4 in 1585 mm
Boom Swing - Right	36.8 in 935 mm
Track Belt/Shoe Width	17.7 in 450 mm
Maximum Reach	281.1 in 7141 mm
Stick Length	71.7 in 1820 mm
Maximum Blade Height	14.6 in 370 mm
Boom Swing - Left	23.8 in 604 mm
Maximum Blade Depth	16 in 407 mm
O/A Track Width	90.6 in 2300 mm
Maximum Dig Height	265.2 in 6736 mm
Maximum Dump Clearance	187.4 in 4760 mm
Maximum Reach - Ground Level	273.6 in 6949 mm
Tail Swing without Counterweight	57.1 in 1450 mm
O/A Undercarriage Length	113.4 in 2880 mm
Swing Bearing - Height	29.7 in 756 mm
Ground Clearance	13.8 in 350 mm
Dig Depth	161.7 in 4108 mm
Note	Boom Height when stick is pinned in transport position with no attachments. Boom Height when stick is pinned in transport position with no attachments.
Overall Shipping Length - with Counterweight	264 in 6706 mm
Note (1)	Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position. Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
Overall Shipping Length - without Counterweight	258.8 in 6574 mm
Note (2)	*With blade positioned at the rear of the machine. *With blade positioned at the rear of the machine.
Height - Boom Working - With Tools**	104.7 in 2660 mm
Height - Boom Transport - No Tools*	95.7 in 2430 mm

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes. The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes.

Sustainability

Recyclability

96% 96%

308 CR Standard Equipment

ENGINE

Cat C3.3B Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo, Diesel Particulate Filter (DPF)

Automatic Engine Idle

Automatic Engine Shutdown

Automatic Swing Brake

Automatic Two Speed Travel

Fuel Water Separator with Indicator

Radial Seal – Double Element Air Filter

Extended Life Coolant, –37° C (–35° F)

HYDRAULICS

Electronic Variable Displacement Piston Pump

Load Sensing/Flow Sharing Hydraulics

Power On Demand

Hydraulic Temperature Monitoring

Certified Accumulator

HYDO Advanced Hydraulic Oil

OPERATOR ENVIRONMENT

Top Guard ISO 10262 1998 Level I

ROPS ISO 12117-2:2008

Stick Steer Mode

Travel Cruise Control

Control Pattern Changer

Adjustable Wrist Rests

Molded Footrests

Removable, Washable Floor Mat

Travel Pedals and Hand Levers

Cat Key with Passcode Option

HVAC with Automatic Temperature Control

Hydraulic Lockout Controls

Integrated Lower Front Window

Assisted Front Window Overhead Storage

Rear Window Emergency Exit

Fabric, High Back, Suspension Seat

Retractable Seat Belt (75 mm/3 in)

Coat Hook

Cup Holder

LED Interior Light

Literature Holder

Mounting Bosses for Top and Front Guards

12V Power Socket

Radio – Bluetooth, Auxiliary, Microphone, USB (charging only)

Skylight

Signaling/Warning Horn

Cab and (left side) Boom Work Lights

Utility Space for Mobile Phone

Next Generation Color LCD Monitor (IP66)
– Jog Dial Interface
– Fuel Level and Coolant Temperature Gauges
– Maintenance and Machine Monitoring
– Performance and Machine Adjustments
– Numeric Security Code
– Multiple Languages
– Camera Ready (IP68 & IP69K)
– Hour Meter with Wake Up Switch

UNDERCARRIAGE

Greased and Lubricated Track

Tie Down Eyes on Track Frame

Dozer Blade

Dozer Float

Bolt-on, Reversible Wear Edge

BOOM, STICK AND LINKAGES

One Piece Boom (3400 mm/133.9 in)

Standard Stick (1820 mm/71.7 in)

Front Shovel Capable – Pin-on/Manual Coupler/Hydraulic Coupler (not available in all regions)

Thumb Ready (not available in all regions)

ELECTRICAL

12 Volt Electrical System

60 Ampere Alternator

Circuit Breaker

900 CCA Maintenance Free Battery

Battery Disconnect

Ignition Key Stop Switch

OTHER

Locks on External Enclosure Doors

Lockable Fuel Cap

Beacon Socket

Rear Reflectors

TECHNOLOGY

Product Link Basic

308 CR Optional Equipment

OPERATOR ENVIRONMENT

Push to Start with Bluetooth® Key

Air Suspension Heated Seat

Rain Visor

Next Generation Advanced Monitor (below are all included with Next Generation Advanced Monitor option)
– Touch Screen
– Site Reference System
– High Definition Camera Capable (IP68 & IP69K)
– Numeric Security Code

UNDERCARRIAGE

Wide Dozer Blade

Steel Tracks (450 mm/17.7 in wide)

Wide Steel Tracks (600 mm/23.6 in)

Steel Track with Rubber Pads

Track Guides

BOOM, STICK AND LINKAGES

Long Stick (2360 mm/92.9 in)

Attachments including Buckets, Augers and Hammers

2nd Auxiliary Hydraulic Lines

Boom Lowering Check Valve

Stick Lowering Check Valve

Certified Lifting Eye

ELECTRICAL

Product Link™ Elite (regulations apply)

Travel Alarm

Rearview Camera

Rotating Beacon

GUARDING

Mesh Front Guard ISO 10262 1998 Level I

Heavy Duty Front Guard ISO 10262 1998 Level II

Overhead Cab Guard ISO 10262 1998 Level II

Polycarbonate Front Window EN356 P5A

Track Guards

OTHER

Additional Counterweight

Water Jacket Heater

Refueling Pump

Variable Angle Boom (refer to 308 CR VAB brochure for VAB specs and additional information)

TECHNOLOGY

Ease of Use Indicate

Ease of Use E-Fence

Cat Grade Advanced 2D

Cat Grade 3D

Product Link Elite (regulations apply)

Product Specifications for 308 CR

Download Print

Engine

Net Power	69.5 hp 51.8 kW
Engine Model	Cat C3.3B Cat C3.3B
Stroke	4.7 in 120 mm
Bore	3.7 in 94 mm
Gross Power - SAE J1995:2014	74.3 hp 55.4 kW
Displacement	203 in³ 3.33 l
Rated Net Power - 2,200 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/1269	69.5 hp 51.8 kW

Weights

Operating Weight	18493 lb 8387 kg
Note (1)	Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket. Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket.
Note (2)	Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket. Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket.
Maximum Operating Weight with Cab**	18493 lb 8387 kg
Minimum Operating Weight with Cab*	16542 lb 7502 kg

Dimensions - Long Stick

Dig Depth	182.8 in 4643 mm
Boom Swing - Left	23.8 in 604 mm
Maximum Dig Height	277.1 in 7039 mm
Maximum Blade Height	14.6 in 370 mm
Track Belt/Shoe Width	17.7 in 450 mm
Cab Height	100 in 2541 mm
Tail Swing with Counterweight	62.4 in 1585 mm
O/A Undercarriage Length	113.4 in 2880 mm
Maximum Dump Clearance	199.7 in 5072 mm
Boom Swing - Right	36.8 in 935 mm
Maximum Blade Depth	16 in 407 mm
Ground Clearance	13.8 in 350 mm
Stick Length	92.8 in 2358 mm
Maximum Reach	300.7 in 7637 mm
Maximum Reach - Ground Level	293.7 in 7460 mm
Boom In Reach	126.6 in 3215 mm
Swing Bearing - Height	29.7 in 756 mm
O/A Track Width	90.6 in 2300 mm
Tail Swing without Counterweight	57.1 in 1450 mm
Vertical Wall	134 in 3404 mm
Note	Boom Height when stick is pinned in transport position with no attachments. Boom Height when stick is pinned in transport position with no attachments.
Note (2)	*With blade positioned at the rear of the machine. *With blade positioned at the rear of the machine.
Note (1)	Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position. Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
Height - Boom Transport - No Tools*	89 in 2260 mm
Height - Boom Working - With Tools**	120.1 in 3050 mm
Overall Shipping Length - without Counterweight	6872 mm (270.6 in)* 6872 mm (270.6 in)*
Overall Shipping Length - with Counterweight	6872 mm (270.6 in)* 6872 mm (270.6 in)*

Blade

Height	17 in 431 mm
Width - Standard	90.6 in 2300 mm
Width - Wide	96.5 in 2450 mm

Weight Increase from Minimum Configuration

Steel Tracks with Pads	752 lb 341 kg
Counterweight	552 lb 250 kg
Long Stick	146 lb 66 kg

Travel System

Maximum Traction Force - High Speed	6250 lb 27.8 kN
Ground Pressure - Maximum Weight	5.5 psi 37.6 kPa
Ground Pressure - Minimum Weight	4.9 psi 33.8 kPa
Travel Speed - High	3.2 mile/h 5.1 km/h
Travel Speed - Low	1.9 mile/h 3.1 km/h
Maximum Traction Force - Low Speed	15175 lb 67.5 kN
Gradeability - Maximum	30 degrees 30 degrees

Service Refill Capacities

Fuel Tank	39 gal (US) 147 l
Hydraulic System	29 gal (US) 110 l
Hydraulic Tank	14 gal (US) 53 l
Cooling System	2.6 gal (US) 10 l
Engine Oil	3 gal (US) 11.2 l

Hydraulic System

Digging Force - Bucket	13946 lb 62 kN
Operating Pressure - Travel	4134 psi 285 bar
Operating Pressure - Swing	3626 psi 250 bar
Operating Pressure - Equipment	4134 psi 285 bar
Digging Force - Stick - Long	8032 lb 35.7 kN
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down. Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Pump Flow at 2,400 rpm	44 gpm 167 L/min
Digging Force - Stick - Standard	9509 lb 42.3 kN
Maximum Auxiliary Circuit - Primary - Pressure at Pump	4134 psi 285 bar
Maximum Auxiliary Circuit - Secondary - Pressure at Pump	4134 psi 285 bar
Maximum Auxiliary Circuit - Primary - Flow at Pump	35 gpm 131 L/min
Maximum Auxiliary Circuit - Secondary - Flow at Pump	9 gpm 33 L/min

Swing System

Machine Swing Speed	10.6 r/min 10.6 r/min
Boom Swing - Right	50 degrees 50 degrees
Boom Swing - Left	60 degrees 60 degrees

Certification - Cab

Top Guard	ISO 10262:1998 (Level I) ISO 10262:1998 (Level I)
Roll Over Protective Structure (ROPS)	ISO 12117-2:2008 ISO 12117-2:2008

Sound

Operator Sound Pressure (ISO 6396:2008)	72 dB(A) 72 dB(A)
Note	European Union Directive "2000/14/EC" European Union Directive "2000/14/EC"
Average Exterior Sound Pressure (ISO 6395:2008)	99 dB(A) 99 dB(A)

Dimensions - Standard Stick

Cab Height	100 in 2541 mm
Vertical Wall	117.8 in 2991 mm
Boom In Reach	120.4 in 3059 mm
Tail Swing with Counterweight	62.4 in 1585 mm
Boom Swing - Right	36.8 in 935 mm
Track Belt/Shoe Width	17.7 in 450 mm
Maximum Reach	281.1 in 7141 mm
Stick Length	71.7 in 1820 mm
Maximum Blade Height	14.6 in 370 mm
Boom Swing - Left	23.8 in 604 mm
Maximum Blade Depth	16 in 407 mm
O/A Track Width	90.6 in 2300 mm
Maximum Dig Height	265.2 in 6736 mm
Maximum Dump Clearance	187.4 in 4760 mm
Maximum Reach - Ground Level	273.6 in 6949 mm
Tail Swing without Counterweight	57.1 in 1450 mm
O/A Undercarriage Length	113.4 in 2880 mm
Swing Bearing - Height	29.7 in 756 mm
Ground Clearance	13.8 in 350 mm
Dig Depth	161.7 in 4108 mm
Note	Boom Height when stick is pinned in transport position with no attachments. Boom Height when stick is pinned in transport position with no attachments.
Overall Shipping Length - with Counterweight	264 in 6706 mm
Note (1)	Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position. Boom Height when stick is pinned in working position with attachments. Standard Stick offers only one pin position.
Overall Shipping Length - without Counterweight	258.8 in 6574 mm
Note (2)	*With blade positioned at the rear of the machine. *With blade positioned at the rear of the machine.
Height - Boom Working - With Tools**	104.7 in 2660 mm
Height - Boom Transport - No Tools*	95.7 in 2430 mm

Air Conditioning System

Air Conditioning

Sustainability

Recyclability

96% 96%

308 CR Standard Equipment

ENGINE

Cat C3.3B Diesel Engine (U.S. EPA Tier 4 Final/EU Stage V) – Electronic Engine, Turbo, Diesel Particulate Filter (DPF)

Automatic Engine Idle

Automatic Engine Shutdown

Automatic Swing Brake

Automatic Two Speed Travel

Fuel Water Separator with Indicator

Radial Seal – Double Element Air Filter

Extended Life Coolant, –37° C (–35° F)

HYDRAULICS

Electronic Variable Displacement Piston Pump

Load Sensing/Flow Sharing Hydraulics

Power On Demand

Hydraulic Temperature Monitoring

Certified Accumulator

HYDO Advanced Hydraulic Oil

OPERATOR ENVIRONMENT

Top Guard ISO 10262 1998 Level I

ROPS ISO 12117-2:2008

Stick Steer Mode

Travel Cruise Control

Control Pattern Changer

Adjustable Wrist Rests

Molded Footrests

Removable, Washable Floor Mat

Travel Pedals and Hand Levers

Cat Key with Passcode Option

HVAC with Automatic Temperature Control

Hydraulic Lockout Controls

Integrated Lower Front Window

Assisted Front Window Overhead Storage

Rear Window Emergency Exit

Fabric, High Back, Suspension Seat

Retractable Seat Belt (75 mm/3 in)

Coat Hook

Cup Holder

LED Interior Light

Literature Holder

Mounting Bosses for Top and Front Guards

12V Power Socket

Radio – Bluetooth, Auxiliary, Microphone, USB (charging only)

Skylight

Signaling/Warning Horn

Cab and (left side) Boom Work Lights

Utility Space for Mobile Phone

Next Generation Color LCD Monitor (IP66)
– Jog Dial Interface
– Fuel Level and Coolant Temperature Gauges
– Maintenance and Machine Monitoring
– Performance and Machine Adjustments
– Numeric Security Code
– Multiple Languages
– Camera Ready (IP68 & IP69K)
– Hour Meter with Wake Up Switch

UNDERCARRIAGE

Greased and Lubricated Track

Tie Down Eyes on Track Frame

Dozer Blade

Dozer Float

Bolt-on, Reversible Wear Edge

BOOM, STICK AND LINKAGES

One Piece Boom (3400 mm/133.9 in)

Standard Stick (1820 mm/71.7 in)

Front Shovel Capable – Pin-on/Manual Coupler/Hydraulic Coupler (not available in all regions)

Thumb Ready (not available in all regions)

ELECTRICAL

12 Volt Electrical System

60 Ampere Alternator

Circuit Breaker

900 CCA Maintenance Free Battery

Battery Disconnect

Ignition Key Stop Switch

OTHER

Locks on External Enclosure Doors

Lockable Fuel Cap

Beacon Socket

Rear Reflectors

TECHNOLOGY

Product Link Basic

308 CR Optional Equipment

OPERATOR ENVIRONMENT

Push to Start with Bluetooth® Key

Air Suspension Heated Seat

Rain Visor

Next Generation Advanced Monitor (below are all included with Next Generation Advanced Monitor option)
– Touch Screen
– Site Reference System
– High Definition Camera Capable (IP68 & IP69K)
– Numeric Security Code

UNDERCARRIAGE

Wide Dozer Blade

Steel Tracks (450 mm/17.7 in wide)

Wide Steel Tracks (600 mm/23.6 in)

Steel Track with Rubber Pads

Track Guides

BOOM, STICK AND LINKAGES

Long Stick (2360 mm/92.9 in)

Attachments including Buckets, Augers and Hammers

2nd Auxiliary Hydraulic Lines

Boom Lowering Check Valve

Stick Lowering Check Valve

Certified Lifting Eye

ELECTRICAL

Product Link™ Elite (regulations apply)

Travel Alarm

Rearview Camera

Rotating Beacon

GUARDING

Mesh Front Guard ISO 10262 1998 Level I

Heavy Duty Front Guard ISO 10262 1998 Level II

Overhead Cab Guard ISO 10262 1998 Level II

Polycarbonate Front Window EN356 P5A

Track Guards

OTHER

Additional Counterweight

Water Jacket Heater

Refueling Pump

Variable Angle Boom (refer to 308 CR VAB brochure for VAB specs and additional information)

TECHNOLOGY

Ease of Use Indicate

Ease of Use E-Fence

Cat Grade Advanced 2D

Cat Grade 3D

Product Link Elite (regulations apply)

See how 308 CR compares against frequently compared products.

Excavators

Selected

308 CR

Net Power: 69.5 hp; 51.8 kW
Operating Weight: 18493 lb; 8387 kg
Dig Depth: 182.8 in; 4643 mm

Excavators

307.5 - Tier 4 / Stage V

Net Power: 54.8 hp; 40.9 kW
Operating Weight: 17905 lb; 8120 kg
Dig Depth: 182.8 in; 4642 mm

View Details

Excavators

308 CR (Fixed Boom)

Net Power: 69.5 hp; 51.8 kW
Operating Weight: 17695 lb; 8025 kg
Dig Depth: 185 in; 4687 mm

View Details

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

308 CR Mini Hydraulic Excavator

Front View

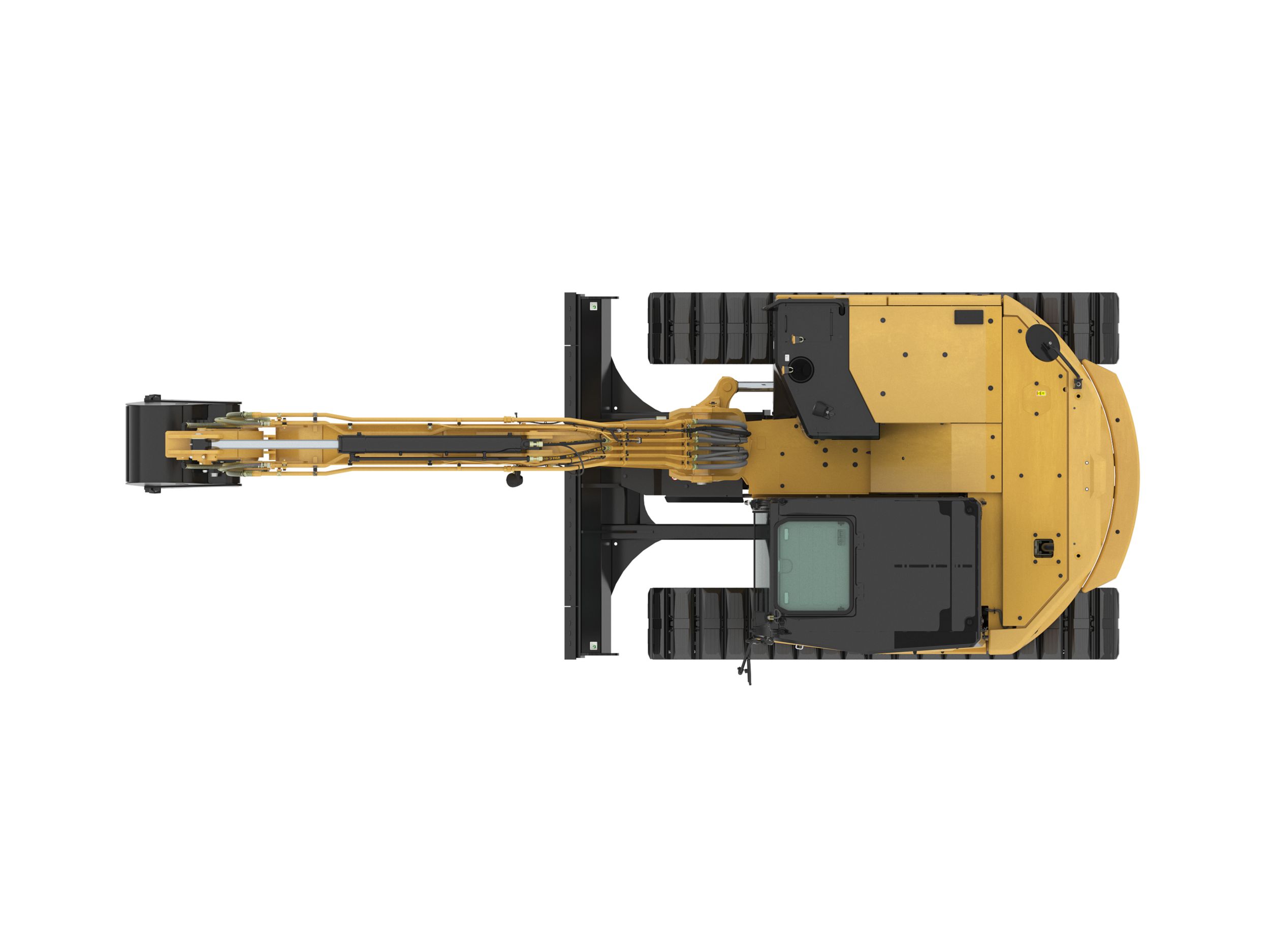

Top View

Left View

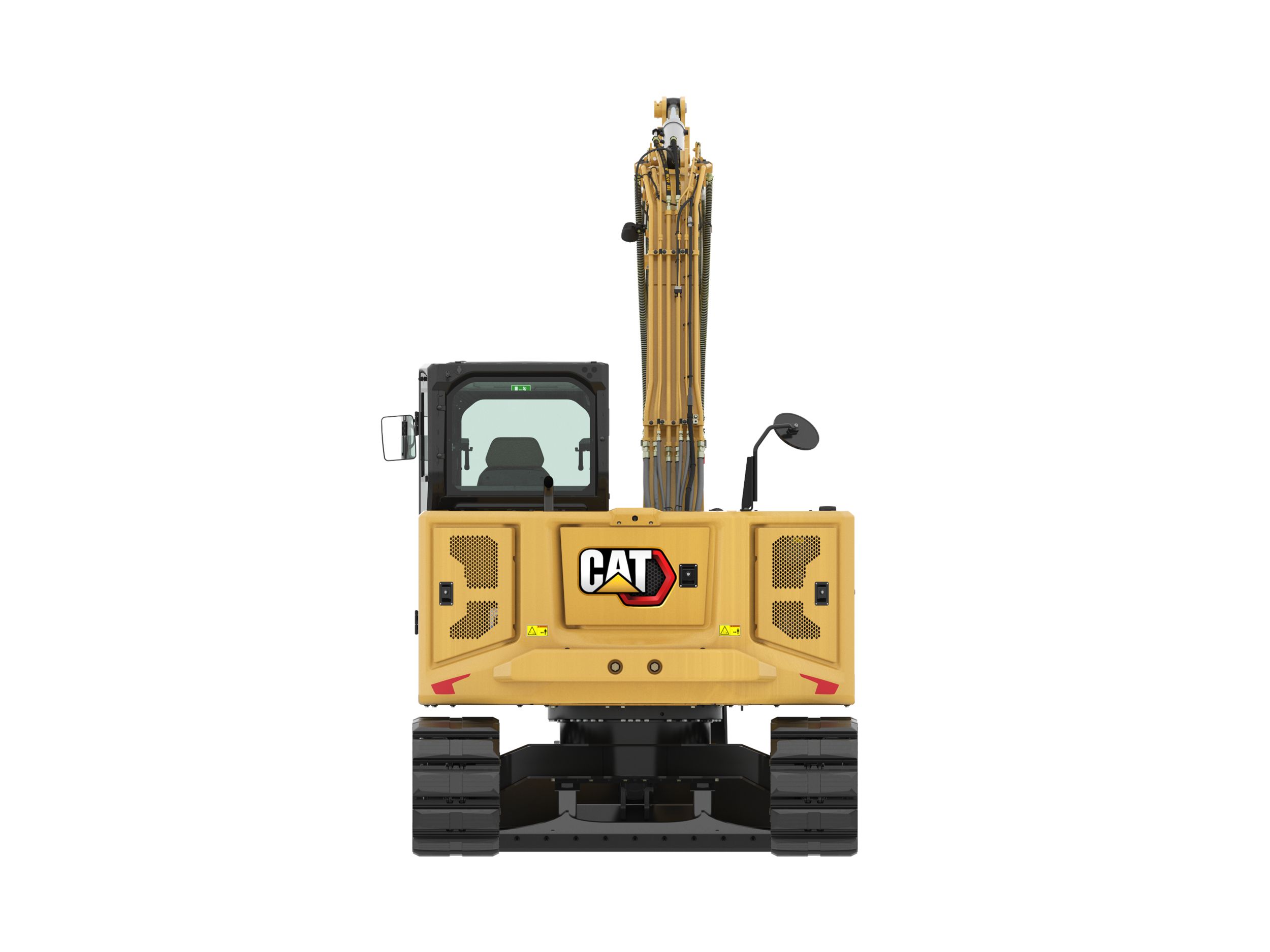

Rear View

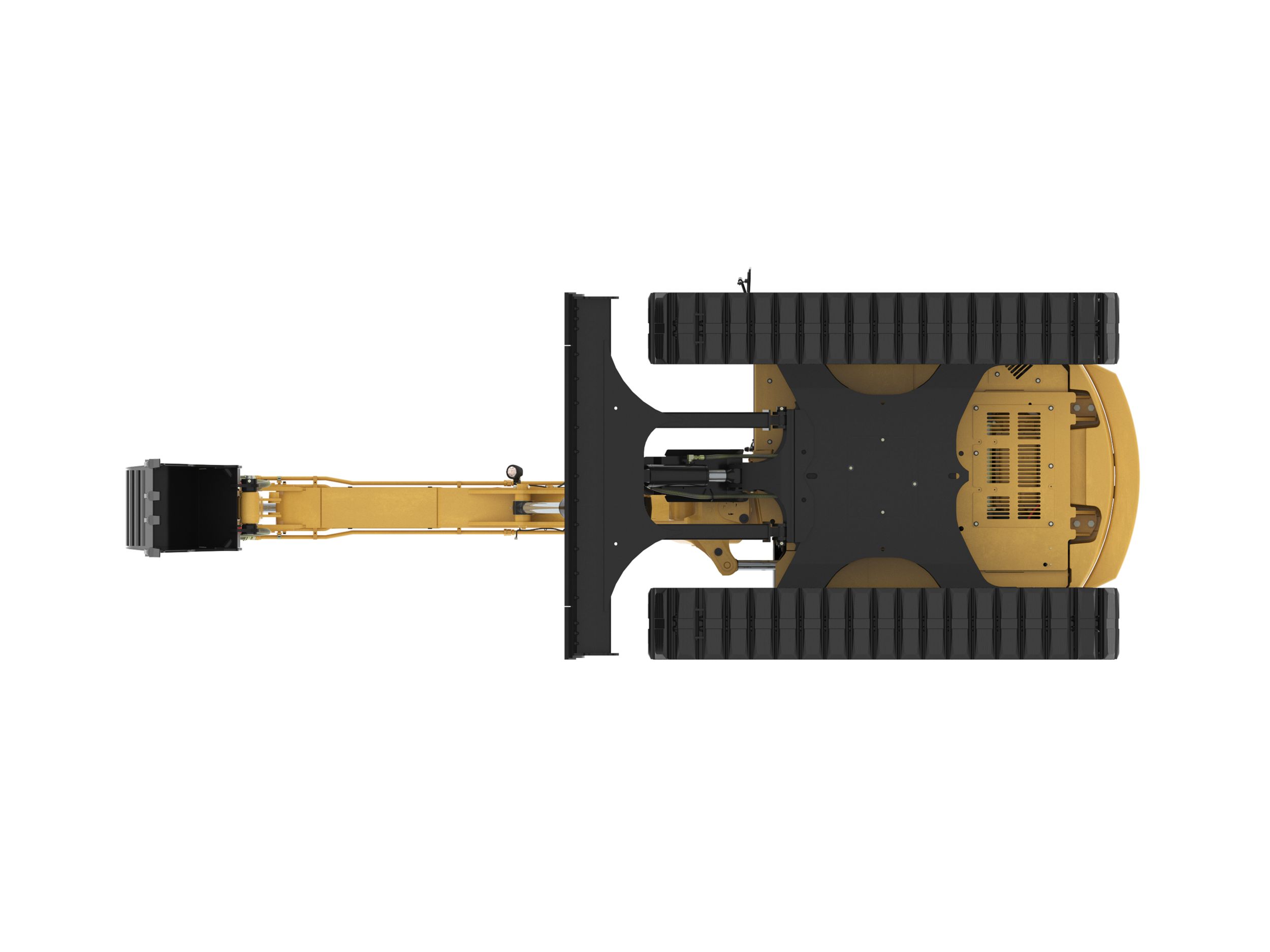

Bottom View

Right View

Introducing the Next Generation Cat 7-10 Ton Mini Excavators

Overview of the Next Generation Cat 7-10 Ton Mini Excavators

Standard Monitor on the Next Generation Cat Mini Excavators

Stick Steer on the Cat Next Generation Mini Excavators

Cat 308 CR Mini Excavator Customer Story - Savage Excavation (Colorado, USA)

Cat 308 CR Mini Excavator Customer Story - JA Langton (United Kingdom)

Daily Maintenance and Inspection on the Cat 7-10 Ton Mini Excavators

Safety Features on the Cat 7-10 Ton Mini Excavators

Introducing the Next Generation Cat 7-10 Ton Mini Excavators

Overview of the Next Generation Cat 7-10 Ton Mini Excavators

Standard Monitor on the Next Generation Cat Mini Excavators

Stick Steer on the Cat Next Generation Mini Excavators

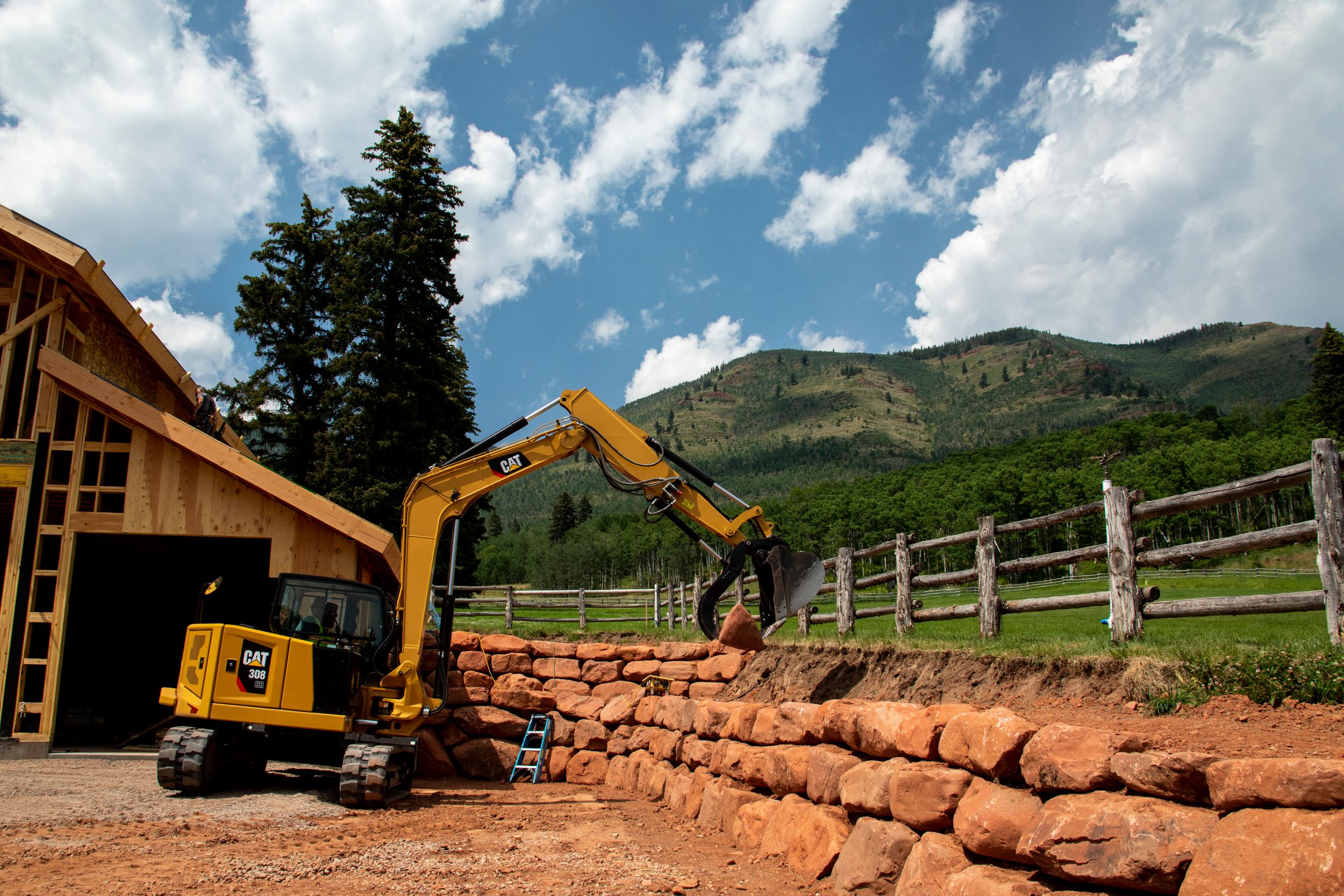

Cat 308 CR Mini Excavator Customer Story - Savage Excavation (Colorado, USA)

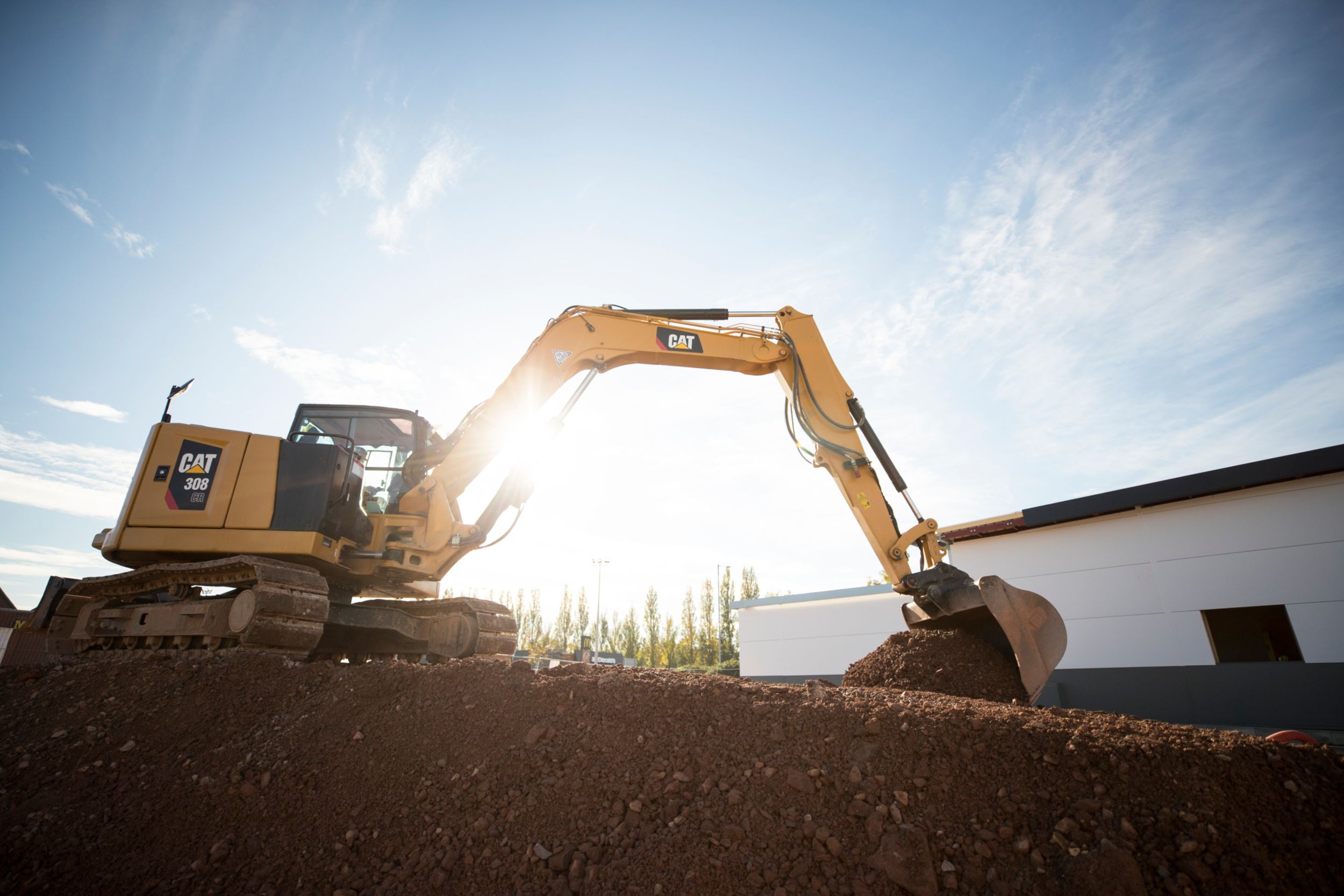

Cat 308 CR Mini Excavator Customer Story - JA Langton (United Kingdom)

Daily Maintenance and Inspection on the Cat 7-10 Ton Mini Excavators

Safety Features on the Cat 7-10 Ton Mini Excavators

Take the interactive virtual product tour to explore the great features and benefits of the 308 CR

Start 308 CR Tour

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Mini Excavators 308 CR

Overview

Mini Excavators Inspired by Our Customers

Benefits

4 Industry First Features

Up to 10% Lower Total Ownership Costs

Up to 20% More Performance

Features At A Glance

ALL DAY COMFORT

EASY TO OPERATE

STICK STEER TRAVEL MODE

BIG PERFORMANCE IN A MINI DESIGN

SAFETY ON THE JOB SITE

SIMPLE SERVICE FOR LESS DOWNTIME

LOWER OPERATING COSTS

UNMATCHED DEALER SUPPORT

SUSTAINABILITY

Product Specifications for 308 CR

Engine

Weights

Dimensions - Long Stick

Blade

Weight Increase from Minimum Configuration

Travel System

Service Refill Capacities

Hydraulic System

Swing System

Certification - Cab

Sound

Dimensions - Standard Stick

Air Conditioning System

Sustainability

308 CR Standard Equipment

ENGINE

HYDRAULICS

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

OTHER

TECHNOLOGY

308 CR Optional Equipment

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

GUARDING

OTHER

TECHNOLOGY

Product Specifications for 308 CR

Engine

Weights

Dimensions - Long Stick

Blade

Weight Increase from Minimum Configuration

Travel System

Service Refill Capacities

Hydraulic System

Swing System

Certification - Cab

Sound

Dimensions - Standard Stick

Air Conditioning System

Sustainability

308 CR Standard Equipment

ENGINE

HYDRAULICS

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

OTHER

TECHNOLOGY

308 CR Optional Equipment

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

GUARDING

OTHER

Product Brochures and More Are Ready to Download!
