Key Specs

Operating Weight - With Tool: 1382.3 lb; 627 kg

Energy Class: 1500.2 ft·lbf; 2034 J

Machine Class: 7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift); 7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)

H95s
Change model

Overview

Used for demolition and construction applications.

Features At A Glance

Displaying 1-6 of 9

Application

Used in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

Silenced

Fully enclosed, silenced housing lowers overall noise level for a quieter, safer job site. Internal power cell is protected, designed and engineered to eliminate stress points.

Flat Top/Top Mount Style

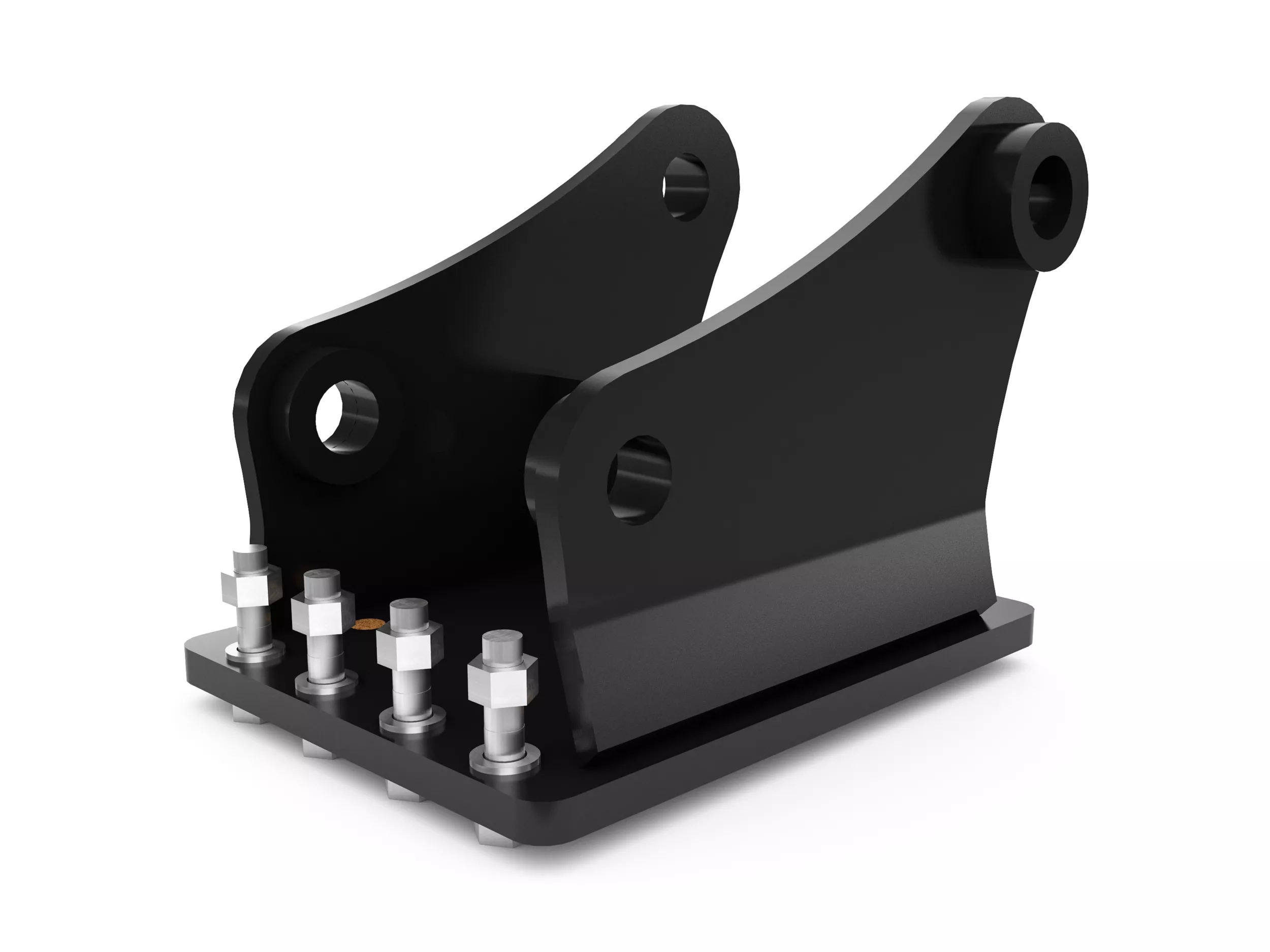

Flat Top/Top Mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.

Auto Shut Off (ASO)

ASO instantly stops the piston when breaking through material, preventing blank firing, a key contributor to hammer wear. Internal stresses are reduced, hammer is protected regardless of operator skill level.

Tri-Suspension System

Tri-Suspension system comprises the suspension jacket, the upper and lower buffers. Suspension aligns power cell and gives manageable, smooth performance.

Standing Height Grease Point

Standing height grease point makes required maintenance comfortable and easy to perform.

Fully enclosed, silenced housing lowers overall noise level for a quieter, safer job site. Internal power cell is protected, designed and engineered to eliminate stress points.

Tri-Suspension system comprises the suspension jacket, the upper and lower buffers. Suspension aligns power cell and gives manageable, smooth performance.

Standing height grease point makes required maintenance comfortable and easy to perform.

Gas ports and valves are easy to check and charge while hammer is mounted to machine.

Improved routing protects against force and dirt during impact, eliminating downtime.

Tools are heat-treated, matched to piston diameter and provide optimum mass to deliver full blow energy.

Product Specifications for H95s

Operating Weight - With Tool	1382.3 lb 627 kg
Energy Class	1500.2 ft·lbf 2034 J
Machine Class	7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift) 7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
Tool Shaft Diameter	3.4 in 87.5 mm
Impact Frequency	700-1260 bpm 700-1260 bpm
Minimum Operating Pressure	1450.4 psi 10000 kPa
Minimum Carrier Weight	15399.3 lb 6985 kg
Optimal Hydraulic Flow	70-150 lpm (18-40 gpm) 70-150 lpm (18-40 gpm)
Overall Width	20.2 in 512 mm
Overall Length	20.5 in 520 mm
Overall Height	65.6 in 1666 mm
Height - Without Tool	49.2 in 1250 mm
Sound Level	124 dB 124 dB
Mounting Bracket Size	Extra Large Extra Large

Product Specifications for H95s

Download Print

Operating Weight - With Tool	1382.3 lb 627 kg
Energy Class	1500.2 ft·lbf 2034 J
Machine Class	7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift) 7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
Tool Shaft Diameter	3.4 in 87.5 mm
Impact Frequency	700-1260 bpm 700-1260 bpm
Minimum Operating Pressure	1450.4 psi 10000 kPa
Minimum Carrier Weight	15399.3 lb 6985 kg
Optimal Hydraulic Flow	70-150 lpm (18-40 gpm) 70-150 lpm (18-40 gpm)
Overall Width	20.2 in 512 mm
Overall Length	20.5 in 520 mm
Overall Height	65.6 in 1666 mm
Height - Without Tool	49.2 in 1250 mm
Sound Level	124 dB 124 dB
Mounting Bracket Size	Extra Large Extra Large
