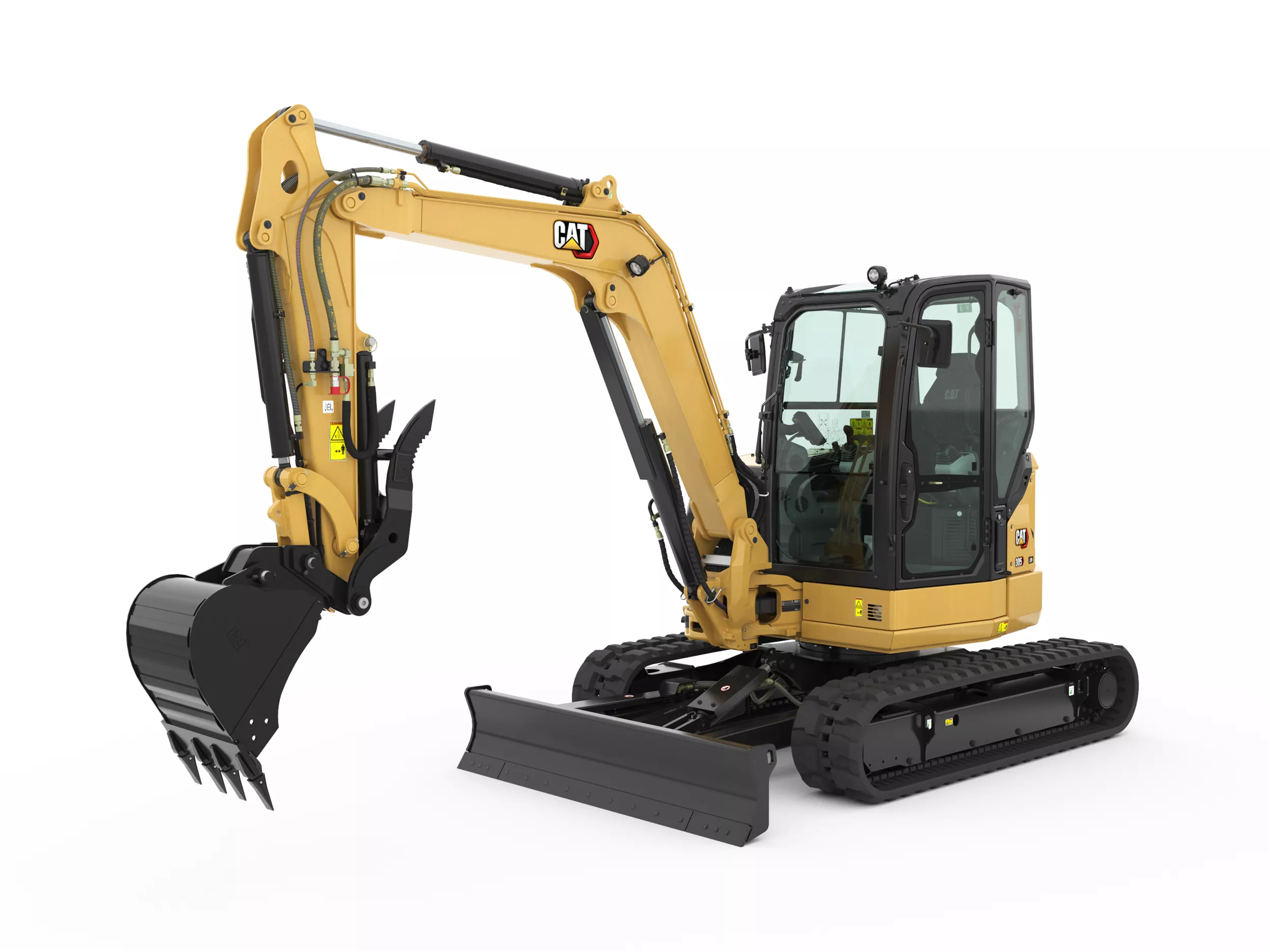

Mini Excavators 305 CR

Request A Price Find Dealer

Key Specs

Net Power: 45 hp; 33.6 kW

Operating Weight: 12688 lb; 5754 kg

Dig Depth: 144.5 in; 3670 mm

305 CR
Change model

Overview

Mini Excavators Inspired by Our Customers

The Cat® 305 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

Benefits

4 Industry First Features

Cat Exclusives in a Mini Excavator

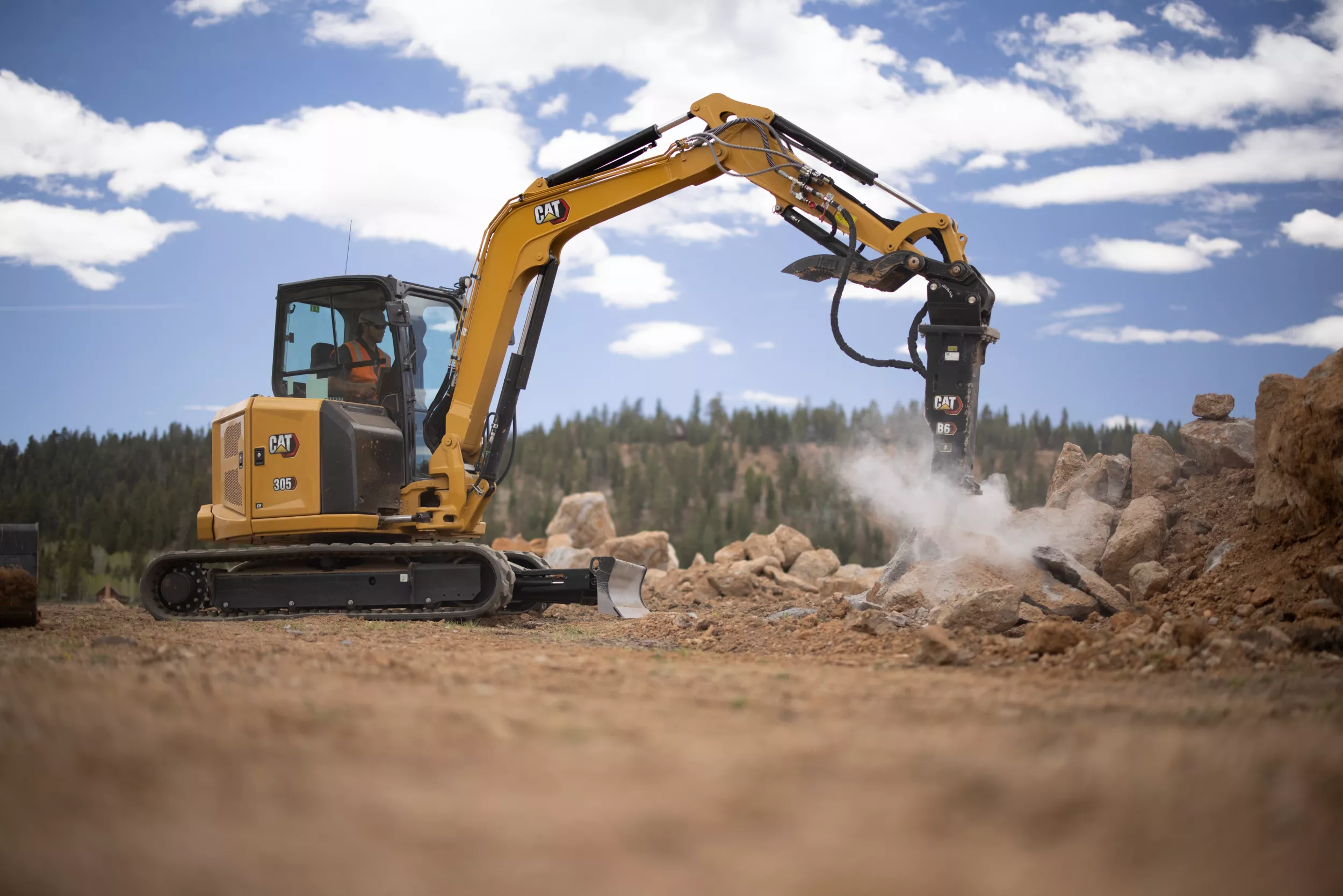

Up to 10% Lower Total Ownership Costs

with extended service intervals, lower repair costs and easy service access

Up to 20% More Performance

in lifting, digging and multi-function capability

Features At A Glance

Displaying 1-6 of 8

ALL DAY COMFORT

Choose either a canopy (not available in some regions) or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat to help keep you working comfortably all day long.

EASY TO OPERATE

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped as an upgrade option.

STICK STEER TRAVEL MODE

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

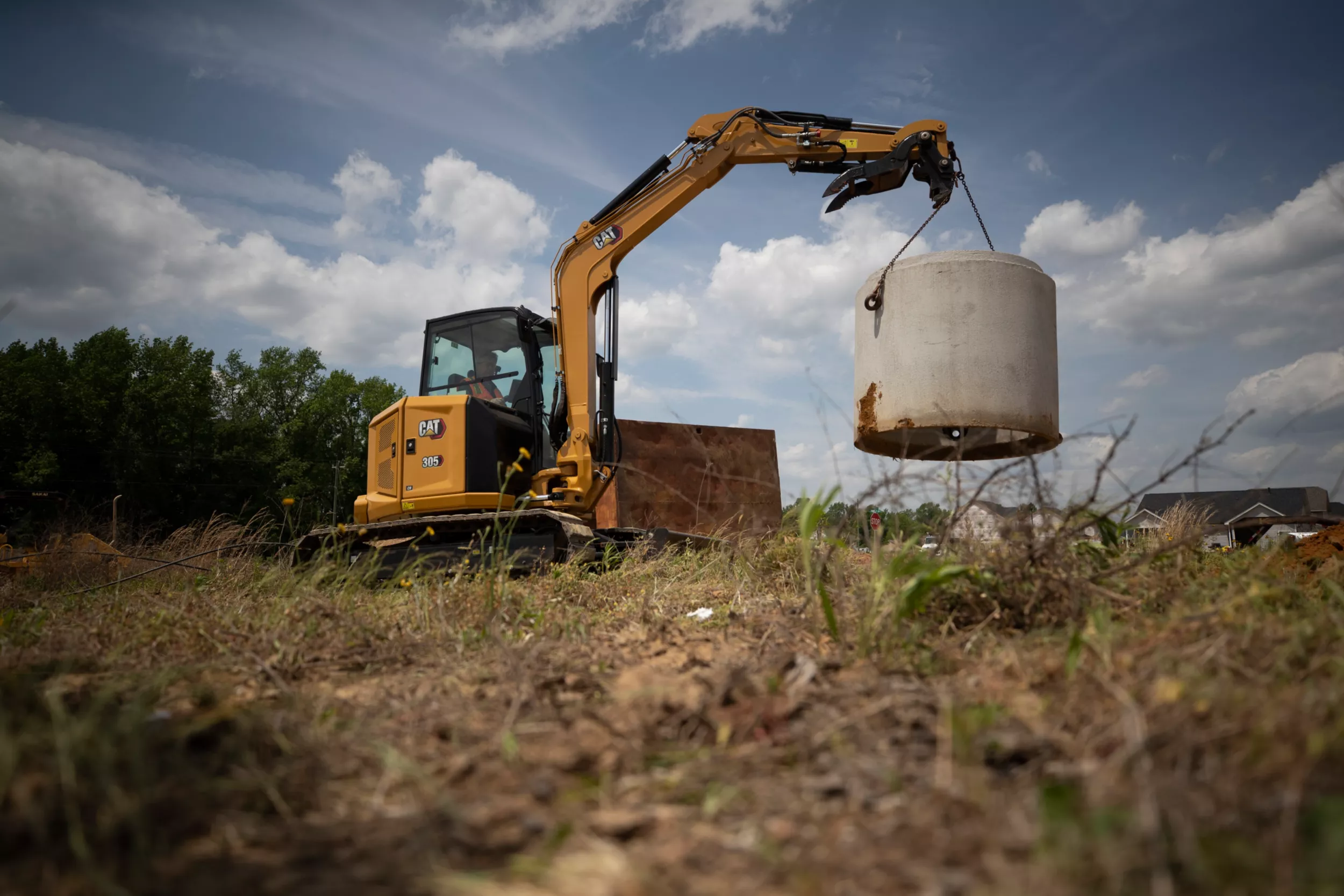

BIG PERFORMANCE IN A COMPACT DESIGN

Strong lift and dig performance helps you get the job done faster. The compact radius design lets you access and work in the tightest areas. Dozer float allows for easy clean up. An angle blade is also an option for finished grading and easier backfilling applications.

SAFETY ON THE JOB SITE

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.

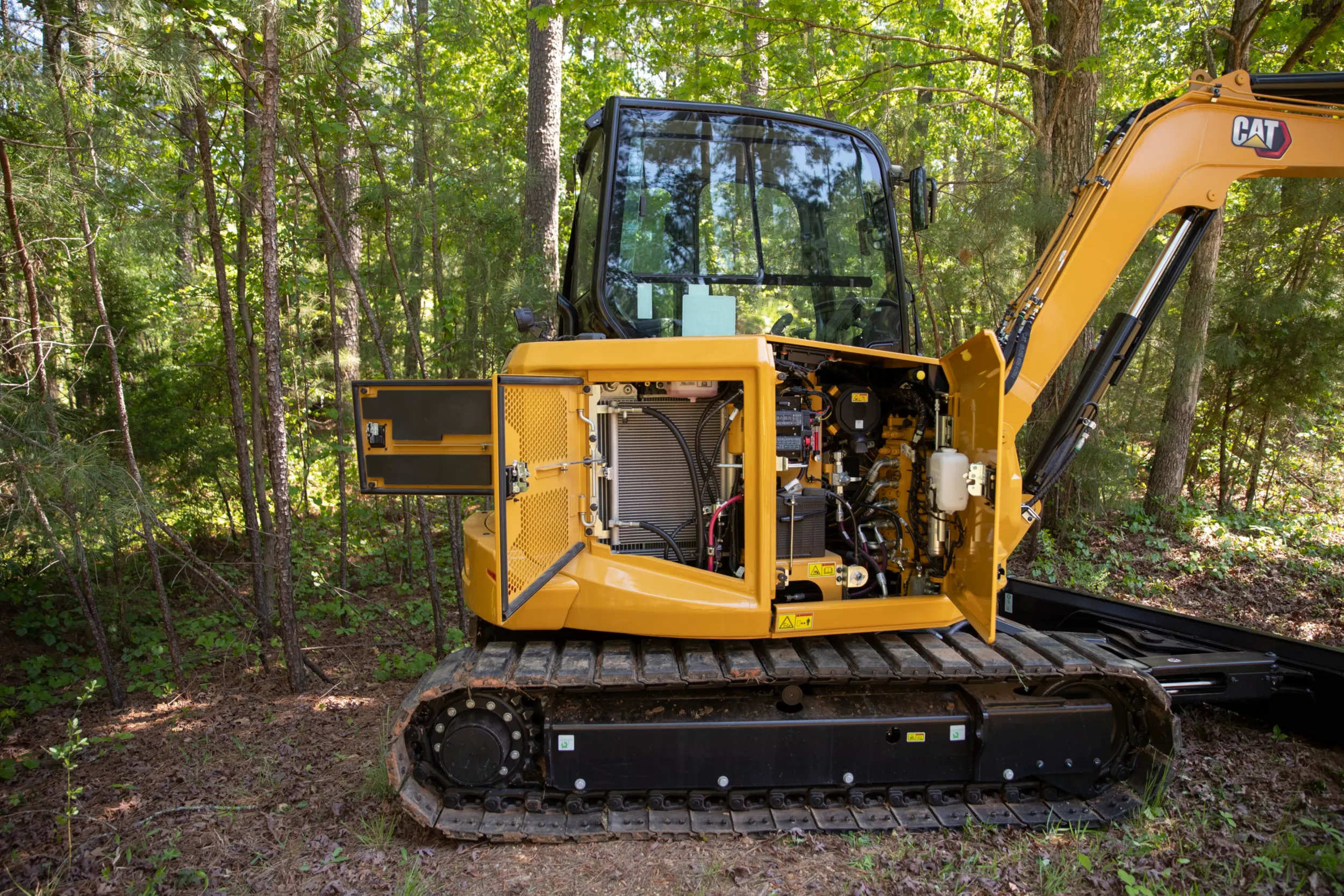

SIMPLE SERVICE FOR LESS DOWNTIME

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors.

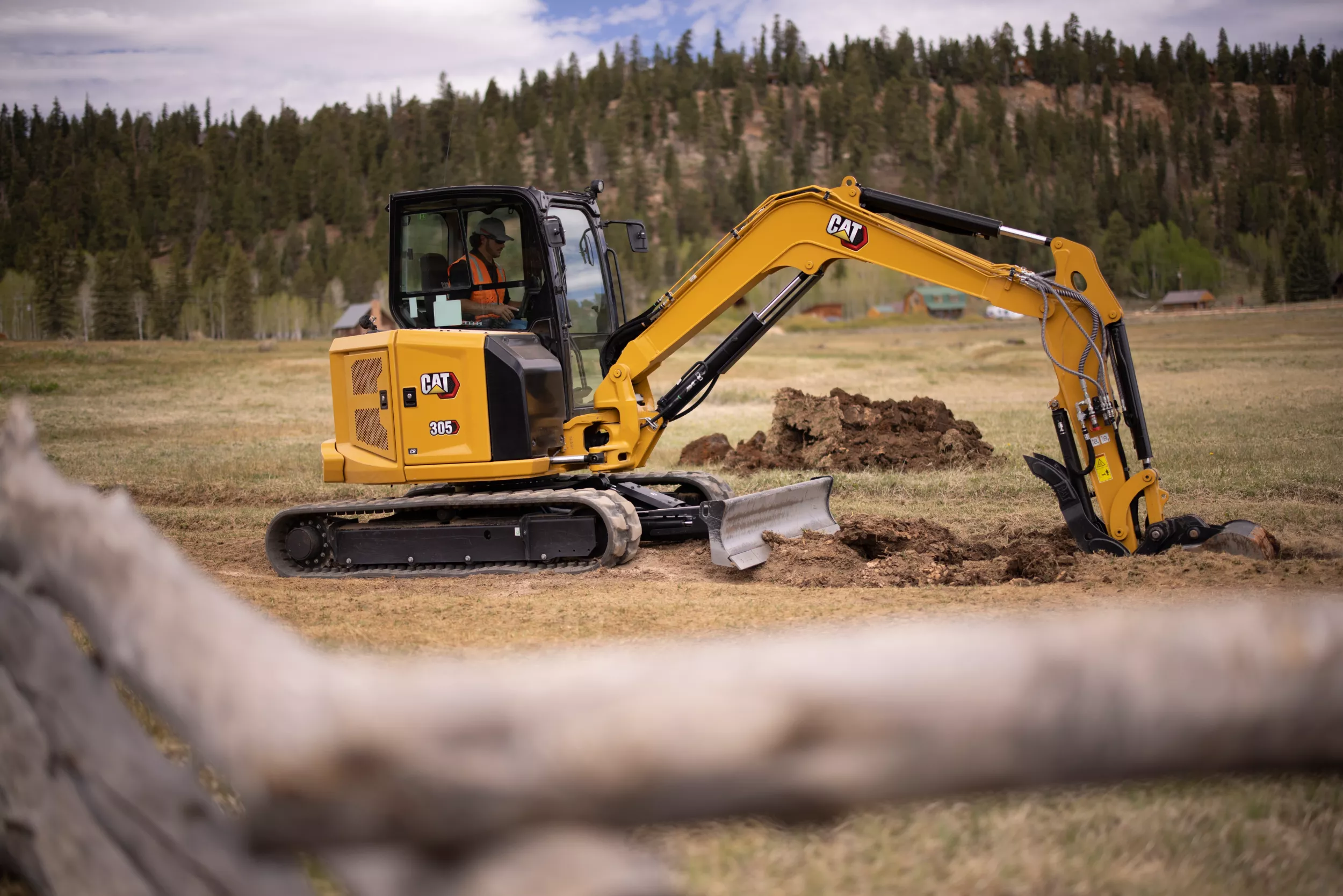

SUSTAINABILITY

The Cat® C1.7 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Choose either a canopy (not available in some regions) or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat to help keep you working comfortably all day long.

Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped as an upgrade option.

Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

Strong lift and dig performance helps you get the job done faster. The compact radius design lets you access and work in the tightest areas. Dozer float allows for easy clean up. An angle blade is also an option for finished grading and easier backfilling applications.

Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.

Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors.

Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.

The Cat® C1.7 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

Specifications Standard Equipment Optional Equipment

Product Specifications for 305 CR

Engine

Net Power	45 hp 33.6 kW
Engine Model	C1.7 Turbo C1.7 Turbo
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	45 hp 33.6 kW
Gross Power - 2,400 rpm - SAE J1995:2014	48.4 hp 36.1 kW
Bore	3.3 in 84 mm
Stroke	3.9 in 100 mm
Displacement	101 in³ 1.662 l
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards. Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards.
Note	Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.

Weights

Operating Weight	12688 lb 5754 kg
Minimum Operating Weight with Canopy*	11038 lb 5006 kg
Maximum Operating Weight with Canopy**	12491 lb 5665 kg
Minimum Operating Weight with Cab*	11257 lb 5105 kg
Maximum Operating Weight with Cab**	12710 lb 5764 kg
Note (1)	Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight. Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight.
Note (2)	Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket. Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket.

Dimensions - Long Stick

Dig Depth	144.5 in 3670 mm
Vertical Wall	100.8 in 2560 mm
Maximum Reach - Ground Level	229.7 in 5835 mm
Maximum Reach	235.8 in 5990 mm
Maximum Dig Height	210.8 in 5355 mm
Maximum Dump Clearance	151.4 in 3845 mm
Boom In Reach	101.6 in 2580 mm
Tail Swing without Counterweight	43.1 in 1095 mm
Tail Swing with Counterweight	47.2 in 1200 mm
Maximum Blade Height	15.7 in 400 mm
Maximum Blade Depth	25.6 in 650 mm
Boom Height - Shipping Position	74.6 in 1895 mm
O/A Shipping Height	100.4 in 2550 mm
Swing Bearing - Height	24.4 in 619 mm
O/A Undercarriage Length	101.6 in 2580 mm
Overall Shipping Length*	210.2 in 5340 mm
Boom Swing - Right	34.1 ° 865 mm
Boom Swing - Left	615 mm 24.2 °
Track Belt/Shoe Width	15.7 in 400 mm
Track Width	78 in 1980 mm
Ground Clearance	13.2 in 335 mm
Stick Length	63 in 1601 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.

Weight Increase from Minimum Configuration

Counterweight	534 lb 242 kg
Long Stick	75 lb 34 kg
Steel Tracks with Pads	827 lb 375 kg
Angle Blade	203 lb 92 kg

Travel System

Travel Speed - High	3.1 mile/h 5 km/h
Travel Speed - Low	1.7 mile/h 2.8 km/h
Maximum Traction Force - High Speed	5553 lbf 24.7 kN
Maximum Traction Force - Low Speed	11353 lbf 50.5 kN
Ground Pressure - Minimum Weight	4 psi 27.3 kPa
Ground Pressure - Maximum Weight	4.7 psi 32.2 kPa
Gradeability - Maximum	30 degrees 30 degrees

Service Refill Capacities

Cooling System	2.9 gal (US) 11 l
Engine Oil	1.6 gal (US) 6 l
Fuel Tank	18 gal (US) 68 l
Hydraulic Tank	16 gal (US) 60 l
Hydraulic System	20 gal (US) 75 l

Hydraulic System

Pump Flow at 2,400 rpm	35 gpm 133 L/min
Operating Pressure - Equipment	3843 psi 265 bar
Operating Pressure - Travel	3843 psi 265 bar
Operating Pressure - Swing	2901 psi 200 bar
Auxiliary Circuit - Primary - Flow	21 gpm 80 L/min
Auxiliary Circuit - Primary - Pressure	3843 psi 265 bar
Auxiliary Circuit - Secondary - Flow	7 gpm 28 L/min
Auxiliary Circuit - Secondary - Pressure	3843 psi 265 bar
Digging Force - Stick - Standard	6362 lbf 28.3 kN
Digging Force - Stick - Long	5665 lbf 25.2 kN
Digging Force - Bucket	11061 lbf 49.2 kN
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down. Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump

Blade

Straight Blade Width	78 in 1980 mm
Straight Blade Height	15.4 in 390 mm
Angle Blade Width	78 in 1980 mm
Angle Blade Height	15.7 in 400 mm
Angle Blade - Left	25 degrees 25 degrees
Angle Blade - Right	25 degrees 25 degrees

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008 ISO 12117-2:2008
Top Guard	ISO 10262:1998 Level I ISO 10262:1998 Level I

Dimensions - Standard Stick

Dig Depth	134.6 in 3420 mm
Vertical Wall	91.9 in 2335 mm
Maximum Reach - Ground Level	220.1 in 5590 mm
Maximum Reach	226.6 in 5755 mm
Maximum Dig Height	205.3 in 5215 mm
Maximum Dump Clearance	145.7 in 3700 mm
Boom In Reach	101.2 in 2570 mm
Tail Swing without Counterweight	43.1 in 1095 mm
Tail Swing with Counterweight	47.2 in 1200 mm
Maximum Blade Height	15.7 in 400 mm
Maximum Blade Depth	25.6 in 650 mm
Boom Height - Shipping Position	71.7 in 1820 mm
O/A Shipping Height	100.4 in 2550 mm
Swing Bearing - Height	24.4 in 619 mm
O/A Undercarriage Length	101.6 in 2580 mm
Overall Shipping Length*	208.9 in 5305 mm
Boom Swing - Right	34.1 ° 865 mm
Boom Swing - Left	24.2 ° 615 mm
Track Belt/Shoe Width	15.7 in 400 mm
Track Width	78 in 1980 mm
Ground Clearance	13.2 in 335 mm
Stick Length	53.2 in 1351 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.

Air Conditioning System

Air Conditioning

The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.75 kg (1.65 lb), 0.90 kg (1.98 lb) or 1 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe). The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf (Europe) (Global Warming Potential = 1430). See label or instruction manual for gas refrigerant identification. The system contains 0.75 kg (1.65 lb), 0.90 kg (1.98 lb) or 1 kg (2.20 lb) of refrigerant which has a CO2 equivalent of 1.430 metric tonnes (1.576 tons) for R134a and 0.001 tonnes (0.001 tons) for R1234yf (Europe).

Sound

Operator Sound Pressure (ISO 6396:2008)	76 dB(A) 76 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	97 dB(A) 97 dB(A)
Note	European Union Directive "2000/14/EC" European Union Directive "2000/14/EC"

Sustainability

Recyclability

96% 96%

Swing System

Machine Swing Speed	9 r/min 9 r/min
Boom Swing - Left	72 Degrees 72 Degrees
Boom Swing - Right	50 Degrees 50 Degrees

305 CR Standard Equipment

ENGINE

Cat® C1.7 Turbo Engine (EU Stage V)

Automatic Engine Idle

Automatic Engine Shutdown

Automatic Two Speed Travel

Fuel Water Separator

Power on Demand (not available in all regions)

Variable Displacement Piston Pump

Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump

Accumulator

Automatic Swing Brake

Auxiliary Hydraulic Lines

One and Two Way Auxiliary Flow

Continuous Auxiliary Flow

Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

Canopy or Cab (Canopy not available in some regions)

Stick Steer Mode

Travel Cruise Control

Control Pattern Changer (optional in some regions)

Adjustable Wrist Rests

Washable Floor Mat

Travel Pedals and Hand Levers

Machine Security

Fabric Suspension Seat (Cab only)

Vinyl Suspension Seat (Canopy only)

Hydraulic Lockout – All Controls

Retractable High Visibility Seat Belt (75 mm/3 in)

Coat Hook

Cup Holder

Storage Pocket

Skylight

Mounting Bosses for Front

Signaling/Warning Horn

Interior Light (Cab only)

Boom Light, Halogen (not available in all regions)

LED Front and Rear Lights

LED Boom Light

Utility Space for Mobile Phone

Next Generation Color LCD Monitor (IP66)
– Fuel Level and Coolant Temperature Gauges
– Maintenance and Machine Monitoring
– Performance and Machine Adjustments
– Numeric Security Code
– Multiple Languages
– Hour Meter with Wake Up Switch
– Jog Dial (cab only)

UNDERCARRIAGE

Rubber Belt (400 mm/15.7 in)

Dozer Straight Blade

Dozer Blade Float

Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (2716 mm/106.9 in)

Standard Stick (1351 mm/53.2 in)

Front Shovel Capable – Pin-On

Thumb Ready

Certified Lifting Eye

ELECTRICAL

12 Volt Battery

Software (machine and monitor)

Maintenance Free Battery

Battery Disconnect

12 Volt Power Socket

Travel Alarm (optional in some regions)

GUARDING

ROPS ISO 12117-2:2008

Top Guard ISO 10262:1998 (Level I)

OTHER

Eco Drain

TECHNOLOGY

Product Link Elite™ (regulations apply)

305 CR Optional Equipment

HYDRAULICS

Third Auxiliary

OPERATOR ENVIRONMENT

Cab with Air Conditioning

Cab with Heater

No Travel Pedals and Hand Levers (optional in some regions)

Machine Security – Push to Start with Key Fob/Pass Code

Seat Belt Reminder System

Next Generation Advanced Monitor
– Touch Screen
– Site Reference System
– High Definition Camera Capable (IP68 and IP69K)
– Numeric Security Code

UNDERCARRIAGE

Steel Track (400 mm/15.7 in)

Steel Track with Rubber Pads

Angle Blade

BOOM, STICK AND LINKAGES

Long Stick (1601 mm/63.0 in)

Front Shovel Capable – Dual Lock Manual Coupler

Front Shovel Capable – Hydraulic Coupler

Attachments including Couplers, Thumbs, Buckets, Augers and Hammers

2nd Auxiliary Hydraulic Lines

Bucket Divert Lines

Boom Lowering Check Valve

Stick Lowering Check Valve

Hydraulic Quick Coupler Lines

GUARDING

Top Guard ISO 10262:1998 (Level II) (Cab)

Front Guard (Mesh) ISO 10262:1998 (Level I) (Cab)

Front Guard (Mesh) ISO 10262:1998 (Level I) (Canopy

Front Guard (Heavy Duty) ISO 10262:1998 (Level II) (Cab)

Front Guard (Heavy Duty) ISO 10262:1998 (Level II) (Canopy)

OTHER

Bio Oil Capable

Water Jacket Heater

Counterweight (242 kg/534 lb)

Refueling Pump

TECHNOLOGY

Ease of Use Indicate

Ease of Use E-Fence

Ease of Use Laser Catcher

Cat Grade with Advanced 2D

Cat Grade with 3D

Product Specifications for 305 CR

Download Print

Engine

Net Power	45 hp 33.6 kW
Engine Model	C1.7 Turbo C1.7 Turbo
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	45 hp 33.6 kW
Gross Power - 2,400 rpm - SAE J1995:2014	48.4 hp 36.1 kW
Bore	3.3 in 84 mm
Stroke	3.9 in 100 mm
Displacement	101 in³ 1.662 l
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards. Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards.
Note	Advertised power is tested per the specified standard in effect at the time of manufacture. Advertised power is tested per the specified standard in effect at the time of manufacture.

Weights

Operating Weight	12688 lb 5754 kg
Minimum Operating Weight with Canopy*	11038 lb 5006 kg
Maximum Operating Weight with Canopy**	12491 lb 5665 kg
Minimum Operating Weight with Cab*	11257 lb 5105 kg
Maximum Operating Weight with Cab**	12710 lb 5764 kg
Note (1)	Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight. Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight.
Note (2)	Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket. Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket.

Dimensions - Long Stick

Dig Depth	144.5 in 3670 mm
Vertical Wall	100.8 in 2560 mm
Maximum Reach - Ground Level	229.7 in 5835 mm
Maximum Reach	235.8 in 5990 mm
Maximum Dig Height	210.8 in 5355 mm
Maximum Dump Clearance	151.4 in 3845 mm
Boom In Reach	101.6 in 2580 mm
Tail Swing without Counterweight	43.1 in 1095 mm
Tail Swing with Counterweight	47.2 in 1200 mm
Maximum Blade Height	15.7 in 400 mm
Maximum Blade Depth	25.6 in 650 mm
Boom Height - Shipping Position	74.6 in 1895 mm
O/A Shipping Height	100.4 in 2550 mm
Swing Bearing - Height	24.4 in 619 mm
O/A Undercarriage Length	101.6 in 2580 mm
Overall Shipping Length*	210.2 in 5340 mm
Boom Swing - Right	34.1 ° 865 mm
Boom Swing - Left	615 mm 24.2 °
Track Belt/Shoe Width	15.7 in 400 mm
Track Width	78 in 1980 mm
Ground Clearance	13.2 in 335 mm
Stick Length	63 in 1601 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.

Weight Increase from Minimum Configuration

Counterweight	534 lb 242 kg
Long Stick	75 lb 34 kg
Steel Tracks with Pads	827 lb 375 kg
Angle Blade	203 lb 92 kg

Travel System

Travel Speed - High	3.1 mile/h 5 km/h
Travel Speed - Low	1.7 mile/h 2.8 km/h
Maximum Traction Force - High Speed	5553 lbf 24.7 kN
Maximum Traction Force - Low Speed	11353 lbf 50.5 kN
Ground Pressure - Minimum Weight	4 psi 27.3 kPa
Ground Pressure - Maximum Weight	4.7 psi 32.2 kPa
Gradeability - Maximum	30 degrees 30 degrees

Service Refill Capacities

Cooling System	2.9 gal (US) 11 l
Engine Oil	1.6 gal (US) 6 l
Fuel Tank	18 gal (US) 68 l
Hydraulic Tank	16 gal (US) 60 l
Hydraulic System	20 gal (US) 75 l

Hydraulic System

Pump Flow at 2,400 rpm	35 gpm 133 L/min
Operating Pressure - Equipment	3843 psi 265 bar
Operating Pressure - Travel	3843 psi 265 bar
Operating Pressure - Swing	2901 psi 200 bar
Auxiliary Circuit - Primary - Flow	21 gpm 80 L/min
Auxiliary Circuit - Primary - Pressure	3843 psi 265 bar
Auxiliary Circuit - Secondary - Flow	7 gpm 28 L/min
Auxiliary Circuit - Secondary - Pressure	3843 psi 265 bar
Digging Force - Stick - Standard	6362 lbf 28.3 kN
Digging Force - Stick - Long	5665 lbf 25.2 kN
Digging Force - Bucket	11061 lbf 49.2 kN
Note	Flow and pressure are not combinable. Under load, as flow rises pressure goes down. Flow and pressure are not combinable. Under load, as flow rises pressure goes down.
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump Load Sensing Hydraulics with Variable Displacement Piston Pump

Blade

Straight Blade Width	78 in 1980 mm
Straight Blade Height	15.4 in 390 mm
Angle Blade Width	78 in 1980 mm
Angle Blade Height	15.7 in 400 mm
Angle Blade - Left	25 degrees 25 degrees
Angle Blade - Right	25 degrees 25 degrees

Certification - Cab and Canopy

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008 ISO 12117-2:2008
Top Guard	ISO 10262:1998 Level I ISO 10262:1998 Level I

Dimensions - Standard Stick

Dig Depth	134.6 in 3420 mm
Vertical Wall	91.9 in 2335 mm
Maximum Reach - Ground Level	220.1 in 5590 mm
Maximum Reach	226.6 in 5755 mm
Maximum Dig Height	205.3 in 5215 mm
Maximum Dump Clearance	145.7 in 3700 mm
Boom In Reach	101.2 in 2570 mm
Tail Swing without Counterweight	43.1 in 1095 mm
Tail Swing with Counterweight	47.2 in 1200 mm
Maximum Blade Height	15.7 in 400 mm
Maximum Blade Depth	25.6 in 650 mm
Boom Height - Shipping Position	71.7 in 1820 mm
O/A Shipping Height	100.4 in 2550 mm
Swing Bearing - Height	24.4 in 619 mm
O/A Undercarriage Length	101.6 in 2580 mm
Overall Shipping Length*	208.9 in 5305 mm
Boom Swing - Right	34.1 ° 865 mm
Boom Swing - Left	24.2 ° 615 mm
Track Belt/Shoe Width	15.7 in 400 mm
Track Width	78 in 1980 mm
Ground Clearance	13.2 in 335 mm
Stick Length	53.2 in 1351 mm
Note	Overall Shipping Length depends on blade position during shipment. Overall Shipping Length depends on blade position during shipment.

Air Conditioning System

Air Conditioning

Sound

Operator Sound Pressure (ISO 6396:2008)	76 dB(A) 76 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	97 dB(A) 97 dB(A)
Note	European Union Directive "2000/14/EC" European Union Directive "2000/14/EC"

Sustainability

Recyclability

96% 96%

Swing System

Machine Swing Speed	9 r/min 9 r/min
Boom Swing - Left	72 Degrees 72 Degrees
Boom Swing - Right	50 Degrees 50 Degrees

305 CR Standard Equipment

ENGINE

Cat® C1.7 Turbo Engine (EU Stage V)

Automatic Engine Idle

Automatic Engine Shutdown

Automatic Two Speed Travel

Fuel Water Separator

Power on Demand (not available in all regions)

Variable Displacement Piston Pump

Load Sensing/Flow Sharing Hydraulics

HYDRAULICS

Smart Tech Electronic Pump

Accumulator

Automatic Swing Brake

Auxiliary Hydraulic Lines

One and Two Way Auxiliary Flow

Continuous Auxiliary Flow

Auxiliary Line Quick Disconnects

OPERATOR ENVIRONMENT

Canopy or Cab (Canopy not available in some regions)

Stick Steer Mode

Travel Cruise Control

Control Pattern Changer (optional in some regions)

Adjustable Wrist Rests

Washable Floor Mat

Travel Pedals and Hand Levers

Machine Security

Fabric Suspension Seat (Cab only)

Vinyl Suspension Seat (Canopy only)

Hydraulic Lockout – All Controls

Retractable High Visibility Seat Belt (75 mm/3 in)

Coat Hook

Cup Holder

Storage Pocket

Skylight

Mounting Bosses for Front

Signaling/Warning Horn

Interior Light (Cab only)

Boom Light, Halogen (not available in all regions)

LED Front and Rear Lights

LED Boom Light

Utility Space for Mobile Phone

Next Generation Color LCD Monitor (IP66)
– Fuel Level and Coolant Temperature Gauges
– Maintenance and Machine Monitoring
– Performance and Machine Adjustments
– Numeric Security Code
– Multiple Languages
– Hour Meter with Wake Up Switch
– Jog Dial (cab only)

UNDERCARRIAGE

Rubber Belt (400 mm/15.7 in)

Dozer Straight Blade

Dozer Blade Float

Tie Downs on Track Frame

BOOM, STICK AND LINKAGES

One Piece Boom (2716 mm/106.9 in)

Standard Stick (1351 mm/53.2 in)

Front Shovel Capable – Pin-On

Thumb Ready

Certified Lifting Eye

ELECTRICAL

12 Volt Battery

Software (machine and monitor)

Maintenance Free Battery

Battery Disconnect

12 Volt Power Socket

Travel Alarm (optional in some regions)

GUARDING

ROPS ISO 12117-2:2008

Top Guard ISO 10262:1998 (Level I)

OTHER

Eco Drain

TECHNOLOGY

Product Link Elite™ (regulations apply)

305 CR Optional Equipment

HYDRAULICS

Third Auxiliary

OPERATOR ENVIRONMENT

Cab with Air Conditioning

Cab with Heater

No Travel Pedals and Hand Levers (optional in some regions)

Machine Security – Push to Start with Key Fob/Pass Code

Seat Belt Reminder System

Next Generation Advanced Monitor
– Touch Screen
– Site Reference System
– High Definition Camera Capable (IP68 and IP69K)
– Numeric Security Code

UNDERCARRIAGE

Steel Track (400 mm/15.7 in)

Steel Track with Rubber Pads

Angle Blade

BOOM, STICK AND LINKAGES

Long Stick (1601 mm/63.0 in)

Front Shovel Capable – Dual Lock Manual Coupler

Front Shovel Capable – Hydraulic Coupler

Attachments including Couplers, Thumbs, Buckets, Augers and Hammers

2nd Auxiliary Hydraulic Lines

Bucket Divert Lines

Boom Lowering Check Valve

Stick Lowering Check Valve

Hydraulic Quick Coupler Lines

GUARDING

Top Guard ISO 10262:1998 (Level II) (Cab)

Front Guard (Mesh) ISO 10262:1998 (Level I) (Cab)

Front Guard (Mesh) ISO 10262:1998 (Level I) (Canopy

Front Guard (Heavy Duty) ISO 10262:1998 (Level II) (Cab)

Front Guard (Heavy Duty) ISO 10262:1998 (Level II) (Canopy)

OTHER

Bio Oil Capable

Water Jacket Heater

Counterweight (242 kg/534 lb)

Refueling Pump

TECHNOLOGY

Ease of Use Indicate

Ease of Use E-Fence

Ease of Use Laser Catcher

Cat Grade with Advanced 2D

Cat Grade with 3D

See how 305 CR compares against frequently compared products.

Excavators

Selected

305 CR

Net Power: 45 hp; 33.6 kW
Operating Weight: 12688 lb; 5754 kg
Dig Depth: 144.5 in; 3670 mm

Excavators

304

Net Power: 45 hp; 33.6 kW
Operating Weight: 9867 lb; 4475 kg
Dig Depth: 138.2 in; 3510 mm

View Details

Excavators

306 CR

Net Power: 55.9 hp; 41.7 kW
Operating Weight: 15766 lb; 7150 kg
Dig Depth: 162 in; 4110 mm

View Details

Tools And Expert Help At Every Turn

Find Dealer

Payment Calculator

Current Offers

Rental Options

Used Options

Product Brochures and More Are Ready to Download!

Caterpillar product brochures and other informational documents are available for your growing business.

Media Gallery

Photos

Videos

360 View

305 CR Mini Hydraulic Excavator

Front View

Top View

Left View

Rear View

Right View

Bottom View

Introducing the Next Generation Cat 304 and 305 CR Mini Excavators

Overview of the Next Generation Cat 304 and 305 CR Mini Excavators

Standard Monitor on the Next Generation Cat Mini Excavators

Comparing the Next Generation Cat 304 and 305 CR Mini Excavators to the E2 Series

Advanced Monitor on the Next Generation Cat Mini Excavators

Cat 305 CR Mini Excavator Customer Story - Ohob, Ltd. (United Kingdom)

Introducing the Next Generation Cat 304 and 305 CR Mini Excavators

Overview of the Next Generation Cat 304 and 305 CR Mini Excavators

Standard Monitor on the Next Generation Cat Mini Excavators

Comparing the Next Generation Cat 304 and 305 CR Mini Excavators to the E2 Series

Advanced Monitor on the Next Generation Cat Mini Excavators

Cat 305 CR Mini Excavator Customer Story - Ohob, Ltd. (United Kingdom)

Compatible Technology and Services

Leverage Caterpillar connected data and security principles to improve efficiencies, increase productivity and make your business more profitable.

VisionLink™

Technology Cookies are required.
Please note: You must accept the use of all cookies to enable this feature.
Cookie Settings

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

1 - 8 of 9 Items items

Previous Next

VisionLink™ is a cloud-based software application that takes the guesswork out of fleet management with key insights to maximize performance - regardless of fleet size or equipment manufacturer. Receive equipment data seamlessly to your desktop or mobile device, all from a convenient centralized solution to make informed decisions at every turn.

Explore Technology

Mini Excavators 305 CR

Overview

Mini Excavators Inspired by Our Customers

Benefits

4 Industry First Features

Up to 10% Lower Total Ownership Costs

Up to 20% More Performance

Features At A Glance

ALL DAY COMFORT

EASY TO OPERATE

STICK STEER TRAVEL MODE

BIG PERFORMANCE IN A COMPACT DESIGN

SAFETY ON THE JOB SITE

SIMPLE SERVICE FOR LESS DOWNTIME

LOWER OPERATING COSTS

SUSTAINABILITY

Product Specifications for 305 CR

Engine

Weights

Dimensions - Long Stick

Weight Increase from Minimum Configuration

Travel System

Service Refill Capacities

Hydraulic System

Blade

Certification - Cab and Canopy

Dimensions - Standard Stick

Air Conditioning System

Sound

Sustainability

Swing System

305 CR Standard Equipment

ENGINE

HYDRAULICS

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

GUARDING

OTHER

TECHNOLOGY

305 CR Optional Equipment

HYDRAULICS

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

GUARDING

OTHER

TECHNOLOGY

Product Specifications for 305 CR

Engine

Weights

Dimensions - Long Stick

Weight Increase from Minimum Configuration

Travel System

Service Refill Capacities

Hydraulic System

Blade

Certification - Cab and Canopy

Dimensions - Standard Stick

Air Conditioning System

Sound

Sustainability

Swing System

305 CR Standard Equipment

ENGINE

HYDRAULICS

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

ELECTRICAL

GUARDING

OTHER

TECHNOLOGY

305 CR Optional Equipment

HYDRAULICS

OPERATOR ENVIRONMENT

UNDERCARRIAGE

BOOM, STICK AND LINKAGES

GUARDING

Product Brochures and More Are Ready to Download!
