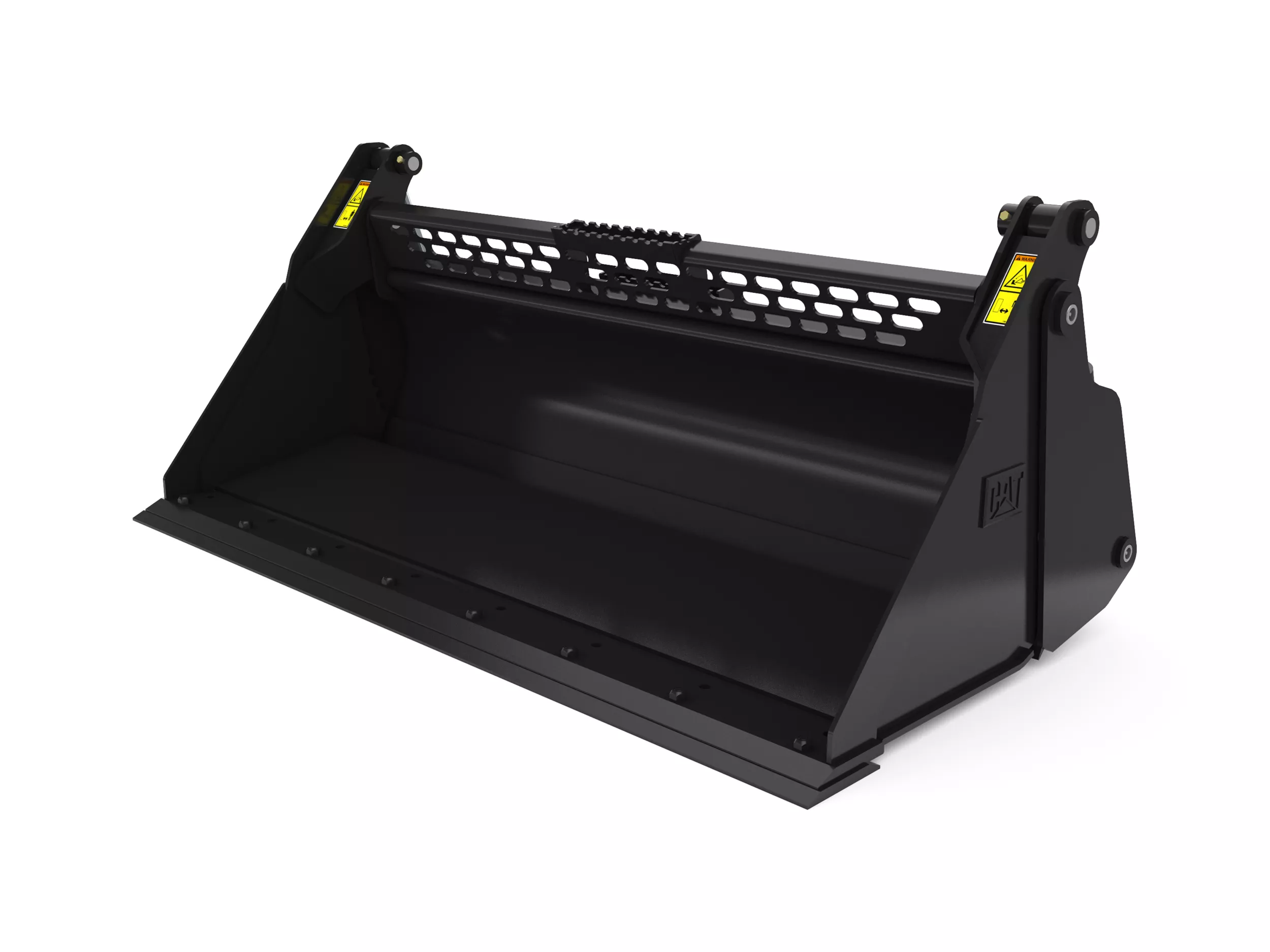

Multi-Purpose Buckets 1730 mm (68 in), Bolt-On Cutting Edge

New Used Rental

Request A Price Shop Now

Key Specs

Width: 68.1 in; 1730 mm

Capacity: 0.44 yd³; 0.34 m³

Weight: 906 lb; 411 kg

1730 mm (68 in), Bolt-On Cutting Edge
Change model

Overview

Powerful clamping forces for grasping large, unusually shaped objects such as trees and recycling debris.

Features At A Glance

Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications.

Excellent clamping force lets you grasp large, irregularly shaped objects such as trees, loose stumps, brush, recycling debris and pipe, increasing the versatility of the machine.

Bucket clam jaw opens a full 89 degrees, allowing the bucket to be used as a dozing blade.

Serrated clam side edge provides a gripping surface to hold material.

Base bucket also available with bolt-on cutting edge, bolt-on teeth and bolt-on tooth bar.

Product Specifications for 1730 mm (68 in), Bolt-On Cutting Edge

Width	68.1 in 1730 mm
Capacity	0.44 yd³ 0.34 m³
Weight	906 lb 411 kg
Height	29.1 in 740 mm
Length	36.2 in 919 mm
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm
Operating Pressure	3335.9 psi 23000 kPa
Jaw Opening	30.2 in 767 mm
Clam Angle	89 degrees 89 degrees
Interface Type	Skid Steer Coupler Skid Steer Coupler

Product Specifications for 1730 mm (68 in), Bolt-On Cutting Edge

Download Print

Width	68.1 in 1730 mm
Capacity	0.44 yd³ 0.34 m³
Weight	906 lb 411 kg
Height	29.1 in 740 mm
Length	36.2 in 919 mm
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm
Operating Pressure	3335.9 psi 23000 kPa
Jaw Opening	30.2 in 767 mm
Clam Angle	89 degrees 89 degrees
Interface Type	Skid Steer Coupler Skid Steer Coupler
