Overview
Utilizing a paddle auger and hydraulically controlled chute door to mixing material in a variety of applications.

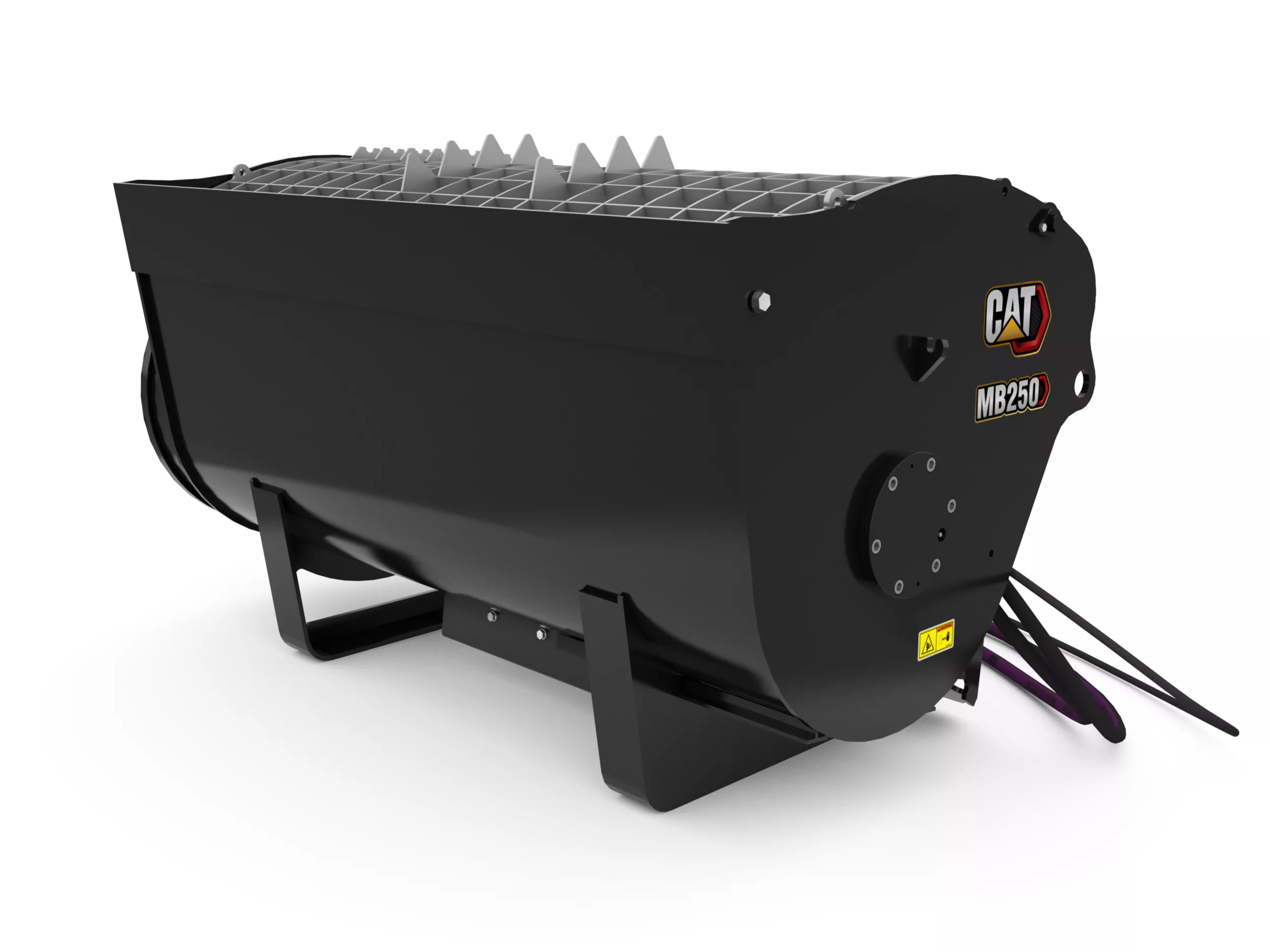

Mixing Buckets MB250
Key Specs
- Capacity
- 0.33 yd³
- 0.25 m³
- Width
- 54.7 in
- 1390 mm
- Required Hydraulics
- Standard Flow
- Standard Flow
Features At A Glance
Displaying 1-6 of 7
Easy Material Addition
Cement bag breakers on top of mixing bucket grate allow for easy breaking and addition of bagged materials.
Bucket Cutting Edge
Cutting edge allows for bucket to be used to drive into piles of raw materials.
Reinforced Steel Bucket Cavity
Reinforced steel is used for bucket cavity ensuring long life and reduced wear.
Bolt-On Replaceable Auger Paddles
Replaceable, bolt-on auger paddles are hardened and reach throughout the bucket to combine all material.
Remotely Operated Chute Door
Hydraulically controlled chute door allows material to be dispensed all from the cab of the host machine.
Bolt-On Serrated Step
Serrated step allows safe and ergonomic access to machine cab that is easily replaceable if damaged.
Product Specifications for MB250
| Capacity | 0.33 yd³ 0.25 m³ |
| Width | 54.7 in 1390 mm |
| Required Hydraulics | Standard Flow Standard Flow |
| Auger Speed Range | 10-30 rpm 10-30 rpm |
| Drive Method | Chain Chain |
| Height | 34.5 in 877 mm |
| Length | 32 in 814 mm |
| Optimal Hydraulic Flow | 60-70 lpm (16-18 gpm) 60-70 lpm (16-18 gpm) |
| Optimal Hydraulic Pressure | 140-200 bar (2031-2901 psi) 140-200 bar (2031-2901 psi) |
| Weight | 948 lb 430 kg |
| Auger Diameter | 20 in 508 mm |
| Number of Auger Paddles | 11 11 |
| Interface Type | Skid Steer Coupler Skid Steer Coupler |
| Overall Width | 63.2 in 1605 mm |
See how MB250 compares against frequently compared products.
Buckets - Skid Steer Loader
MB250
Selected
- Capacity
- 0.33 yd³
- 0.25 m³
- Width
- 54.7 in
- 1390 mm
- Required Hydraulics
- Standard Flow
- Standard Flow
Buckets - Skid Steer Loader
MB200
- Capacity
- 0.26 yd³
- 0.2 m³
- Width
- 54.6 in
- 1386 mm
- Required Hydraulics
- Standard Flow
- Standard Flow
