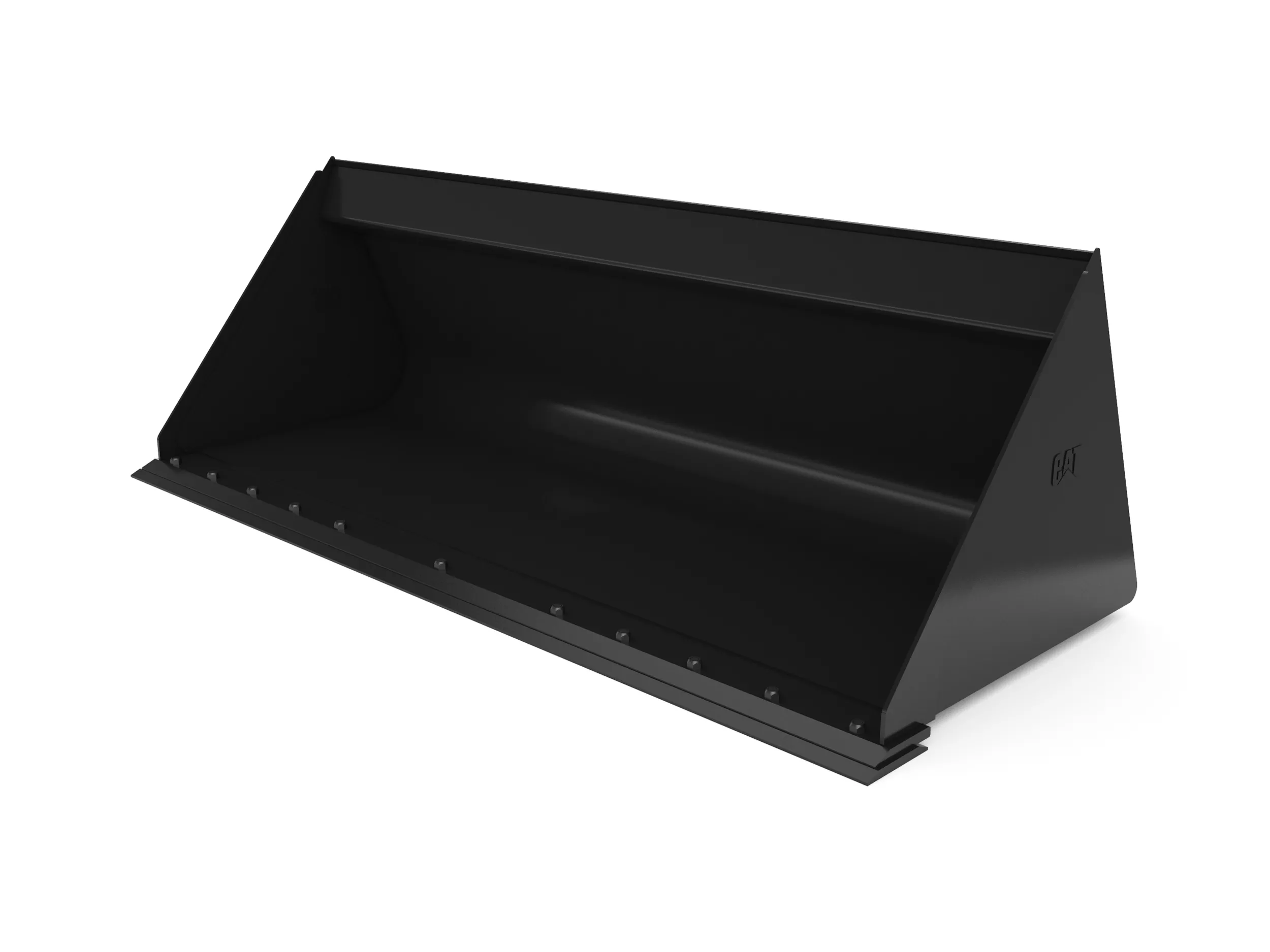

Light Material Buckets 2185 mm (86 in), Bolt-On Cutting Edge

Name: 2185 mm (86 in) Light Material Bucket With Bolt-On Cutting Edge
Brand: Cat

New Used Rental

Request A Price Shop Now

Key Specs

Width: 86 in; 2185 mm

Capacity: 1.1 yd³; 0.84 m³

Weight: 747 lb; 339 kg

2185 mm (86 in), Bolt-On Cutting Edge
Change model

Overview

High volume bucket designed for handling light material like snow, grain, fertilizer, or mulch.

Features At A Glance

Displaying 1-6 of 4

High Capacity for Low Density Materials

Large capacity buckets offered for Cat® Skid Steer Loaders and Compact Track Loaders. They are designed to handle low density materials such as mulch, wood chips, dry topsoil, fertilizer, livestock feed and snow.

Superior Loadability

Long floor length and tall back height provide excellent material retention and a large payload capacity.

Maximum Productivity

Formed back wrapper design with optimum angle provides enhanced loading and superior bucket fill. Rounded corners help reduce material packing for maximum productivity.

Hardened Edges

Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.

Long floor length and tall back height provide excellent material retention and a large payload capacity.

Formed back wrapper design with optimum angle provides enhanced loading and superior bucket fill. Rounded corners help reduce material packing for maximum productivity.

Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.

Product Specifications for 2185 mm (86 in), Bolt-On Cutting Edge

Width	86 in 2185 mm
Capacity	1.1 yd³ 0.84 m³
Weight	747 lb 339 kg
Height	29.3 in 744 mm
Length	38.6 in 981 mm
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm
Interface Type	Skid Steer Coupler Skid Steer Coupler

Product Specifications for 2185 mm (86 in), Bolt-On Cutting Edge

Download Print

Width	86 in 2185 mm
Capacity	1.1 yd³ 0.84 m³
Weight	747 lb 339 kg
Height	29.3 in 744 mm
Length	38.6 in 981 mm
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm
Interface Type	Skid Steer Coupler Skid Steer Coupler
