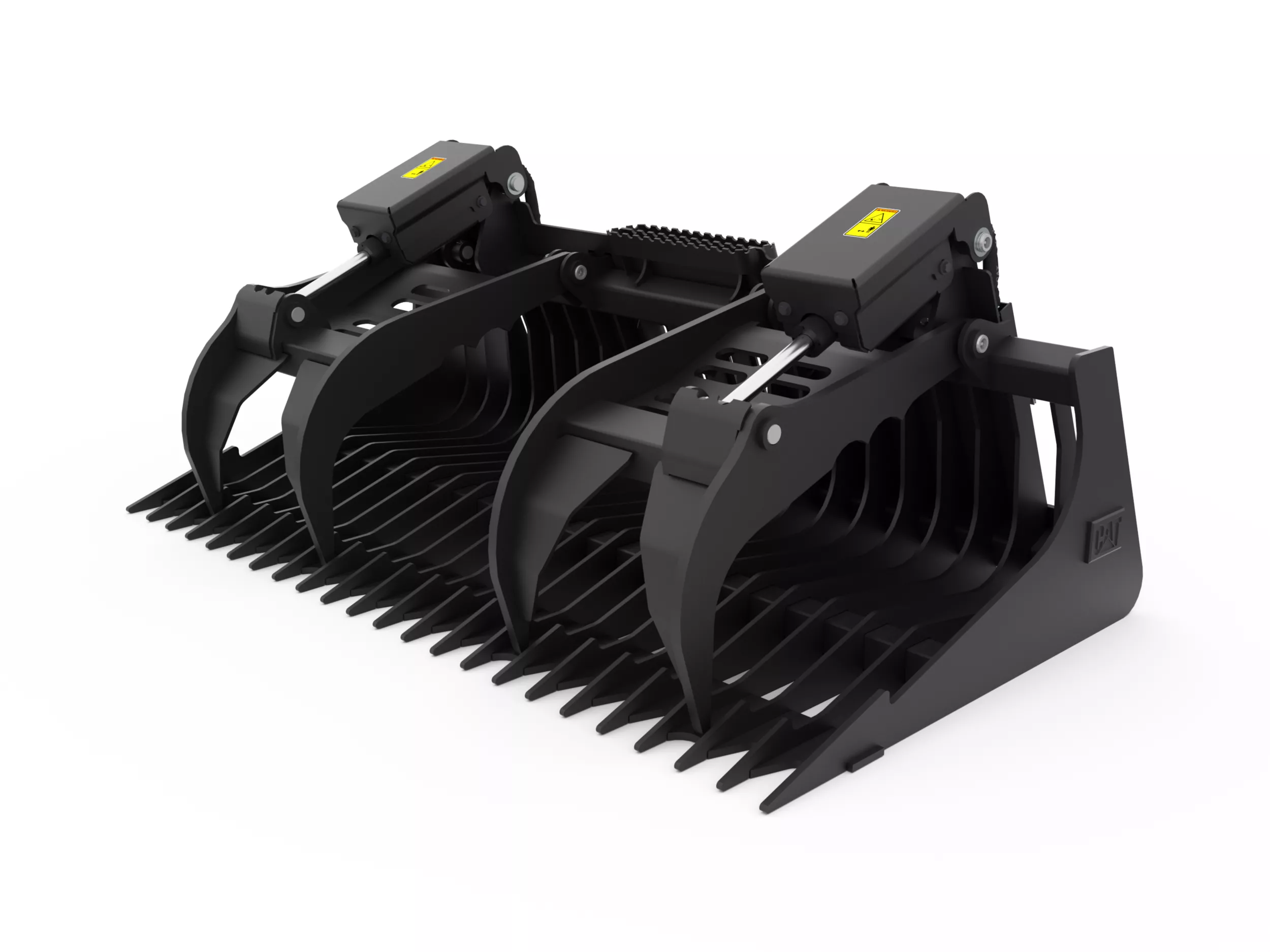

Skeleton Grapple Buckets 1869 mm (74 in), Plate Tine Style

Name: 1869 mm (74 in) Plate Tine Style Skeleton Grapple Bucket
Brand: Cat

New Used Rental

Request A Price Shop Now

Key Specs

Width: 73.6 in; 1869 mm

Weight: 1188.3 lb; 539 kg

Overall Height: 30.6 in; 776 mm

1869 mm (74 in), Plate Tine Style
Change model

Overview

Ideal for sifting rocks, limbs, and other unwanted debris on the jobsite with the ability to transport larger items for removal.

Features At A Glance

Displaying 1-6 of 8

Application

These buckets are ideal for sifting rock, limbs, and other unwanted debris for the worksite. The spacing between tines allows clean material to sift through, leaving a more immaculate finish. The addition of the grapples enables the ability to secure a variety of larger items.

Serrated Grapples

Helps to ensure retention of larger objects.

Cylinder and Tube Guarding

Heavy duty guarding over the hydraulic cylinders, hoses, and tubes for better protection.

Abrasion Resistant Hose Guarding

Added abrasion protection on exposed hoses for longer life.

Visibility

Optimized tine spacing provides best working visibility across the tool. Visibility slots on the rear of the bucket also helps to increase the operators view of the working area of the clamps.

Hardened Grapple Tips

More robust and durable grapple tips for better performance and longer life.

Helps to ensure retention of larger objects.

Heavy duty guarding over the hydraulic cylinders, hoses, and tubes for better protection.

Added abrasion protection on exposed hoses for longer life.

Optimized tine spacing provides best working visibility across the tool. Visibility slots on the rear of the bucket also helps to increase the operators view of the working area of the clamps.

More robust and durable grapple tips for better performance and longer life.

Provides the ability to secure a wide range of objects of various sizes.

The hooked tines help retain the material and keep it from rolling out.

Product Specifications for 1869 mm (74 in), Plate Tine Style

Width	73.6 in 1869 mm
Weight	1188.3 lb 539 kg
Overall Height	30.6 in 776 mm
Overall Length	43.9 in 1115 mm
Sidewall Thickness	0.5 in 12 mm
Tine Spacing	2.9 in 73 mm
Tine Thickness	0.4 in 10 mm
Number of Tines	21 21
Interface Type	Skid Steer Coupler Skid Steer Coupler
Required Hydraulics	Standard Flow Standard Flow
Jaw Opening	38.4 in 976 mm

Product Specifications for 1869 mm (74 in), Plate Tine Style

Download Print

Width	73.6 in 1869 mm
Weight	1188.3 lb 539 kg
Overall Height	30.6 in 776 mm
Overall Length	43.9 in 1115 mm
Sidewall Thickness	0.5 in 12 mm
Tine Spacing	2.9 in 73 mm
Tine Thickness	0.4 in 10 mm
Number of Tines	21 21
Interface Type	Skid Steer Coupler Skid Steer Coupler
Required Hydraulics	Standard Flow Standard Flow
Jaw Opening	38.4 in 976 mm
