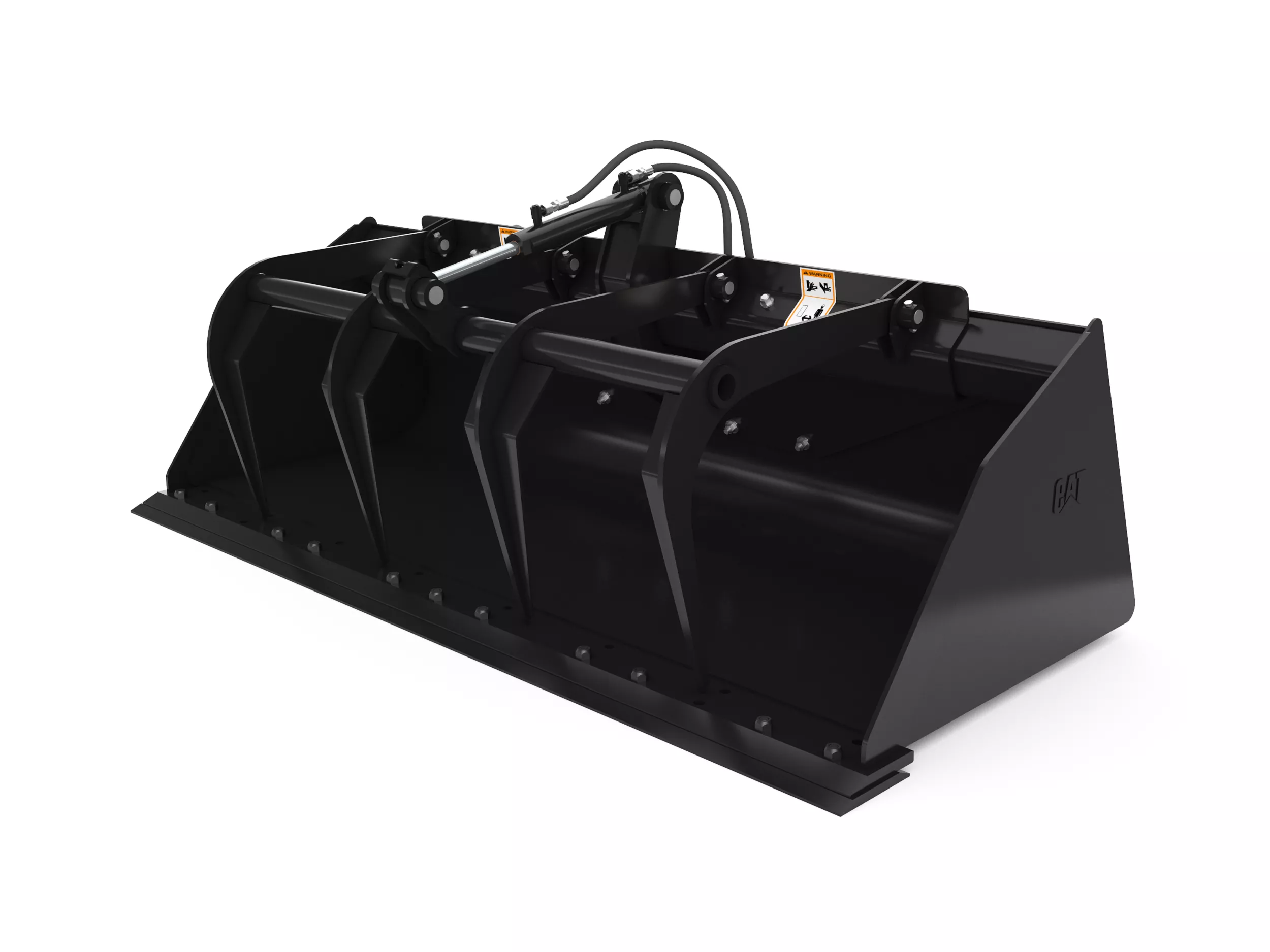

Utility Grapple Buckets 1883 mm (74 in)

Name: 1883 mm (74 in) Utility Grapple Bucket
Brand: Cat

New Used Rental

Request A Price Shop Now

Key Specs

Width: 74.1 in; 1883 mm

Height - Grapples Closed: 29.1 in; 739 mm

Jaw Opening: 35.5 in; 902 mm

1883 mm (74 in)
Change model

Overview

Designed to handle a wide array of materials in a variety of operating conditions.

Features At A Glance

Displaying 1-6 of 4

Application

Designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project.

Light Duty Design

Light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch and pine straw.

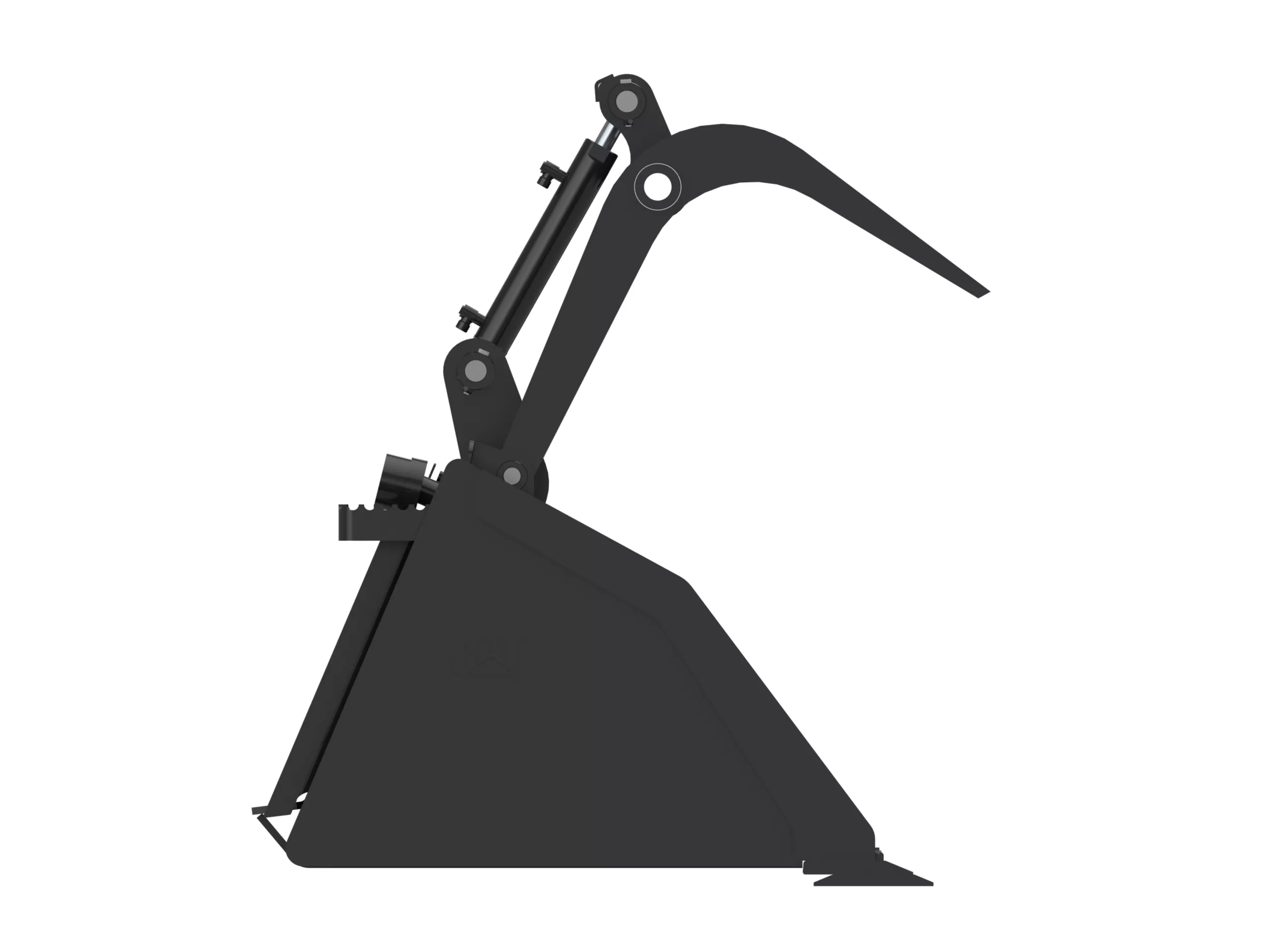

Wide Jaw Opening

Wide vertical jaw opening allows for handling of large, bulky material.

Hardened Bucket Edge

Hardened bucket base edge provides excellent penetration and wear life.

Designed to handle light, hard to handle materials encountered on a farm, ranch or landscaping project.

Light duty design offers grasping capabilities for materials such as loose hay, straw, bedding materials, dry compacted livestock waste, landscaping mulch and pine straw.

Wide vertical jaw opening allows for handling of large, bulky material.

Hardened bucket base edge provides excellent penetration and wear life.

Product Specifications for 1883 mm (74 in)

Width	74.1 in 1883 mm
Height - Grapples Closed	29.1 in 739 mm
Jaw Opening	35.5 in 902 mm
Length	36.8 in 934 mm
Weight	820.1 lb 372 kg
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm
Operating Pressure	3335.9 psi 23000 kPa
Capacity	0.68 yd³ 0.52 m³
Interface Type	Skid Steer Coupler Skid Steer Coupler

Product Specifications for 1883 mm (74 in)

Download Print

Width	74.1 in 1883 mm
Height - Grapples Closed	29.1 in 739 mm
Jaw Opening	35.5 in 902 mm
Length	36.8 in 934 mm
Weight	820.1 lb 372 kg
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm
Operating Pressure	3335.9 psi 23000 kPa
Capacity	0.68 yd³ 0.52 m³
Interface Type	Skid Steer Coupler Skid Steer Coupler
