Overview
Utilizing a paddle auger and hydraulically controlled chute door to mixing material in a variety of applications.

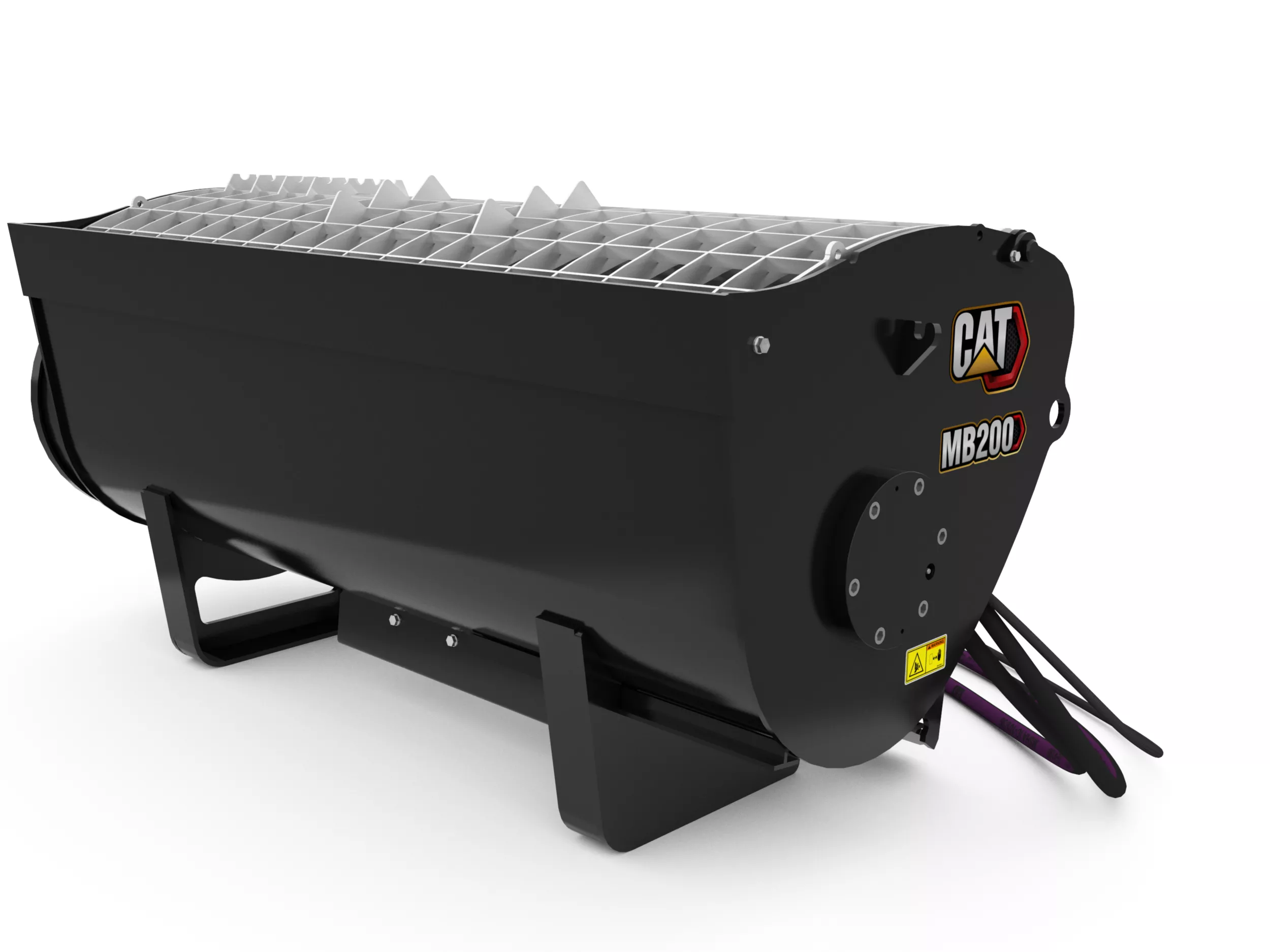

Mixing Buckets MB200
Key Specs
- Capacity
- 0.26 yd³
- 0.2 m³
- Width
- 54.6 in
- 1386 mm
- Required Hydraulics
- Standard Flow
- Standard Flow
Features At A Glance
Displaying 1-6 of 7

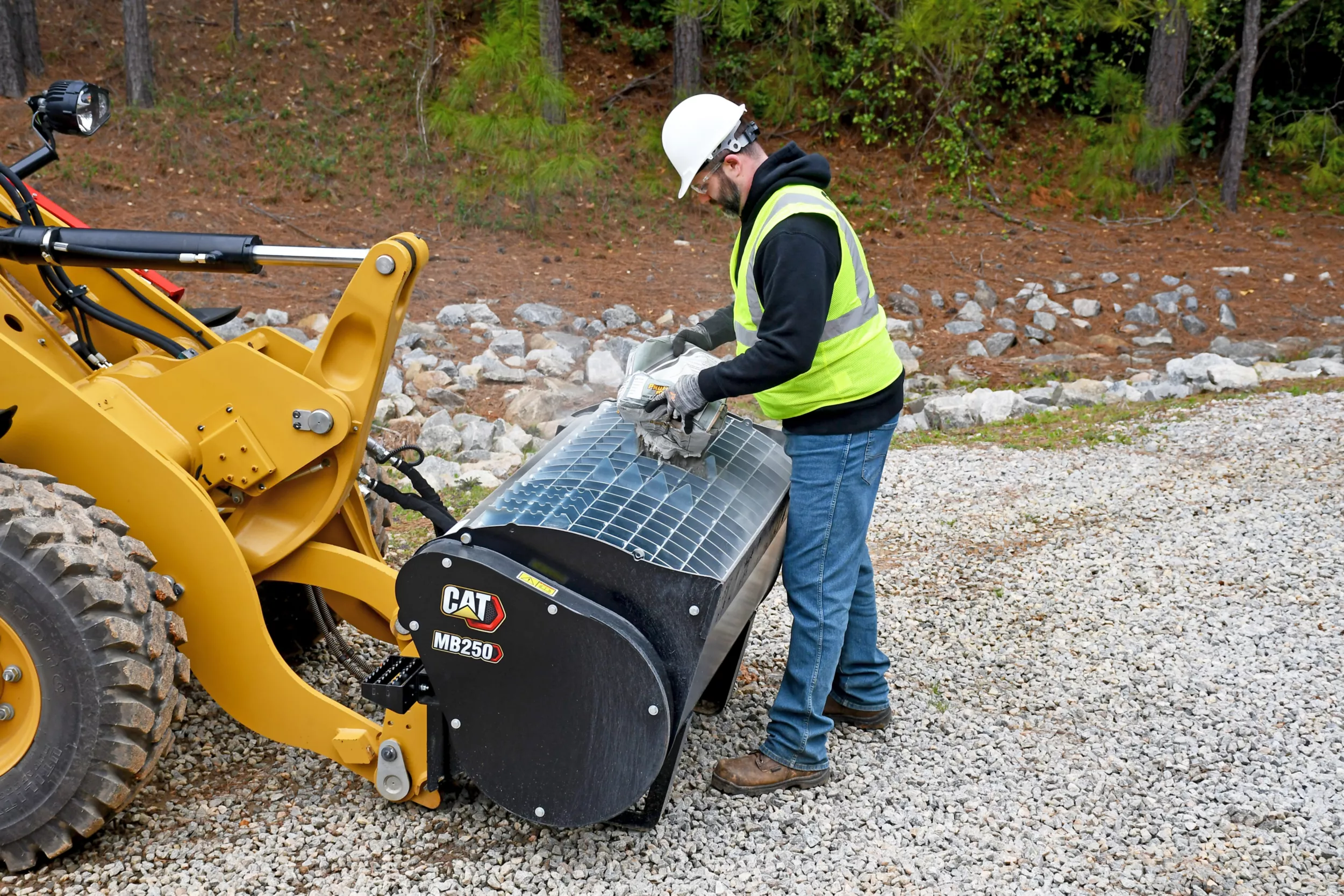

Easy Material Addition
Cement bag breakers on top of mixing bucket grate allow for easy breaking and addition of bagged materials.

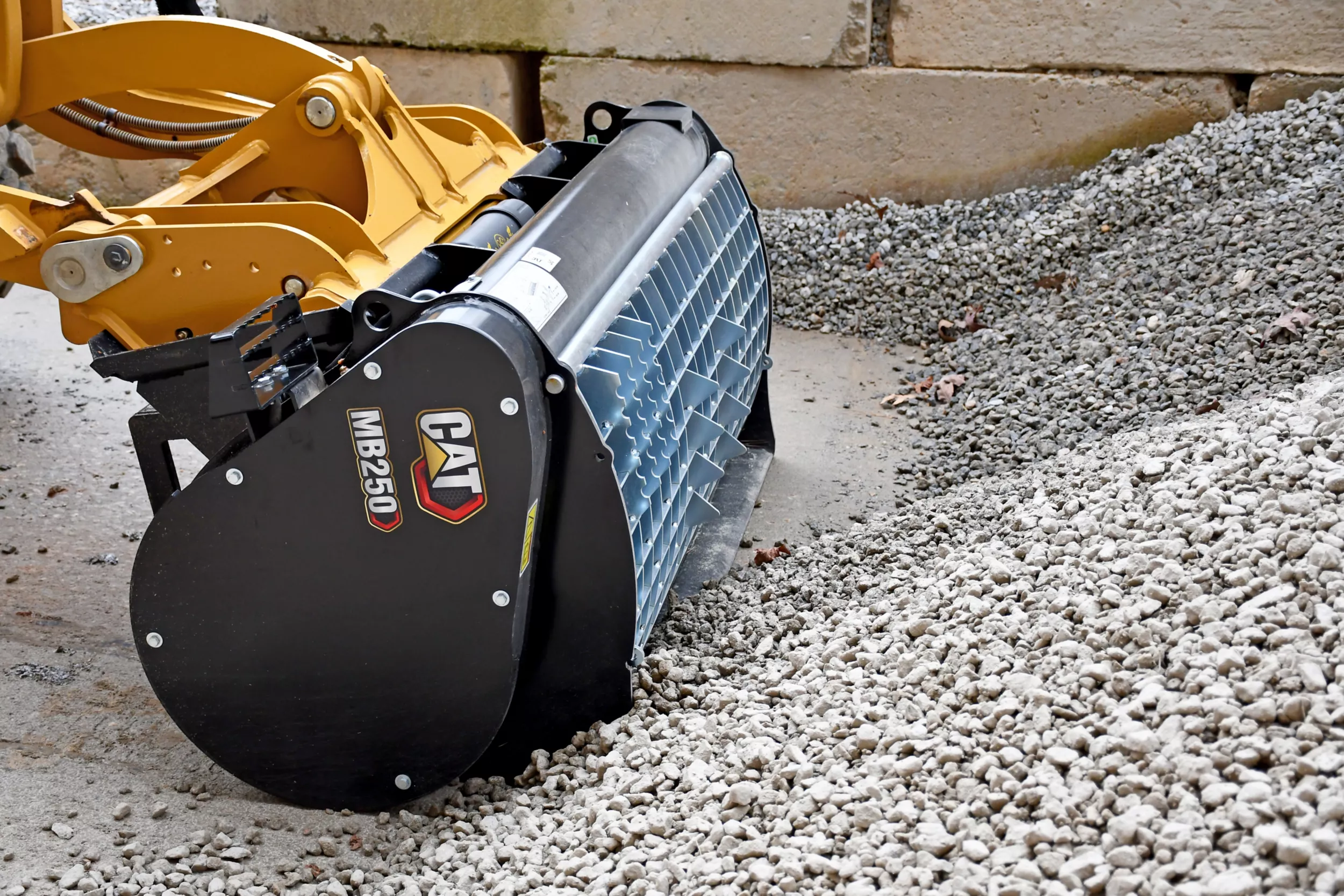

Bucket Cutting Edge
Cutting edge allows for bucket to be used to drive into piles of raw materials.
Reinforced Steel Bucket Cavity
Reinforced steel is used for bucket cavity ensuring long life and reduced wear.

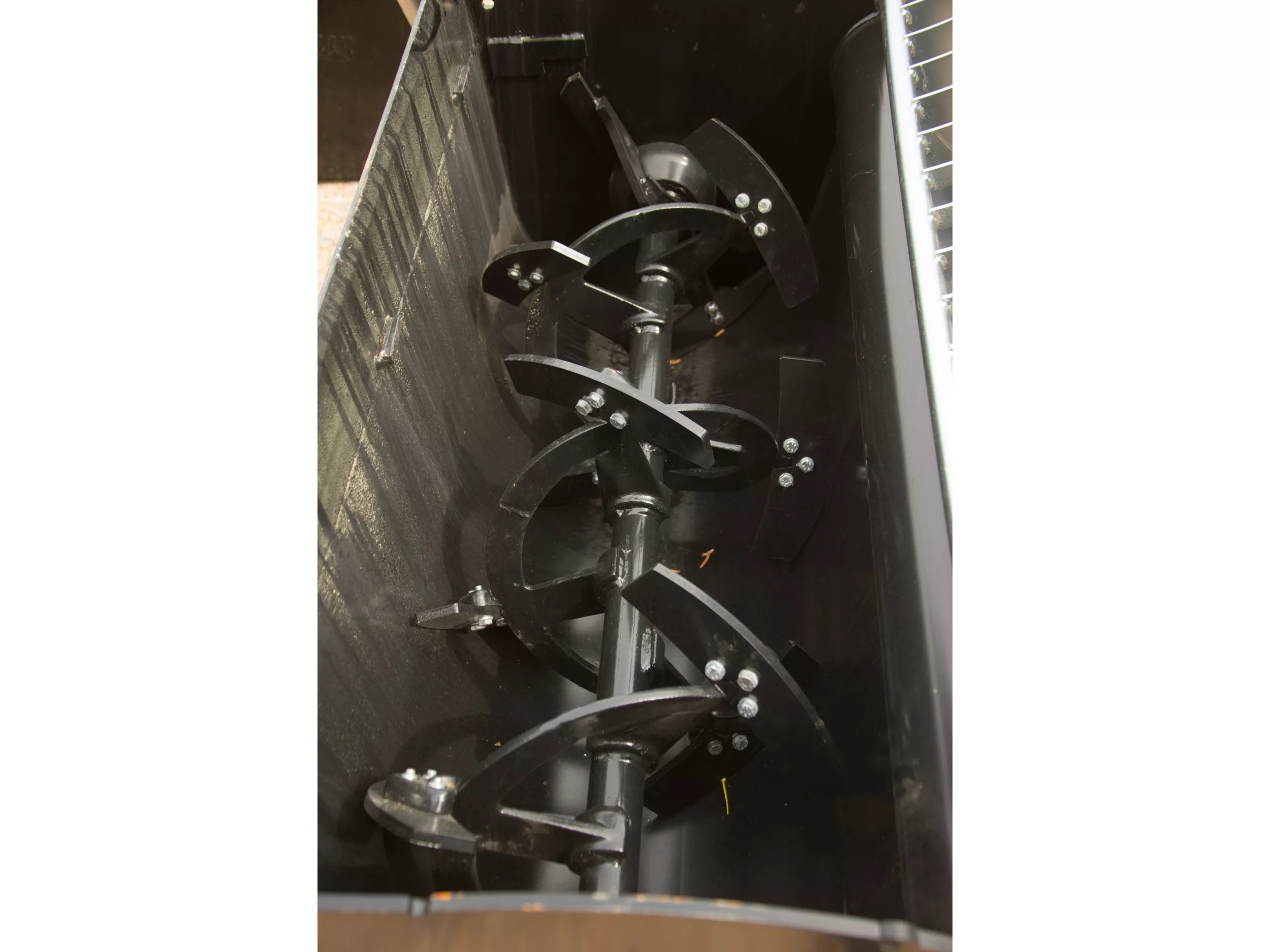

Bolt-On Replaceable Auger Paddles
Replaceable, bolt-on auger paddles are hardened and reach throughout the bucket to combine all material.
Remotely Operated Chute Door
Hydraulically controlled chute door allows material to be dispensed all from the cab of the host machine.

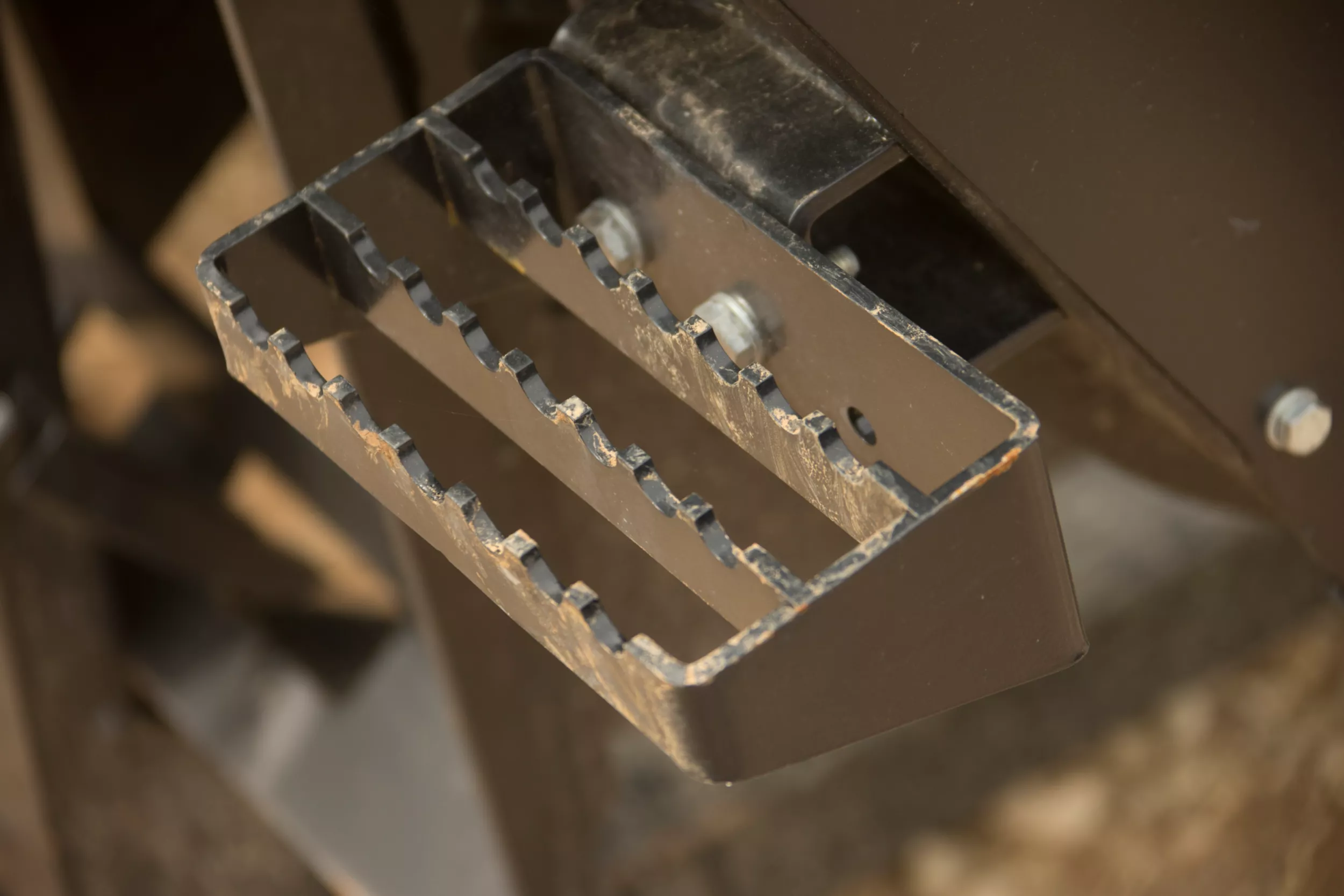

Bolt-On Serrated Step
Serrated step allows safe and ergonomic access to machine cab that is easily replaceable if damaged.
Product Specifications for MB200
| Capacity | 0.26 yd³ 0.2 m³ |
| Width | 54.6 in 1386 mm |
| Required Hydraulics | Standard Flow Standard Flow |
| Auger Speed Range | 10-30 rpm 10-30 rpm |
| Drive Method | Chain Chain |
| Height | 28.8 in 731 mm |
| Length | 27.3 in 694 mm |
| Optimal Hydraulic Flow | 60-70 lpm (16-18 gpm) 60-70 lpm (16-18 gpm) |
| Optimal Hydraulic Pressure | 140-200 bar (2031-2901 psi) 140-200 bar (2031-2901 psi) |
| Weight | 639 lb 290 kg |
| Auger Diameter | 16 in 406 mm |
| Number of Auger Paddles | 12 12 |
| Interface Type | Skid Steer Coupler Skid Steer Coupler |
| Overall Width | 63.1 in 1602 mm |
See how MB200 compares against frequently compared products.
Buckets - Skid Steer Loader
MB200
Selected
- Capacity
- 0.26 yd³
- 0.2 m³
- Width
- 54.6 in
- 1386 mm
- Required Hydraulics
- Standard Flow
- Standard Flow
Buckets - Skid Steer Loader
MB250
- Capacity
- 0.33 yd³
- 0.25 m³
- Width
- 54.7 in
- 1390 mm
- Required Hydraulics
- Standard Flow
- Standard Flow
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos
360 View
Studio Shot
Front View
Top View
Left View
Rear View
Bottom View
Right View
Mixing Bucket Chute
Mixing Bucket Hose
Customer Adding Mix to Cat® Mixing Bucket Using Integrated Bag Breakers
Customer using Cat® Mixing Bucket hose to direct mix right where you need it.
Cat® Mixing Bucket Scooping Rock
An Attachment for Every Job - Cat® Work Tool Attachments
