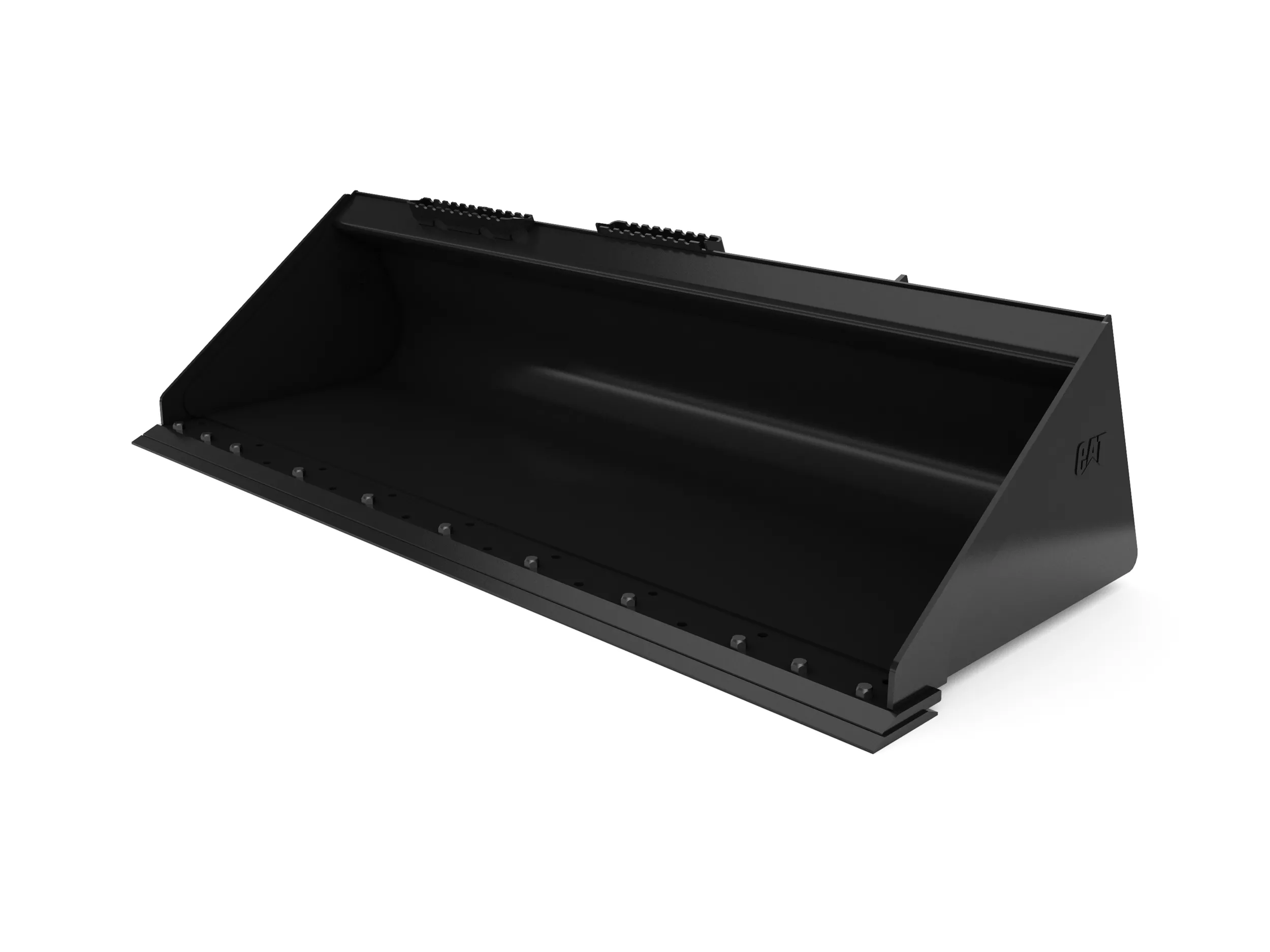

General Purpose Buckets 2036 mm (80 in) , Bolt-On Cutting Edge

New Used Rental

Request A Price Shop Now

Key Specs

Width: 80.2 in; 2036 mm

Capacity: 0.63 yd³; 0.48 m³

Weight: 630.5 lb; 286 kg

2036 mm (80 in) , Bolt-On Cutting Edge
Change model

Overview

Used to dig, load, carry, level, dump and grade in a variety of applications.

Features At A Glance

Designed for digging, loading, carrying, leveling, grading and dumping in a variety of applications and materials. These all purpose buckets are ideal for construction, landscaping, industrial and more aggressive demolition applications.

Low back height profile and long floor length, combined with formed back wrapper and optimum wrapper angle, result in excellent visibility to the front cutting edge and front corners, and superior loading and dumping.

Full length skid bars provide additional floor rigidity and wear resistance.

Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.

Base bucket also available with bolt-on cutting edge, bolt-on teeth and bolt-on tooth bar.

Product Specifications for 2036 mm (80 in) , Bolt-On Cutting Edge

Width	80.2 in 2036 mm
Capacity	0.63 yd³ 0.48 m³
Weight	630.5 lb 286 kg
Height	16.8 in 426 mm
Length	27.9 in 708 mm
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm
Interface Type	Skid Steer Coupler Skid Steer Coupler

Product Specifications for 2036 mm (80 in) , Bolt-On Cutting Edge

Download Print

Width	80.2 in 2036 mm
Capacity	0.63 yd³ 0.48 m³
Weight	630.5 lb 286 kg
Height	16.8 in 426 mm
Length	27.9 in 708 mm
Base Edge Thickness	0.7 in 19 mm
Cutting Edge Thickness	0.6 in 16 mm
Interface Type	Skid Steer Coupler Skid Steer Coupler
