Trapezoidal Buckets - Mini Excavator 300 mm (12 in), 3 Ton Mini Excavators

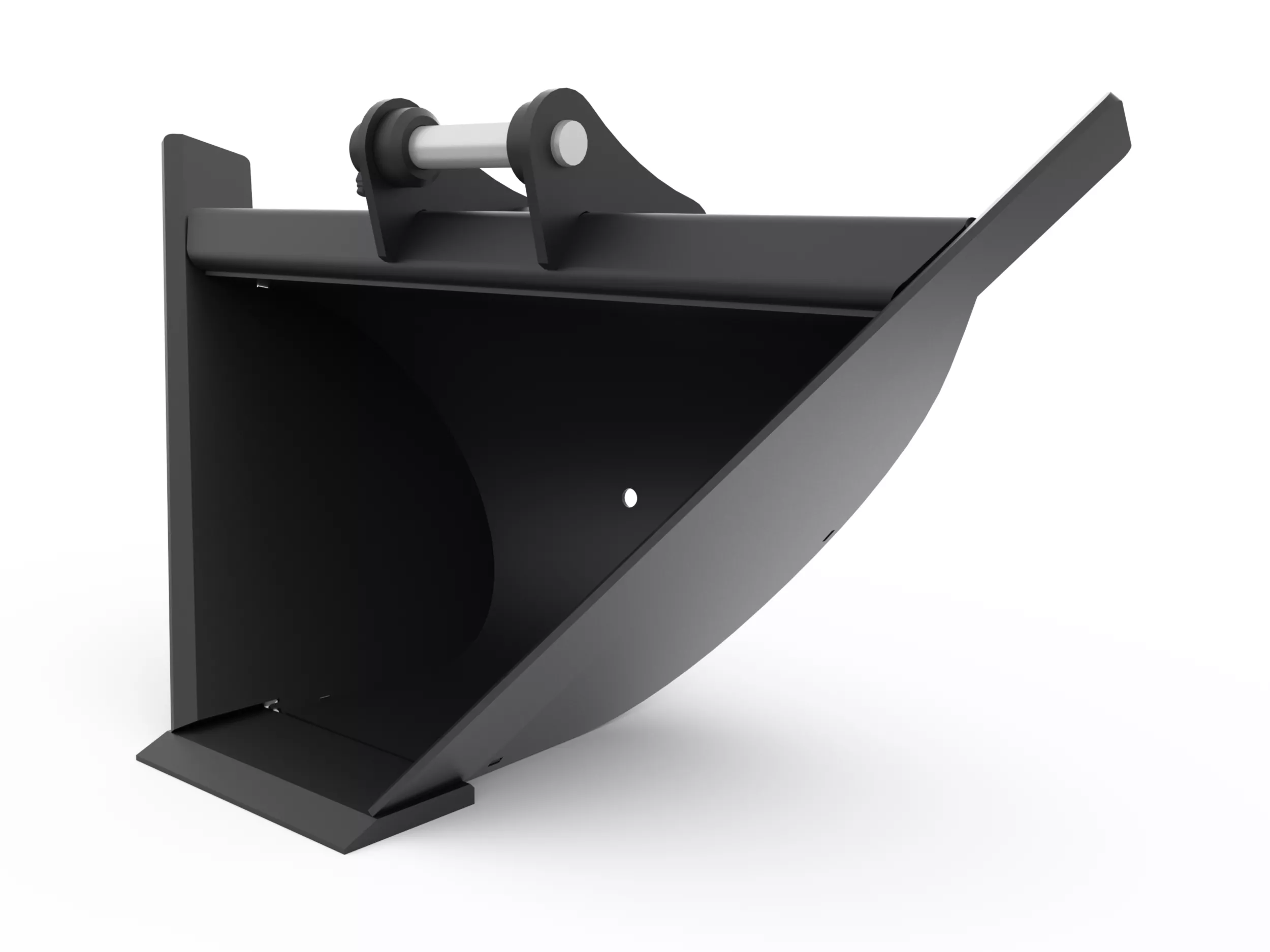

Name: 300 mm (12 in) For 3 Ton Mini Excavators
Brand: Cat

New Used Rental

Request A Price Shop Now

Key Specs

300 mm (12 in), 3 Ton Mini Excavators
Change model

Overview

Cat® Trapezoidal Buckets offer the ideal solution with optimized sidewall angles for creating clean, uniform V-shaped drainage ditches.

Displaying 1-6 of 4

Made from high strength steel, this bucket will last even in the harshest of environments.

Sloping sides of 52° allows the creation of excavations with the desired shape and for each specific application.

The side cutting blades allow for less resistance to the ground and therefore quick and easy penetration, giving a perfect finish.

A drain hole allows for controlled liquid release, which prevents standing water when not in use and aids in bucket cleaning.

Made from high strength steel, this bucket will last even in the harshest of environments.

Sloping sides of 52° allows the creation of excavations with the desired shape and for each specific application.

The side cutting blades allow for less resistance to the ground and therefore quick and easy penetration, giving a perfect finish.

A drain hole allows for controlled liquid release, which prevents standing water when not in use and aids in bucket cleaning.

Width	11.8 in 300 mm
Capacity	4.9 ft³ 140 l
Weight	185.2 lb 84 kg
Base Edge Thickness	0.8 in 20 mm
Tip Radius	25.2 in 639 mm
Interface Type	Pin On (Pin Grabber) Pin On (Pin Grabber)

Download Print

Width	11.8 in 300 mm
Capacity	4.9 ft³ 140 l
Weight	185.2 lb 84 kg
Base Edge Thickness	0.8 in 20 mm
Tip Radius	25.2 in 639 mm
Interface Type	Pin On (Pin Grabber) Pin On (Pin Grabber)
