Overview
Used for aggressive bucket loading in highly abrasive applications such as severe rock.

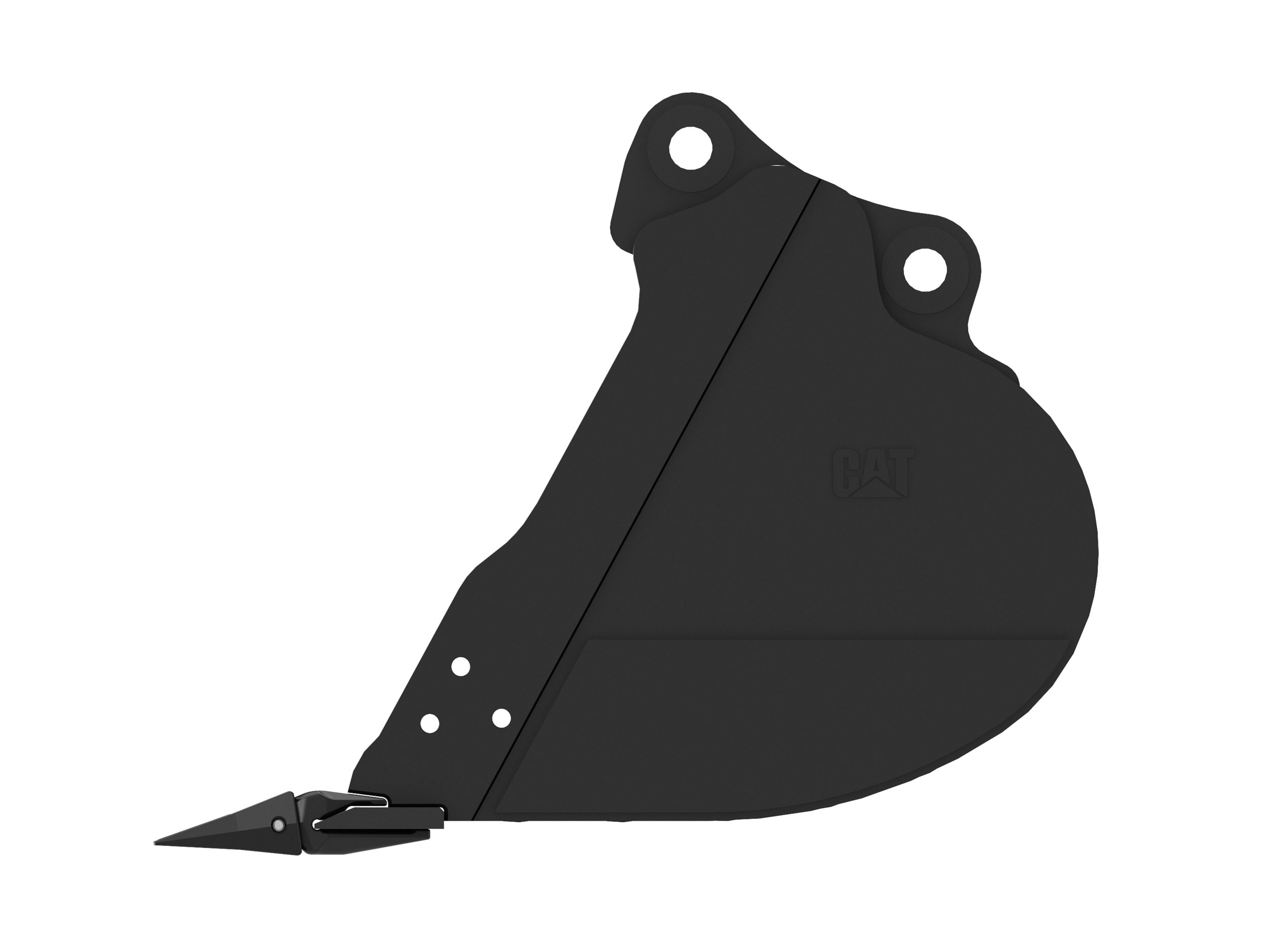

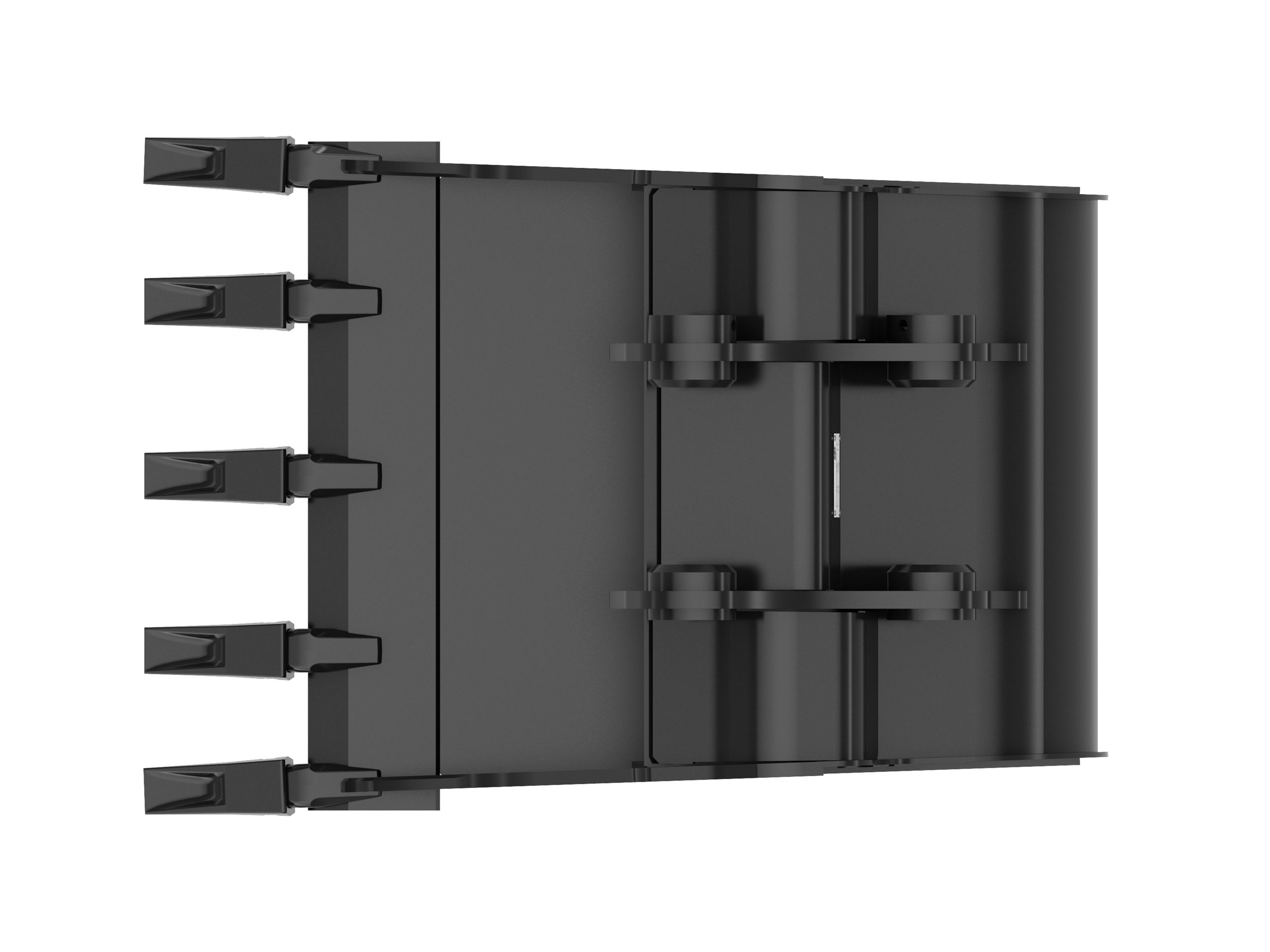

Heavy Duty Rock Buckets - Mini Excavator 762 mm (30 in)
Key Specs
- Width
- 30 in
- 762 mm
- Capacity
- 10.9 ft³
- 308.7 l
- Weight
- 491.6 lb
- 223 kg
Features At A Glance
Displaying 1-6 of 4
Application
Designed for aggressive applications and coarse aggregate removal. Used in demanding applications such as rock and concrete removal.
Designed For Extreme Duty
Similar to heavy duty buckets but with thicker wear plates for use in highly abrasive and high impact applications.
Bucket Design
Formed back wrapper design enhances bucket loading ability and production.
Superior Bucket Fill
Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.
Product Specifications for 762 mm (30 in)
| Width | 30 in 762 mm |
| Capacity | 10.9 ft³ 308.7 l |
| Weight | 491.6 lb 223 kg |
| Base Edge Thickness | 1 in 25 mm |
| Tip Radius | 40 in 1015 mm |
| Interface Type | Pin On Pin On |
See how 762 mm (30 in) compares against frequently compared products.
Buckets - Excavator
762 mm (30 in)
Selected
- Width
- 30 in
- 762 mm
- Capacity
- 10.9 ft³
- 308.7 l
- Weight
- 491.6 lb
- 223 kg
Buckets - Excavator
610 mm (24 in)
- Width
- 24 in
- 610 mm
- Capacity
- 8.1 ft³
- 229.39 l
- Weight
- 427.7 lb
- 194 kg
