Overview
Optimized geometry provides maximum digging force and material volume for heavy-duty applications.

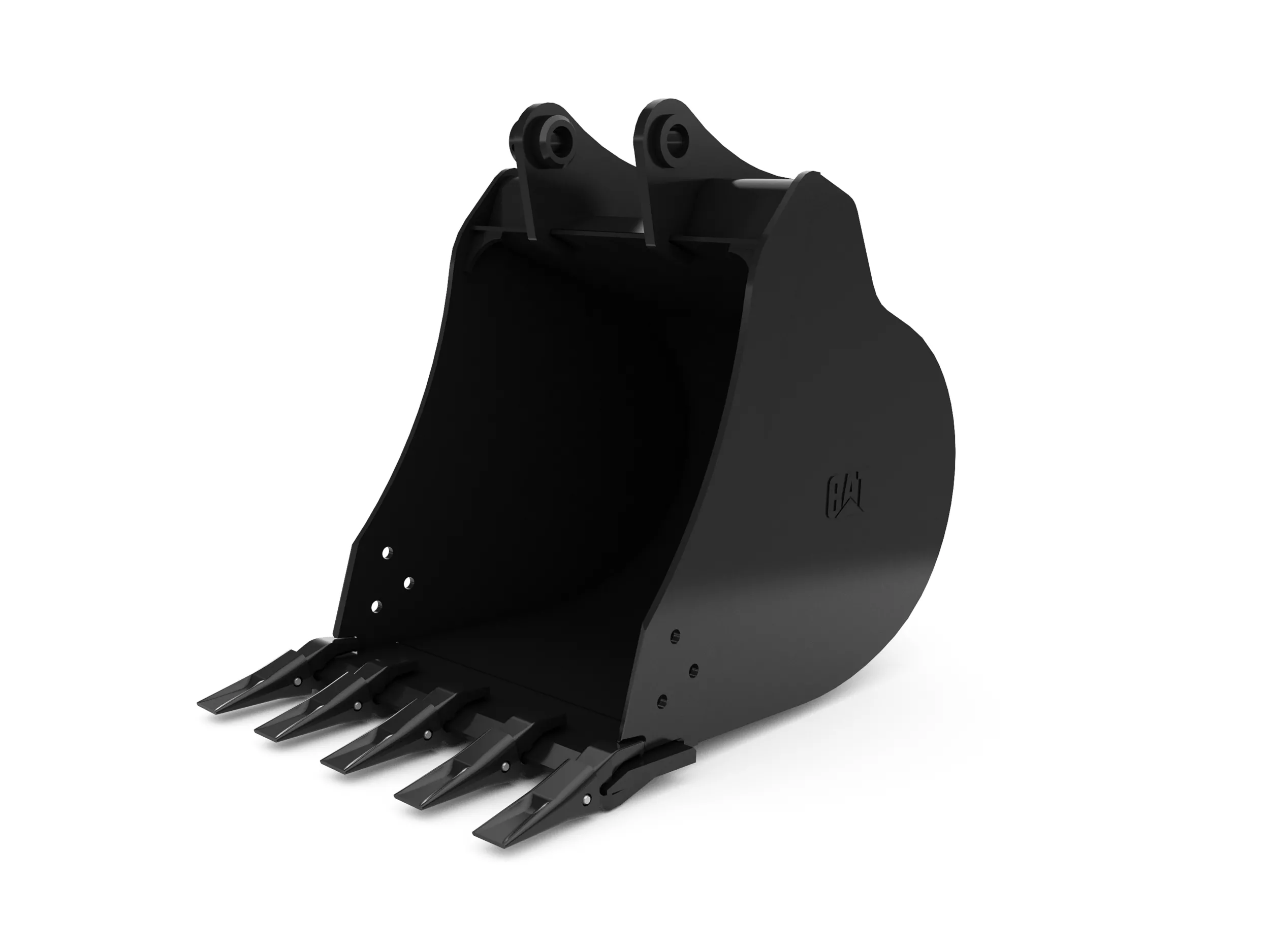

Heavy Duty Capacity Buckets - Mini Excavator 619 mm (24 in), 181 L (6.4 ft3), Pin On, 40 mm (1.6 in)
Key Specs
- Width
- 24.4 in
- 619 mm
- Capacity
- 6.4 ft³
- 181.2 l
- Weight
- 275.6 lb
- 125 kg
Features At A Glance
Displaying 1-6 of 4
Application
Especially suited for moving large quantities of material, such as during truck loading applications, and are capable of moving greater volumes of material than the heavy duty buckets.
Bucket Design
Formed back wrapper design enhances bucket loading ability and production.
Superior Bucket Fill
Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.
Tapered Bucket Sidewalls
Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.
Product Specifications for 619 mm (24 in), 181 L (6.4 ft3), Pin On, 40 mm (1.6 in)
| Width | 24.4 in 619 mm |
| Capacity | 6.4 ft³ 181.2 l |
| Weight | 275.6 lb 125 kg |
| Base Edge Thickness | 0.8 in 20 mm |
| Tip Radius | 33.5 in 850.6 mm |
| Interface Type | Pin On Pin On |
See how 619 mm (24 in), 181 L (6.4 ft3), Pin On, 40 mm (1.6 in) compares against frequently compared products.
Buckets - Excavator
619 mm (24 in), 181 L (6.4 ft3), Pin On, 40 mm (1.6 in)
Selected
- Width
- 24.4 in
- 619 mm
- Capacity
- 6.4 ft³
- 181.2 l
- Weight
- 275.6 lb
- 125 kg
Buckets - Excavator
619 mm (24 in), 181 L (6.4 ft3), Pin On, 45 mm (1.8 in)
- Width
- 24.4 in
- 619 mm
- Capacity
- 6.4 ft³
- 181.19 l
- Weight
- 271.2 lb
- 123 kg
Buckets - Excavator
762 mm (30 in), 241 L (8.5 ft3), Pin On, 45 mm (1.8 in)
- Width
- 30 in
- 762 mm
- Capacity
- 8.5 ft³
- 240.69 l
- Weight
- 321.9 lb
- 146 kg
