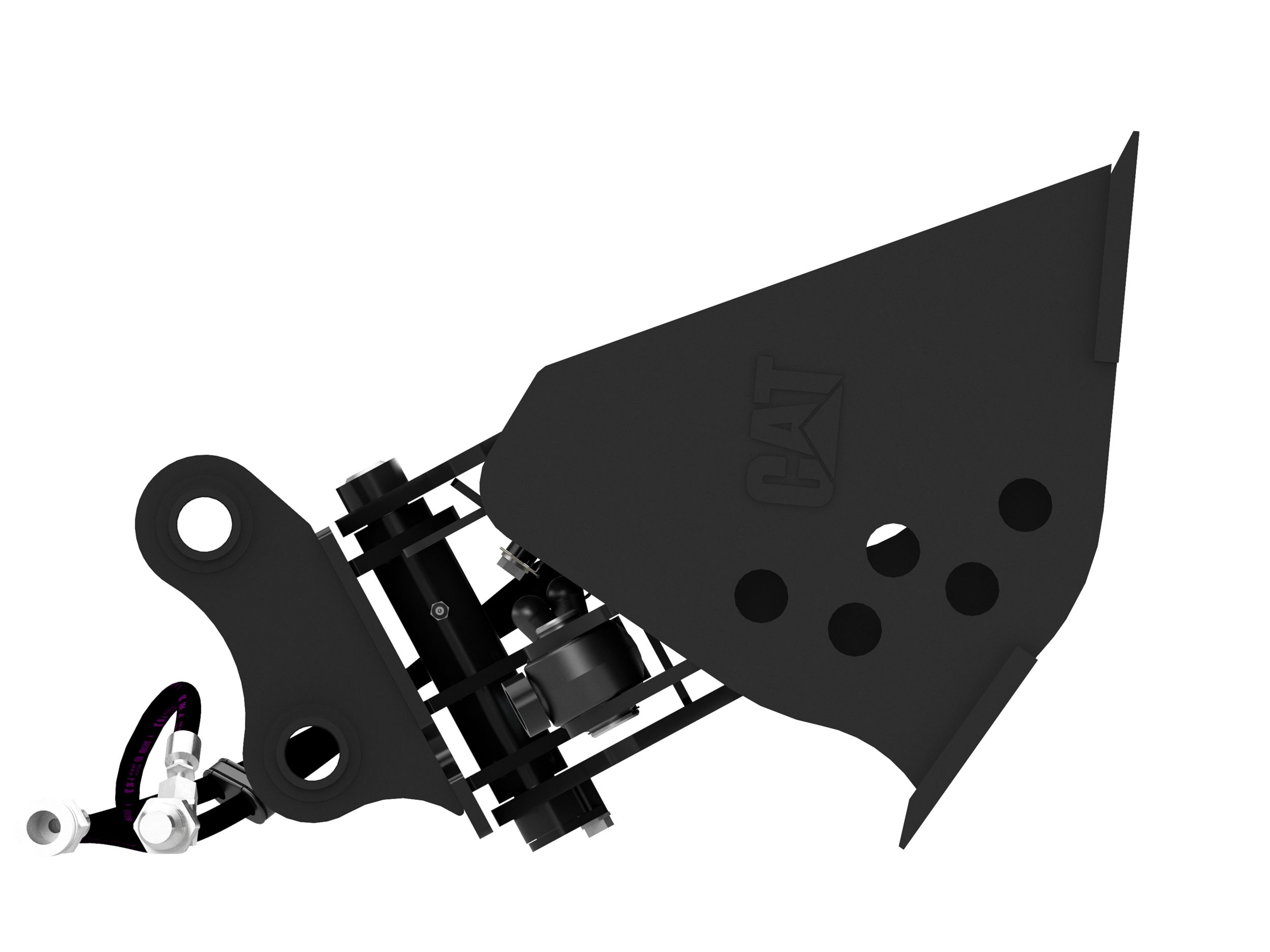

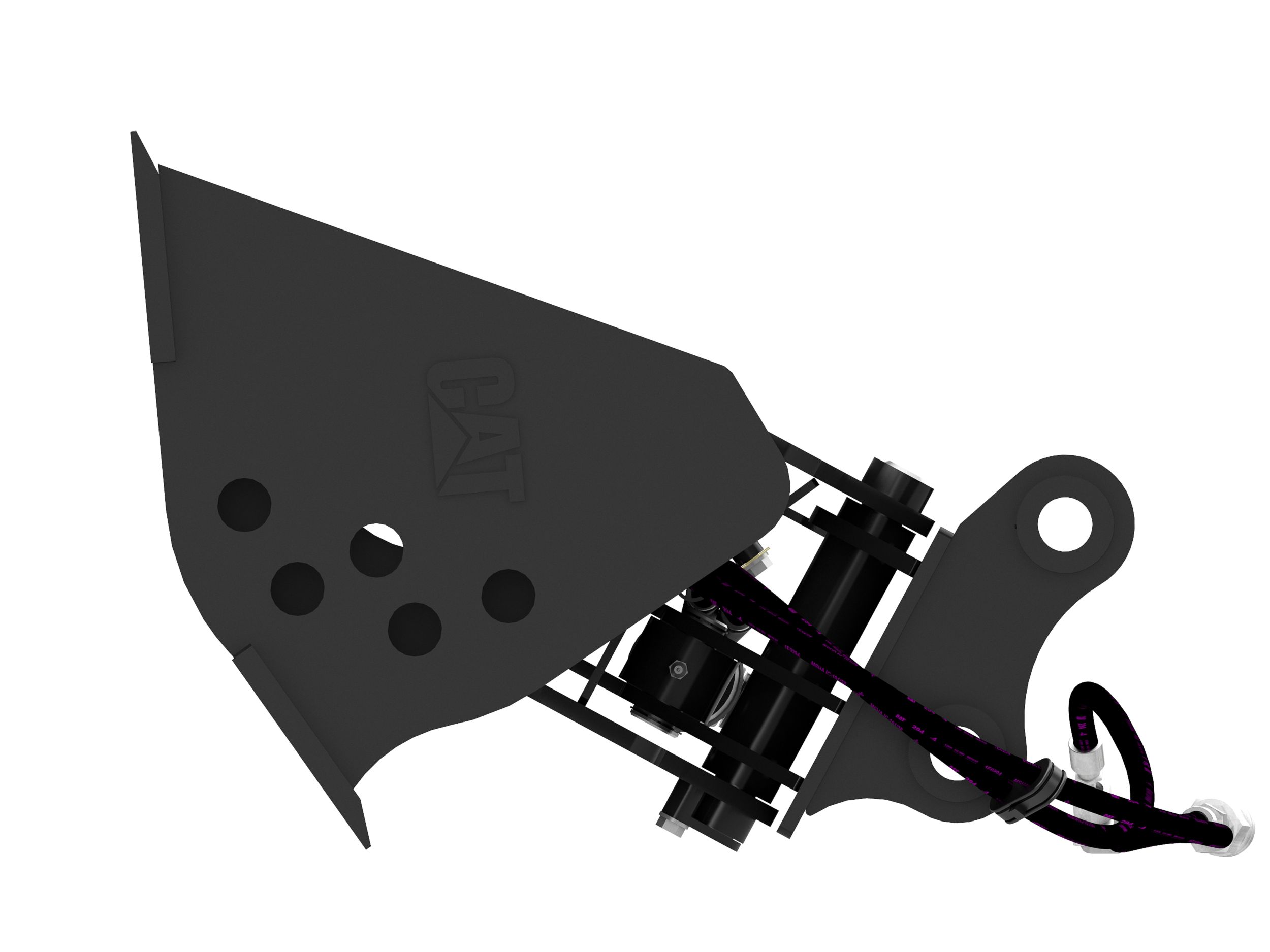

1100 mm (43 in), 110 L (3.9 ft3), Pin On, 35 mm (1.4 in) Tilting Ditch Cleaning Buckets - Mini Excavator


Key Specs

Width
43.3 in
1100 mm
Capacity
3.9 ft³
109.9 l
Weight
293.6 lb
133.19 kg

Features At A Glance

Displaying 1-6 of 5

Application

Application

Ideal for cleaning wide trenches, loading materials, slope-cutting and profiling, grading and finishing work in construction, landscaping and road maintenance applications.
Drain Holes

Drain Holes

Standard drain holes allow water drainage from the bucket when working in mucky, wet conditions.
Spill Guard

Spill Guard

Spill guards help prevent material from flowing over bucket into cylinder and causing damage.
Bucket Support Ribs

Bucket Support Ribs

Two bucket stiffeners from top torque tube to base edge provides additional support during backwards grading, as well as overall bucket longevity.
Integrated Rear Cutting Edge

Integrated Rear Cutting Edge

Rear cutting edge allows for back dragging applications.

Product Specifications for 1100 mm (43 in), 110 L (3.9 ft3), Pin On, 35 mm (1.4 in)

Width 43.3 in 1100 mm
Capacity 3.9 ft³ 109.9 l
Weight 293.6 lb 133.19 kg
Base Edge Thickness 0.6 in 16 mm
Tip Radius 25.7 in 653.7 mm
Interface Type Pin On (Pin Grabber) Pin On (Pin Grabber)
