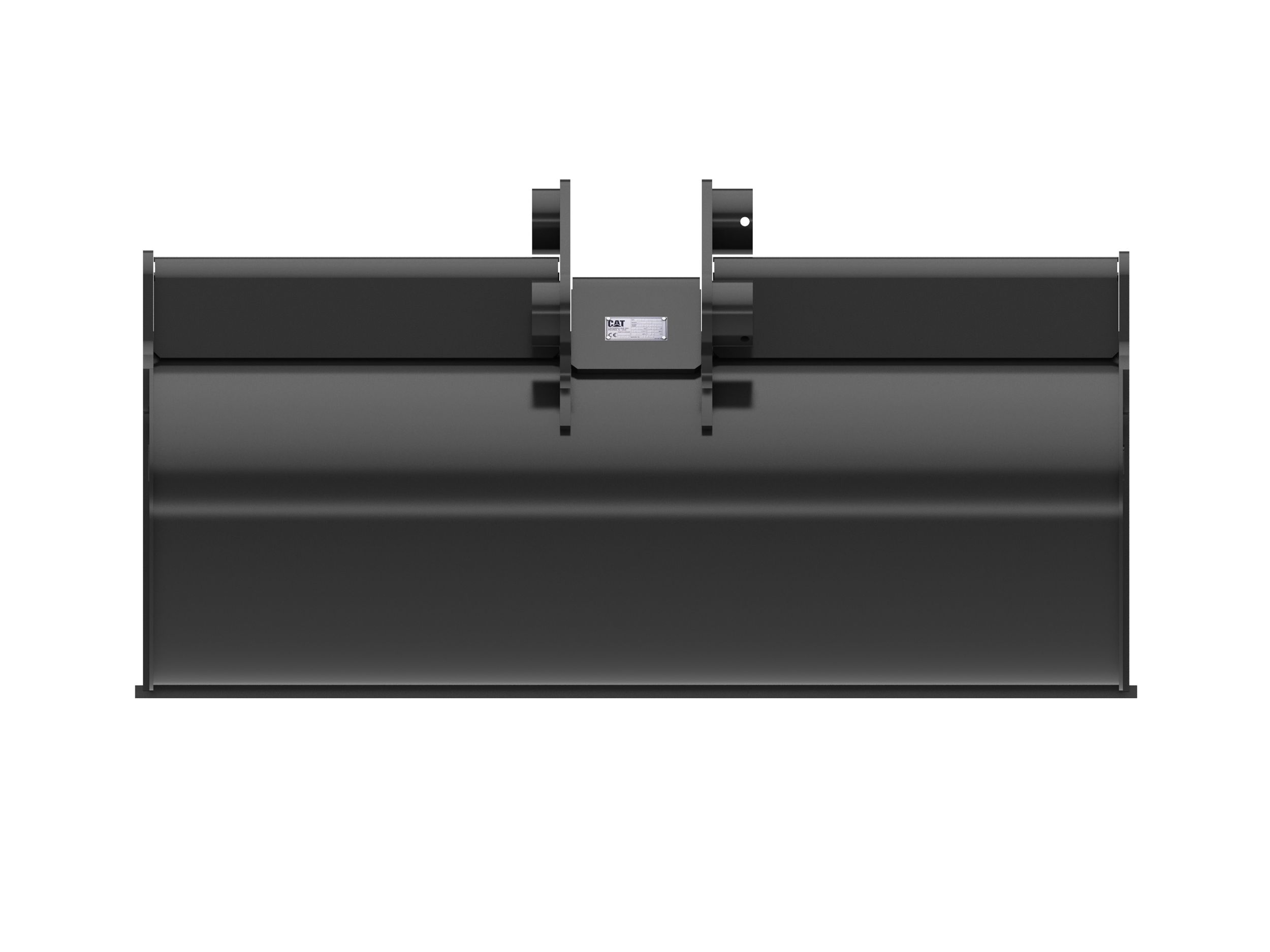

Front View

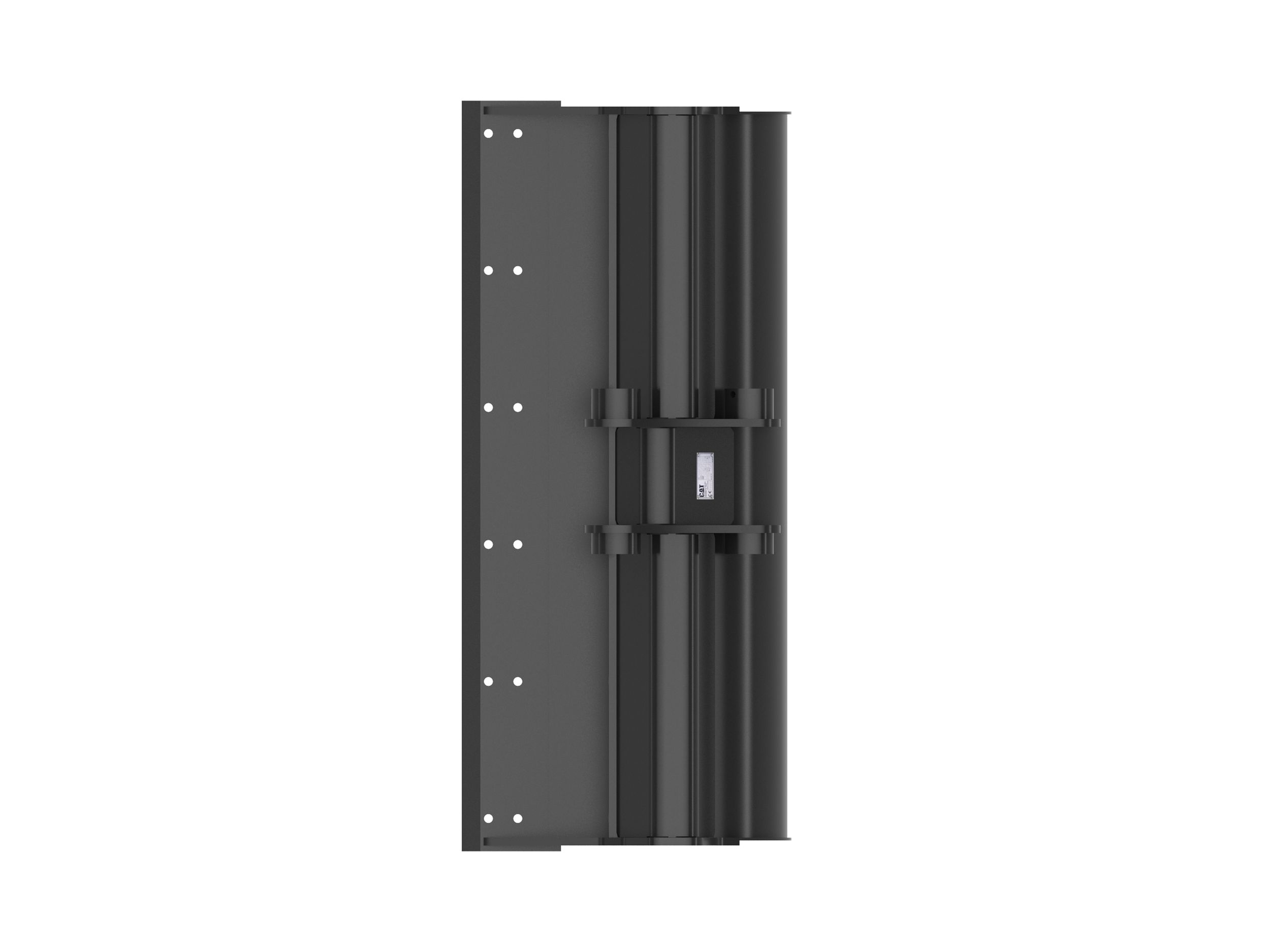

Top View
Left View
Photos (7)
Videos (2)

1524 mm (60 in), 420 L (14.8 ft3), Pin On Ditch Cleaning Buckets - Mini Excavator


Key Specs

Width
60 in
1524 mm
Weight
557.1 lb
252.69 kg
Tip Radius
31.3 in
795 mm

Features At A Glance

Displaying 1-6 of 4

Application

Application

Versatile bucket for applications such as cleaning wide trenches, loading materials, grading, dressing slopes and more.
Bucket Design

Bucket Design

Formed back wrapper design enhances bucket loading and production.
Superior Bucket Fill

Superior Bucket Fill

Optimum wrapper angle and no sharp corners promote superior bucket fill and reduce material packing.
Bucket Shape

Bucket Shape

Enhanced bucket shape allows material to flow more easily. Tapered bucket sidewalls allow for easy dumping of sticky material.

Product Specifications for 1524 mm (60 in), 420 L (14.8 ft3), Pin On

Width 60 in 1524 mm
Weight 557.1 lb 252.69 kg
Tip Radius 31.3 in 795 mm
Capacity 14.8 ft³ 420.5 l
Base Edge Thickness 0.8 in 20 mm
Interface Type Pin On Pin On
