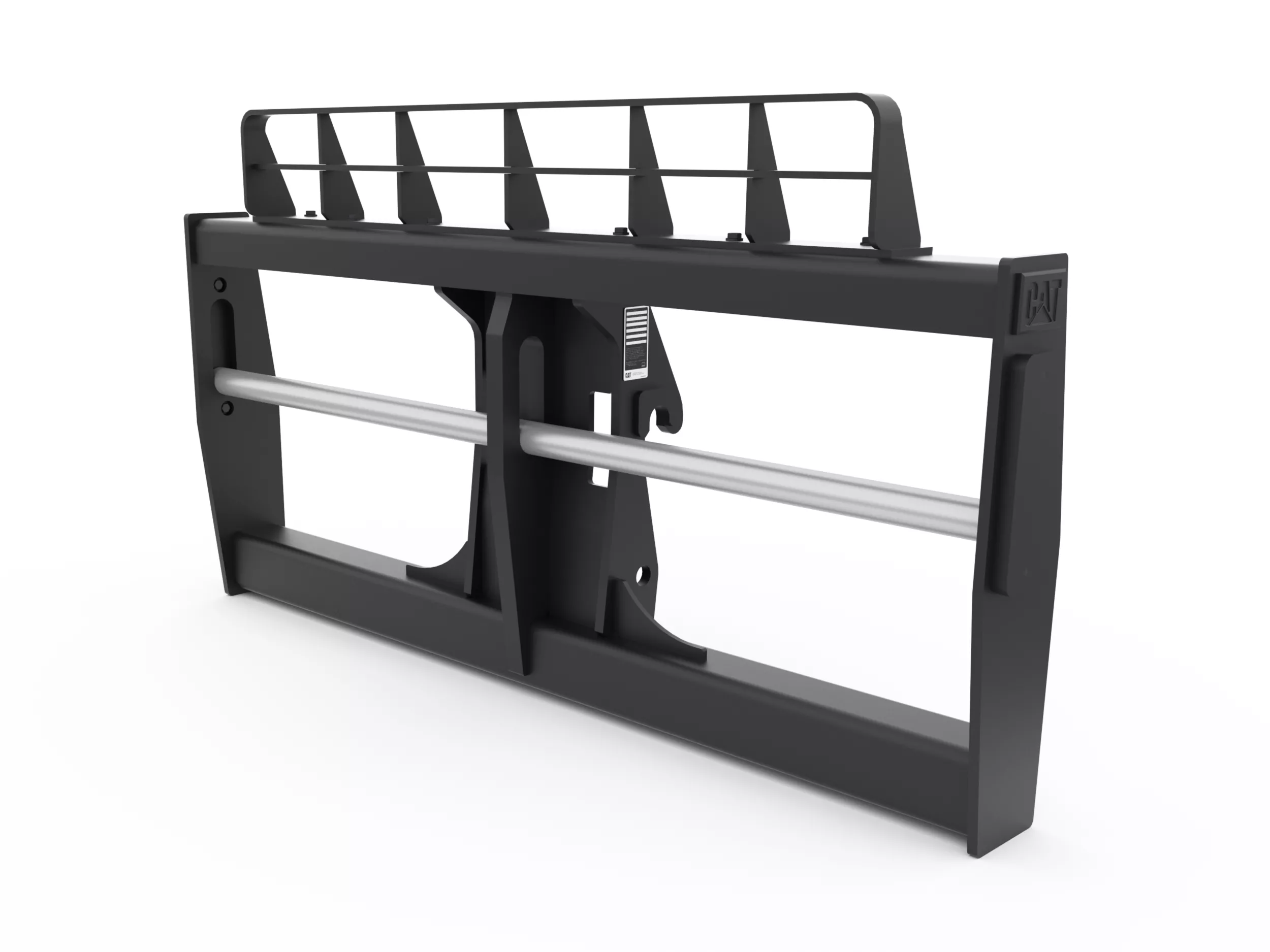

Standard Tilt Carriages 1829 mm (72 in), Standard TH Coupler

Request A Price Shop Now

Key Specs

Height: 40.3 in; 1024 mm

Width: 72 in; 1829 mm

Overall Width: 75 in; 1905 mm

1829 mm (72 in), Standard TH Coupler
Change model

Overview

Standard Tilt Carriages are typically used in general construction, masonry, agriculture, steel erection, material handling, and building construction applications.

Features At A Glance

Forks are allowed to float up to 11 degrees to assist when placing loads on uneven surfaces.

Bolt-on backrest provides good visibility and helps with load retention.

With a variety of fork sizes available, changing forks on telehandler carriages is as easy as removing two side plates.

Product Specifications for 1829 mm (72 in), Standard TH Coupler

Height	40.3 in 1024 mm
Width	72 in 1829 mm
Overall Width	75 in 1905 mm
Weight	626.1 lb 284 kg
Length	11.1 in 282 mm
Tine Spacing	165-1704 mm (6.5-67 in) 165-1704 mm (6.5-67 in)
Load Capacity	12000 lb 5443.1 kg
Interface Type	Standard TH Coupler Standard TH Coupler

Product Specifications for 1829 mm (72 in), Standard TH Coupler

Download Print

Height	40.3 in 1024 mm
Width	72 in 1829 mm
Overall Width	75 in 1905 mm
Weight	626.1 lb 284 kg
Length	11.1 in 282 mm
Tine Spacing	165-1704 mm (6.5-67 in) 165-1704 mm (6.5-67 in)
Load Capacity	12000 lb 5443.1 kg
Interface Type	Standard TH Coupler Standard TH Coupler
