Construction Fork Carriages 2498 mm (98 in)

Request A Price Shop Now

Key Specs

Height: 52 in; 1320 mm

Width: 98 in; 2498 mm

Tine Spacing: 380-2225 mm (15-87.6 in) centerline to centerline; 380-2225 mm (15-87.6 in) centerline to centerline

2498 mm (98 in)
Change model

Overview

For use in heavy duty applications where standard pallet fork carriages may not be suitable.

Features At A Glance

Displaying 1-6 of 4

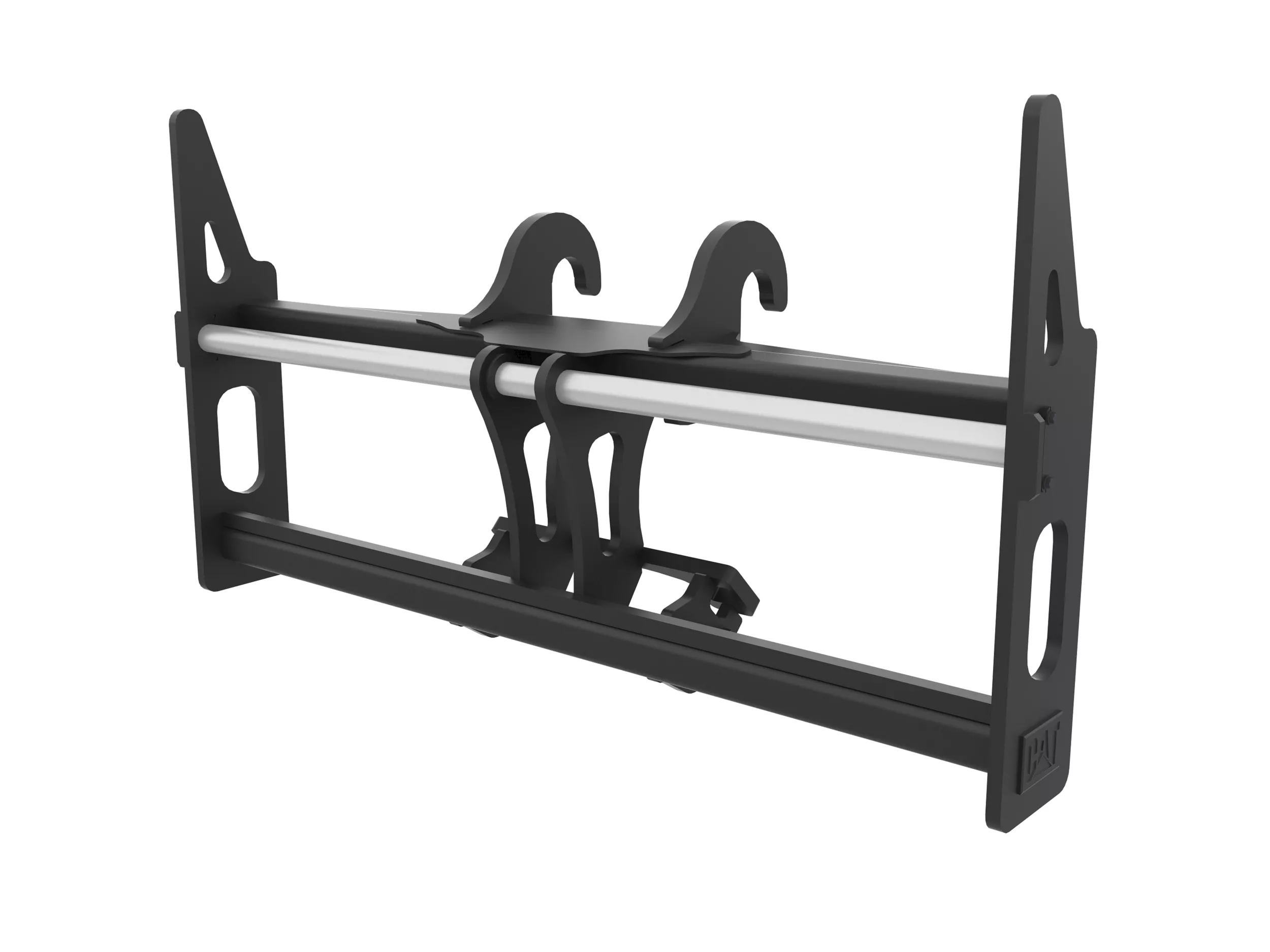

Robust Design and High Backs

The robust design provides durability as well as exceptional visibility. The high backs prevent material from shifting towards the machine.

Swinging Forks Capability

In some operations, swinging forks helps to pick materials out of the ground. This carriage offers this option by just changing the configuration of the retention plate located on the forks.

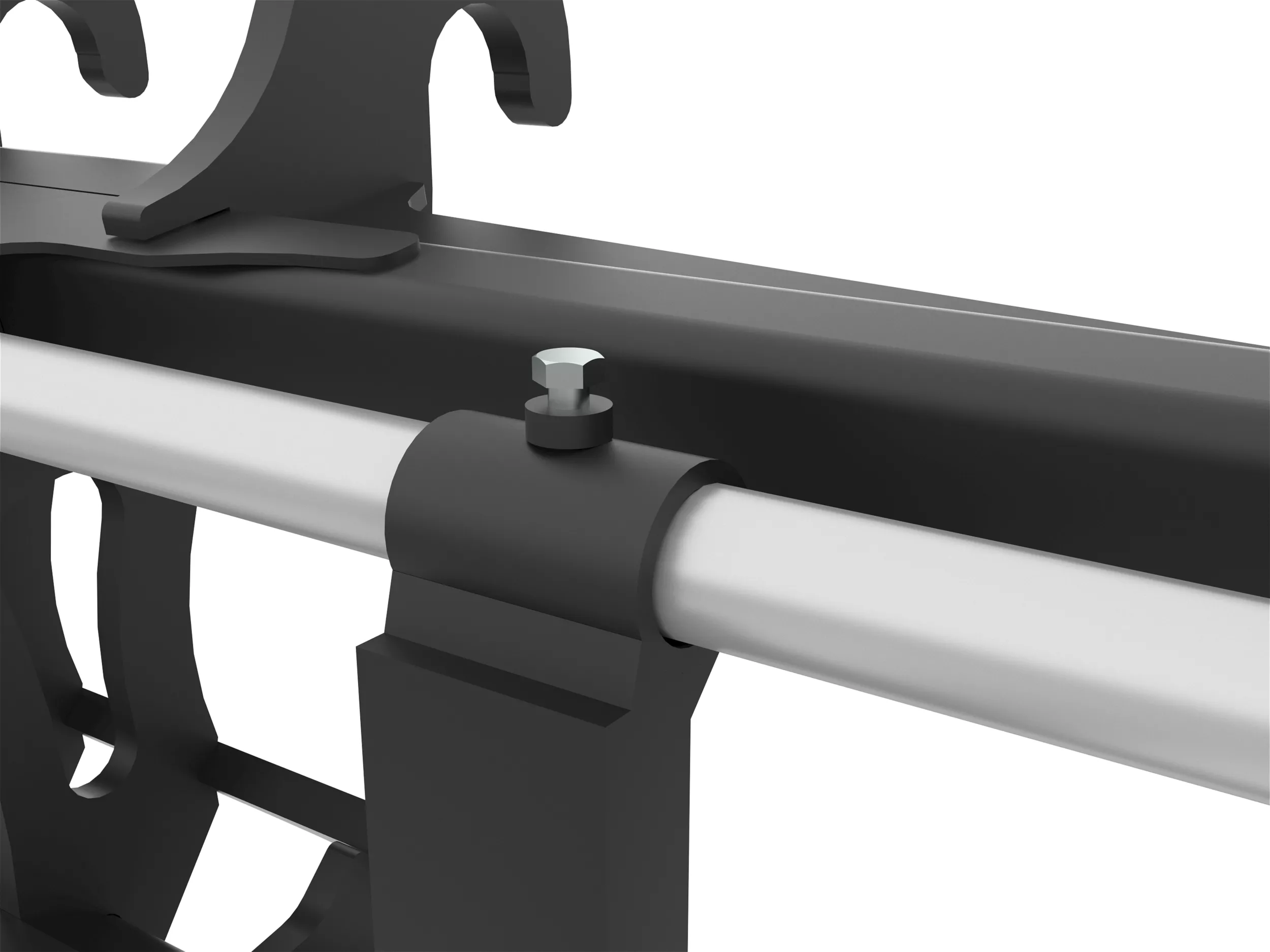

Adjustable Fork Positions

Adjust the fork position a total of 855 mm (33.7 in) from one side to the other with increments of 55 mm (2.2 in) and lock them to prevent non-expected movements.

Quick Change Fork Tines

By removing two bolts on either side of the carriage, the fork tines can be easily changed to different sizes as needed.

The robust design provides durability as well as exceptional visibility. The high backs prevent material from shifting towards the machine.

In some operations, swinging forks helps to pick materials out of the ground. This carriage offers this option by just changing the configuration of the retention plate located on the forks.

Adjust the fork position a total of 855 mm (33.7 in) from one side to the other with increments of 55 mm (2.2 in) and lock them to prevent non-expected movements.

By removing two bolts on either side of the carriage, the fork tines can be easily changed to different sizes as needed.

Product Specifications for 2498 mm (98 in)

Height	52 in 1320 mm
Width	98 in 2498 mm
Tine Spacing	380-2225 mm (15-87.6 in) centerline to centerline 380-2225 mm (15-87.6 in) centerline to centerline
Weight	1408.8 lb 639 kg
Length	24.9 in 633 mm
Interface Type	Fusion™ Coupler Fusion™ Coupler

Product Specifications for 2498 mm (98 in)

Download Print

Height	52 in 1320 mm
Width	98 in 2498 mm
Tine Spacing	380-2225 mm (15-87.6 in) centerline to centerline 380-2225 mm (15-87.6 in) centerline to centerline
Weight	1408.8 lb 639 kg
Length	24.9 in 633 mm
Interface Type	Fusion™ Coupler Fusion™ Coupler

See how 2498 mm (98 in) compares against frequently compared products.

Forks

Selected

2498 mm (98 in)

Height: 52 in; 1320 mm
Width: 98 in; 2498 mm
Tine Spacing: 380-2225 mm (15-87.6 in) centerline to centerline; 380-2225 mm (15-87.6 in) centerline to centerline

Forks

2134 mm (84 in)

Height: 43.1 in; 1095 mm
Width: 84 in; 2134 mm
Tine Spacing: 270-1924 mm (10.6-76 in) centerline to centerline; 270-1924 mm (10.6-76 in) centerline to centerline
