Overview
Stack, carry and sort piles of lumber.

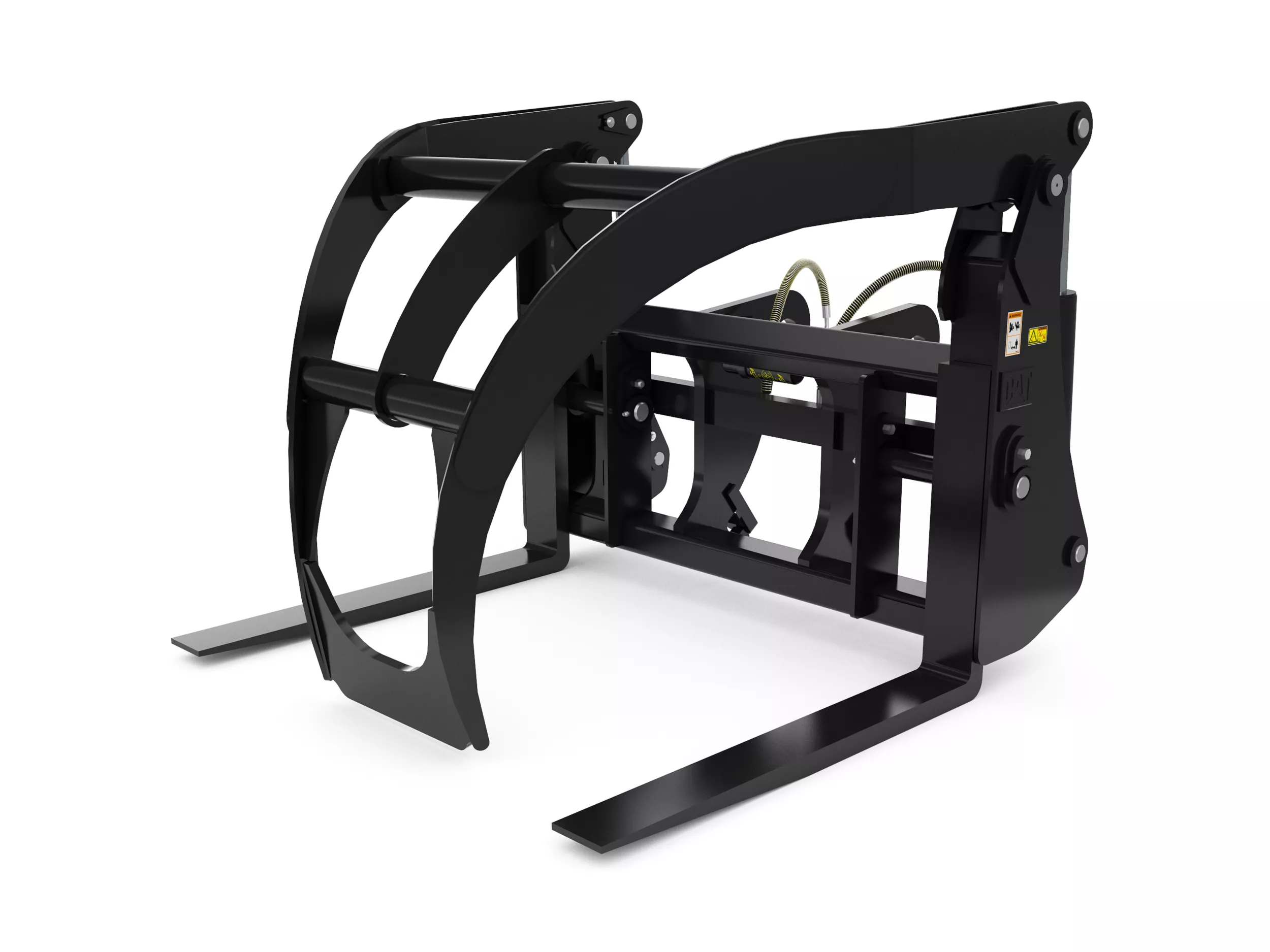

Semi Millyard Forks 1524 mm (60 in), Fusion™ Coupler
Request A Price Shop NowKey Specs
- Width
- 84 in
- 2134 mm
- Tine Spacing - Maximum Width
- 82.1 in
- 2086 mm
- Tine Spacing - Minimum Width
- 60.9 in
- 1547 mm
Features At A Glance
Displaying 1-6 of 6
Application
Efficiently unload and load from trucks, capably sort pole and decking inventory in the yard, effectively feed sawmills and handle other long or bulky material.
90 Degree Flat Back Tines
90 degree flat back tines allows for carrying palletized lumber and other items as well as loose logs.
Adjustable Tine Spacing
Adjustable tines can be configured to 9 different spacing setups, allowing for complete flexibility to your particular applications.
Narrow Top Clamp
Narrow top clamp is designed to close between the tines, which would allow the operator to clamp tightly on a single log.
Floating/Non-Floating Tines
Floating/non-floating tines are adjustable to 3 different spacing configurations, and can be locked, or setup to float.
Tool Mounted Operation and Maintenance Manual Holder
Tool mounted and sealed from the elements, holder includes all operation manuals and maintenance guides required for proper operation of the work tool.
Product Specifications for 1524 mm (60 in), Fusion™ Coupler
| Width | 84 in 2134 mm |
| Tine Spacing - Maximum Width | 82.1 in 2086 mm |
| Tine Spacing - Minimum Width | 60.9 in 1547 mm |
| Tine Length | 60 in 1524 mm |
| Tine Width | 6 in 152 mm |
| Maximum Clamp Opening | 98.8 in 2510 mm |
| Minimum Clamp Opening | 6 in 152 mm |
| Weight | 4627.5 lb 2099 kg |
| Interface Type | Fusion™ Coupler Fusion™ Coupler |
See how 1524 mm (60 in), Fusion™ Coupler compares against frequently compared products.
Forks
1524 mm (60 in), Fusion™ Coupler
Selected
- Width
- 84 in
- 2134 mm
- Tine Spacing - Maximum Width
- 82.1 in
- 2086 mm
- Tine Spacing - Minimum Width
- 60.9 in
- 1547 mm
Forks
1372 mm (54 in), Fusion™ Coupler
- Width
- 70 in
- 1778 mm
- Tine Spacing - Maximum Width
- 65.7 in
- 1670 mm
- Tine Spacing - Minimum Width
- 47.6 in
- 1210 mm
Forks
1219 mm (48 in), Fusion™ Coupler
- Width
- 70 in
- 1778 mm
- Tine Spacing - Maximum Width
- 65.7 in
- 1670 mm
- Tine Spacing - Minimum Width
- 47.6 in
- 1210 mm
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos
360 View
Studio Shot
Front View
Top View
Left View
Rear View
Bottom View
Right View
Semi Millyard Forks loading loose logs.
Semi Millyard Forks carrying sawn lumber.
Cat® Semi Millyard Forks at Work
Cat® Semi Millyard Fork Features
Cat® Forks Attachment at Work
An Attachment for Every Job - Cat® Work Tool Attachments
