1627 mm (64 in), IT Coupler

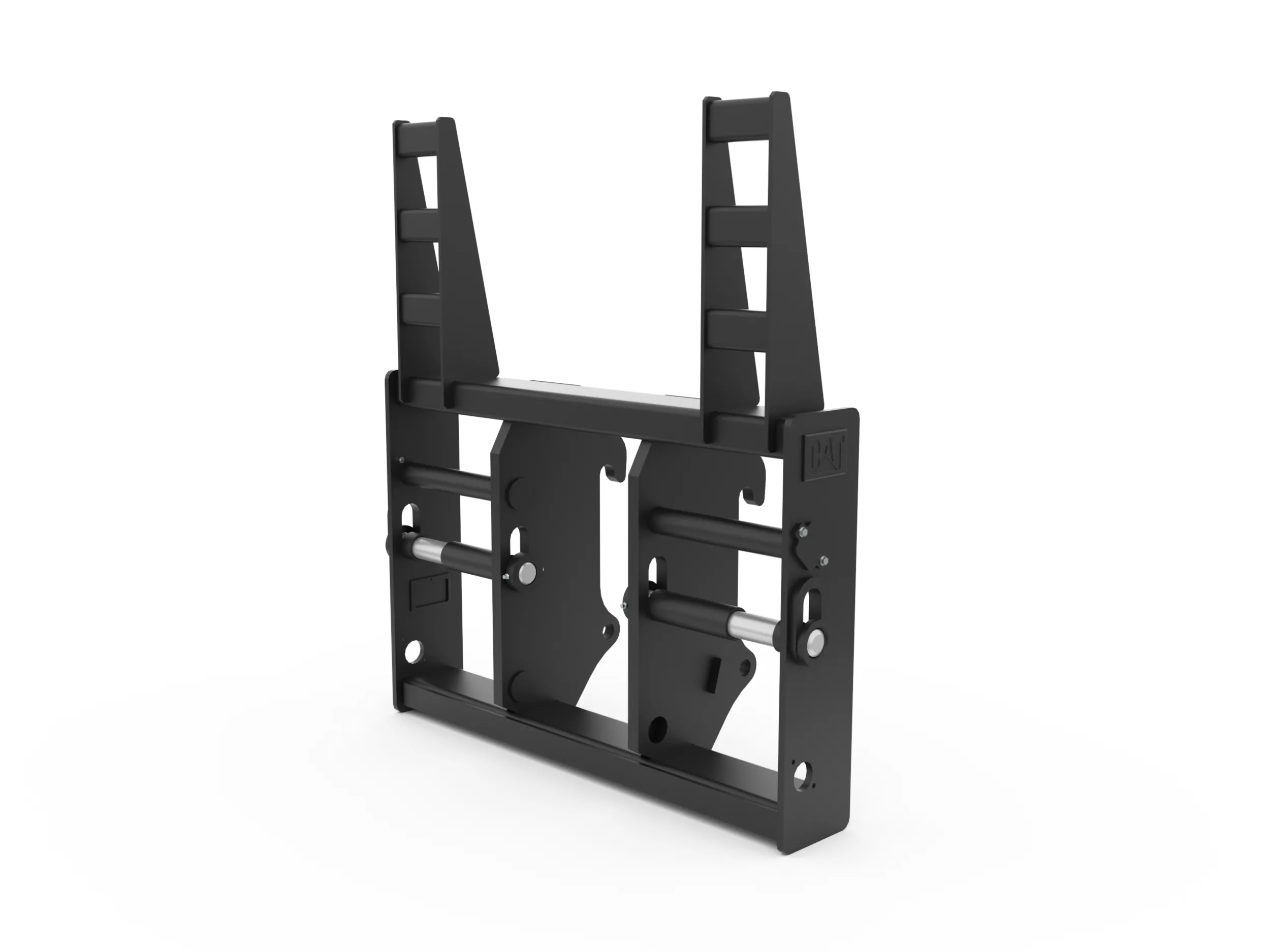

Log & Lumber Fork Carriages 1627 mm (64 in), IT Coupler

Request A Price Shop Now

Key Specs

Interface Type
IT Coupler
IT Coupler
Tine Configuration
Swinging, Floating
Swinging, Floating
Height
74 in
1880 mm

Overview

With several sizes and options available, log and lumber fork carriages provide the tools you need for your particular job.

Features At A Glance

Displaying 1-6 of 6

Cat

Application

Cat® Log & Lumber Fork Carriages are used to load, unload, move deck, sort and feed the mill. Their flat fork tines and raised guards are designed specifically for use in handling both unfinished logs and stacked lumber.
Cat

Risers / Log Guards

Risers and Log guards prevent logs from rolling back on to linkages. Maximizes the ability to fill the fork at every pass by supporting large loads.
Cat

Wider Carriages

Wider carriages increase stability when handling longer poles/loads.
Cat

Wider Tine Widths

Wider tine widths provide a larger surface area for stability when transporting larger materials.
Cat

Swinging / Non-swinging Tine Configuration

Forks can be configured to allow the tines to either swing or stay in a fixed position, using common hand tools.
Cat

Floating / Non-floating Tine Configuration

Easily interchange floating and non floating tine configurations by adding/removing a single bolt.

Product Specifications for 1627 mm (64 in), IT Coupler

Download Print
Interface Type IT Coupler IT Coupler
Tine Configuration Swinging, Floating Swinging, Floating
Height 74 in 1880 mm
Weight 1450.6 lb 658 kg
Width 67 in 1702 mm
Length 20.7 in 527 mm
Tine Spacing 909-1487 mm (36-59 in) 909-1487 mm (36-59 in)

See how 1627 mm (64 in), IT Coupler compares against frequently compared products.

Forks
Selected
1627 mm (64 in), IT Coupler
1627 mm (64 in), IT Coupler
Interface Type
IT Coupler
IT Coupler
Tine Configuration
Swinging, Floating
Swinging, Floating
Height
74 in
1880 mm
Forks
1627 mm (64 in), Fusion™ Coupler
1627 mm (64 in), Fusion™ Coupler
Interface Type
Fusion™ Coupler
Fusion™ Coupler
Tine Configuration
Swinging, Floating
Swinging, Floating
Height
74 in
1880 mm
View Details
Forks
1829 mm (72 in), Fusion™ Coupler
1829 mm (72 in), Fusion™ Coupler
Interface Type
Fusion™ Coupler
Fusion™ Coupler
Tine Configuration
Non-Swinging, Floating
Non-Swinging, Floating
Height
59.8 in
1520 mm
View Details
