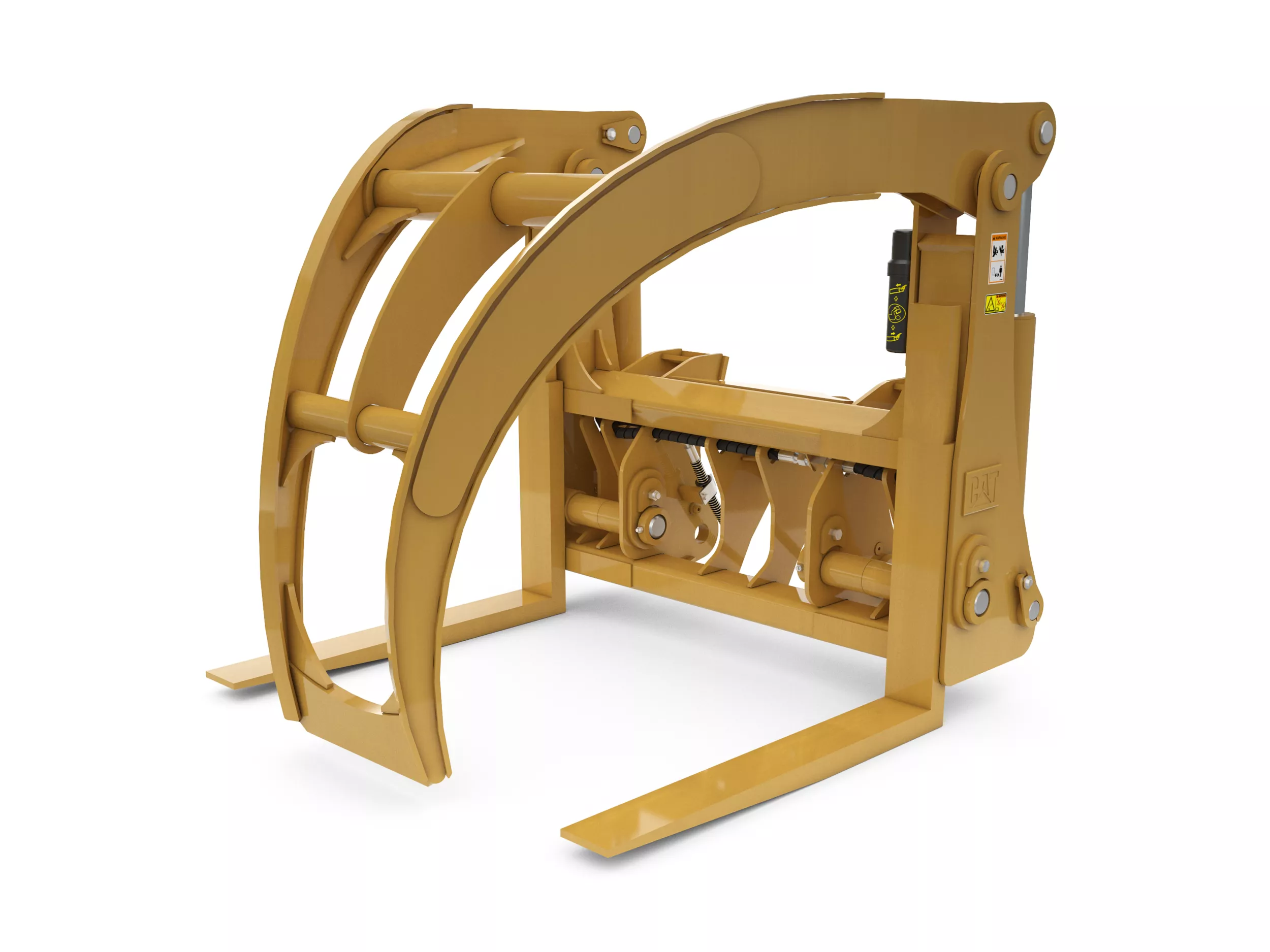

Semi Millyard Forks 1219 mm (48 in), Pin On

Request A Price Shop Now

Key Specs

Width: 70 in; 1778 mm

Tine Spacing - Maximum Width: 65.7 in; 1670 mm

Tine Spacing - Minimum Width: 47.6 in; 1210 mm

1219 mm (48 in), Pin On
Change model

Overview

Stack, carry and sort piles of lumber.

Features At A Glance

Efficiently unload and load from trucks, capably sort pole and decking inventory in the yard, effectively feed sawmills and handle other long or bulky material.

90 degree flat back tines allows for carrying palletized lumber and other items as well as loose logs.

Adjustable tines can be configured to 9 different spacing setups, allowing for complete flexibility to your particular applications.

Narrow top clamp is designed to close between the tines, which would allow the operator to clamp tightly on a single log.

Floating/non-floating tines are adjustable to 3 different spacing configurations, and can be locked, or setup to float.

Tool Mounted Operation and Maintenance Manual Holder

Tool mounted and sealed from the elements, holder includes all operation manuals and maintenance guides required for proper operation of the work tool.

Product Specifications for 1219 mm (48 in), Pin On

Width	70 in 1778 mm
Tine Spacing - Maximum Width	65.7 in 1670 mm
Tine Spacing - Minimum Width	47.6 in 1210 mm
Tine Length	48 in 1219 mm
Tine Width	6 in 152 mm
Maximum Clamp Opening	98.8 in 2510 mm
Minimum Clamp Opening	6 in 152 mm
Weight	3478.9 lb 1578 kg
Interface Type	Pin On Pin On

Product Specifications for 1219 mm (48 in), Pin On

Download Print

Width	70 in 1778 mm
Tine Spacing - Maximum Width	65.7 in 1670 mm
Tine Spacing - Minimum Width	47.6 in 1210 mm
Tine Length	48 in 1219 mm
Tine Width	6 in 152 mm
Maximum Clamp Opening	98.8 in 2510 mm
Minimum Clamp Opening	6 in 152 mm
Weight	3478.9 lb 1578 kg
Interface Type	Pin On Pin On
