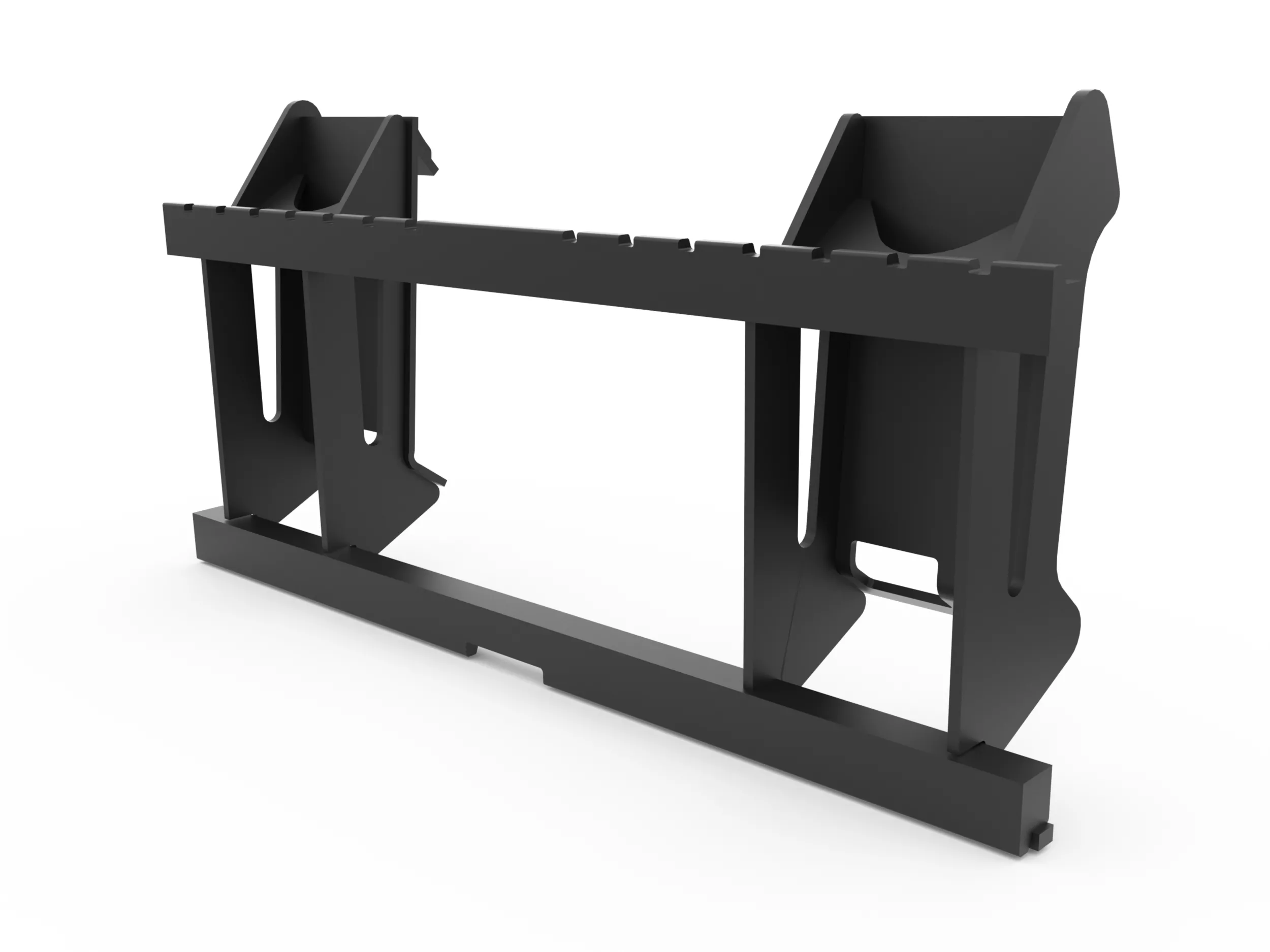

Pallet Fork Carriages 1300 mm (51 in), Skid Steer Coupler, Class III, 906-908

Request A Price Shop Now

Key Specs

Height: 25 in; 634 mm

Width: 51.2 in; 1300 mm

Overall Width: 51.7 in; 1312 mm

1300 mm (51 in), Skid Steer Coupler, Class III, 906-908
Change model

Overview

For moving palletized loads on construction sites, handling bagged fertilizer and seed at landscaping and nursery sites.

Features At A Glance

Displaying 1-6 of 4

Application

Used for a variety of material handling needs, such as moving bulky or palletized materials on construction and industrial sites, handling bagged fertilizer and seed at landscaping and nursery sites, and similar jobs.

Heavy Duty Backrest

Heavy-duty load backrest structure is functional, durable and easy to see through. It provides operator protection from shifting loads, while maintaining excellent visibility to the fork tips.

Notched Rail-type Carriage

Notched rail-type carriage design allows fork tines to be easily re-spaced or changed and locked into place.

One carriage for all carrying capacities

The fork carriage is designed to meet the load carrying capacity of the largest machine enabling one size to fit all models.

Product Specifications for 1300 mm (51 in), Skid Steer Coupler, Class III, 906-908

Height	25 in 634 mm
Width	51.2 in 1300 mm
Overall Width	51.7 in 1312 mm
Weight	242.9 lb 110.2 kg
Length	9.6 in 245 mm
Tine Spacing	250-1172 mm (9.8-46.1 in) 250-1172 mm (9.8-46.1 in)
Interface Type	Skid Steer Coupler Skid Steer Coupler

Product Specifications for 1300 mm (51 in), Skid Steer Coupler, Class III, 906-908

Download Print

Height	25 in 634 mm
Width	51.2 in 1300 mm
Overall Width	51.7 in 1312 mm
Weight	242.9 lb 110.2 kg
Length	9.6 in 245 mm
Tine Spacing	250-1172 mm (9.8-46.1 in) 250-1172 mm (9.8-46.1 in)
Interface Type	Skid Steer Coupler Skid Steer Coupler
