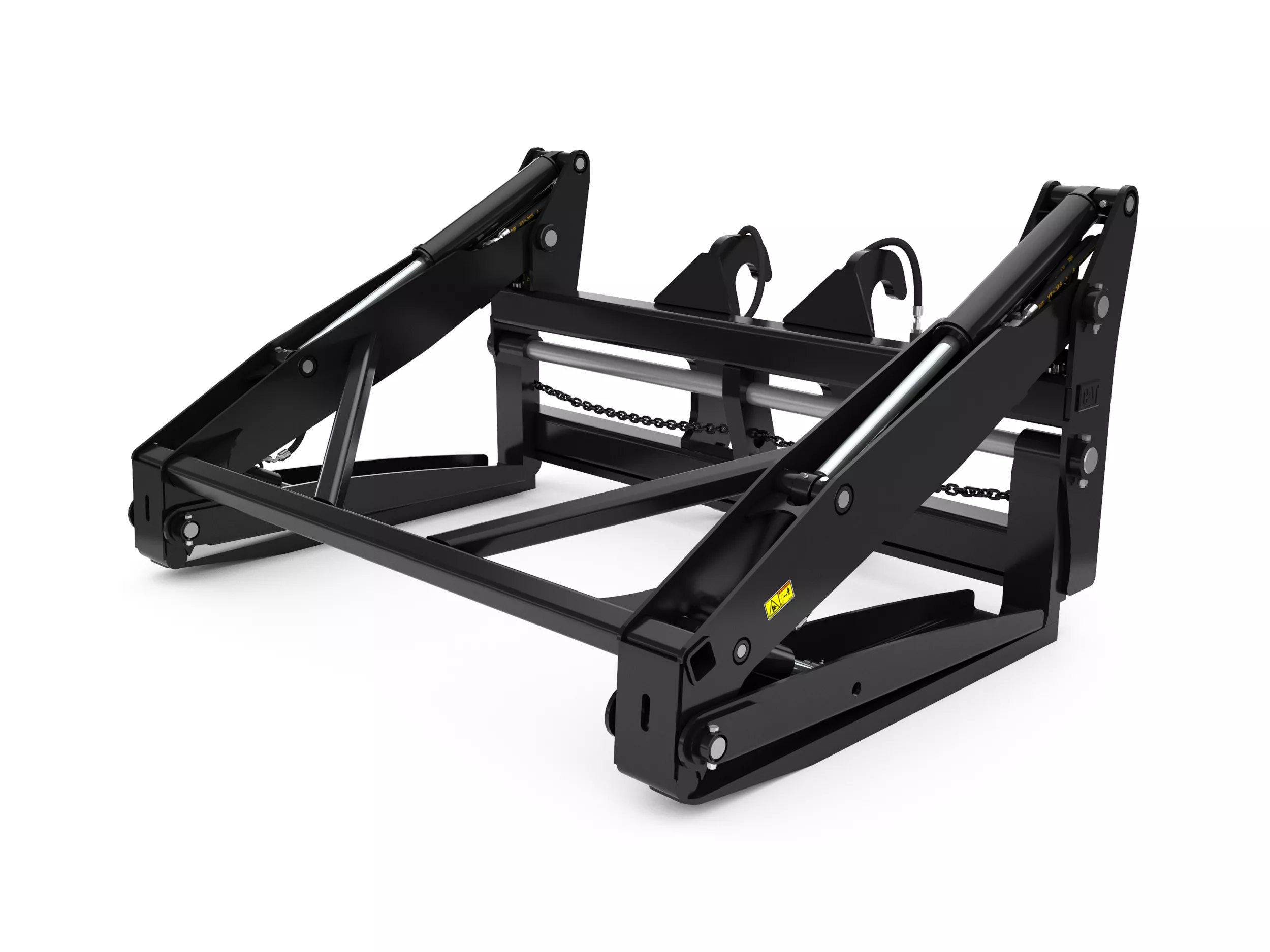

Pipe & Pole Forks 1524 mm (60 in), Fusion™ Coupler

Request A Price Shop Now

Key Specs

Width: 100.7 in; 2559 mm

Tine Length: 60 in; 1524 mm

Weight: 3505.3 lb; 1590 kg

1524 mm (60 in), Fusion™ Coupler
Change model

Overview

Cat® Pipe & Pole Forks are designed and built for use in oil and gas field drilling, pipe line construction and above-ground utilities work.

Features At A Glance

Displaying 1-6 of 5

Application

Developed with a robust structure, Cat® Pipe & Pole Forks allow for high performance carrying of 76 mm (3 in) pipe up to 762 mm (30 in), all while using the same tool.

Robust and Versatile Structure

Robust carriage and top clamp ensure high levels of production
Wide two-piece clamp holds pipe in place against tines and carriage
Clamp can be positioned for desirable diameter of materials
Single stems or multiple pieces, at the same diameter, can be transported at the same time, increasing productivity

Adjustable Tines

Tines width can be adjusted to better fit at application requirements
No tools required for adjustment

Protected Hydraulic Cylinders

The top clamp design allows the hydraulic cylinders to stay protected, avoiding undesirable damages at the cylinder and unexpected down time.

Pallets and other Materials

If palletized material transport is required, just totally open the clamp and use the carriage as a fork.

Developed with a robust structure, Cat® Pipe & Pole Forks allow for high performance carrying of 76 mm (3 in) pipe up to 762 mm (30 in), all while using the same tool.

Robust carriage and top clamp ensure high levels of production
Wide two-piece clamp holds pipe in place against tines and carriage
Clamp can be positioned for desirable diameter of materials
Single stems or multiple pieces, at the same diameter, can be transported at the same time, increasing productivity

Tines width can be adjusted to better fit at application requirements
No tools required for adjustment

The top clamp design allows the hydraulic cylinders to stay protected, avoiding undesirable damages at the cylinder and unexpected down time.

If palletized material transport is required, just totally open the clamp and use the carriage as a fork.

Product Specifications for 1524 mm (60 in), Fusion™ Coupler

Width	100.7 in 2559 mm
Tine Length	60 in 1524 mm
Weight	3505.3 lb 1590 kg
Interface Type	Fusion™ Coupler Fusion™ Coupler
Required Hydraulics	3rd Function 3rd Function
Carriage Height - Closed Clamp	52 in 1321 mm
Carriage Height - Open Clamp	112.3 in 2852 mm
Tine Spacing - Maximum Width	96 in 2438 mm
Tine Width	6 in 152 mm
Tine Thickness	2.5 in 64 mm
Load Capacity	5158.8 lb 2340 kg
