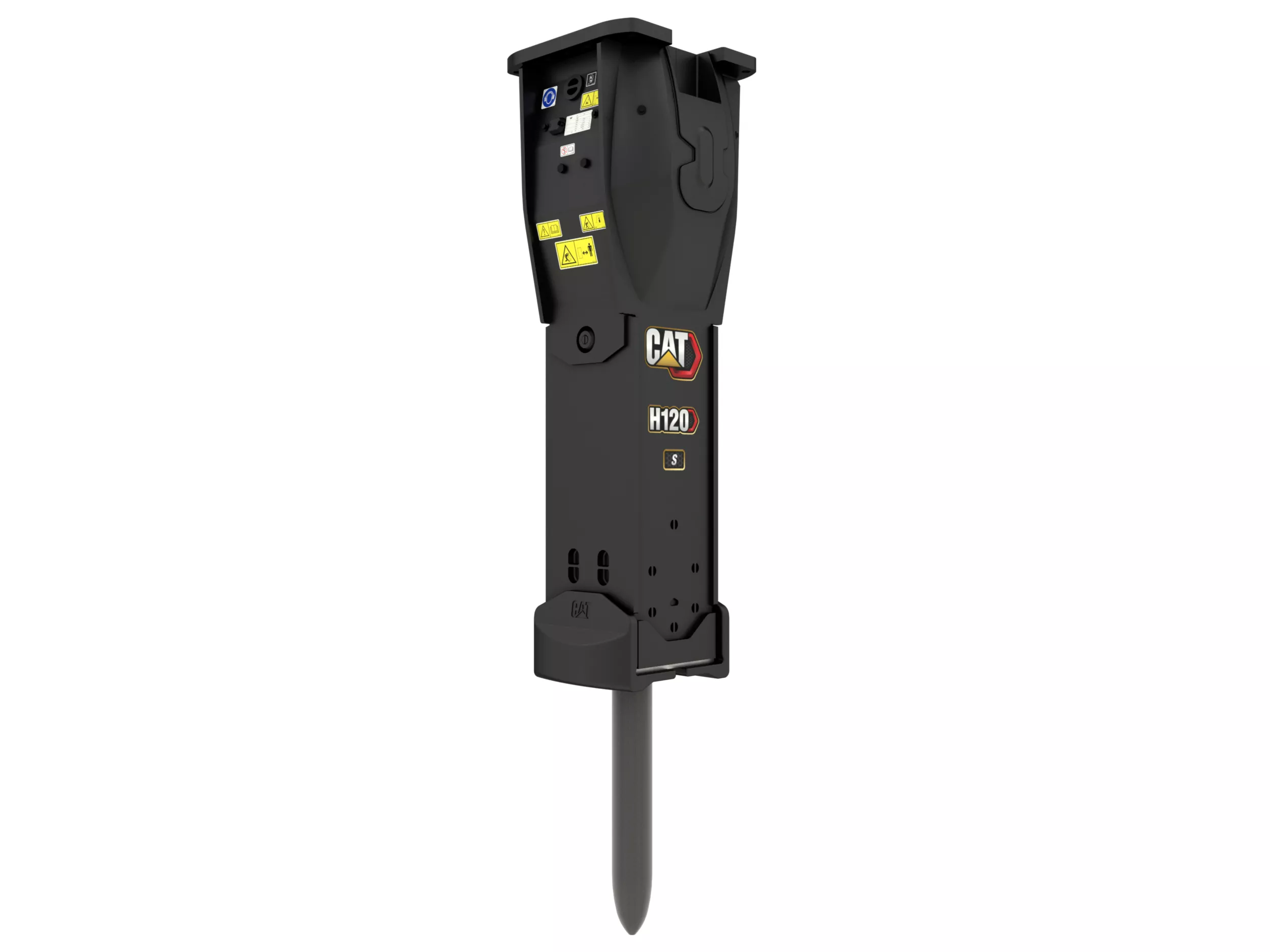

H120 S Performance Hammers H120 S Performance Hammer

Request A Price Find Dealer

Key Specs

Blows per Minute: 350 to 620; 350 to 620

Minimum Operating Weight: 3256 lb; 1480 kg

Rated Flow - Minimum: 26 gpm; 100 L/min

H120 S
Change model

Overview

Cat® H120 S Performance hammers are hydraulic attachments designed for rock breaking, concrete demolition, and site preparation tasks. Commonly used in construction, roadwork, trenching, and demolition applications, these hammers deliver consistent breaking performance in demanding jobsite conditions.

Benefits

Reduce maintenance downtime

Adapt to changing material conditions

Simplify service tasks

Features At A Glance

Displaying 1-6 of 4

Automatic hammer operation

Provides blank firing protection by stopping piston movement when no material is beneath the tool. An internal buffering system helps reduce machine vibration, and standard silencing supports operation in noise-regulated environments.

Adjustable impact control

Allows operators to select high piston speed or maximum power settings. An oil-fired operating cycle delivers power with each blow, while critical hydraulic components are protected within the hammer housing.

Simplified service design

Includes standard onboard autolube for continuous greasing during operation. Features a slip-fit, 90-degree rotatable lower bushing for field replacement, an oil-fired design that eliminates gas charge checks, and convenient maintenance access points.

Integrated asset tracking

Cat asset tracking is available on all hammers. Attachment location and status can be monitored in VisionLink™, and geofence alerts can be configured when assets leave designated site boundaries.

Product Specifications for H120 S

Blows per Minute	350 to 620 350 to 620
Minimum Operating Weight	3256 lb 1480 kg
Rated Flow - Minimum	26 gpm 100 L/min
Rated Flow - Maximum	45 gpm 170 L/min
Minimum Operating Pressure	1885 psi 13000 kPa
Maximum Operating Pressure	2175 psi 15000 kPa
Tool Shaft Diameter	4.7 in 120 mm
Minimum Carrier Weight	35300 lb 16 t
Maximum Carrier Weight	59500 lb 27 t

Product Specifications for H120 S

Download Print

Blows per Minute	350 to 620 350 to 620
Minimum Operating Weight	3256 lb 1480 kg
Rated Flow - Minimum	26 gpm 100 L/min
Rated Flow - Maximum	45 gpm 170 L/min
Minimum Operating Pressure	1885 psi 13000 kPa
Maximum Operating Pressure	2175 psi 15000 kPa
Tool Shaft Diameter	4.7 in 120 mm
Minimum Carrier Weight	35300 lb 16 t
Maximum Carrier Weight	59500 lb 27 t
