Overview

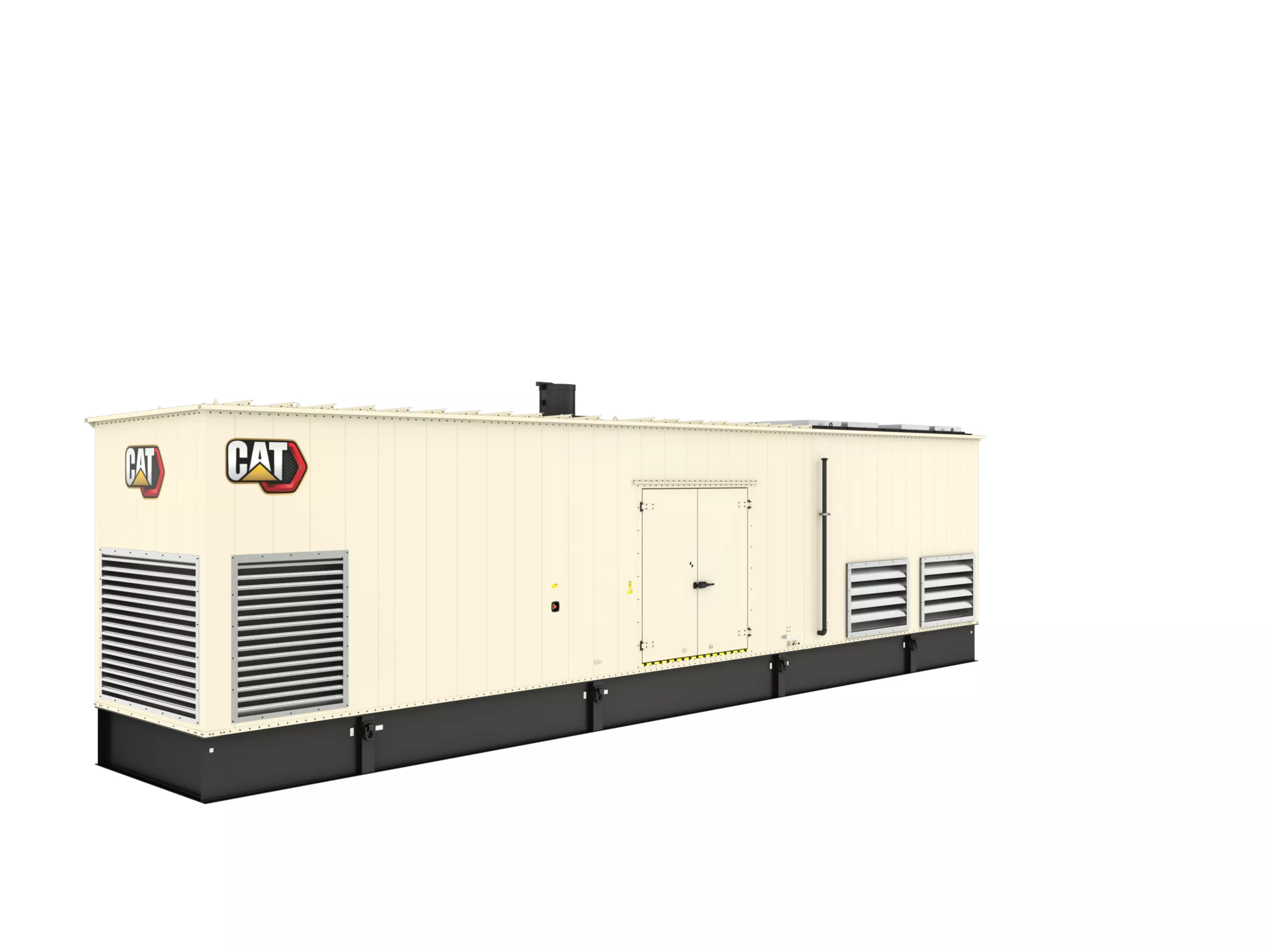

3516C 60Hz Sound Attenuated Enclosure
Video: https://youtu.be/5gpSphPxQuc
Electric Power: Genset Enclosures 3516C 60Hz Sound Attenuated Enclosure
Request A Price Find DealerKey Specs
- Height
- Level 1: 166.6 in Level 2: 197.1 in
- Level 1: 166.6 in Level 2: 197.1 in
- Width
- 105.2 in
- 105.2 in
- Length
- 546 in
- 546 in
Features At A Glance
Displaying 1-6 of 4
Robust/Highly Corrosion Resistant Construction
- Galvanneal construction
- NEC Code Compliant
- Internally mounted muffler/ exhaust system
- Level 2: 74 dBA at 7 m
- Level 1: 79 dBA at 7m
Excellent Access
- Control interface on rear of package
- Large cable entry area for ease of installation
- Personnel doors -Double doors on right side, single door on left side
- Maintenance doors - 2 doors on left side for radiator and air intake access
- Lube oil and coolant drains piped to exterior of enclosure
Security And Safety
- Lockable access doors with standard key use
- Cooling fan and battery charging alternator fully guarded
- Oil fill and battery can only be reached via lockable access
- Externally mounted emergency stop buttons on both sides of enclosure
Options
- Level 2 (sound box)
- Skid base (no fuel tank)
- Motorized louvers
- Space heater
- Jacket water heater
Product Specifications for 3516C 60Hz Sound Attenuated Enclosure
Weights and Dimensions
| Height | Level 1: 166.6 in Level 2: 197.1 in Level 1: 166.6 in Level 2: 197.1 in |
| Width | 105.2 in 105.2 in |
| Length | 546 in 546 in |
See how 3516C 60Hz Sound Attenuated Enclosure compares against frequently compared products.
Electric Power: Genset Enclosures
3516C 60Hz Sound Attenuated Enclosure
Selected
- Height
- Level 1: 166.6 in Level 2: 197.1 in
- Level 1: 166.6 in Level 2: 197.1 in
- Width
- 105.2 in
- 105.2 in
- Length
- 546 in
- 546 in
Electric Power: Genset Enclosures
C27 and C32 Sound Attenuated Enclosure
- Height
- 148 in
- 148 in
- Width
- 100.6 in
- 100.6 in
- Weight
- 13122 lb
- 13122 lb
Electric Power: Genset Enclosures
C18 Tier 4 Final Sound Attenuated Enclosure
- Height
- 96.4 in - 111.4 in Package Heights
- 96.4 in - 111.4 in Package Heights
- Weight
- 2041 lb
- 2041 lb
- Length
- 228.7 in - 249.4 in Package Lengths
- 228.7 in - 249.4 in Package Lengths
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos
360 View
Enclosure Level 1 Rear Right
Enclosure Level 1 Rear Left
Enclosure Level 1 Front left
Enclosure Level 1 Front Right
Enclosure Level 2 Rear Right
Enclosure Level 2 Rear left
Enclosure Level 2 Front Left
Enclosure Level 2 Front Right
3516C Enclosure - 2.0 eMW
