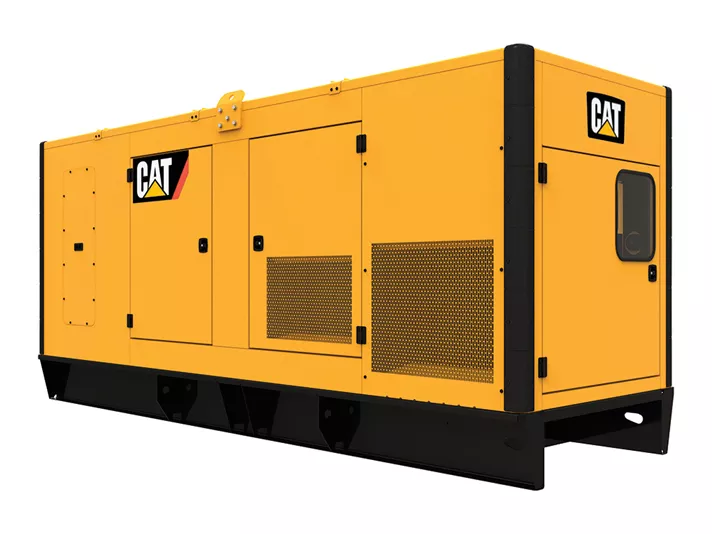

C15 Sound Attenuated Enclosure 50 and 60 Hz

Electric Power: Genset Enclosures C15 Sound Attenuated Enclosure 50 and 60 Hz

Request A Price Find Dealer

Key Specs

Length
4930 mm
4930 mm
Width
1658 mm
1658 mm
Weight
5071 kg
5071 kg

Overview

These sound attenuated, factory installed enclosures incorporate internally mounted super critical level silencers, designed for safety and aesthetic value on integral fuel tank base or optional dual wall integral fuel tank base for total fluid containment.

Features At A Glance

Displaying 1-6 of 4

Cat

Robust / Highly Corrosion Resistant Construction

  • Factory installed on integral fuel tank base
  • Environmentally friendly, polyester powder baked paint
  • 1.6 mm (0.063 in) galvanized steel
  • All round overhanging base to protect enclosure
  • High-grade engineering thermoplastic corner posts for protection
  • Integral lifting frame
  • Compression door latches giving solid door seal
  • Zinc plated or black coated stainless steel fasteners
  • Internally mounted super critical exhaust silencing system
Cat

Excellent Access

  • Large cable entry area for installation ease
  • Accommodates rear mounted breaker and control panel
  • Double doors on both sides
  • Vertically hinged doors with solid bar door stays to hold doors open at 135° rotation
  • Lube oil and coolant drains pipes to exterior of enclosure and terminated drain valves
  • Radiator fill cover
Cat

Security And Safety

  • Lockable access doors which give full access to control panel and breaker
  • Cooling fan and battery charging alternator fully guarded
  • Fuel fill, oil fill and battery can only be reached via lockable access
  • Externally mounted emergency stop button
  • Designed for spreader-bar lifting to ensure safety
  • Control panel viewing window
  • Stub-up area is rodent proof
Cat

Options

  • Caterpillar yellow or white paint
  • Integral dual wall fuel tank base for total fluid containment (fuel, oil and coolant)

Product Specifications for C15 Sound Attenuated Enclosure 50 and 60 Hz

Length 4930 mm 4930 mm
Width 1658 mm 1658 mm
Weight 5071 kg 5071 kg
Height 2221 mm 2221 mm

See how C15 Sound Attenuated Enclosure 50 and 60 Hz compares against frequently compared products.
