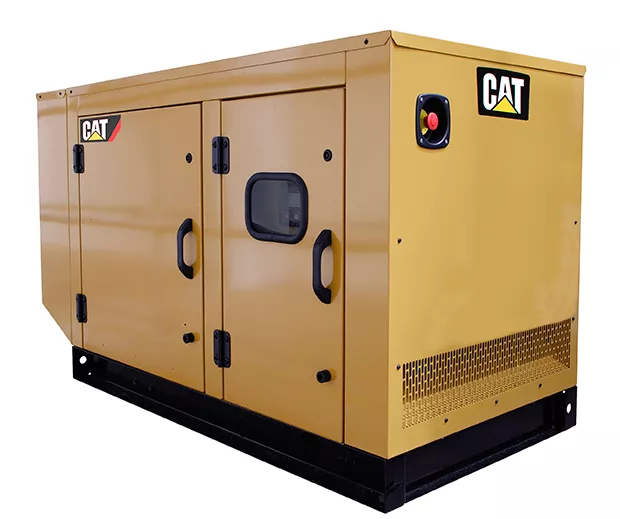

6.8-22 kVA SA Lvl1, Lvl2 & Lvl3 (B Series)

Electric Power: Genset Enclosures 6.8-22 kVA SA Lvl1, Lvl2 & Lvl3 (B Series)

Request A Price Find Dealer

Key Specs

Height
2289 mm
2289 mm
Width
1920 mm
1920 mm
Length
5320 mm
5320 mm

Overview

The compact design of the 6.8 – 22 kVA SA Level 1, Level 2 and Level 3 enclosures range provides the flexibility of optimum sound attenuation depending on requirements. Designed on modular principles, the enclosures will have lift off doors or vertically hinged doors providing optimal service and maintenance access.

Features At A Glance

Displaying 1-6 of 4

Cat

Robust/Highly Corrosion Resistant Construction

  • Factory installed on integral fuel tank base
  • Environmentally friendly, polyester powder
  • baked paint
  • 1.6 mm (0.063 in) galvanized steel
  • All around overhanging base to protect enclosure
  • High-grade engineering thermoplastic corner posts for protection
  • Compression door latches giving solid door seal
  • Zinc plated or black coated stainless steel
  • fasteners
  • Internally mounted residential exhaust silencing system
Cat

Excellent Access

  • Large cable entry area for installation ease
  • Accommodates rear mounted breaker and
    • control panel
  • Double doors on both sides
  • Vertically hinged doors with solid bar door
    • stays to hold doors open at 135° rotation
  • Lube oil and coolant drains pipes to exterior
    • of enclosure and terminated drain valves
  • Radiator fill cover
Cat

Security And Safety

  • Lockable access doors which give full access to control panel and breaker
  • Cooling fan and battery charging alternator fully guarded
  • Fuel fill, oil fill and battery can only be reached via lockable access
  • Externally mounted emergency stop button
  • Designed for spreader-bar lifting to ensure safety
  • Control panel viewing window
  • Stub-up area is rodent proof
Cat

Options

  • Cat® yellow or white paint
  • Integral dual wall fuel tank base for total fluid containment (fuel, oil and coolant)

Product Specifications for 6.8-22 kVA SA Lvl1, Lvl2 & Lvl3 (B Series)

Download Print
Height 2289 mm 2289 mm
Width 1920 mm 1920 mm
Length 5320 mm 5320 mm
Weight 5952 kg 5952 kg
