Electric Power: Genset Enclosures 24-220 kVA SA Lvl 2 Enclosure

Request A Price Find Dealer

Key Specs

Width: 980 - 11130 mm; 980 - 11130 mm

Length: 2120 - 3520 mm; 2120 - 3520 mm

Height: 1519 - 1809 mm; 1519 - 1809 mm

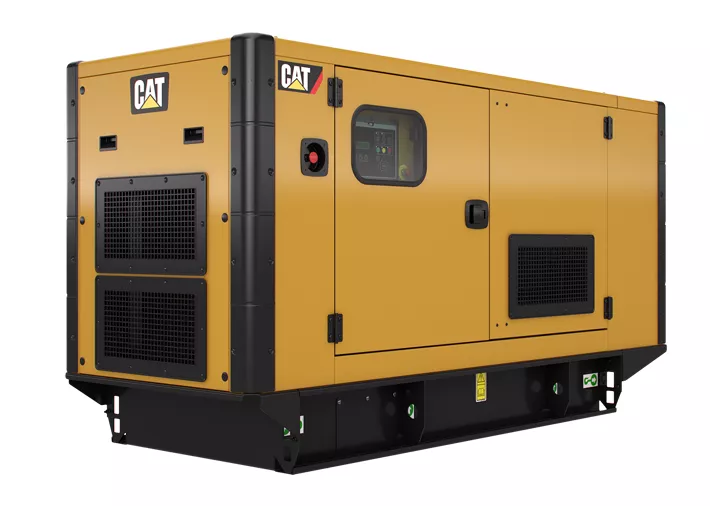

24-220 kVA SA Lvl 2 Enclosure
Change model

Overview

The sound attenuated Level 2, factory installed enclosures incorporate internally mounted critical level silencers. They are the premium enclosure offering for this range, designed for safety and aesthetic value on an integral fuel tank base. Extremely durable and weather resistant, these enclosures are designed to resist corrosion and handling damage.

Features At A Glance

Displaying 1-6 of 4

Durable and Robust Construction

Galvanised steel protected by powder coat paint
Black finish stainless steel locks and hinges
Zinc plated / stainless steel fasteners

Excellent Service and Maintenance Access

Side hinged doors on both sides of the enclosure opening to 180°
Side hinged doors lift off at 90°
Removable front and rear access panels
Lube oil and coolant drain valves

Security and Safety

Control panel viewing via large viewing window in lockable enclosure door
Emergency stop push button mounted on enclosure exterior below control panel
Cooling fan and battery charging alternator fully guarded
Fuel fill and battery can only be reached via lockable access doors
Fully enclosed exhaust silencing system for operator safety

Transportability

Lifting points on base frame facilitating handling from both sides

Galvanised steel protected by powder coat paint
Black finish stainless steel locks and hinges
Zinc plated / stainless steel fasteners

Side hinged doors on both sides of the enclosure opening to 180°
Side hinged doors lift off at 90°
Removable front and rear access panels
Lube oil and coolant drain valves

Control panel viewing via large viewing window in lockable enclosure door
Emergency stop push button mounted on enclosure exterior below control panel
Cooling fan and battery charging alternator fully guarded
Fuel fill and battery can only be reached via lockable access doors
Fully enclosed exhaust silencing system for operator safety

Lifting points on base frame facilitating handling from both sides

Product Specifications for 24-220 kVA SA Lvl 2 Enclosure

Download Print

Weights and Dimensions

Width	980 - 11130 mm 980 - 11130 mm
Length	2120 - 3520 mm 2120 - 3520 mm
Height	1519 - 1809 mm 1519 - 1809 mm
Weight	991 - 2238 kg 991 - 2238 kg
