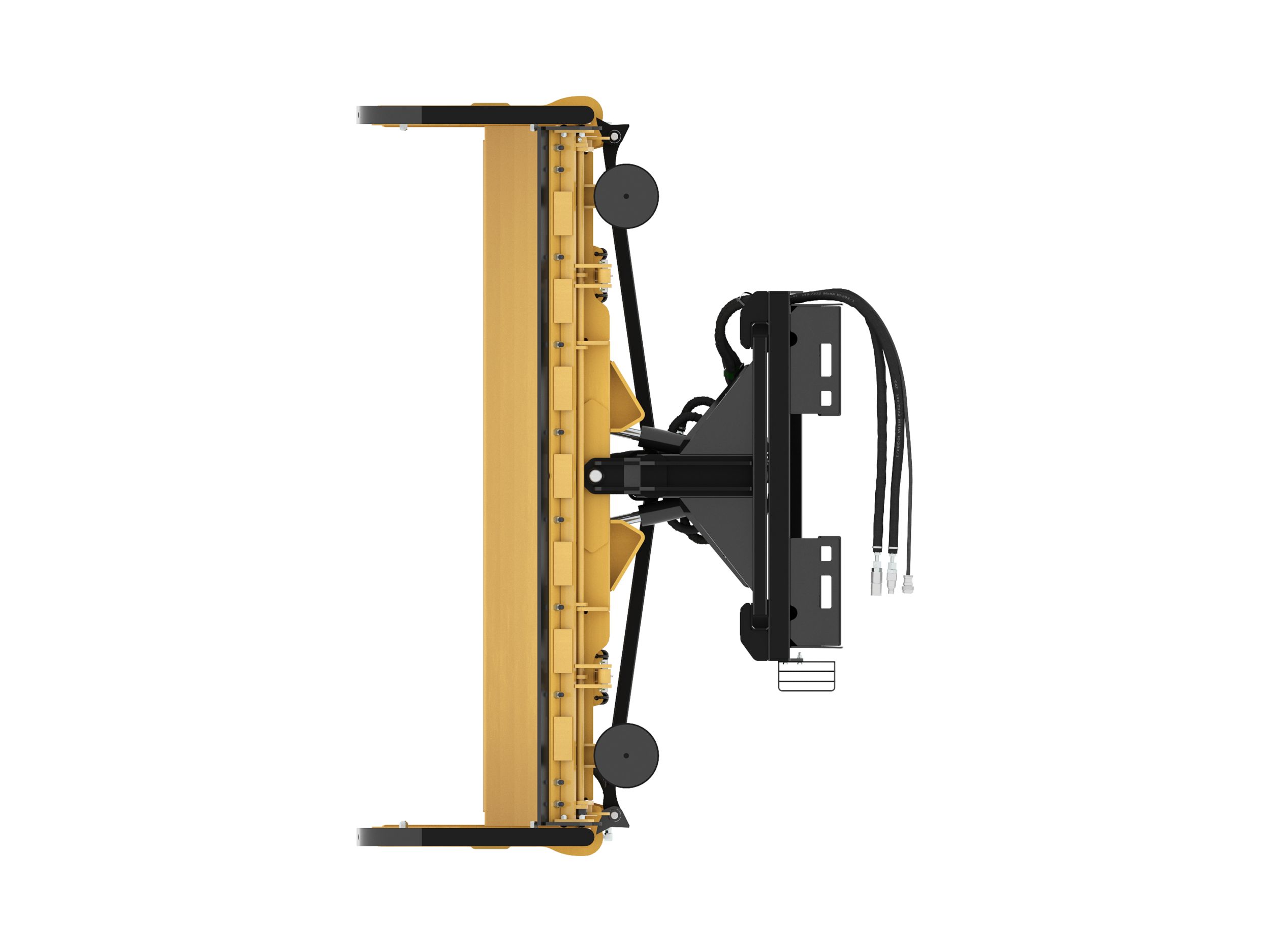

Snow Wings 2.4 m (8 ft), Skid Steer Coupler

Request A Price Shop Now

Key Specs

Working Width (Wings Closed): 96.5 in; 2451 mm

Overall Width (Wings Closed): 104.2 in; 2647 mm

Overall Width (Wings Open): 161.7 in; 4106 mm

2.4 m (8 ft), Skid Steer Coupler
Change model

Overview

With independently controlled wings and angling capability, the attachment can be configured to suit the needs of any job and continue to adapt to ever changing needs.

Features At A Glance

Displaying 1-6 of 12

Curved Moldboard

Curved moldboard design rolls and folds the snow while windrowing, minimizing snow clinging to its surface and spilling over the top.

Adjustable Rear Skid Shoes

Adjustable skid shoes reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting edge depth.

Lateral Float

Lateral float allows the plow the ability to pivot up to five degrees about the plow frame allowing the blade to follow surface contours and plow more efficiently.

Adjustable Trip Edges

Adjustable trip edges are incorporated into the base of each wing. Sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the wing and machine.

Bolt-On Serrated Step

Bolt-On serrated step provides safe and ergonomic access to machine cab that is replaceable if damaged.

Rotary Actuators

Allows 180 degrees of rotation for each wing for maximum versatility. Both wings are independently controlled. The use of actuators rather than cylinders also keeps the components better protected from damage.

Curved moldboard design rolls and folds the snow while windrowing, minimizing snow clinging to its surface and spilling over the top.

Adjustable skid shoes reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting edge depth.

Lateral float allows the plow the ability to pivot up to five degrees about the plow frame allowing the blade to follow surface contours and plow more efficiently.

Adjustable trip edges are incorporated into the base of each wing. Sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the wing and machine.

Bolt-On serrated step provides safe and ergonomic access to machine cab that is replaceable if damaged.

Stops on the attachment keep the wings from contacting the tires or tracks of the machine regardless of plow angle to prevent damage.

Plow can angle left or right 35 degrees allowing the operator more control over direction of the snow.

Cutting edge is easy to replace, and can be reversed when dull to get another life.

Follow surface contour for more consistent snow clearing.

Crossover relief allows plow to angle if it impacts a solid object. This helps prevent damage to the attachment in extreme conditions.

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Product Specifications for 2.4 m (8 ft), Skid Steer Coupler

Working Width (Wings Closed)	96.5 in 2451 mm
Overall Width (Wings Closed)	104.2 in 2647 mm
Overall Width (Wings Open)	161.7 in 4106 mm
Working Width (Wings Open)	161.7 in 4106 mm
Weight	1911.4 lb 867 kg
Length	67.1 in 1705 mm
Overall Height	36 in 915 mm
Hydraulic Angling - Left/Right of Center	±35 Degrees ±35 Degrees
Float	±5 Degrees ±5 Degrees
Wing Rotation	180 Degrees 180 Degrees
Optimal Hydraulic Flow	76-87 L/min (20-23 gpm) 76-87 L/min (20-23 gpm)
Optimal Hydraulic Pressure	200-230 bar (2800-3300 psi) 200-230 bar (2800-3300 psi)
Interface Type	Skid Steer Coupler Skid Steer Coupler
Trip Edge Type	Steel Steel
Trip Edge Height	5.1 in 130 mm
Trip Edge Quantity	1 1
Required Hydraulics	Standard Flow w/14 pin Electrical Standard Flow w/14 pin Electrical

Product Specifications for 2.4 m (8 ft), Skid Steer Coupler

Download Print

Working Width (Wings Closed)	96.5 in 2451 mm
Overall Width (Wings Closed)	104.2 in 2647 mm
Overall Width (Wings Open)	161.7 in 4106 mm
Working Width (Wings Open)	161.7 in 4106 mm
Weight	1911.4 lb 867 kg
Length	67.1 in 1705 mm
Overall Height	36 in 915 mm
Hydraulic Angling - Left/Right of Center	±35 Degrees ±35 Degrees
Float	±5 Degrees ±5 Degrees
Wing Rotation	180 Degrees 180 Degrees
Optimal Hydraulic Flow	76-87 L/min (20-23 gpm) 76-87 L/min (20-23 gpm)
Optimal Hydraulic Pressure	200-230 bar (2800-3300 psi) 200-230 bar (2800-3300 psi)
Interface Type	Skid Steer Coupler Skid Steer Coupler
Trip Edge Type	Steel Steel
Trip Edge Height	5.1 in 130 mm
Trip Edge Quantity	1 1
Required Hydraulics	Standard Flow w/14 pin Electrical Standard Flow w/14 pin Electrical
