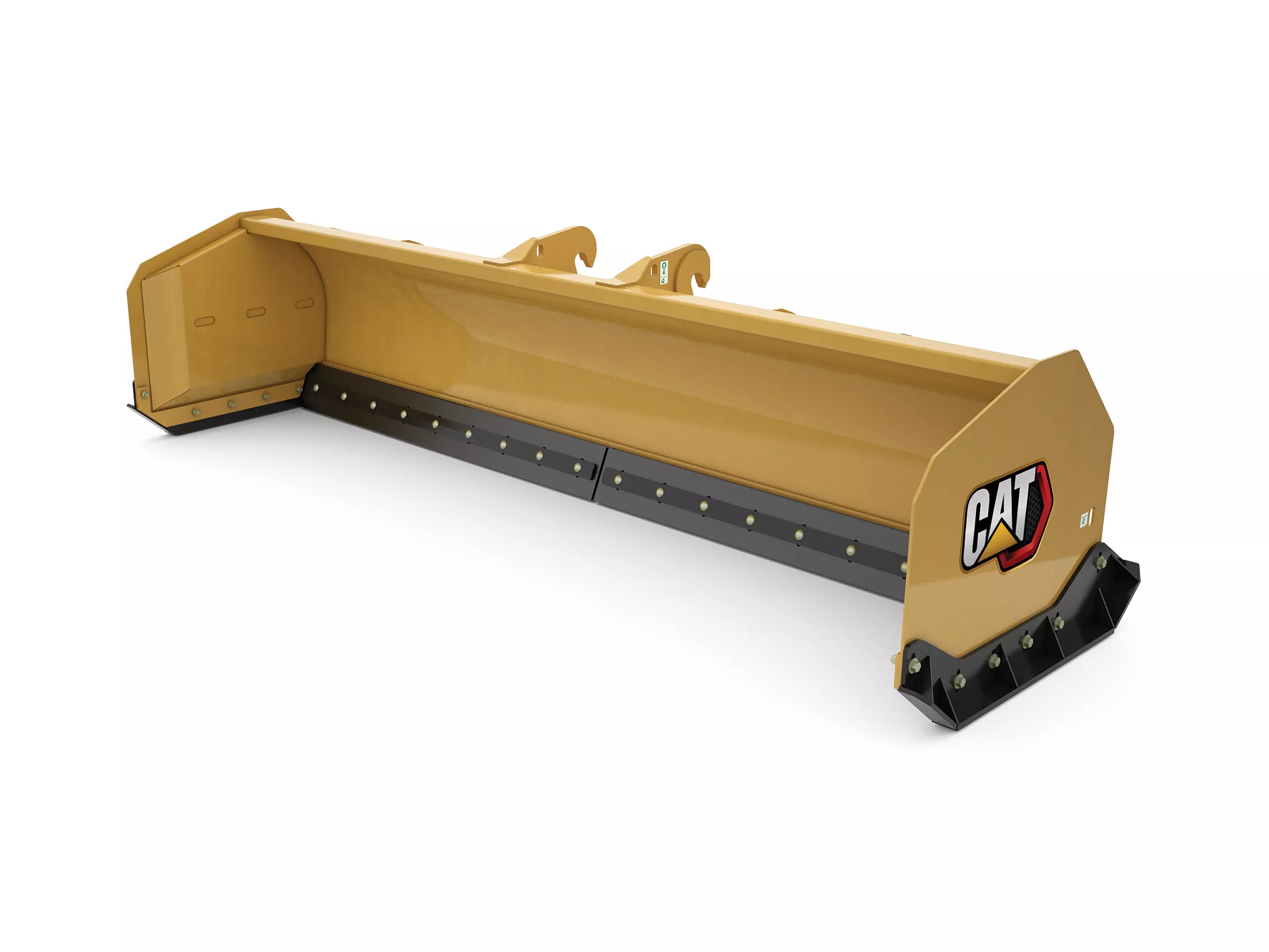

Straight Snow Pushes 3.66 m (12 ft), IT Coupler, Rubber Trip Edge

Request A Price Shop Now

Key Specs

Working Width: 144 in; 3658 mm

Weight: 1865.1 lb; 846 kg

Length: 50.4 in; 1279 mm

3.66 m (12 ft), IT Coupler, Rubber Trip Edge
Change model

Overview

Unique design efficiently removes snow minimizing passes and reducing salt build up.

Features At A Glance

Displaying 1-6 of 7

Adjustable Trip Edge System

Fitted with up to-two cutting edges, most Cat® Snow Pushes are equipped with a trip edge system incorporated in the base. The sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the Snow Push and machine. A no-trip rubber cutting edge option is available in 2.6 m (8 ft), 3.2 m (10 ft), and 3.8 m (12 ft) sizes that fit all models that utilize a Skid Steer Coupler.

Cutting Edge Options

Rubber or steel, bolt-on cutting edges are available for all size pushes. Rubber edges minimize damage to the surface being plowed while steel edges cut or throw hard packed snow or ice.

Streamlined Sidewall Design

Streamlined sidewall support in addition to the large torque tube across the moldboard, delivers long life and high performance in the most demanding of snow removal application. Outside box support is designed to minimize snow cling to the moldboard in addition to providing excellent support to the outer push sections.

Adjustable Skid Shoes

Adjustable skid shoes allow adjustability of cutting edge height to maintain a constant cutting edge depth.

Profiled Moldboard

Profiled moldboard design rolls and folds snow, maximizing capacity of the snow push and improving productivity by minimizing snow clinging to its surface.

Bolt-On Step

Bolt-On step provides safe and ergonomic access to machine cab that is easily replaceable if damaged.

Rubber or steel, bolt-on cutting edges are available for all size pushes. Rubber edges minimize damage to the surface being plowed while steel edges cut or throw hard packed snow or ice.

Adjustable skid shoes allow adjustability of cutting edge height to maintain a constant cutting edge depth.

Profiled moldboard design rolls and folds snow, maximizing capacity of the snow push and improving productivity by minimizing snow clinging to its surface.

Bolt-On step provides safe and ergonomic access to machine cab that is easily replaceable if damaged.

Optional back drag equipped with rubber edge allows snow to be pulled away from loading docks, doors, and other tight spaces.

Product Specifications for 3.66 m (12 ft), IT Coupler, Rubber Trip Edge

Working Width	144 in 3658 mm
Weight	1865.1 lb 846 kg
Length	50.4 in 1279 mm
Moldboard Height	35.7 in 906 mm
Overall Height	38.4 in 975 mm
Interface Type	IT Coupler IT Coupler
Trip Edge Type	Rubber With Trip Edge Rubber With Trip Edge
Trip Edge Height	5.4 in 137 mm
Trip Edge Quantity	2 2
Overall Width	150.7 in 3829 mm

Product Specifications for 3.66 m (12 ft), IT Coupler, Rubber Trip Edge

Download Print

Working Width	144 in 3658 mm
Weight	1865.1 lb 846 kg
Length	50.4 in 1279 mm
Moldboard Height	35.7 in 906 mm
Overall Height	38.4 in 975 mm
Interface Type	IT Coupler IT Coupler
Trip Edge Type	Rubber With Trip Edge Rubber With Trip Edge
Trip Edge Height	5.4 in 137 mm
Trip Edge Quantity	2 2
Overall Width	150.7 in 3829 mm
