Overview
Unique design efficiently removes snow minimizing passes and reducing salt build up.

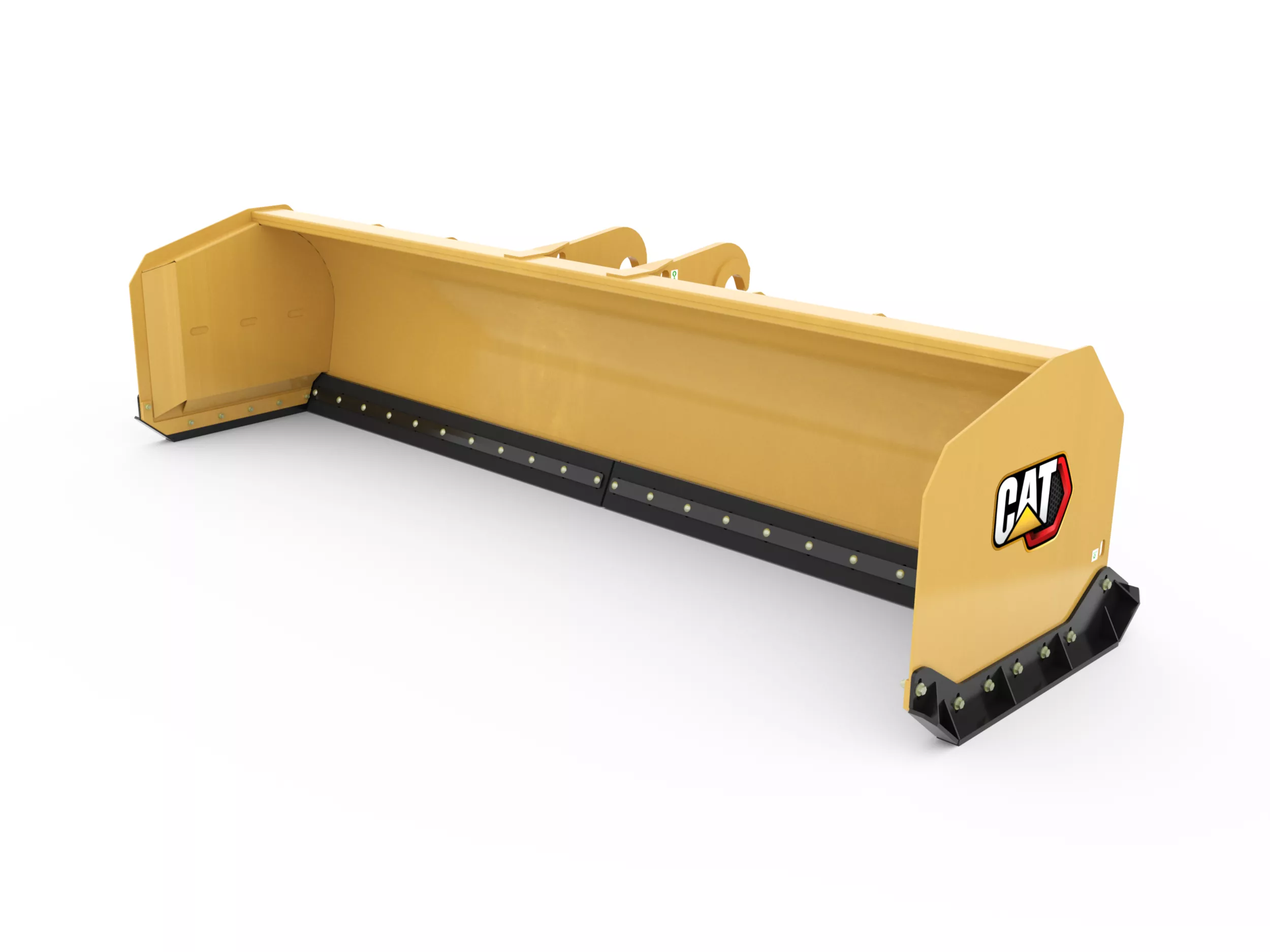

Straight Snow Pushes 4.26 m (14 ft), Fusion™ Coupler, Rubber Trip Edge
Request A Price Shop NowKey Specs
- Working Width
- 168 in
- 4267 mm
- Weight
- 3018.1 lb
- 1369 kg
- Length
- 62 in
- 1574 mm
Features At A Glance
Displaying 1-6 of 7
Adjustable Trip Edge System
Fitted with up to-two cutting edges, most Cat® Snow Pushes are equipped with a trip edge system incorporated in the base. The sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the Snow Push and machine. A no-trip rubber cutting edge option is available in 2.6 m (8 ft), 3.2 m (10 ft), and 3.8 m (12 ft) sizes that fit all models that utilize a Skid Steer Coupler.
Cutting Edge Options
Rubber or steel, bolt-on cutting edges are available for all size pushes. Rubber edges minimize damage to the surface being plowed while steel edges cut or throw hard packed snow or ice.
Streamlined Sidewall Design
Streamlined sidewall support in addition to the large torque tube across the moldboard, delivers long life and high performance in the most demanding of snow removal application. Outside box support is designed to minimize snow cling to the moldboard in addition to providing excellent support to the outer push sections.
Adjustable Skid Shoes
Adjustable skid shoes allow adjustability of cutting edge height to maintain a constant cutting edge depth.
Profiled Moldboard
Profiled moldboard design rolls and folds snow, maximizing capacity of the snow push and improving productivity by minimizing snow clinging to its surface.
Bolt-On Step
Bolt-On step provides safe and ergonomic access to machine cab that is easily replaceable if damaged.
Product Specifications for 4.26 m (14 ft), Fusion™ Coupler, Rubber Trip Edge
| Working Width | 168 in 4267 mm |
| Weight | 3018.1 lb 1369 kg |
| Length | 62 in 1574 mm |
| Moldboard Height | 34.6 in 878 mm |
| Overall Height | 44.4 in 1128 mm |
| Interface Type | Fusion™ Coupler Fusion™ Coupler |
| Trip Edge Type | Rubber With Trip Edge Rubber With Trip Edge |
| Trip Edge Height | 7.6 in 193.5 mm |
| Trip Edge Quantity | 2 2 |
| Overall Width | 174.8 in 4439 mm |
See how 4.26 m (14 ft), Fusion™ Coupler, Rubber Trip Edge compares against frequently compared products.
Snow Products
4.26 m (14 ft), Fusion™ Coupler, Rubber Trip Edge
Selected
- Working Width
- 168 in
- 4267 mm
- Weight
- 3018.1 lb
- 1369 kg
- Length
- 62 in
- 1574 mm
Snow Products
4.26 m (14 ft), Bucket Receiver, Rubber Trip Edge
- Working Width
- 168 in
- 4267 mm
- Weight
- 2879.2 lb
- 1306 kg
- Length
- 76.6 in
- 1945 mm
Snow Products
4.26 m (14 ft), Bucket Receiver, Steel Trip Edge
- Working Width
- 168 in
- 4267 mm
- Weight
- 3031.4 lb
- 1375 kg
- Length
- 76.6 in
- 1945 mm
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos
Studio Shot
Front View
Top View
Left View
Rear View
Bottom View
Right View
Cat® 289D Compact Track Loader and Snow Push at work in Colorado.
Cat® Snow Push doing the work.
Cat® Snow Attachments at Work
Cat® Snow Push Attachment Overview
Cat® Snow Push Features
Cat® Snow Removal | Attachments at Work
