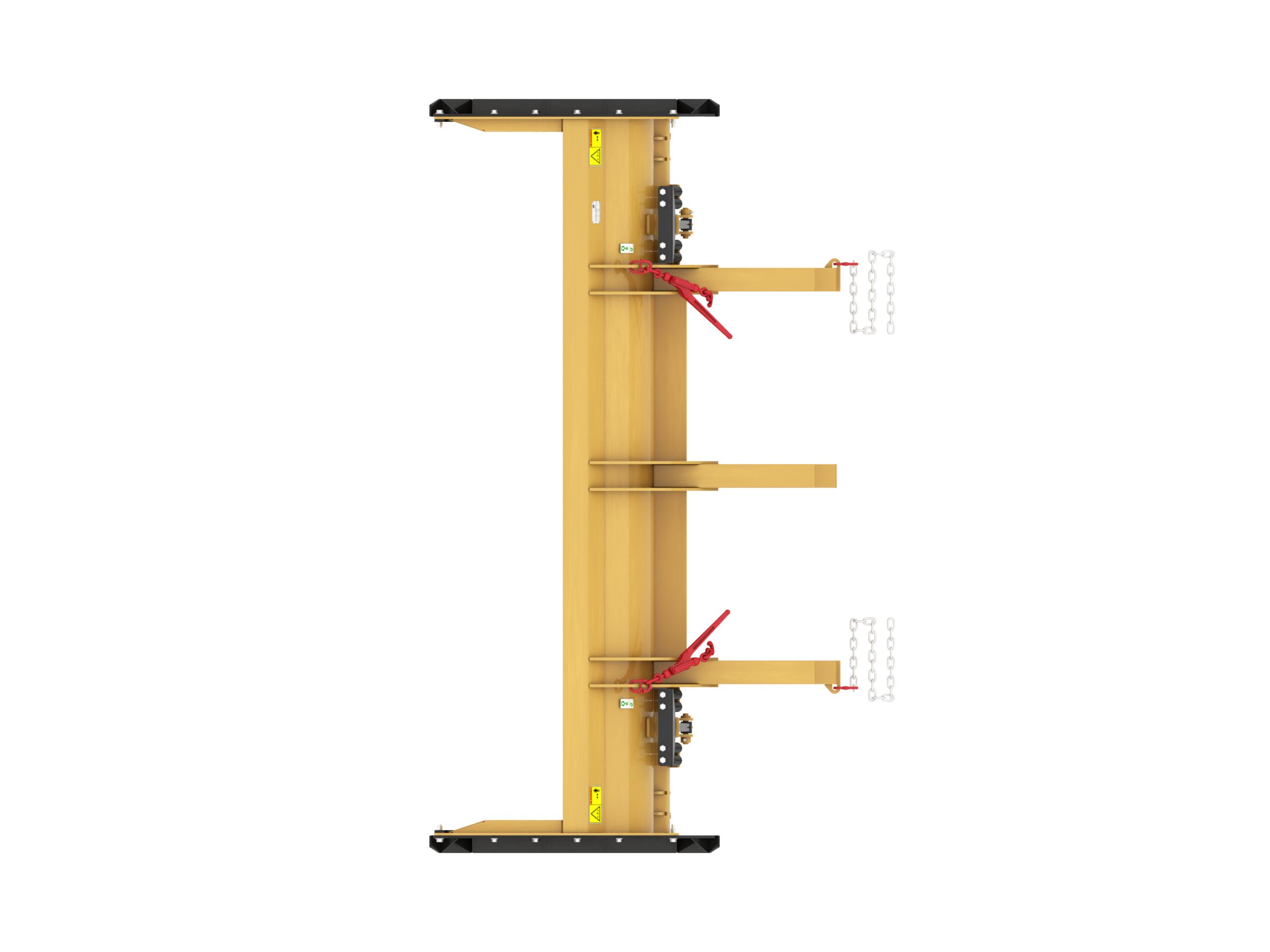

Straight Snow Pushes 3.05 m (10 ft), Bucket Receiver, Steel Trip Edge

Request A Price Shop Now

Key Specs

Working Width: 120 in; 3048 mm

Weight: 1995.2 lb; 905 kg

Length: 69.1 in; 1755 mm

3.05 m (10 ft), Bucket Receiver, Steel Trip Edge
Change model

Overview

Unique design efficiently removes snow minimizing passes and reducing salt build up.

Features At A Glance

Fitted with up to-two cutting edges, most Cat® Snow Pushes are equipped with a trip edge system incorporated in the base. The sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the Snow Push and machine. A no-trip rubber cutting edge option is available in 2.6 m (8 ft), 3.2 m (10 ft), and 3.8 m (12 ft) sizes that fit all models that utilize a Skid Steer Coupler.

Rubber or steel, bolt-on cutting edges are available for all size pushes. Rubber edges minimize damage to the surface being plowed while steel edges cut or throw hard packed snow or ice.

Streamlined sidewall support in addition to the large torque tube across the moldboard, delivers long life and high performance in the most demanding of snow removal application. Outside box support is designed to minimize snow cling to the moldboard in addition to providing excellent support to the outer push sections.

Adjustable skid shoes allow adjustability of cutting edge height to maintain a constant cutting edge depth.

Profiled moldboard design rolls and folds snow, maximizing capacity of the snow push and improving productivity by minimizing snow clinging to its surface.

Bolt-On step provides safe and ergonomic access to machine cab that is easily replaceable if damaged.

Optional back drag equipped with rubber edge allows snow to be pulled away from loading docks, doors, and other tight spaces.

Product Specifications for 3.05 m (10 ft), Bucket Receiver, Steel Trip Edge

Working Width	120 in 3048 mm
Weight	1995.2 lb 905 kg
Length	69.1 in 1755 mm
Moldboard Height	35.7 in 906 mm
Overall Height	38.4 in 975 mm
Interface Type	Bucket Receiver Bucket Receiver
Trip Edge Type	Steel With Trip Edge Steel With Trip Edge
Trip Edge Height	5.4 in 137 mm
Trip Edge Quantity	2 2
Overall Width	126.8 in 3220 mm

Product Specifications for 3.05 m (10 ft), Bucket Receiver, Steel Trip Edge

Download Print

Working Width	120 in 3048 mm
Weight	1995.2 lb 905 kg
Length	69.1 in 1755 mm
Moldboard Height	35.7 in 906 mm
Overall Height	38.4 in 975 mm
Interface Type	Bucket Receiver Bucket Receiver
Trip Edge Type	Steel With Trip Edge Steel With Trip Edge
Trip Edge Height	5.4 in 137 mm
Trip Edge Quantity	2 2
Overall Width	126.8 in 3220 mm
