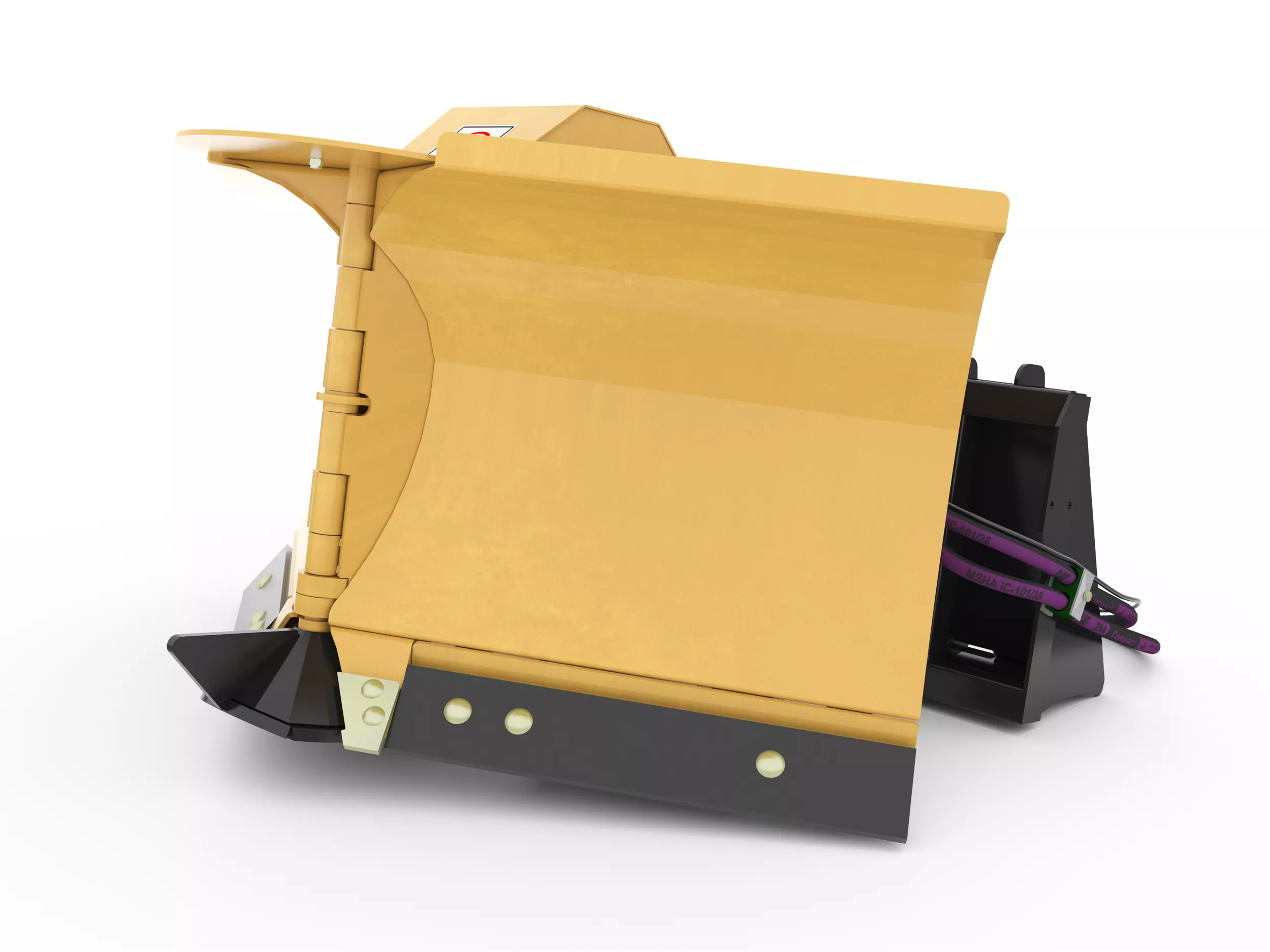

Multi V-Plows 1524 mm (60 in)

Request A Price Shop Now

Key Specs

Straight Width: 60 in; 1524 mm

Angled Width: 53 in; 1346 mm

Interface Type: Skid Steer Coupler; Skid Steer Coupler

1524 mm (60 in)
Change model

Overview

Two independently operating blades that can hydraulically angle into five different blade configurations to move snow with maximum efficiency and power.

Features At A Glance

Displaying 1-6 of 9

Curved Moldboard

Curved moldboard design rolls and folds the snow while windrowing, minimizing snow clinging to its surface and spilling over the top.

Adjustable Skid Plates

Adjustable skid plates reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting edge depth.

Blade Float

Blade float allows the plow the ability to pivot up to five degrees about the plow frame allowing the blade to follow surface contours and plow more efficiently.

Adjustable Trip Edges

Adjustable trip edges are incorporated into the base of each wing. Sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the v-plow and machine.

Bolt-On Serrated Step

Bolt-On serrated step provides safe and ergonomic access to machine cab that is replaceable if damaged.

V (scoop mode) Blade Configuration

V (scoop mode) blade configuration pushes, collects, piles high or holds snow for removal to another area for final clean up.

Curved moldboard design rolls and folds the snow while windrowing, minimizing snow clinging to its surface and spilling over the top.

Adjustable skid plates reduce the chances of gouging plowed surface and allow for improved operator control and maintains a constant cutting edge depth.

Blade float allows the plow the ability to pivot up to five degrees about the plow frame allowing the blade to follow surface contours and plow more efficiently.

Adjustable trip edges are incorporated into the base of each wing. Sectioned off moldboard springs back upon contact with unseen obstacles minimizing risk of damage to the v-plow and machine.

Bolt-On serrated step provides safe and ergonomic access to machine cab that is replaceable if damaged.

V (scoop mode) blade configuration pushes, collects, piles high or holds snow for removal to another area for final clean up.

V (plow mode) blade configuration quickly cuts initial pathway through deep, hard packed snow piles and drifts.

Right/Left angled blade configuration quickly and easily windrows snow to the designated side of the machine.

Straight blade configuration provides maximum width for piling and stacking snow high and clearing light snow cove.

Product Specifications for 1524 mm (60 in)

Straight Width	60 in 1524 mm
Angled Width	53 in 1346 mm
Interface Type	Skid Steer Coupler Skid Steer Coupler
V-Width - Scoop Mode	54 in 1372 mm
V-Width - Plow Mode	58.4 in 1483 mm
Weight	639.3 lb 290 kg
Blade Height	29 in 737 mm
Overall Height	32.5 in 826 mm
Length	52 in 1320 mm
Hydraulic Angling - Left/Right of Center	±35 Degrees ±35 Degrees
Float	±5 Degrees ±5 Degrees
Optimal Hydraulic Flow	57-76 lpm (15-20 gpm) 57-76 lpm (15-20 gpm)
Optimal Hydraulic Pressure	150-230 bar (2176-3340 psi) 150-230 bar (2176-3340 psi)
Trip Edge Quantity	2 2
Trip Edge Type	Steel Steel
Trip Edge Height	4 in 101 mm
Trip Edge Pivot Height	3.3 in 83 mm
Required Hydraulics	Standard Flow Standard Flow

Product Specifications for 1524 mm (60 in)

Download Print

Straight Width	60 in 1524 mm
Angled Width	53 in 1346 mm
Interface Type	Skid Steer Coupler Skid Steer Coupler
V-Width - Scoop Mode	54 in 1372 mm
V-Width - Plow Mode	58.4 in 1483 mm
Weight	639.3 lb 290 kg
Blade Height	29 in 737 mm
Overall Height	32.5 in 826 mm
Length	52 in 1320 mm
Hydraulic Angling - Left/Right of Center	±35 Degrees ±35 Degrees
Float	±5 Degrees ±5 Degrees
Optimal Hydraulic Flow	57-76 lpm (15-20 gpm) 57-76 lpm (15-20 gpm)
Optimal Hydraulic Pressure	150-230 bar (2176-3340 psi) 150-230 bar (2176-3340 psi)
Trip Edge Quantity	2 2
Trip Edge Type	Steel Steel
Trip Edge Height	4 in 101 mm
Trip Edge Pivot Height	3.3 in 83 mm
Required Hydraulics	Standard Flow Standard Flow
