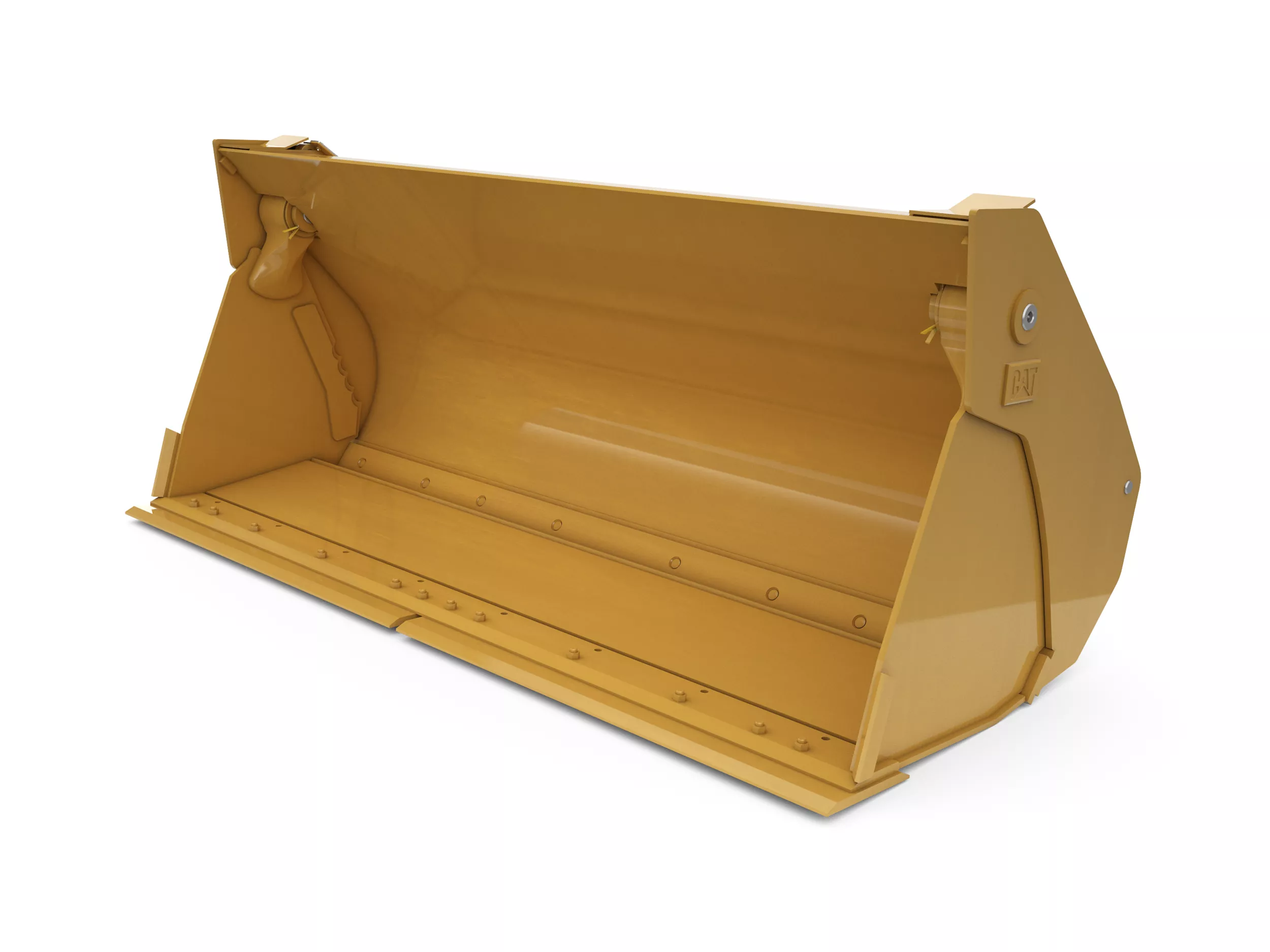

Multi-Purpose Buckets 1.34 m3 (1.75 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Heavy Duty

Request A Price Shop Now

Key Specs

Width: 96.7 in; 2457 mm

Height: 41.5 in; 1054 mm

Weight: 2698.5 lb; 1224 kg

1.34 m3 (1.75 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Heavy Duty
Change model

Overview

Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.

Features At A Glance

Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications.

Excellent clamping force lets you grasp large, irregularly shaped objects such as trees, loose stumps, brush, recycling debris and pipe, increasing the versatility of the machine.

Base bucket also available with bolt-on cutting edge and bolt-on teeth.

2 lifting hooks (4 on Extreme Duty Buckets) allow the operator to lift objects using chain or straps.

See how wide you have your bucket open by looking at the sight guide - easily visible from the operators seat.

Reinforced side plates (Extreme Duty Buckets only) helps to increase lifespan of the bucket.

Product Specifications for 1.34 m3 (1.75 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Heavy Duty

Width	96.7 in 2457 mm
Height	41.5 in 1054 mm
Weight	2698.5 lb 1224 kg
Length	49.7 in 1262 mm
Capacity	1.75 yd³ 1.34 m³
Base Edge Thickness	0.8 in 20 mm
Cutting Edge Thickness	0.7 in 19 mm
Jaw Opening	31 in 787 mm
Clam Angle	83 degrees 83 degrees
Interface Type	Pin On Pin On

Product Specifications for 1.34 m3 (1.75 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Heavy Duty

Download Print

Width	96.7 in 2457 mm
Height	41.5 in 1054 mm
Weight	2698.5 lb 1224 kg
Length	49.7 in 1262 mm
Capacity	1.75 yd³ 1.34 m³
Base Edge Thickness	0.8 in 20 mm
Cutting Edge Thickness	0.7 in 19 mm
Jaw Opening	31 in 787 mm
Clam Angle	83 degrees 83 degrees
Interface Type	Pin On Pin On
