Overview
Load, carry, dump and perform general clean-up work.

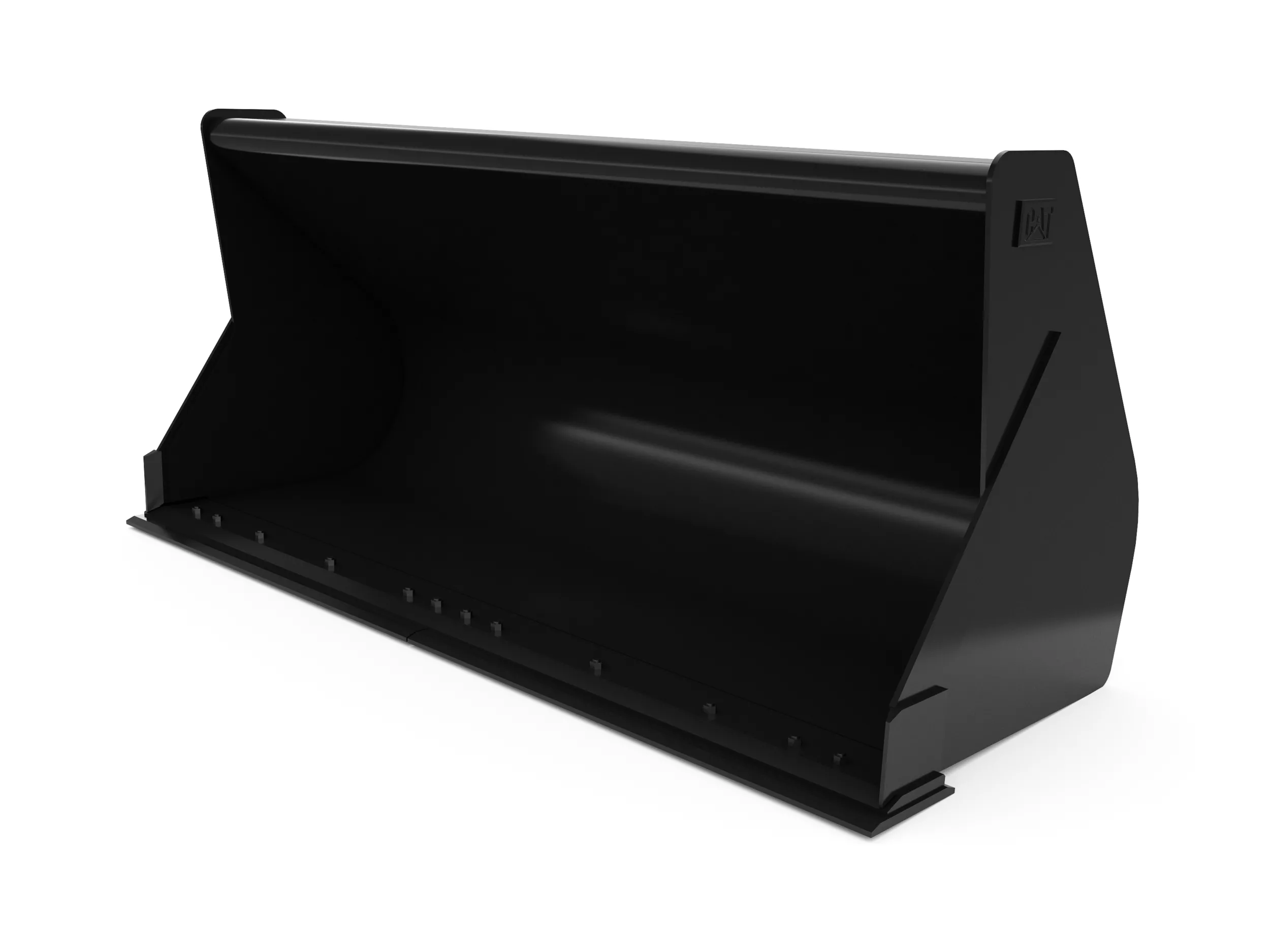

General Purpose Buckets 1.53 m3 (2.0 yd3), IT Coupler, Bolt-On Cutting Edge
Request A Price Shop NowKey Specs
- Width
- 96 in
- 2438 mm
- Height
- 43.4 in
- 1103 mm
- Weight
- 2065.7 lb
- 937 kg
Features At A Glance
Displaying 1-6 of 4
Application
Designed for digging, loading, carrying, leveling, grading and dumping in a variety of applications and materials.
Bucket Design
Formed back wrapper design enhances bucket loading and production in a wide variety of applications.
Superior Bucket Fill
Optimum wrapper angle and lack of sharp corners promote superior bucket fill and reduce material packing for greater productivity.
Ground Engaging Tools
Base bucket also available with bolt-on cutting edge and bolt-on teeth.
Product Specifications for 1.53 m3 (2.0 yd3), IT Coupler, Bolt-On Cutting Edge
| Width | 96 in 2438 mm |
| Height | 43.4 in 1103 mm |
| Weight | 2065.7 lb 937 kg |
| Length | 43.5 in 1106 mm |
| Capacity | 2 yd³ 1.53 m³ |
| Base Edge Thickness | 1 in 25 mm |
| Cutting Edge Thickness | 0.7 in 19 mm |
| Interface Type | IT Coupler IT Coupler |
See how 1.53 m3 (2.0 yd3), IT Coupler, Bolt-On Cutting Edge compares against frequently compared products.
Buckets - Backhoe Front
1.53 m3 (2.0 yd3), IT Coupler, Bolt-On Cutting Edge
Selected
- Width
- 96 in
- 2438 mm
- Height
- 43.4 in
- 1103 mm
- Weight
- 2065.7 lb
- 937 kg
Buckets - Backhoe Front
1.6 m3 (2.1 yd3), IT Coupler, Bolt-On Cutting Edge
- Width
- 95.8 in
- 2433 mm
- Height
- 46.7 in
- 1187 mm
- Weight
- 1600.6 lb
- 726 kg
Buckets - Backhoe Front
1.53 m3 (2.0 yd3), Single Tilt Pin On, Bolt-On Cutting Edge
- Width
- 96 in
- 2438 mm
- Height
- 43.4 in
- 1103 mm
- Weight
- 2403 lb
- 1090 kg
