Overview
Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.

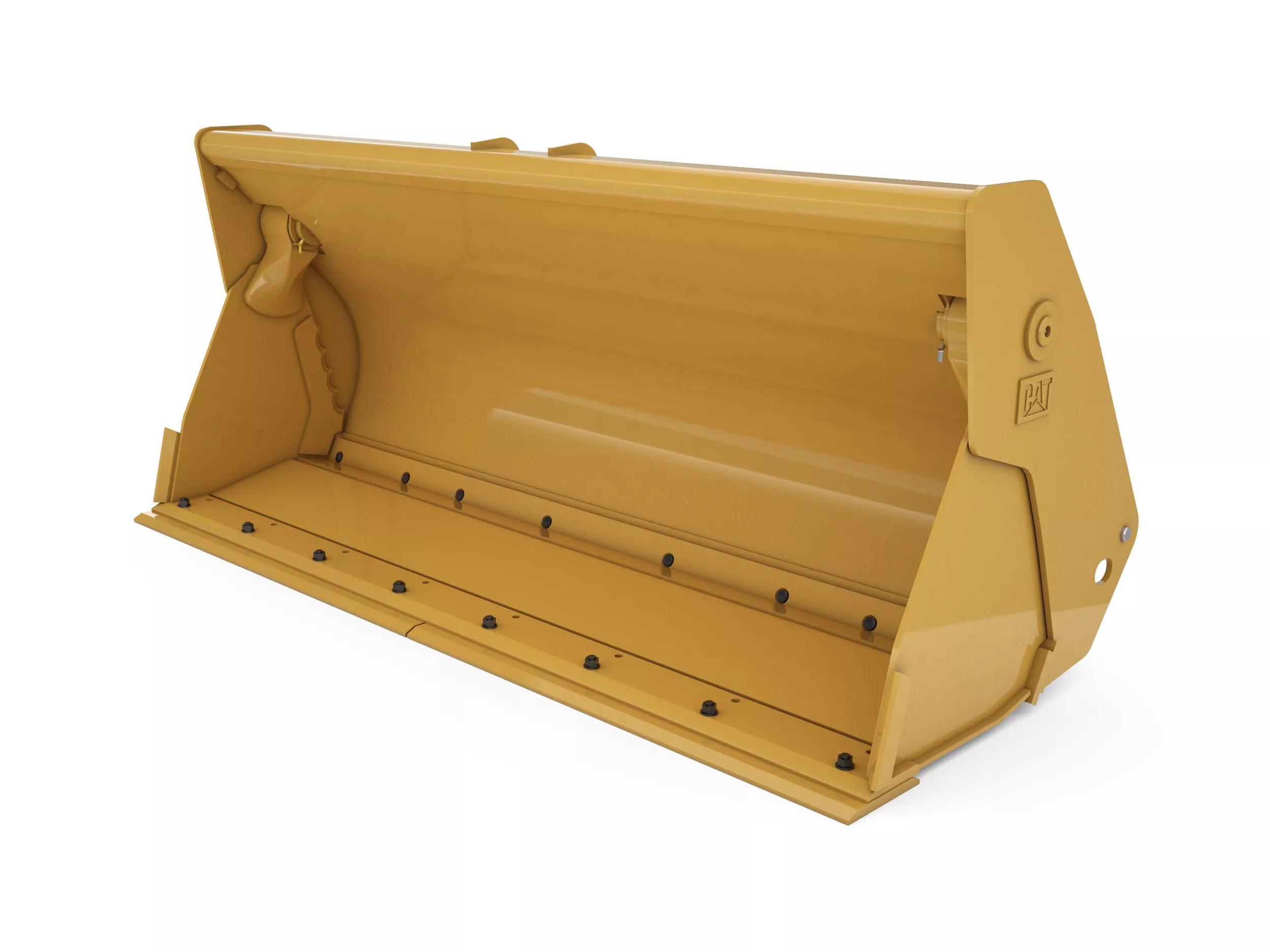

Multi-Purpose Buckets 1.0 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Cutting Edge
Request A Price Shop NowKey Specs
- Width
- 89.1 in
- 2262 mm
- Height
- 39.5 in
- 1004 mm
- Weight
- 1718.9 lb
- 779.7 kg
Features At A Glance
Application
Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications.
Bucket Design
Excellent clamping force lets you grasp large, irregularly shaped objects such as trees, loose stumps, brush, recycling debris and pipe, increasing the versatility of the machine.
Ground Engaging Tools
Base bucket also available with bolt-on cutting edge and bolt-on teeth.
Product Specifications for 1.0 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Cutting Edge
| Width | 89.1 in 2262 mm |
| Height | 39.5 in 1004 mm |
| Weight | 1718.9 lb 779.7 kg |
| Length | 37.5 in 952 mm |
| Capacity | 1.3 ft³ 1 l |
| Base Edge Thickness | 0.8 in 20 mm |
| Cutting Edge Thickness | 0.7 in 19 mm |
| Jaw Opening | 23.7 in 602 mm |
| Clam Angle | 76 degrees 76 degrees |
| Interface Type | Pin On Pin On |
See how 1.0 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Cutting Edge compares against frequently compared products.
Buckets - Backhoe Front
1.0 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Cutting Edge
Selected
- Width
- 89.1 in
- 2262 mm
- Height
- 39.5 in
- 1004 mm
- Weight
- 1718.9 lb
- 779.7 kg
Buckets - Backhoe Front
1.03 m3 (1.3 yd3), Single Tilt Pin On, Base Edge, Forks
- Width
- 89.1 in
- 2262 mm
- Height
- 56.8 in
- 1443 mm
- Weight
- 1819 lb
- 825.09 kg
Buckets - Backhoe Front
1.03 m3 (1.3 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Forks
- Width
- 89.1 in
- 2262 mm
- Height
- 57.6 in
- 1462 mm
- Weight
- 1973.1 lb
- 895 kg
