Overview
Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.
Multi-Purpose Buckets 1.34 m3 (1.75 yd3), IT Coupler, Bolt-On Cutting Edge, Heavy Duty
Request A Price Shop NowKey Specs
- Width
- 96.7 in
- 2457 mm
- Height
- 41.5 in
- 1054 mm
- Weight
- 2414.1 lb
- 1095 kg
Features At A Glance
Displaying 1-6 of 6
Application
Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications.
Bucket Design
Excellent clamping force lets you grasp large, irregularly shaped objects such as trees, loose stumps, brush, recycling debris and pipe, increasing the versatility of the machine.
Ground Engaging Tools
Base bucket also available with bolt-on cutting edge and bolt-on teeth.
Lifting Hooks
2 lifting hooks (4 on Extreme Duty Buckets) allow the operator to lift objects using chain or straps.
Bucket Opening Sight Guide
See how wide you have your bucket open by looking at the sight guide - easily visible from the operators seat.
Reinforced Bucket Side Plates
Reinforced side plates (Extreme Duty Buckets only) helps to increase lifespan of the bucket.
Product Specifications for 1.34 m3 (1.75 yd3), IT Coupler, Bolt-On Cutting Edge, Heavy Duty
| Width | 96.7 in 2457 mm |
| Height | 41.5 in 1054 mm |
| Weight | 2414.1 lb 1095 kg |
| Length | 42.2 in 1072 mm |
| Capacity | 1.75 yd³ 1.34 m³ |
| Base Edge Thickness | 0.8 in 20 mm |
| Cutting Edge Thickness | 0.7 in 19 mm |
| Jaw Opening | 31 in 787 mm |
| Clam Angle | 83 degrees 83 degrees |
| Interface Type | IT Coupler IT Coupler |
See how 1.34 m3 (1.75 yd3), IT Coupler, Bolt-On Cutting Edge, Heavy Duty compares against frequently compared products.
Buckets - Backhoe Front
1.34 m3 (1.75 yd3), IT Coupler, Bolt-On Cutting Edge, Heavy Duty
Selected
- Width
- 96.7 in
- 2457 mm
- Height
- 41.5 in
- 1054 mm
- Weight
- 2414.1 lb
- 1095 kg
Buckets - Backhoe Front
1.14 m3 (1.5 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Forks
- Width
- 95.5 in
- 2425 mm
- Height
- 41.7 in
- 1059 mm
- Weight
- 2455.9 lb
- 1114 kg
Buckets - Backhoe Front
1.34 m3 (1.75 yd3), IT Coupler, Bolt-On Cutting Edge, Extreme Duty
- Width
- 96.7 in
- 2457 mm
- Height
- 41.5 in
- 1054 mm
- Weight
- 2577.2 lb
- 1169 kg
assignment Product Brochures and More Are Ready to Download!
Caterpillar product brochures and other informational documents are available for your growing business.
Media Gallery
Photos
Videos

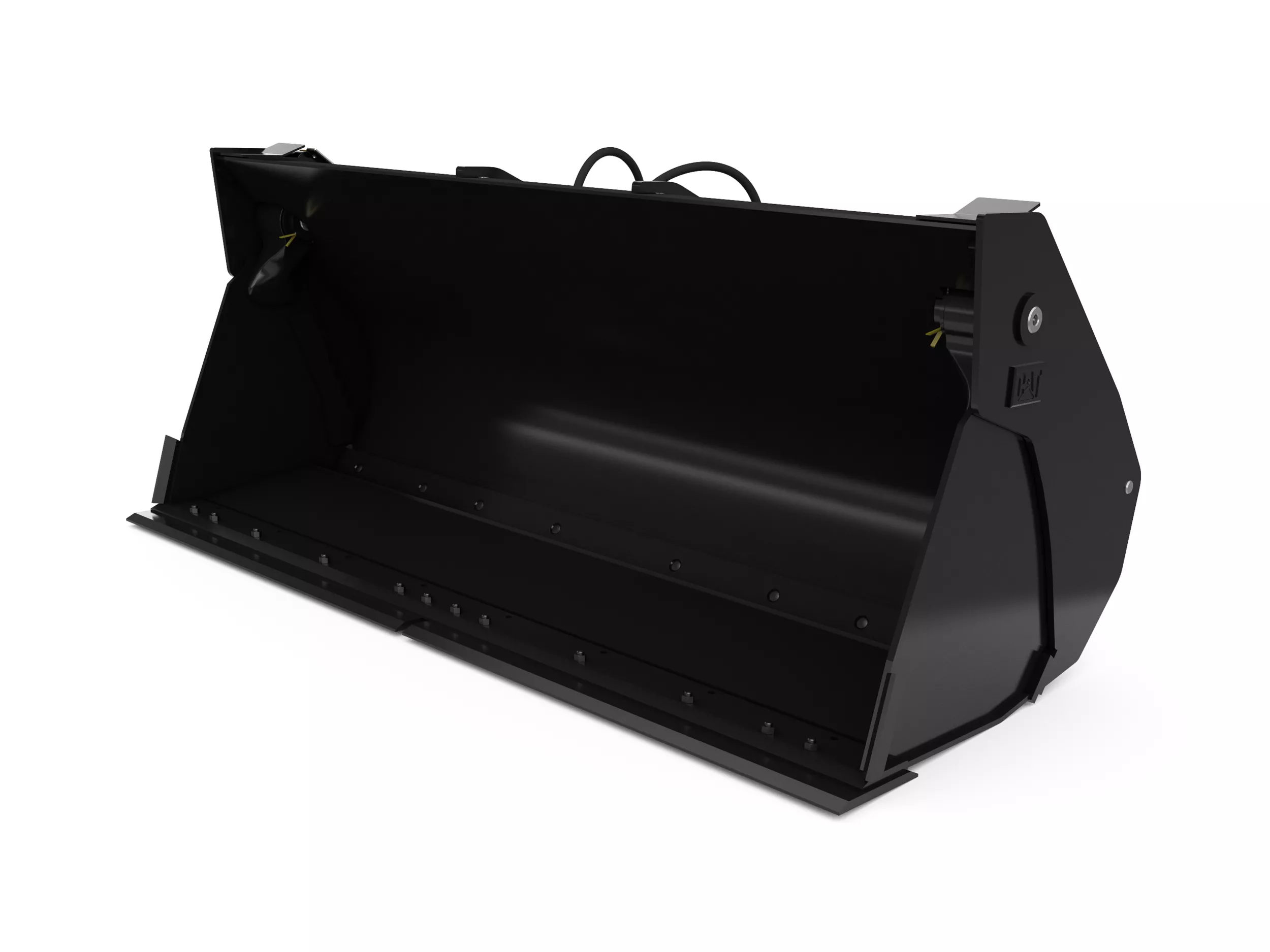

Studio Shot
Front View

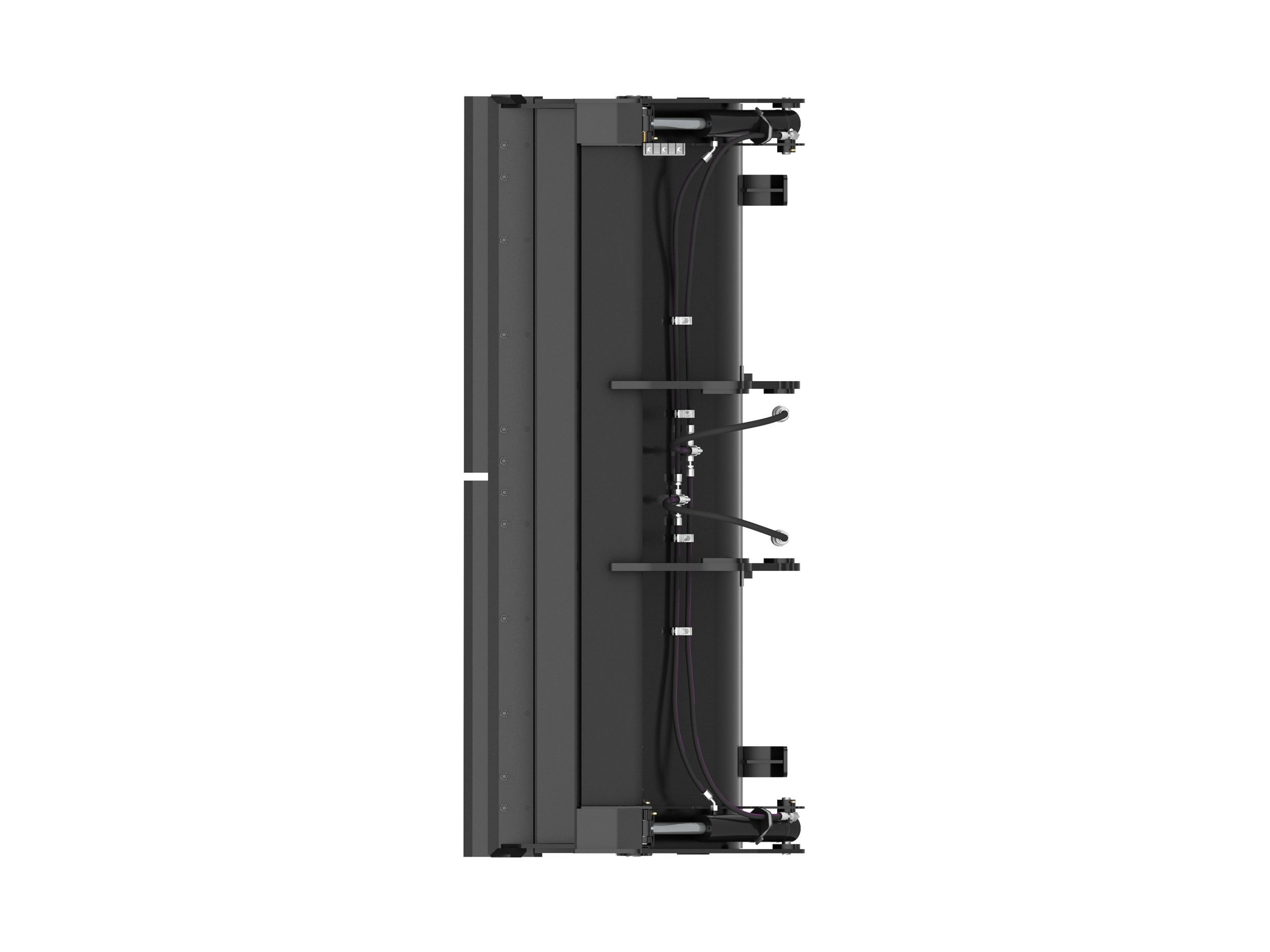

Top View

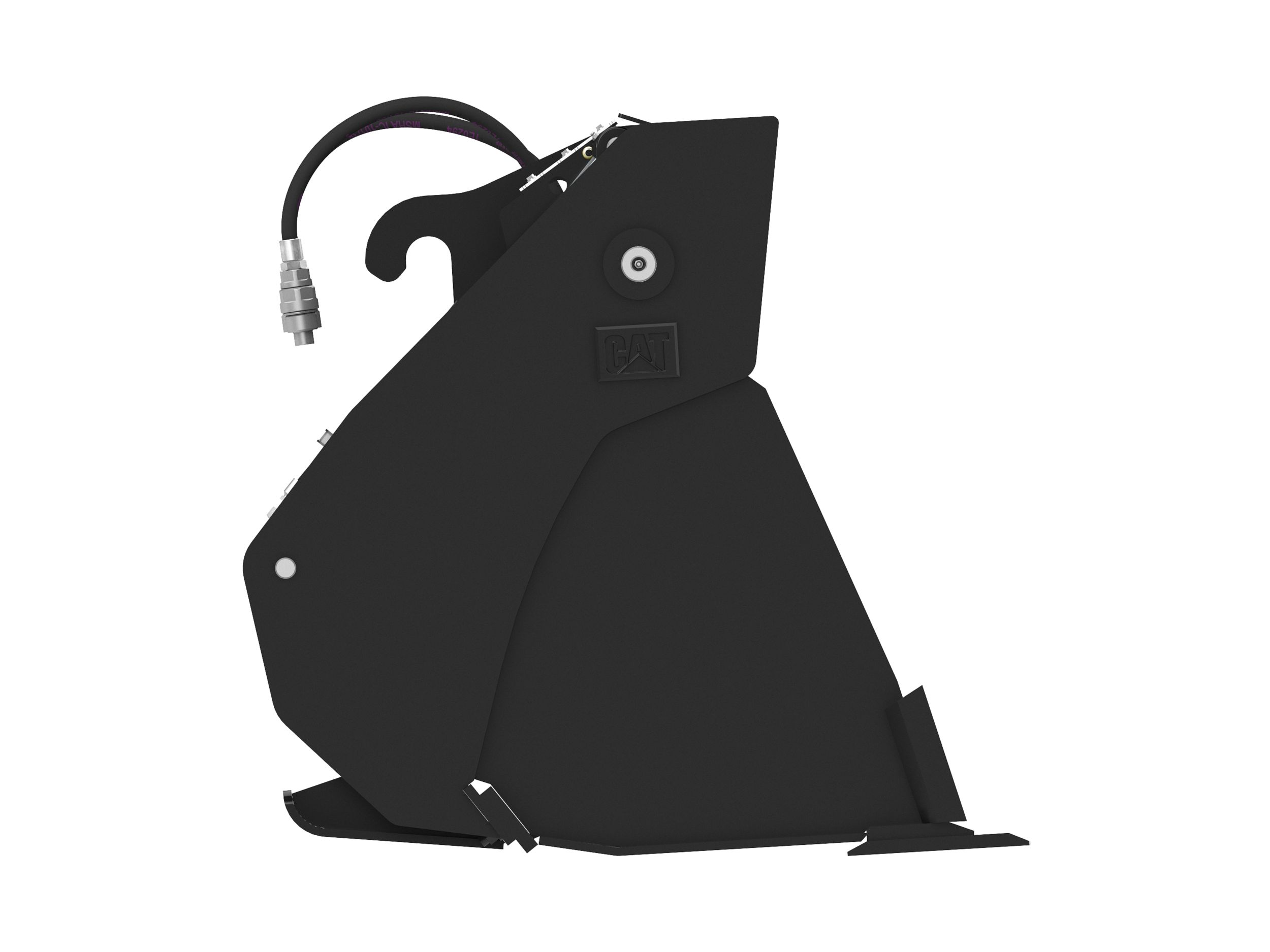

Left View
Rear View
Bottom View
Right View
Cat® Multi Purpose Buckets at Work
An Attachment for Every Job - Cat® Work Tool Attachments
