Overview
Excellent versatility for re-handling, clamping, dozing, grading, leveling and dumping.

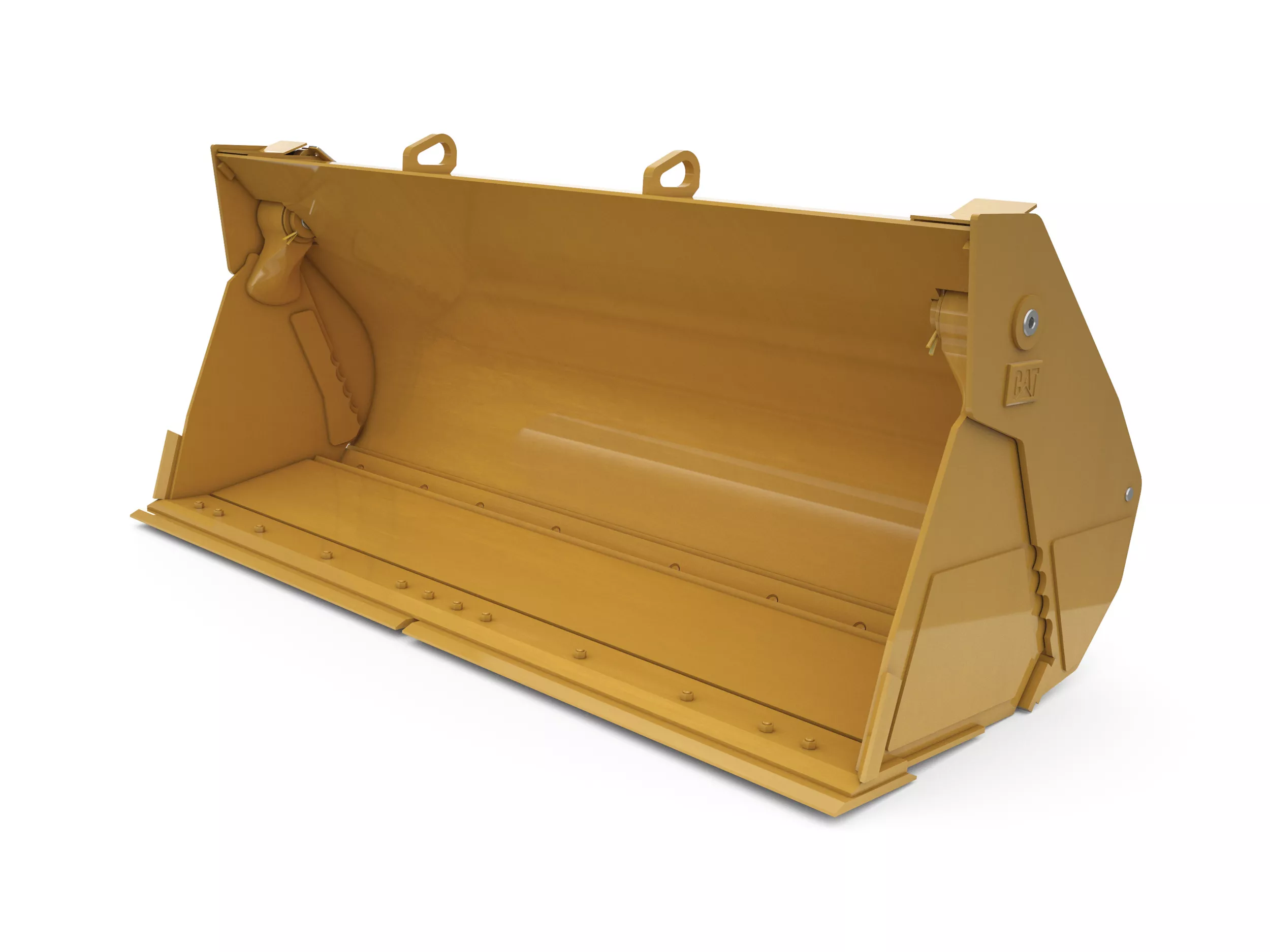

Multi-Purpose Buckets 1.34 m3 (1.75 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Extreme Duty
Request A Price Shop NowKey Specs
- Width
- 96.7 in
- 2457 mm
- Height
- 43.3 in
- 1100 mm
- Weight
- 2866 lb
- 1300 kg
Features At A Glance
Displaying 1-6 of 6
Application
Ideal for digging, dozing, clamping, back dragging, grading and leveling in construction, landscaping, industrial and demolition applications.
Bucket Design
Excellent clamping force lets you grasp large, irregularly shaped objects such as trees, loose stumps, brush, recycling debris and pipe, increasing the versatility of the machine.
Ground Engaging Tools
Base bucket also available with bolt-on cutting edge and bolt-on teeth.

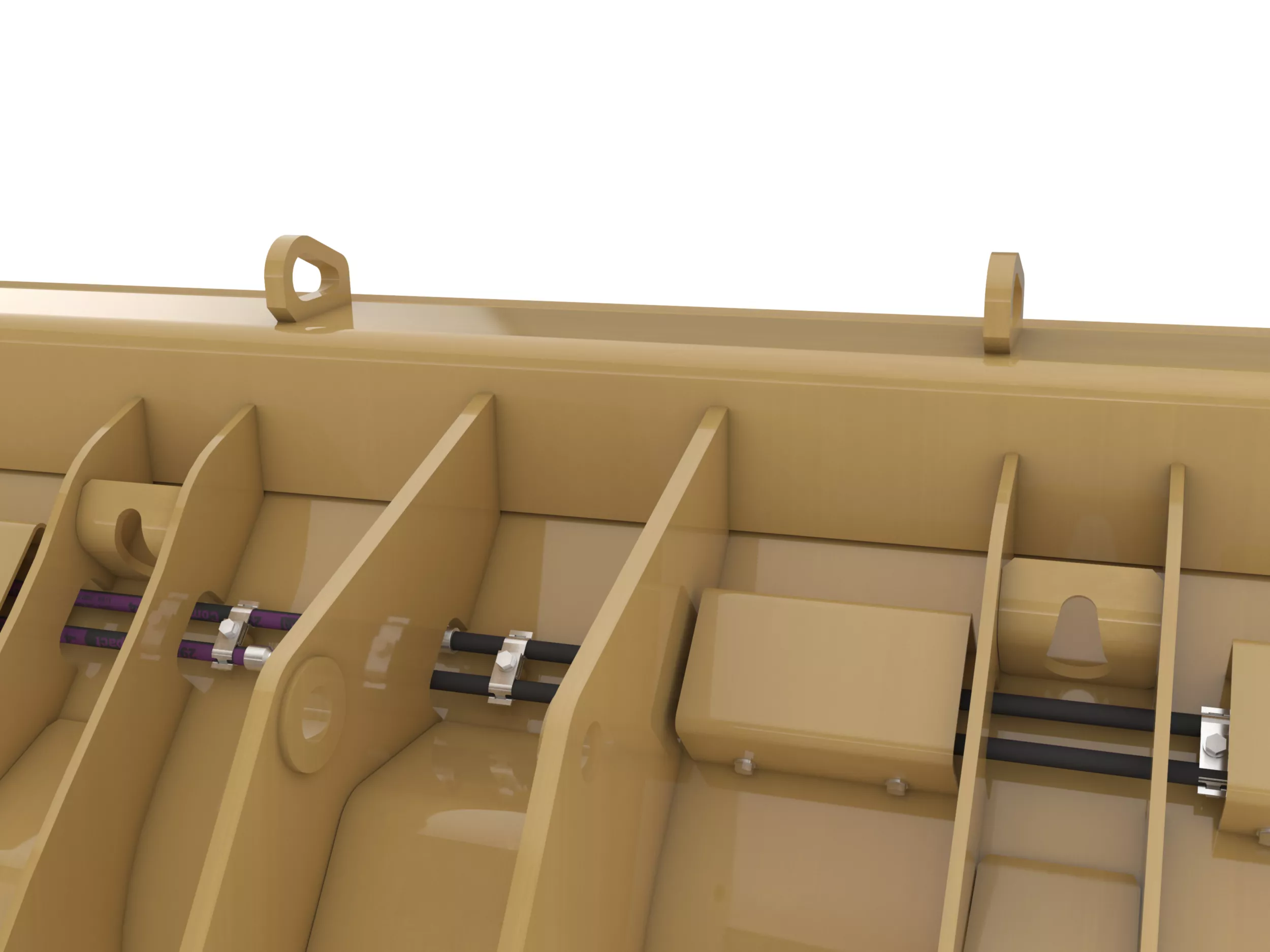

Lifting Hooks
2 lifting hooks (4 on Extreme Duty Buckets) allow the operator to lift objects using chain or straps.

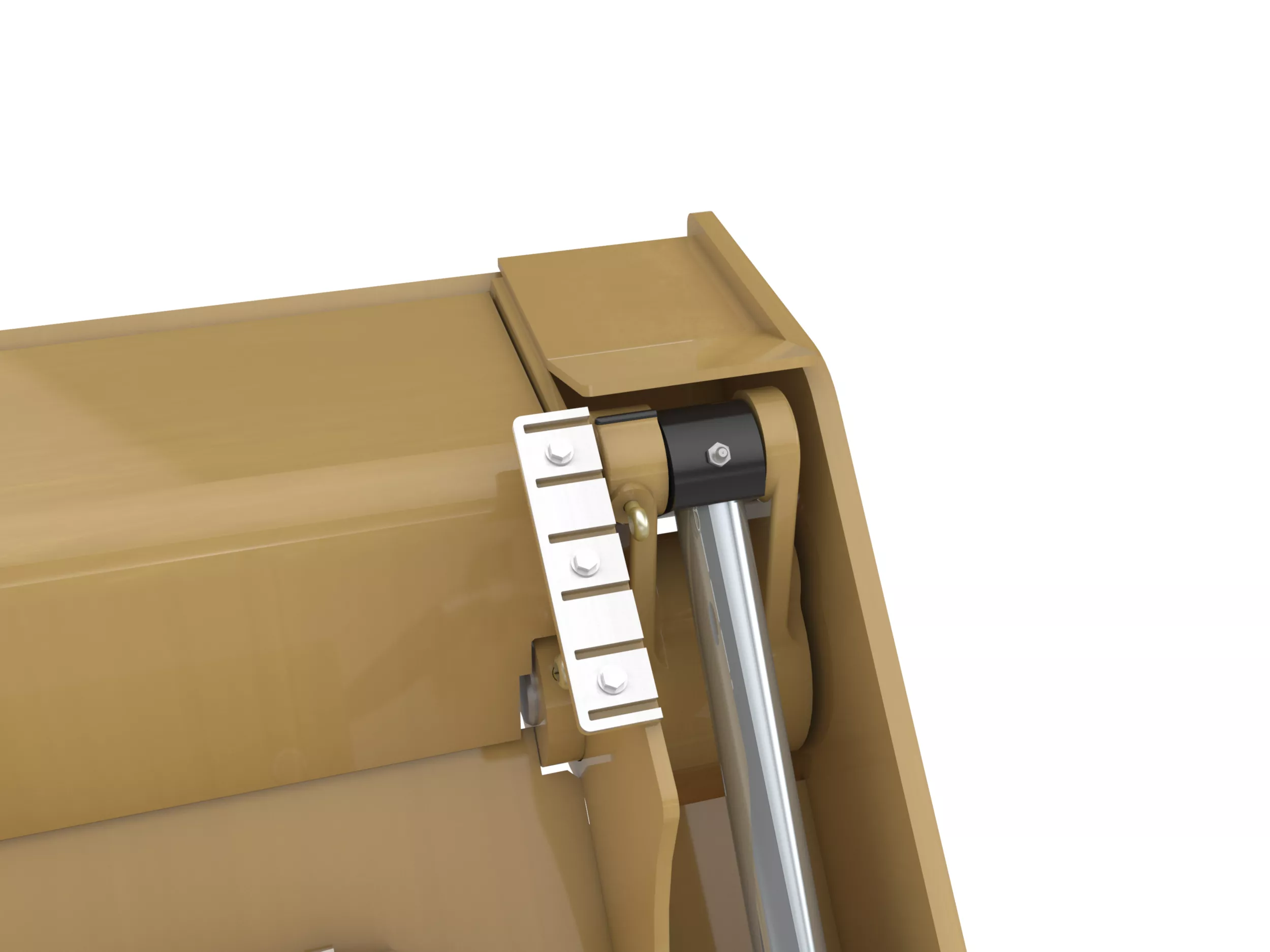

Bucket Opening Sight Guide
See how wide you have your bucket open by looking at the sight guide - easily visible from the operators seat.

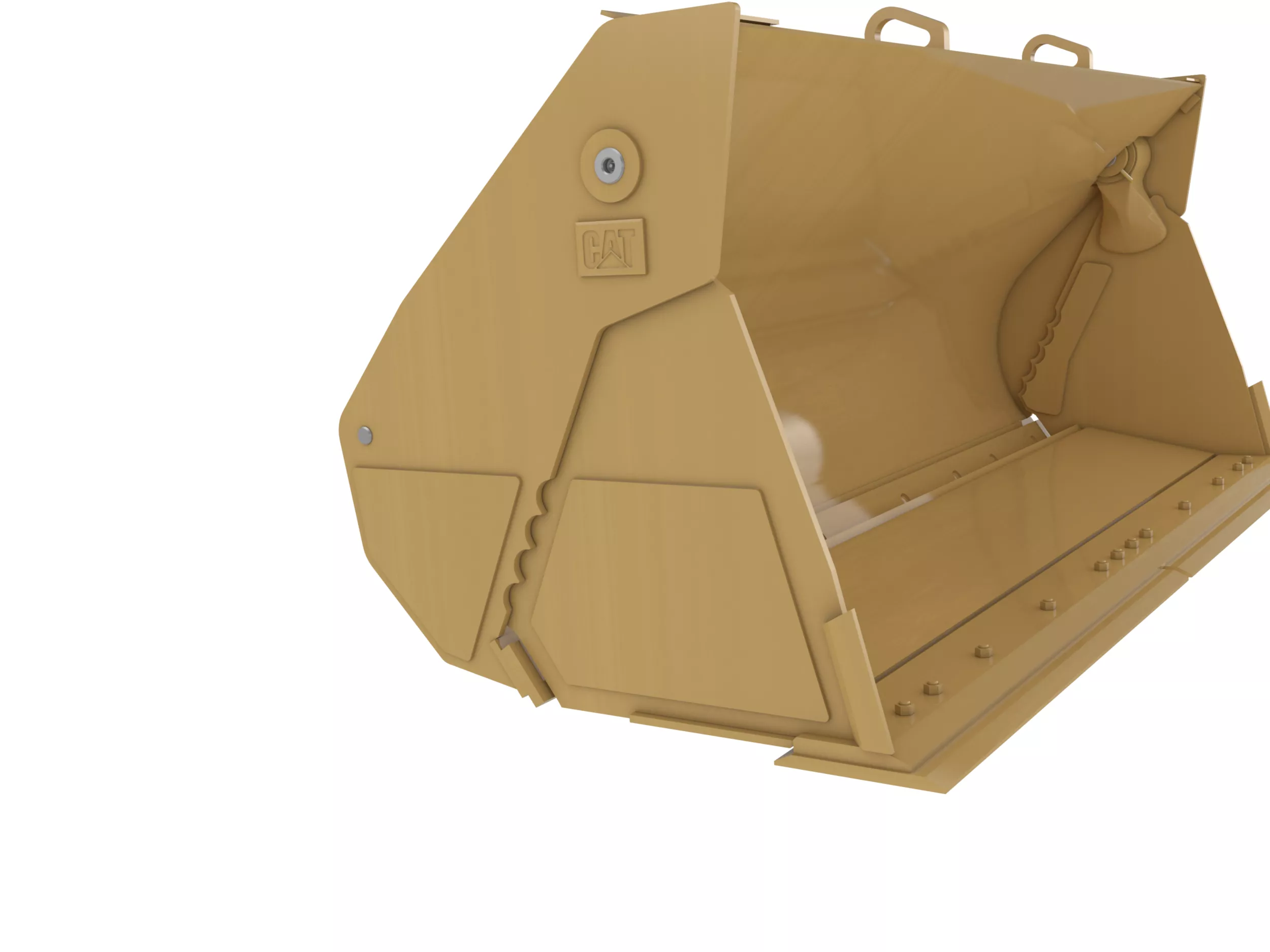

Reinforced Bucket Side Plates
Reinforced side plates (Extreme Duty Buckets only) helps to increase lifespan of the bucket.
Product Specifications for 1.34 m3 (1.75 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Extreme Duty
| Width | 96.7 in 2457 mm |
| Height | 43.3 in 1100 mm |
| Weight | 2866 lb 1300 kg |
| Length | 48.7 in 1237 mm |
| Capacity | 1.75 yd³ 1.34 m³ |
| Base Edge Thickness | 0.8 in 20 mm |
| Cutting Edge Thickness | 0.7 in 19 mm |
| Jaw Opening | 31 in 787 mm |
| Clam Angle | 83 degrees 83 degrees |
| Interface Type | Pin On Pin On |
See how 1.34 m3 (1.75 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Extreme Duty compares against frequently compared products.
Buckets - Backhoe Front
1.34 m3 (1.75 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Extreme Duty
Selected
- Width
- 96.7 in
- 2457 mm
- Height
- 43.3 in
- 1100 mm
- Weight
- 2866 lb
- 1300 kg
Buckets - Backhoe Front
1.34 m3 (1.75 yd3), Single Tilt Pin On, Bolt-On Cutting Edge, Heavy Duty
- Width
- 96.7 in
- 2457 mm
- Height
- 41.5 in
- 1054 mm
- Weight
- 2698.5 lb
- 1224 kg
Buckets - Backhoe Front
1.34 m3 (1.75 yd3), IT Coupler, Bolt-On Cutting Edge, Extreme Duty
- Width
- 96.7 in
- 2457 mm
- Height
- 41.5 in
- 1054 mm
- Weight
- 2577.2 lb
- 1169 kg
