Power Box Rakes PR123 Hydraulic Angle

Request A Price Shop Now

Key Specs

Roller Width: 90 in; 2286 mm

Overall Width: 99 in; 2515 mm

Maximum Angle - Right or Left: 20 degrees; 20 degrees

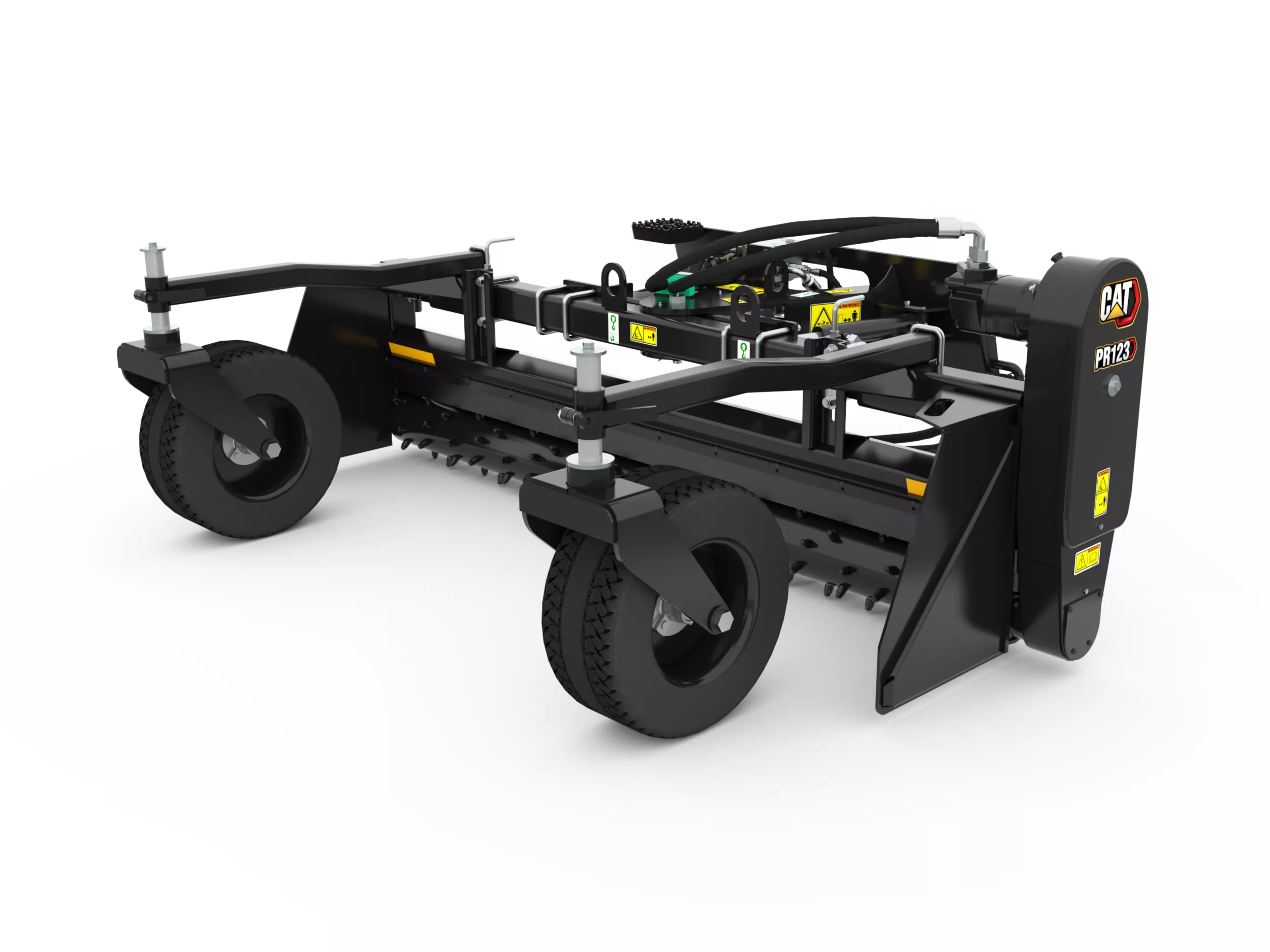

PR123 Hydraulic Angle
Change model

Overview

Designed for clearing and preparing soil in landscape finishing applications.

Features At A Glance

Displaying 1-6 of 9

Application

Offers the versatility to de-thatch, remove old lawns and weeds, grade, level, rake, remove debris and prepare seedbeds with one work tool.

Angling Ability

Angling ability allows the operator to windrow collected debris for easy pickup and removal.

Milling Action

Consistent milling action creates an ideal seedbed for great germination results, laying the groundwork for a perfect lawn.

Manual or Hydraulic Angling

Manual or hydraulic angling up to 20 degrees right or left of center. Hydraulic angling option allows the operator to control the power box rake angle from the operator compartment.

Adjustable Gauge Wheels

Dual independently adjustable gauge wheels allow for skim passes for over-seeding or adjust to cut drainage grades.

Two-Position Winged Endplates

Two-position winged endplates allow close raking to side walks or foundations. They can remain parallel, even during angling, for smoother plowing.

Offers the versatility to de-thatch, remove old lawns and weeds, grade, level, rake, remove debris and prepare seedbeds with one work tool.

Angling ability allows the operator to windrow collected debris for easy pickup and removal.

Consistent milling action creates an ideal seedbed for great germination results, laying the groundwork for a perfect lawn.

Manual or hydraulic angling up to 20 degrees right or left of center. Hydraulic angling option allows the operator to control the power box rake angle from the operator compartment.

Dual independently adjustable gauge wheels allow for skim passes for over-seeding or adjust to cut drainage grades.

Two-position winged endplates allow close raking to side walks or foundations. They can remain parallel, even during angling, for smoother plowing.

Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.

Wet, dry, weedy, hard and rocky soil can be dried, flattened, pulverized and conditioned for seed in one step.

Wide step with grating and large profile serrations provide better traction for entering and exiting the cab.

Product Specifications for PR123 Hydraulic Angle

Roller Width	90 in 2286 mm
Overall Width	99 in 2515 mm
Maximum Angle - Right or Left	20 degrees 20 degrees
Raking Width at Maximum Angle	85 in 2159 mm
Overall Length	72.4 in 1840 mm
Overall Height	37.5 in 953 mm
Weight	1336 lb 606 kg
Required Hydraulics	Standard Flow w/14 Pin Electrical Standard Flow w/14 Pin Electrical
Optimal Hydraulic Flow	49-87 L/min (13-23 gpm) 49-87 L/min (13-23 gpm)
Optimal Hydraulic Pressure	170-241 bar (2500-3500 psi) 170-241 bar (2500-3500 psi)

Product Specifications for PR123 Hydraulic Angle

Download Print

Roller Width	90 in 2286 mm
Overall Width	99 in 2515 mm
Maximum Angle - Right or Left	20 degrees 20 degrees
Raking Width at Maximum Angle	85 in 2159 mm
Overall Length	72.4 in 1840 mm
Overall Height	37.5 in 953 mm
Weight	1336 lb 606 kg
Required Hydraulics	Standard Flow w/14 Pin Electrical Standard Flow w/14 Pin Electrical
Optimal Hydraulic Flow	49-87 L/min (13-23 gpm) 49-87 L/min (13-23 gpm)
Optimal Hydraulic Pressure	170-241 bar (2500-3500 psi) 170-241 bar (2500-3500 psi)
