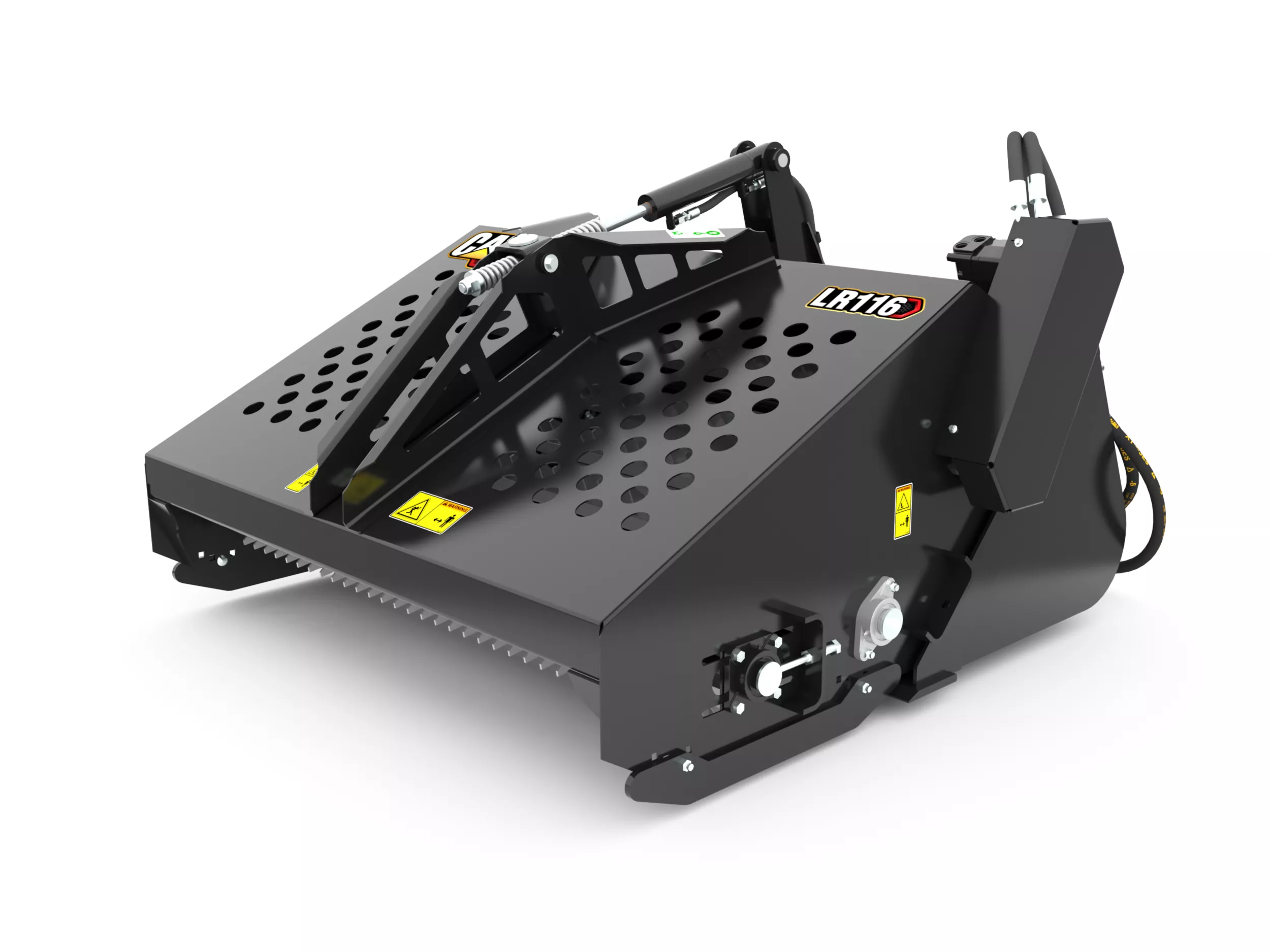

Landscape Rakes LR116

Request A Price Shop Now

Key Specs

Working Width: 62 in; 1576 mm

Bucket Capacity - Struck: 0.4 yd³; 0.31 m³

Weight: 1311.7 lb; 595 kg

LR116
Change model

Overview

For scarifying the soil and collecting debris for easy removal.

Features At A Glance

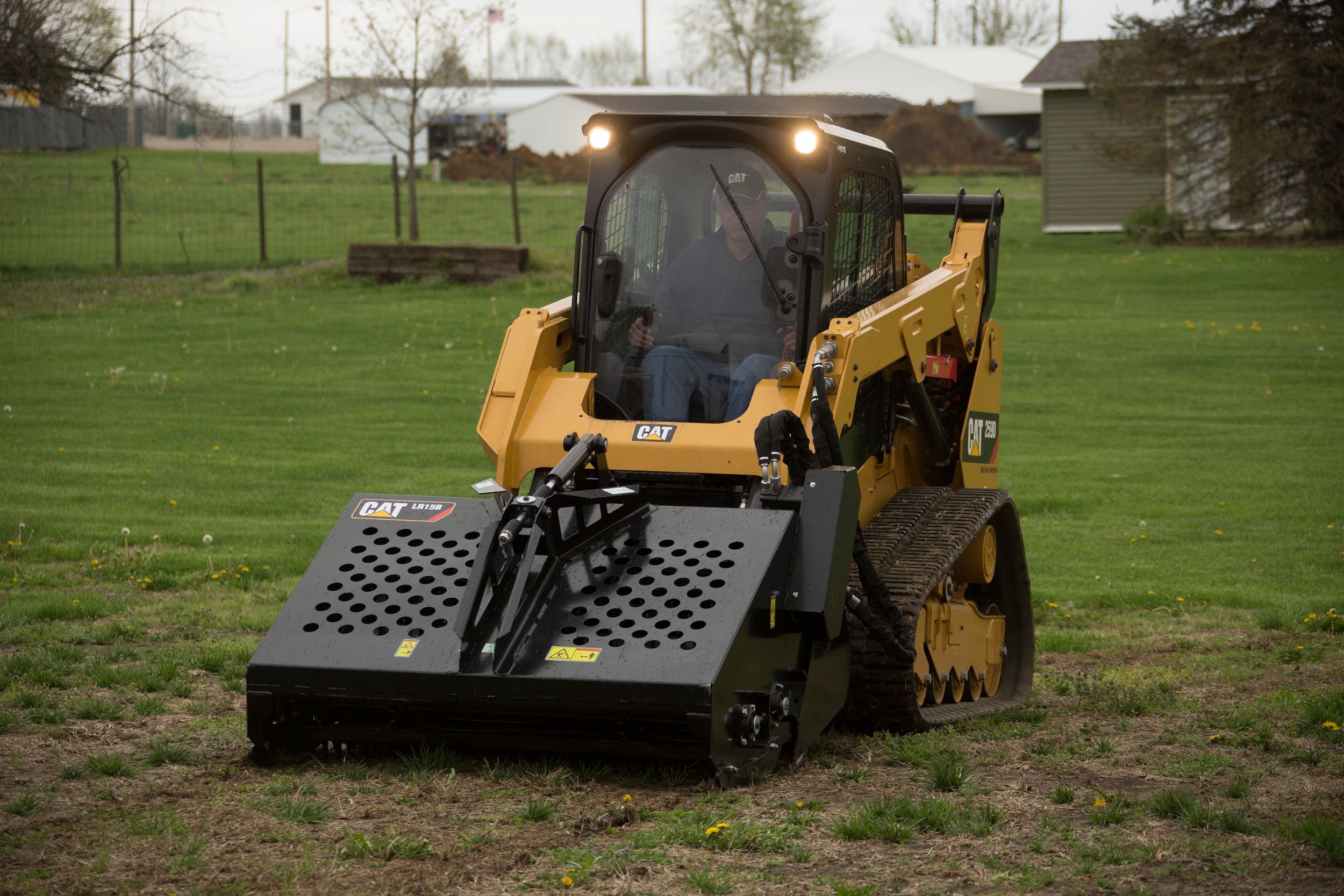

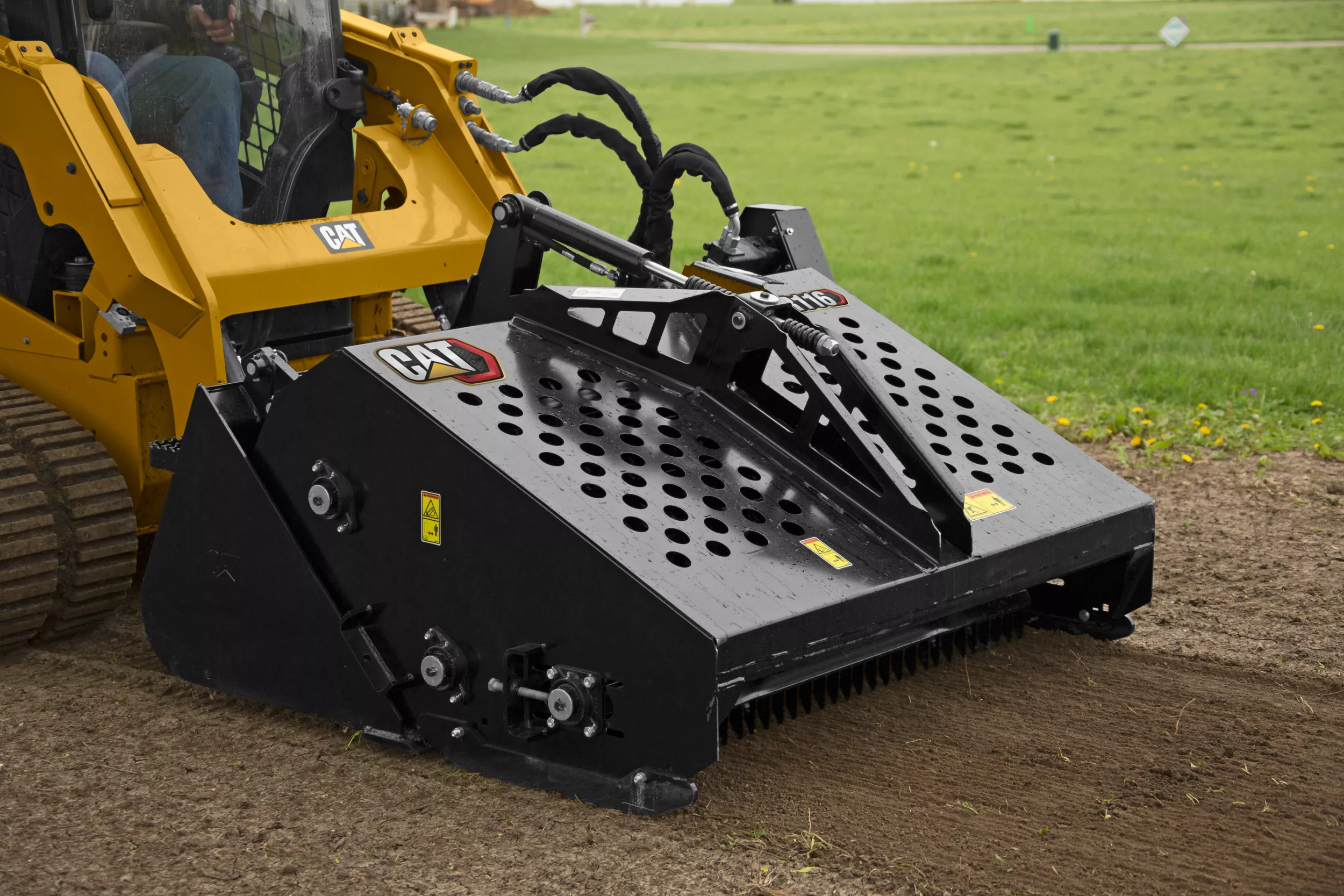

Uses the scarifying action of the hardened teeth to pulverize, aerate, level and condition the soil, while collecting and depositing rock and debris in the integrated hopper bucket for quick removal.

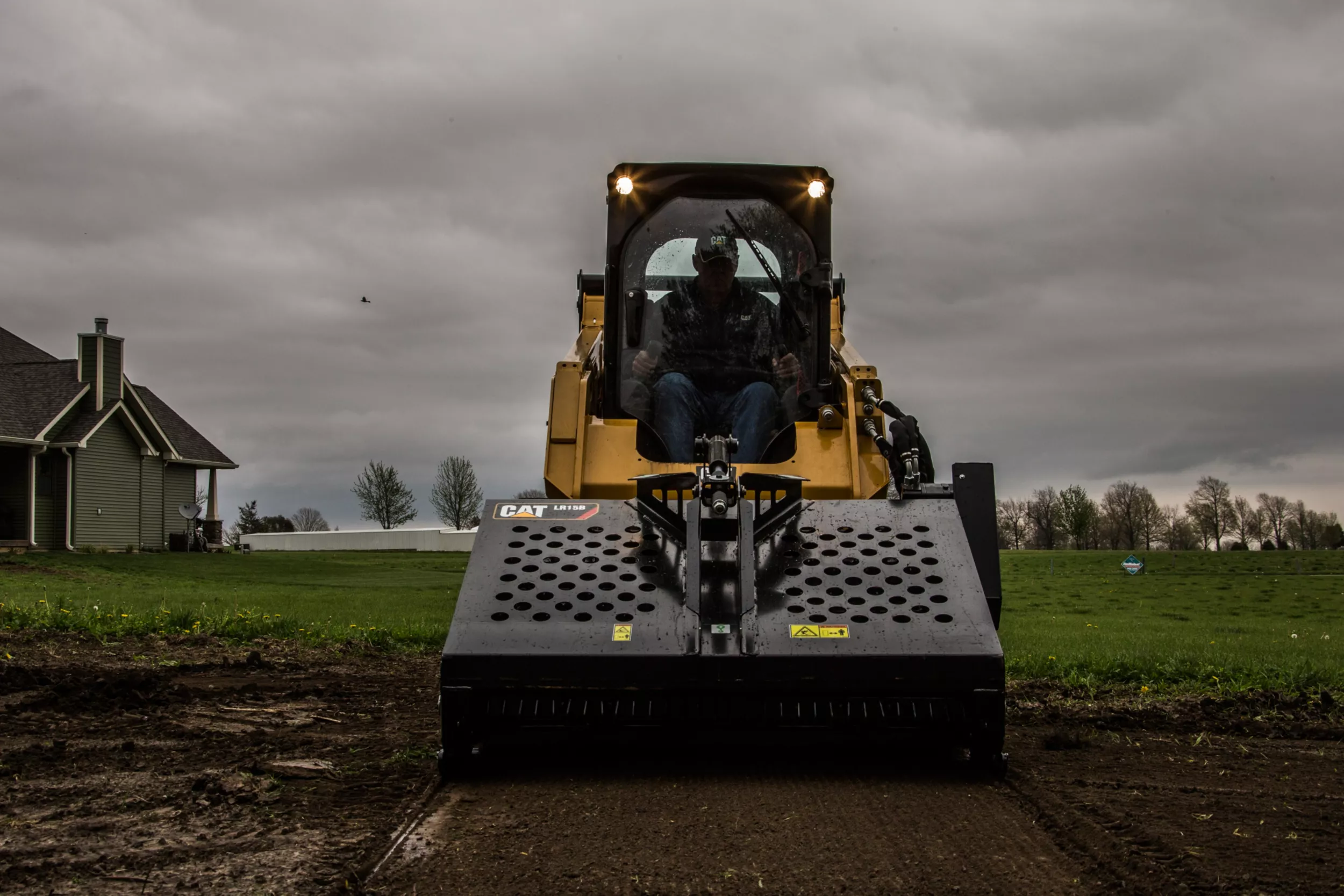

Designed to operate with the loader traveling in reverse, leaving the soil finely groomed with minimal tire compaction.

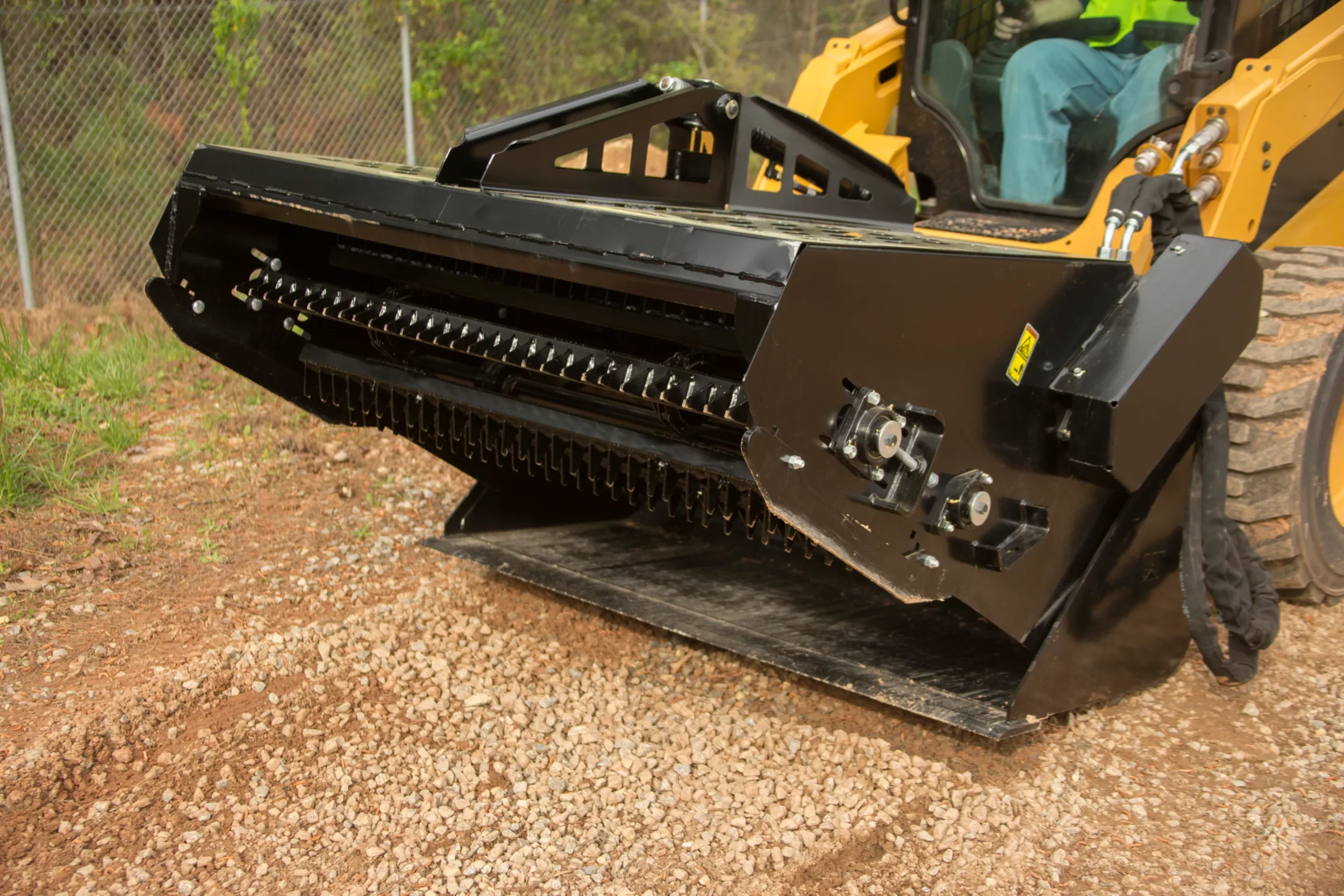

Chain reduction drive system and steel teeth are built for maximum strength and durability in the toughest soil conditions.

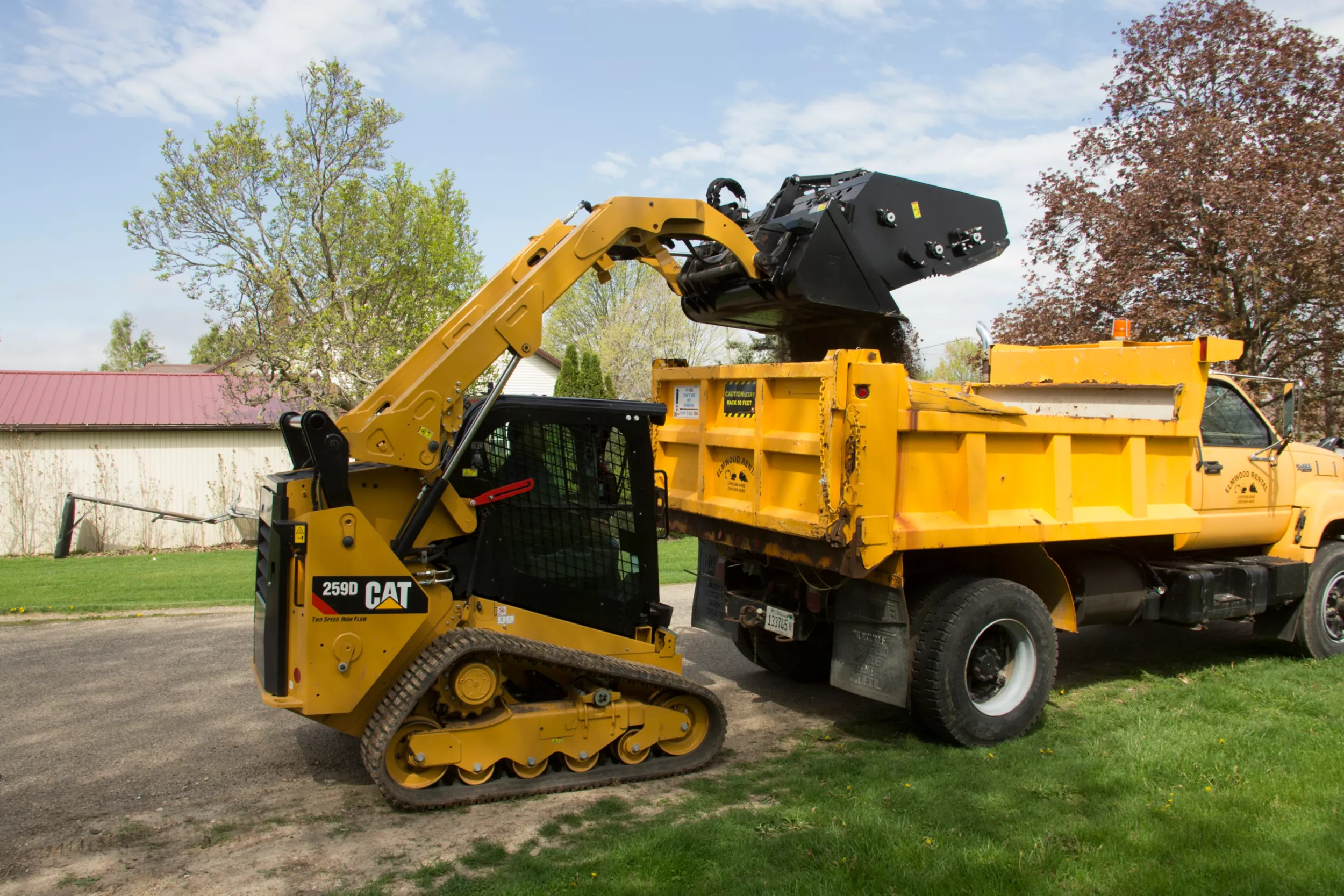

Quick dumping capability is accomplished with a poppet check valve that stops flow to the hydraulic motor and directs flow to the rake head cylinder. Once the hopper bucket is full, simply reverse flow to actuate the rake head cylinder and dump the bucket.

Bolt-on conveyor tubes for easy replacement and serviceability.

Product Specifications for LR116

Working Width	62 in 1576 mm
Bucket Capacity - Struck	0.4 yd³ 0.31 m³
Weight	1311.7 lb 595 kg
Raking Width	54.5 in 1384 mm
Overall Width	66.3 in 1683 mm
Height	38.9 in 989 mm
Length	63.8 in 1620 mm
Optimal Hydraulic Flow	42-86 L/min (11-23 gpm) 42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi) 145-235 bar (2100-3400 psi)
Motor Displacement	19.2 in³/rev 315 cm³/rev
Driven Shaft Speed	165 rpm @ 80 L/min (21 gpm) 165 rpm @ 80 L/min (21 gpm)
Number of Hard Face Tines	372 372
Rock Size Range	19-152 mm (0.75-6 in) 19-152 mm (0.75-6 in)
Drive Method	Chain Reduction Chain Reduction
Drive Chain	#80H #80H
Conveyor Chain	#2060H #2060H
Required Hydraulics	Standard Flow Standard Flow
